CC1350: RF Section Not Working On Our Design Custom Board

Nilesh Dalvi

Part Number: CC1350

Hi,

we have designed our custom CC1350 board by reference from your CC1350 hardware design document. my custom board programmed successfully and also run LED blinking and UART program successfully.

but on our custom board design RF section is not working, The same code working in Development board.in case of RF.

for the RF section, we have used SUB 1 Ghz section with 433 Mhz frequency.

we have refer your CC1350 Design as it is.

so please suggest us how to debug this issue. and what will be the debugging steps for this RF.

Thank you

Nilesh

over 6 years ago

0 RGW over 6 years ago

TI__Mastermind 33160 points

Hi,
Please share your schematic and we can review it.
Regards, Richard

0 Nilesh Dalvi over 6 years ago in reply to RGW

Expert 2325 points

hi ,

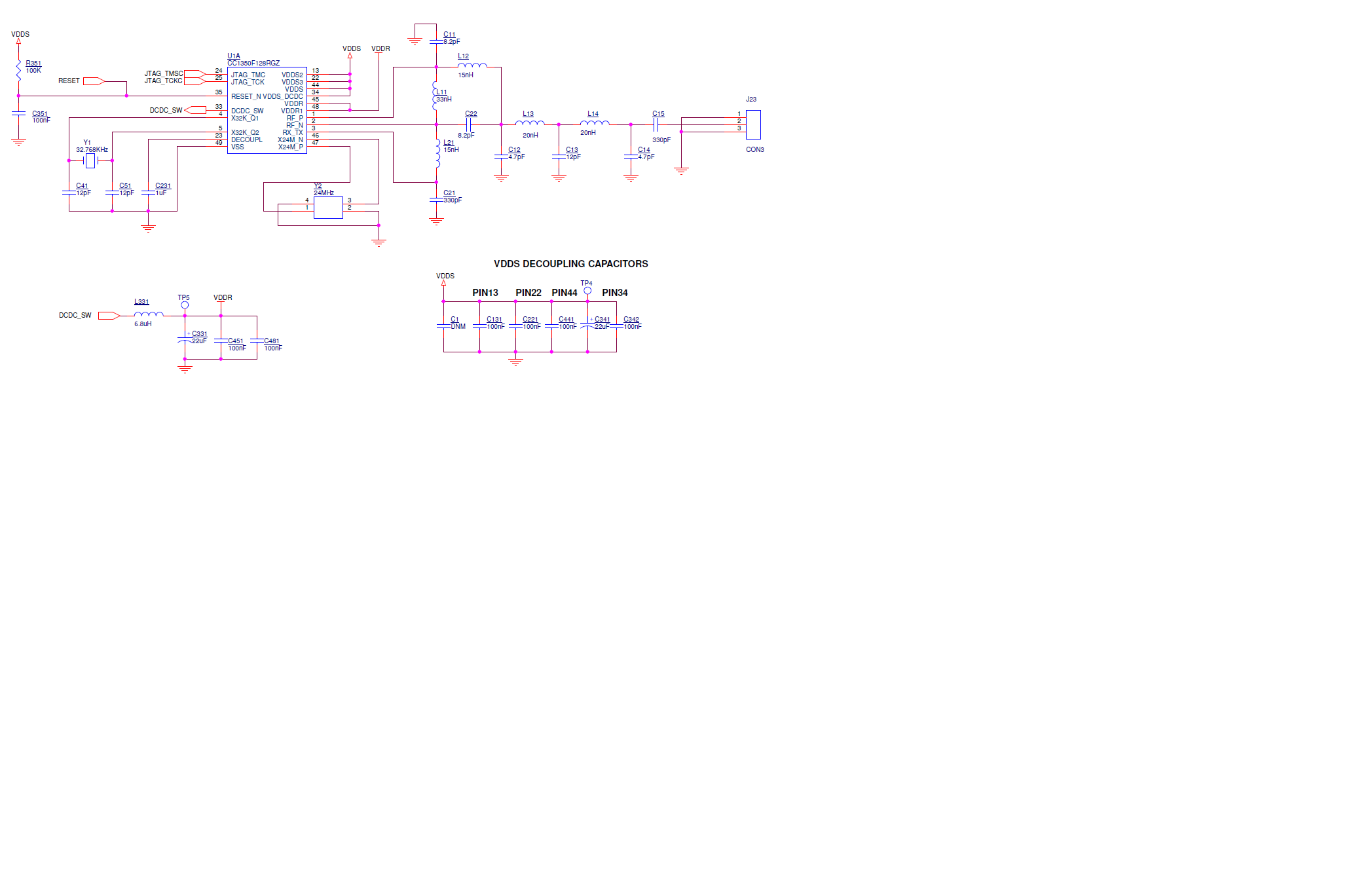

here i am attaching the picture of the schematic of RF section please review it.

revert me back if any mistake is occured.

0 Martin Helie over 6 years ago

Expert 2555 points

Cap array tuning, maybe?

0 Nilesh Dalvi over 6 years ago in reply to Martin Helie

Expert 2325 points

please specify the capacitor array values.

0 Martin Helie over 6 years ago in reply to Nilesh Dalvi

Expert 2555 points

Nilesh Dalvi said:
please specify the capacitor array values.

Well, it depends on your board. You might want to experiment with SmartRF Studio to find out.

0 Keith Barkley over 6 years ago

Guru 42085 points

What do you mean by "not working"? Are you getting any power at all?

The first step is to make sure that all the values are correct. Do you have any 18nF where an 18 pF is supposed to be?

Use an ohmeter to see if everything ohms out correctly. Do you have any shorts to ground?

Finally, do you have a > 1 GHz scope available? You can use that (with a high-Z probe!) to make sure that the voltages at the various nodes make sense, or see where you lose signal.

0 RGW over 6 years ago in reply to Nilesh Dalvi

TI__Mastermind 33160 points

The schematic looks OK.

What is the conducted output power level at J23 ?

0 RGW over 6 years ago in reply to Martin Helie

TI__Mastermind 33160 points

If the cap array is incorrect, then this can be seen by measuring the frequency offset.

0 RGW over 6 years ago in reply to RGW

TI__Mastermind 33160 points

Closing thread. If there are any open issues. Just let me know.
