WL1837MOD: Ignoring 802.11ax health packets

Darren Jenkins

Part Number: WL1837MOD
Other Parts Discussed in Thread: WL1837,

WiFi team,

Our customer is using the WL1837MOD as a station. When they connect to 802.11ax APs (Wi-Fi 6), the health packets cause the WL1837 to wake up too often through the WoWLAN, about every 5 seconds. This is impacting battery life of their system. Is it possible to keep WoWLAN enabled but not respond to the health packets? How do they do this?

Thanks,
Darren

over 3 years ago

0 Sabeeh Khan1 over 3 years ago

TI__Mastermind 31010 points

Hi Darren,

What kind of packets would they normally like to wake up to? What are they currently setting? Could they share the specific wowlan magic that they are currently using?

Furthermore, there are types of packets that can trigger a wakeup. Please read through section 6 in its entirety in this document, and specifically section 6.4 magic packet: https://www.ti.com/lit/ug/swru576/swru576.pdf

0 Darren Jenkins over 3 years ago in reply to Sabeeh Khan1

TI__Genius 12521 points

Hi Sabeeh,

The "host" will send a TCP packet to this device about once/minute when this device is idle. The WoWLAN pattern looks like this:

iw phy ph0 wowlan enable patterns ${ADDR}:-:-:-:-:-:-:08:00:45:-:-:-:-:-:-:-:-:06 ${ADDR}:-:-:-:-:-:-:88:8e

Thanks,
Darren

0 Sabeeh Khan1 over 3 years ago in reply to Darren Jenkins

TI__Mastermind 31010 points

Hi Darren,

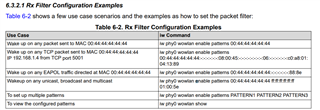

Could you try setting the filter to the TCP port? Something like the second row in this table (I believe 13:89 corresponds to 5001):

0 Darren Jenkins over 3 years ago in reply to Sabeeh Khan1

TI__Genius 12521 points

Hi Sabeeh,

They followed this advice, and the AP is still waking the device. This is the output:

xxxxxxxx:/ # iw phy0 wowlan show

WoWLAN is enabled:

* wake up on packet offset: 0 pattern: 00:1a:ae:13:26:c6:--:--:--:--:--:--:08:00:45:--:--:--:--:--:--:--:--:06:--:--:--:--:--:--:0a:00:01:

a4:13:89

Thanks,
Darren

0 Sabeeh Khan1 over 3 years ago in reply to Darren Jenkins

TI__Mastermind 31010 points

That is really interesting. Could you ask the customer to perform a WiFi wireshark sniffer capture? I can then go over the logs to see which packets are causing wakeup, it will help understand what is going on.

0 Darren Jenkins over 2 years ago in reply to Sabeeh Khan1

TI__Genius 12521 points

Hi Sabeeh,

I emailed you two log files. One is the customer log file from the linux command prompt, and one is the wireshark log.

Thanks,
Darren

0 Sabeeh Khan1 over 2 years ago in reply to Darren Jenkins

TI__Mastermind 31010 points

Hey Darren,

Thanks for providing the logs. I'll need a few days to analyze and then get back to you.
