CC2340R5: Regarding wireless layout issues and component selection issues

Hello Marvin,

Have you (or the customer) already submitted a design review request through SIMPLELINK-2-4GHZ-DESIGN-REVIEWS Design tool | TI.com? If not this would be the first thing I would recommend.

Your attached pictures do not show up currently as well.

To test you board I would also recommend using SmartRF Studio 8, then selecting any PHY and doing a continuous TX/RX test, and then a normal packet test.

Thanks,
Alex F

Hi Alex,

Good day. the SimpleLink_24GHz_Design_Review_Request_Form.xlsx does not include the CC2340R5 in the drop down list. How can I proceed?

Hello Marvin,

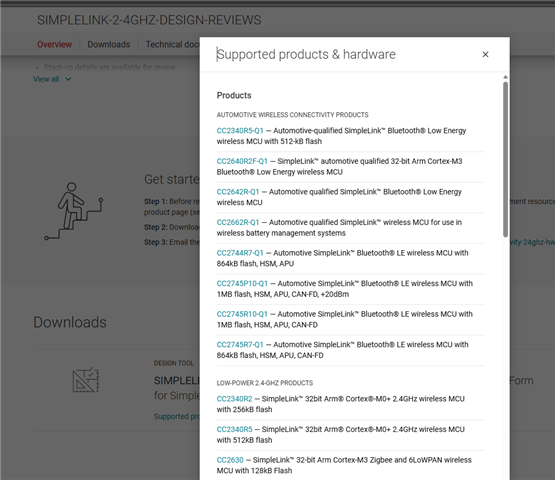

CC2340R5 should be supported:

(can you manually type in the CC2340R5 in the request form, rather than the dropdown?)

Thanks,
Alex F

Hi Alex,

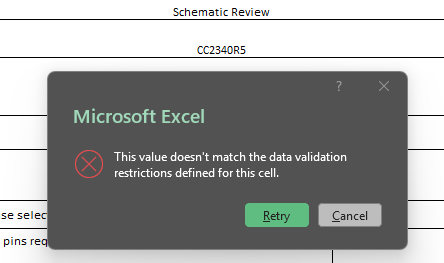

The excel file wont let me manually type in CC2340R5

Hello Marvn Arcangel,

I just checked the Excel sheet and with my HW team member about this and we confirmed that the CC2340x is missing from the sheet. For now, I would recommend leaving the cell alone, and on the cell to the right manually type in CC2340R5 (and write this in the email).

Can you also reply with information (datasheet/design) about the ceramic antenna? I will get the HW team member on this thread to help look into it (again the pictures on the first post for whatever reason do not display)

Thanks,
Alex F
