CC3200 module hardware problem

liang xie

Other Parts Discussed in Thread: CC3200, CC3200SDK

Dear All,

i get some problem when i use the cc3200(Production) in my product, it is perfect when i run the bare code(without NWP subsystem), such as blinkly project and timer project, but when run the udpsocket project or out-of-box project and so on(with NWP subsystem), the program will died in sl_start().

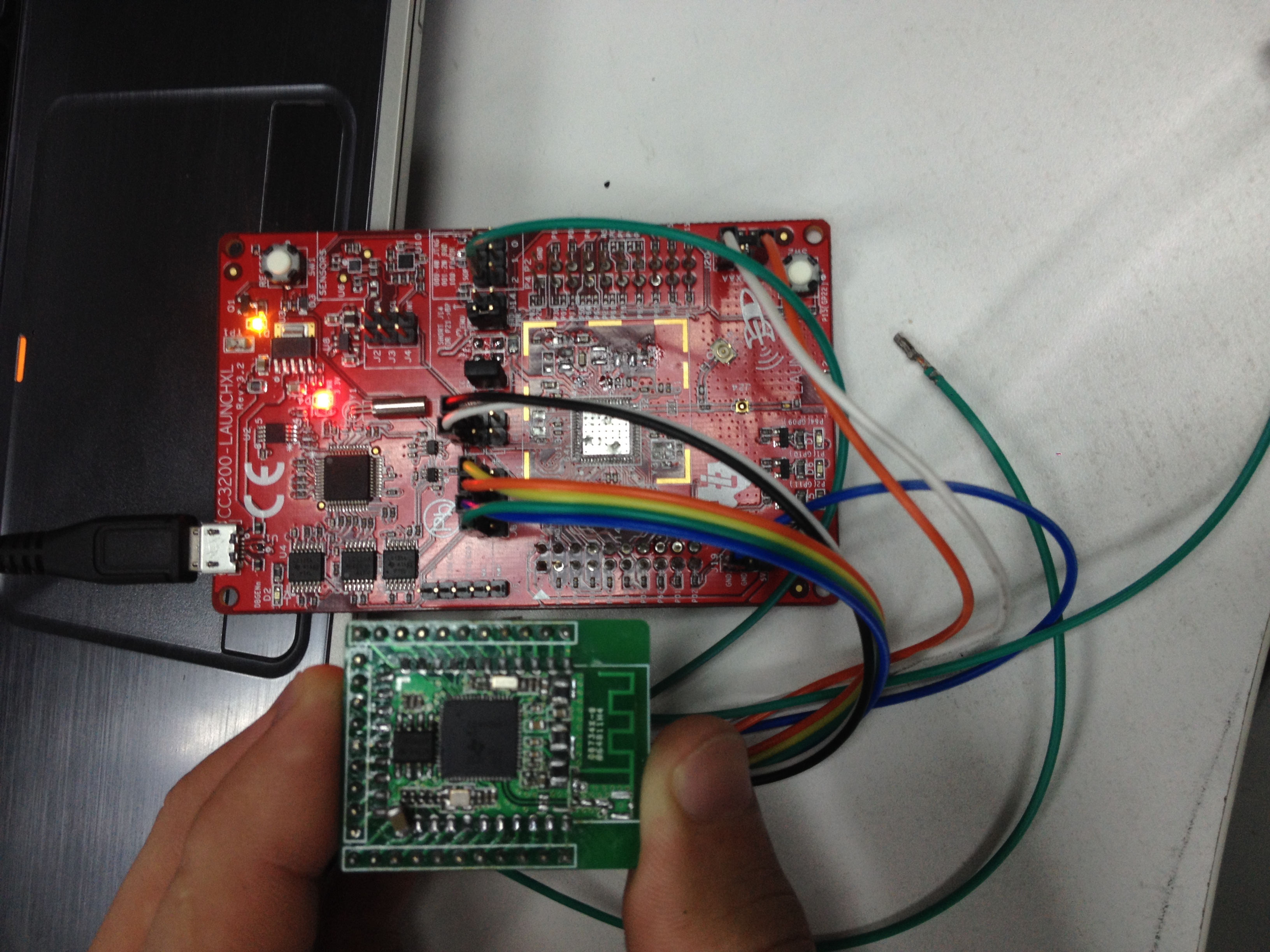

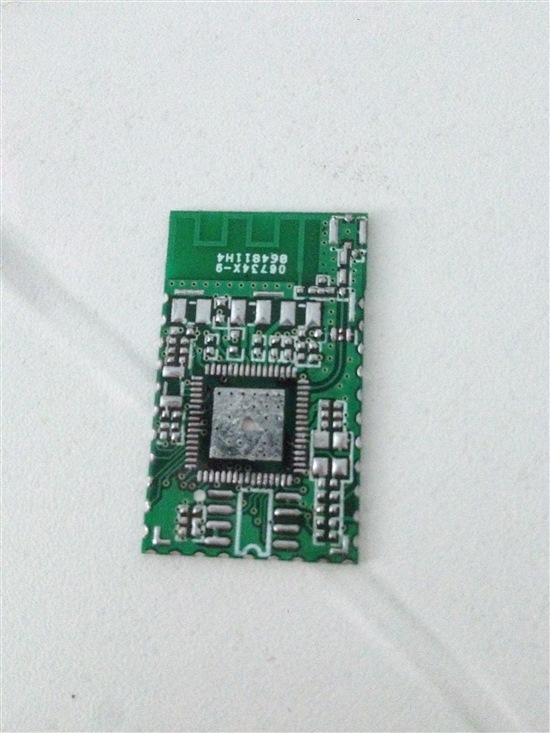

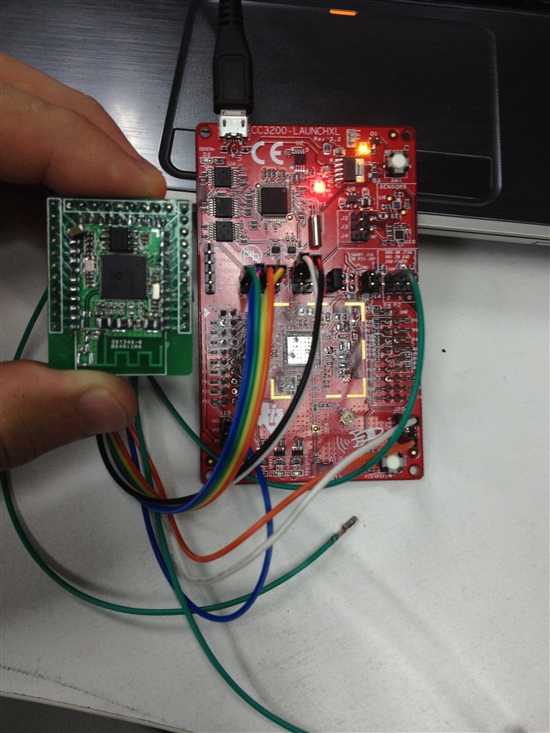

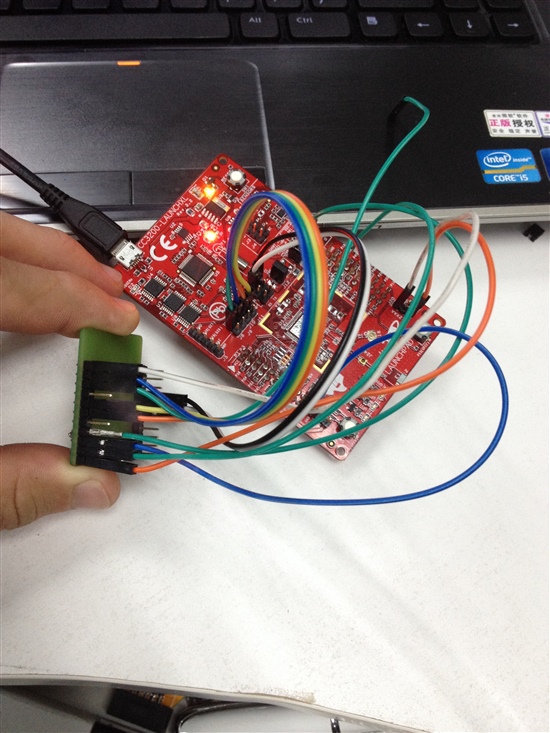

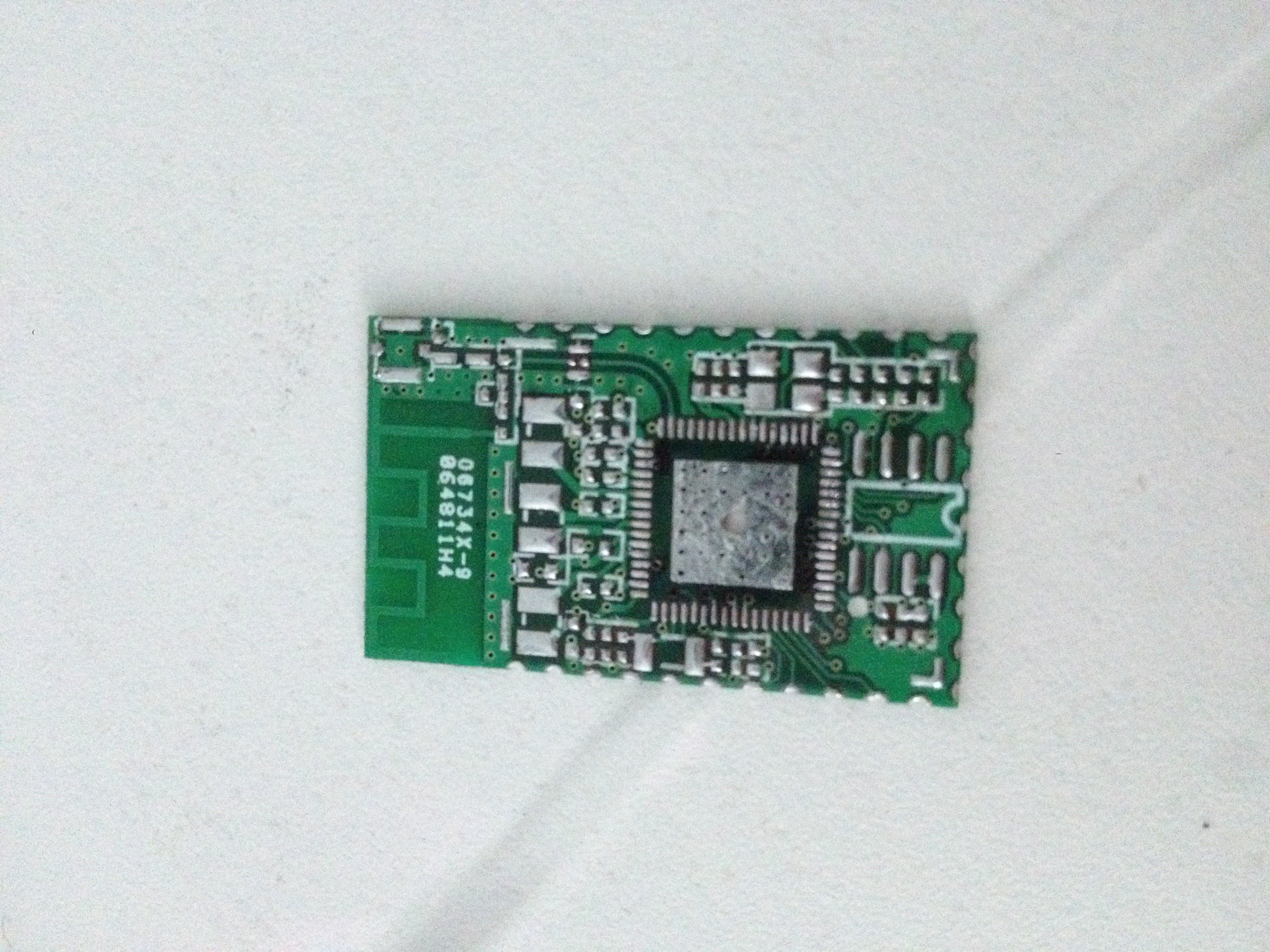

Here is my PCB board:

can anyone give me some advice, thanks very much!

liang

over 10 years ago

0 Geet Modi over 10 years ago

TI__Mastermind 26320 points

Kindly help with following info :

1. Voltage Source Current Rating

2. Silicon Revision

3. Board schematics

4. Firmware Version Flashed

5. SDK Version used.

Regards,

Geet

0 liang xie over 10 years ago in reply to Geet Modi

Intellectual 290 points

Hi, Geet,

1. Voltage Source Current Rating

2. Silicon Revision

3. Board schematics

8640.CC3200MOD_SCH.pdf

4. Firmware Version Flashed

5. SDK Version used.

CC3200SDK 1.0.0

Thanks very much for your help,

liang

0 Geet Modi over 10 years ago in reply to liang xie

TI__Mastermind 26320 points

1. Have you followed the exact layout as in our refernce design ? From picture, looks like you have deviated.

2. How many layer board is it ?

Regards,

Geet

0 liang xie over 10 years ago in reply to Geet Modi

Intellectual 290 points

1. We designed it follow the TI reference design. Can you tell me difference between our design and TI's.

2 Our board is four layers.

thanks for your help,

liang

0 liang xie over 10 years ago in reply to liang xie

Intellectual 290 points

Hi, Greet,

From the Schematic, can you tell me the problem of my board and give me some advice,

thanks very much for your help,

liang

0 Geet Modi over 10 years ago in reply to liang xie

TI__Mastermind 26320 points

1. Kindly share the layout files. You can send me directly as well. Kindly share your email id.

2. Also, confirm that the components ( inductors and caps ) current ratings are same as mentioned in DS.

3. Try powering it thru 1Ampere DC source instead of PC USB.

Regard,
Geet

0 liang xie over 10 years ago in reply to Geet Modi

Intellectual 290 points

Hi, Greet,

can you give me your email id, thanks!

liang

0 Raghavendra Shenoy over 10 years ago in reply to liang xie

TI__Mastermind 27095 points

Hi Liang,

May we contact you at the email address you provided in your E2E profile?

Regards,
Raghavendra

0 liang xie over 10 years ago in reply to Raghavendra Shenoy

Intellectual 290 points

Hi Raghavendra,

I am sorry for my late reply.We can contact at my email address with id vincason@163.com.

Hope to receive your e-mail.

Regards,
Liang

0 Prajay Madhavan over 10 years ago in reply to liang xie

TI__Genius 11120 points

Few comments on your schematics

There has been a new version of the reference schematics (Rev 4.1). Please use that to revise your board in the next revision.

The reason for the board not working with NWP turn ON most likely is due to the in-rush current of the CC3200.

Can you remove J12 from the Launchpad and try again. J12 will feed the power to the on-board CC3200 and the LDO may not be able to power the external CC3200.

ALso do not use J20 to power the board. The mosfet in the path will add a drop. Use J12 to power the external board.

0 liang xie over 10 years ago in reply to Prajay Madhavan

Intellectual 290 points

Hi, Prajay Madhavan,

Thanks for your advice,

You mentioned something about in-rush current, Can you give me some advice which how to deal with it.

Regards,

Liang

0 Prajay Madhavan over 10 years ago in reply to liang xie

TI__Genius 11120 points

When the NWP of the CC3200 is enabled it will intitialize a calibration sequence where it can draw high current (upto 450mA) depending on input voltage. This is what we call as in-rush current here. If the power supply drops while doing this, the device may get RESET.

0 liang xie over 10 years ago in reply to Prajay Madhavan

Intellectual 290 points

Hi, Prajay Madhavan,

Thanks very much for your reply.

Regards,

Liang
