CC3100 in a vertical oriented board : use of antenna AH 316M245001

umberto simonato

Prodigy 240 points

Other Parts Discussed in Thread: CC3100MOD, CC3100

I use CC3100Mod with a chip antenna AH 316M245001 mounted in horizontal in a board placed vertically.

If I read in right way the Radiation Pattern

the vertically polarized field is maximum in fron and behind, reduced at the sides ,
critical at the top and ground

is it so?

thanks

over 10 years ago

0 Prajay Madhavan over 10 years ago

TI__Genius 11120 points

I am attaching the antenna pattern measured on our board here for your reference. Please use this data to infer.

your assumption is correct for the Z-X cut plane..

0 umberto simonato over 10 years ago in reply to Prajay Madhavan

Prodigy 240 points

Prajay Madhavan said:

I am attaching the antenna pattern measured on our board here for your reference. Please use this data to infer.

your assumption is correct for the Z-X cut plane..

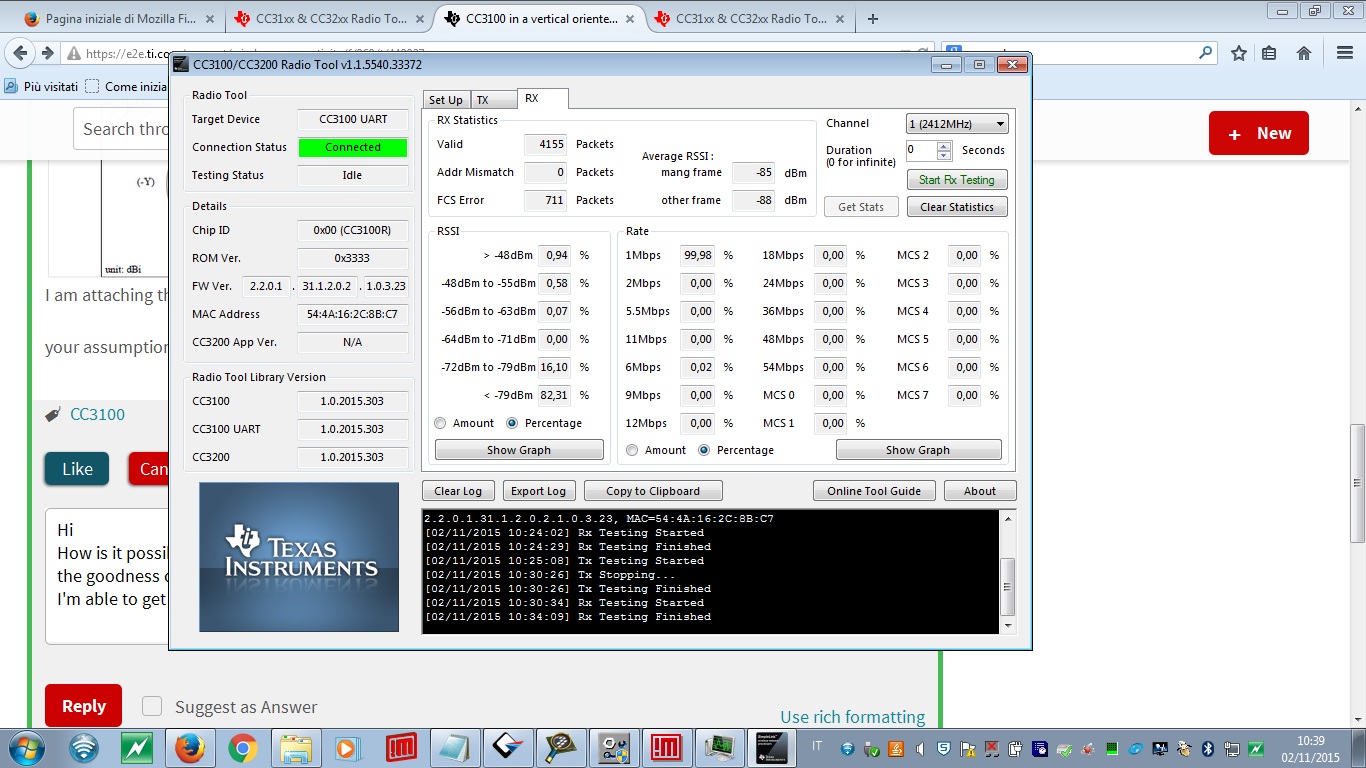

How is it possible to use CC31xx_CC32xx_Radio_Tool to test

the goodness of my antenna on my board?

I'm able to get connect from CC31xx_CC32xx_Radio_Tool to my board

0 umberto simonato over 10 years ago in reply to umberto simonato

Prodigy 240 points

My question
is
Which are tests that you suggest to do?

Thanks
Simonato

0 umberto simonato over 10 years ago in reply to umberto simonato

Prodigy 240 points

My question is about
which are the tests that you suggest to do?
Is it possible to set my CC3100 Mod by MCU
to work in TX in Continuos mode (as in Radio_Tool)?

Thanks

SImonato
