PINMUXTOOL: CC3220SF_LAUNCHXL.h does not update

Vincent Vuarnoz

Part Number: PINMUXTOOL

Hi community !

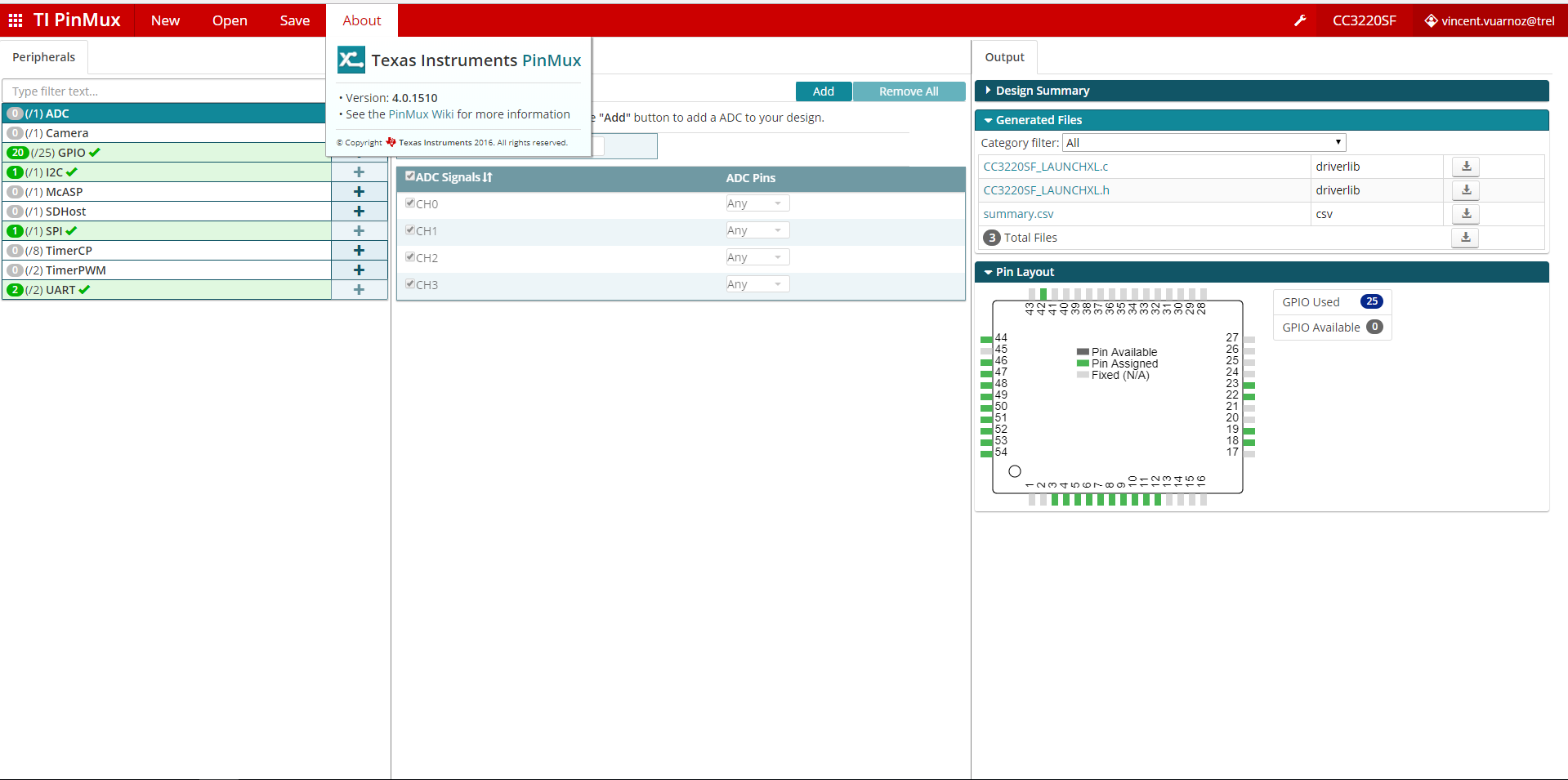

I have set up all my GPIOs in the PinMux tool (see pinmux file attached). But the CC3220SF_LAUNCHXL.h file doesn't seem to update. The "typedef enum CC3220SF_LAUNCHXL_GPIOName" still only contains the GPIO for the LAUNCHXL eval board (see below).

Am I missing something ?

/*!
 *  @def    CC3220SF_LAUNCHXL_GPIOName
 *  @brief  Enum of GPIO names on the CC3220SF_LAUNCHXL dev board
 */
typedef enum CC3220SF_LAUNCHXL_GPIOName {
    CC3220SF_LAUNCHXL_GPIO_SW2 = 0,
    CC3220SF_LAUNCHXL_GPIO_SW3,
    CC3220SF_LAUNCHXL_GPIO_LED_D7,

    /*
     *  CC3220SF_LAUNCHXL_GPIO_LED_D5 and CC3220SF_LAUNCHXL_GPIO_LED_D6 are shared with the
     *  I2C and PWM peripherals. In order for those examples to work, these
     *  LEDs are  taken out of gpioPinCOnfig[]
     */
    //CC3220SF_LAUNCHXL_GPIO_LED_D6,
    //CC3220SF_LAUNCHXL_GPIO_LED_D5,

    CC3220SF_LAUNCHXL_GPIOCOUNT
} CC3220SF_LAUNCHXL_GPIOName;

6332.CC3220SF.pinmux.zip

over 7 years ago

0 Shlomi Itzhak over 7 years ago

TI__Guru 64455 points

Hello,

Can you make sure that the corresponding CC3220SF_LAUNCHXL.c file is updated correctly?

Not that i do not say it is a bug but I do not see the CC3220SF_LAUNCHXL_GPIOName enum being used anywhere in the code.

Regards,

Shlomi

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

Hey Shlomi ! Thanks for your reply.

Yes, it is. I have attached both files for your reference.

Fullscreen CC3220SF_LAUNCHXL.c Download

/* CC3220SF_LAUNCHXL.c
 *
 * configure the device pins for different signals
 *
 *
 * Copyright (c) 2016, Texas Instruments Incorporated
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 *
 * *  Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 * *  Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in the
 *    documentation and/or other materials provided with the distribution.
 *
 * *  Neither the name of Texas Instruments Incorporated nor the names of
 *    its contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
 * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
 * THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
 * PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
 * CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
 * EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
 * PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
 * OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
 * WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
 * OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
 * EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 * This file was automatically generated on 11/21/2017 at 2:21:25 PM
 * by TI PinMux version 4.0.1510
 */

/*
 *  ======== CC3220SF_LAUNCHXL.c ========
 *  This file is responsible for setting up the board specific items for the
 *  CC3220SF_LAUNCHXL board.
 */

#include <stdint.h>
#include <stdbool.h>

#include <ti/devices/cc32xx/inc/hw_ints.h>
#include <ti/devices/cc32xx/inc/hw_memmap.h>
#include <ti/devices/cc32xx/inc/hw_types.h>

#include <ti/devices/cc32xx/driverlib/rom.h>
#include <ti/devices/cc32xx/driverlib/rom_map.h>
#include <ti/devices/cc32xx/driverlib/adc.h>
#include <ti/devices/cc32xx/driverlib/gpio.h>
#include <ti/devices/cc32xx/driverlib/pin.h>
#include <ti/devices/cc32xx/driverlib/prcm.h>
#include <ti/devices/cc32xx/driverlib/spi.h>
#include <ti/devices/cc32xx/driverlib/sdhost.h>
#include <ti/devices/cc32xx/driverlib/timer.h>
#include <ti/devices/cc32xx/driverlib/uart.h>
#include <ti/devices/cc32xx/driverlib/udma.h>
#include <ti/devices/cc32xx/driverlib/wdt.h>

#include <ti/drivers/Power.h>
#include <ti/drivers/power/PowerCC32XX.h>

#include "CC3220SF_LAUNCHXL.h"

/*
 *  This define determines whether to use the UARTCC32XXDMA driver
 *  or the UARTCC32XX (no DMA) driver.  Set to 1 to use the UARTCC32XXDMA
 *  driver.
 */
#ifndef TI_DRIVERS_UART_DMA
#define TI_DRIVERS_UART_DMA 0
#endif

/*
 *  =============================== Crypto ===============================
 */
#include <ti/drivers/crypto/CryptoCC32XX.h>

CryptoCC32XX_Object cryptoCC3220SObjects[CC3220SF_LAUNCHXL_CRYPTOCOUNT];

const CryptoCC32XX_Config CryptoCC32XX_config[CC3220SF_LAUNCHXL_CRYPTOCOUNT] = {
    {
        .object = &cryptoCC3220SObjects[CC3220SF_LAUNCHXL_CRYPTO0]
    }
};

const uint_least8_t CryptoCC32XX_count = CC3220SF_LAUNCHXL_CRYPTOCOUNT;

/*
 *  =============================== DMA ===============================
 */
#include <ti/drivers/dma/UDMACC32XX.h>

#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_ALIGN(dmaControlTable, 1024)
#elif defined(__IAR_SYSTEMS_ICC__)
#pragma data_alignment=1024
#elif defined(__GNUC__)
__attribute__ ((aligned (1024)))
#endif
static tDMAControlTable dmaControlTable[64];

/*
 *  ======== dmaErrorFxn ========
 *  This is the handler for the uDMA error interrupt.
 */
static void dmaErrorFxn(uintptr_t arg)
{
    int status = MAP_uDMAErrorStatusGet();
    MAP_uDMAErrorStatusClear();

    /* Suppress unused variable warning */
    (void)status;

    while (1);
}

UDMACC32XX_Object udmaCC3220SObject;

const UDMACC32XX_HWAttrs udmaCC3220SHWAttrs = {
    .controlBaseAddr = (void *)dmaControlTable,
    .dmaErrorFxn = (UDMACC32XX_ErrorFxn)dmaErrorFxn,
    .intNum = INT_UDMAERR,
    .intPriority = (~0)
};

const UDMACC32XX_Config UDMACC32XX_config = {
    .object = &udmaCC3220SObject,
    .hwAttrs = &udmaCC3220SHWAttrs
};

/*
 *  =============================== General ===============================
 */
/*
 *  ======== CC3220SF_LAUNCHXL_initGeneral ========
 */
void CC3220SF_LAUNCHXL_initGeneral(void)
{
    PRCMCC3200MCUInit();
    Power_init();

    /*              Logger                  */
    /* MAP_PinTypeUART(PIN_62, PIN_MODE_1); */
    /* **************************************/
}

/*
 *  =============================== GPIO ===============================
 */
#include <ti/drivers/GPIO.h>
#include <ti/drivers/gpio/GPIOCC32XX.h>

/*
 * Array of Pin configurations
 * NOTE: The order of the pin configurations must coincide with what was
 *       defined in CC3220SF_LAUNCHXL.h
 * NOTE: Pins not used for interrupts should be placed at the end of the
 *       array.  Callback entries can be omitted from callbacks array to
 *       reduce memory usage.
 */

GPIO_PinConfig gpioPinConfigs[] = {
        /* input pins with callbacks */
        GPIOCC32XX_GPIO_22 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_28 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_08 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_09 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_05 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_06 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_00 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_17 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_25 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_29 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_24 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        GPIOCC32XX_GPIO_23 | GPIO_CFG_INPUT | GPIO_CFG_IN_INT_RISING,
        /* output pins with callbacks */
        GPIOCC32XX_GPIO_07 | GPIO_CFG_OUT_STD | GPIO_CFG_OUT_STR_HIGH | GPIO_CFG_OUT_LOW,
        GPIOCC32XX_GPIO_12 | GPIO_CFG_OUT_STD | GPIO_CFG_OUT_STR_HIGH | GPIO_CFG_OUT_LOW,
        GPIOCC32XX_GPIO_13 | GPIO_CFG_OUT_STD | GPIO_CFG_OUT_STR_HIGH | GPIO_CFG_OUT_LOW,
        GPIOCC32XX_GPIO_30 | GPIO_CFG_OUT_STD | GPIO_CFG_OUT_STR_HIGH | GPIO_CFG_OUT_LOW,
};

/*
 * Array of callback function pointers
 * NOTE: The order of the pin configurations must coincide with what was
 *       defined in CC3220SF_LAUNCHXL.h
 * NOTE: Pins not used for interrupts can be omitted from callbacks array to
 *       reduce memory usage (if placed at end of gpioPinConfigs array).
 */
GPIO_CallbackFxn gpioCallbackFunctions[] = {
    NULL,  /* CC3220SF_LAUNCHXL_GPIO_SW2 */
    NULL   /* CC3220SF_LAUNCHXL_GPIO_SW3 */
};

/* The device-specific GPIO_config structure */
const GPIOCC32XX_Config GPIOCC32XX_config = {
    .pinConfigs = (GPIO_PinConfig *)gpioPinConfigs,
    .callbacks = (GPIO_CallbackFxn *)gpioCallbackFunctions,
    .numberOfPinConfigs = sizeof(gpioPinConfigs)/sizeof(GPIO_PinConfig),
    .numberOfCallbacks = sizeof(gpioCallbackFunctions)/sizeof(GPIO_CallbackFxn),
    .intPriority = (~0)
};
/*
 *  ============================= Display =============================
 */
#include <ti/display/Display.h>
#include <ti/display/DisplayUart.h>
#define MAXPRINTLEN 1024

DisplayUart_Object displayUartObject;

static char displayBuf[MAXPRINTLEN];

const DisplayUart_HWAttrs displayUartHWAttrs = {
    .uartIdx = 0,
    .baudRate = 115200,
    .mutexTimeout = (unsigned int)(-1),
    .strBuf = displayBuf,
    .strBufLen = MAXPRINTLEN
};

#ifndef BOARD_DISPLAY_USE_UART_ANSI
#define BOARD_DISPLAY_USE_UART_ANSI 0
#endif

const Display_Config Display_config[] = {
    {
#  if (BOARD_DISPLAY_USE_UART_ANSI)
        .fxnTablePtr = &DisplayUartAnsi_fxnTable,
#  else /* Default to minimal UART with no cursor placement */
        .fxnTablePtr = &DisplayUartMin_fxnTable,
#  endif
        .object = &displayUartObject,
        .hwAttrs = &displayUartHWAttrs
    }
};

const uint_least8_t Display_count = sizeof(Display_config) / sizeof(Display_Config);

/*
 *  =============================== I2C ===============================
 */
#include <ti/drivers/I2C.h>
#include <ti/drivers/i2c/I2CCC32XX.h>

I2CCC32XX_Object i2cCC3220SObjects[CC3220SF_LAUNCHXL_I2CCOUNT];

const I2CCC32XX_HWAttrsV1 i2cCC3220SHWAttrs[CC3220SF_LAUNCHXL_I2CCOUNT] = {
    {
        .baseAddr = I2CA0_BASE,
        .intNum = INT_I2CA0,
        .intPriority = (~0),
        .clkPin = I2CCC32XX_PIN_01_I2C_SCL,
        .dataPin = I2CCC32XX_PIN_02_I2C_SDA
    }
};

const I2C_Config I2C_config[CC3220SF_LAUNCHXL_I2CCOUNT] = {
    {
        .fxnTablePtr = &I2CCC32XX_fxnTable,
        .object = &i2cCC3220SObjects[CC3220SF_LAUNCHXL_I2C0],
        .hwAttrs = &i2cCC3220SHWAttrs[CC3220SF_LAUNCHXL_I2C0]
    }
};

const uint_least8_t I2C_count = CC3220SF_LAUNCHXL_I2CCOUNT;
/*
 *  =============================== Power ===============================
 */
/*
 * This table defines the parking state to be set for each parkable pin
 * during LPDS. (Device pins must be parked during LPDS to achieve maximum
 * power savings.)  If the pin should be left unparked, specify the state
 * PowerCC32XX_DONT_PARK.  For example, for a UART TX pin, the device
 * will automatically park the pin in a high state during transition to LPDS,
 * so the Power Manager does not need to explictly park the pin.  So the
 * corresponding entries in this table should indicate PowerCC32XX_DONT_PARK.
 */
PowerCC32XX_ParkInfo parkInfo[] = {
/*          PIN                    PARK STATE                       PIN ALIAS (FUNCTION)
     -----------------  ----------------------------------------   ---------------------- */
    {PowerCC32XX_PIN01, PowerCC32XX_WEAK_PULL_UP_STD            }, /* GPIO10(I2C_CSL)     */
    {PowerCC32XX_PIN02, PowerCC32XX_WEAK_PULL_UP_OPENDRAIN      }, /* GPIO11 (I2C_SDA)   */
    {PowerCC32XX_PIN03, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO12         */
    {PowerCC32XX_PIN04, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO13         */
















    {PowerCC32XX_PIN05, PowerCC32XX_WEAK_PULL_DOWN_STD          }, /* GPIO14              */
    {PowerCC32XX_PIN06, PowerCC32XX_WEAK_PULL_DOWN_STD          }, /* GPIO15              */
    {PowerCC32XX_PIN07, PowerCC32XX_WEAK_PULL_DOWN_STD          }, /* GPIO16              */
    {PowerCC32XX_PIN08, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO17         */
    {PowerCC32XX_PIN13, PowerCC32XX_WEAK_PULL_DOWN_STD          }, /* FLASH_SPI_DIN       */
    {PowerCC32XX_PIN15, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO22         */
    {PowerCC32XX_PIN16, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO23         */
    {PowerCC32XX_PIN17, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO24         */
    {PowerCC32XX_PIN19, PowerCC32XX_WEAK_PULL_DOWN_STD          }, /* TCK (JTAG DEBUG)    */
    {PowerCC32XX_PIN20, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO29         */
    {PowerCC32XX_PIN18, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO28         */
    {PowerCC32XX_PIN21, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO25         */
    {PowerCC32XX_PIN29, PowerCC32XX_WEAK_PULL_DOWN_STD          }, /* ANTSEL1             */
    {PowerCC32XX_PIN30, PowerCC32XX_WEAK_PULL_DOWN_STD          }, /* ANTSEL2              */
    {PowerCC32XX_PIN45, PowerCC32XX_WEAK_PULL_DOWN_STD          }, /* GPIO31              */
    {PowerCC32XX_PIN50, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO00         */
    {PowerCC32XX_PIN53, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO30         */
    {PowerCC32XX_PIN55, PowerCC32XX_WEAK_PULL_UP_STD            }, /* GPIO1 (UART0_TX)    */
    {PowerCC32XX_PIN57, PowerCC32XX_WEAK_PULL_UP_STD            }, /* GPIO2 (UART0_RX)    */
    {PowerCC32XX_PIN58, PowerCC32XX_WEAK_PULL_UP_STD            }, /* GPIO3 (UART1_TX )  */
    {PowerCC32XX_PIN59, PowerCC32XX_WEAK_PULL_UP_STD            }, /* UART1_RX            */
    {PowerCC32XX_PIN60, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO05         */
    {PowerCC32XX_PIN61, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO06         */
    {PowerCC32XX_PIN62, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO07         */
    {PowerCC32XX_PIN63, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO08         */
    {PowerCC32XX_PIN64, PowerCC32XX_WEAK_PULL_DOWN_STD          },  /*GPIO09         */
};

/*
 *  This structure defines the configuration for the Power Manager.
 *
 *  In this configuration the Power policy is disabled by default (because
 *  enablePolicy is set to false).  The Power policy can be enabled dynamically
 *  at runtime by calling Power_enablePolicy(), or at build time, by changing
 *  enablePolicy to true in this structure.
 */
const PowerCC32XX_ConfigV1 PowerCC32XX_config = {
    .policyInitFxn = &PowerCC32XX_initPolicy,
    .policyFxn = &PowerCC32XX_sleepPolicy,
    .enterLPDSHookFxn = NULL,
    .resumeLPDSHookFxn = NULL,
    .enablePolicy = false,
    .enableGPIOWakeupLPDS = true,
    .enableGPIOWakeupShutdown = false,
    .enableNetworkWakeupLPDS = true,
    .wakeupGPIOSourceLPDS = PRCM_LPDS_GPIO13,
    .wakeupGPIOTypeLPDS = PRCM_LPDS_FALL_EDGE,
    .wakeupGPIOFxnLPDS = NULL,
    .wakeupGPIOFxnLPDSArg = 0,
    .wakeupGPIOSourceShutdown = 0,
    .wakeupGPIOTypeShutdown = 0,
    .ramRetentionMaskLPDS = PRCM_SRAM_COL_1 | PRCM_SRAM_COL_2 |
        PRCM_SRAM_COL_3 | PRCM_SRAM_COL_4,
    .keepDebugActiveDuringLPDS = false,
    .ioRetentionShutdown = PRCM_IO_RET_GRP_1,
    .pinParkDefs = parkInfo,
    .numPins = sizeof(parkInfo) / sizeof(PowerCC32XX_ParkInfo)
};
/*
 *  =============================== SDFatFS ===============================
 */
#include <ti/drivers/SD.h>
#include <ti/drivers/SDFatFS.h>

/* Note: The SDFatFS and SD drivers must use the same count */
SDFatFS_Object sdfatfsObjects[CC3220SF_LAUNCHXL_SDFatFSCOUNT];

const SDFatFS_Config SDFatFS_config[CC3220SF_LAUNCHXL_SDFatFSCOUNT] = {
    {
        .object = &sdfatfsObjects[CC3220SF_LAUNCHXL_SDFatFS0]
    }
};

const uint_least8_t SDFatFS_count = CC3220SF_LAUNCHXL_SDFatFSCOUNT;
/*
 *  =============================== SDSPI ===============================
 */
#include <ti/drivers/SDSPI.h>
#include <ti/drivers/sdspi/SDSPICC32XX.h>

SDSPICC32XX_Object sdspiCC3220SObjects[CC3220SF_LAUNCHXL_SDSPICOUNT];

/* SDSPI configuration structure, describing which pins are to be used */
const SDSPICC32XX_HWAttrsV1 sdspiCC3220SHWattrs[CC3220SF_LAUNCHXL_SDSPICOUNT] = {
    {
        .baseAddr = GSPI_BASE,
        .spiPRCM = PRCM_GSPI,
        .clkPin = SDSPICC32XX_PIN_05_CLK,
        .mosiPin = SDSPICC32XX_PIN_07_MOSI,
        .misoPin = SDSPICC32XX_PIN_06_MISO,
        .csPin = SDSPICC32XX_PIN_08_CS
    }
};

const SDSPI_Config SDSPI_config[CC3220SF_LAUNCHXL_SDSPICOUNT] = {
    {
        .fxnTablePtr = &SDSPICC32XX_fxnTable,
        .object = &sdspiCC3220SObjects[CC3220SF_LAUNCHXL_SDSPI0],
        .hwAttrs = &sdspiCC3220SHWattrs[CC3220SF_LAUNCHXL_SDSPI0]
    },
};

const uint_least8_t SDSPI_count = CC3220SF_LAUNCHXL_SDSPICOUNT;

/*
 *  =============================== SPI ===============================
 */
#include <ti/drivers/SPI.h>
#include <ti/drivers/spi/SPICC32XXDMA.h>

SPICC32XXDMA_Object spiCC3220SDMAObjects[CC3220SF_LAUNCHXL_SPICOUNT];

#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_ALIGN(spiCC3220SDMAscratchBuf, 32)
#elif defined(__IAR_SYSTEMS_ICC__)
#pragma data_alignment=32
#elif defined(__GNUC__)
__attribute__ ((aligned (32)))
#endif
uint32_t spiCC3220SDMAscratchBuf[CC3220SF_LAUNCHXL_SPICOUNT];

const SPICC32XXDMA_HWAttrsV1 spiCC3220SDMAHWAttrs[CC3220SF_LAUNCHXL_SPICOUNT] = {
    /* index 0 is reserved for LSPI that links to the NWP */
    {
        .baseAddr = LSPI_BASE,
        .intNum = INT_LSPI,
        .intPriority = (~0),
        .spiPRCM = PRCM_LSPI,
        .csControl = SPI_SW_CTRL_CS,
        .csPolarity = SPI_CS_ACTIVEHIGH,
        .pinMode = SPI_4PIN_MODE,
        .turboMode = SPI_TURBO_OFF,
        .scratchBufPtr = &spiCC3220SDMAscratchBuf[CC3220SF_LAUNCHXL_SPI0],
        .defaultTxBufValue = 0,
        .rxChannelIndex = UDMA_CH12_LSPI_RX,
        .txChannelIndex = UDMA_CH13_LSPI_TX,
        .minDmaTransferSize = 100,
        .mosiPin = SPICC32XXDMA_PIN_NO_CONFIG,
        .misoPin = SPICC32XXDMA_PIN_NO_CONFIG,
        .clkPin = SPICC32XXDMA_PIN_NO_CONFIG,
        .csPin = SPICC32XXDMA_PIN_NO_CONFIG
    },
    {
        .baseAddr = GSPI_BASE,
        .intNum = INT_GSPI,
        .intPriority = (~0),
        .spiPRCM = PRCM_GSPI,
        .csControl = SPI_HW_CTRL_CS,
        .csPolarity = SPI_CS_ACTIVELOW,
        .pinMode = SPI_4PIN_MODE,
        .turboMode = SPI_TURBO_OFF,
        .scratchBufPtr = &spiCC3220SDMAscratchBuf[CC3220SF_LAUNCHXL_SPI1],
        .defaultTxBufValue = 0,
        .rxChannelIndex = UDMA_CH6_GSPI_RX,
        .txChannelIndex = UDMA_CH7_GSPI_TX,
        .minDmaTransferSize = 100,
        .mosiPin = SPICC32XXDMA_PIN_07_MOSI,
        .misoPin = SPICC32XXDMA_PIN_06_MISO,
        .clkPin = SPICC32XXDMA_PIN_05_CLK,
        .csPin = SPICC32XXDMA_PIN_08_CS
    }
};

const SPI_Config SPI_config[CC3220SF_LAUNCHXL_SPICOUNT] = {
    {
        .fxnTablePtr = &SPICC32XXDMA_fxnTable,
        .object = &spiCC3220SDMAObjects[CC3220SF_LAUNCHXL_SPI0],
        .hwAttrs = &spiCC3220SDMAHWAttrs[CC3220SF_LAUNCHXL_SPI0]
    },
    {
        .fxnTablePtr = &SPICC32XXDMA_fxnTable,
        .object = &spiCC3220SDMAObjects[CC3220SF_LAUNCHXL_SPI1],
        .hwAttrs = &spiCC3220SDMAHWAttrs[CC3220SF_LAUNCHXL_SPI1]
    }
};

const uint_least8_t SPI_count = CC3220SF_LAUNCHXL_SPICOUNT;
/*
 *  =============================== UART ===============================
 */
#include <ti/drivers/UART.h>
#if TI_DRIVERS_UART_DMA
#include <ti/drivers/uart/UARTCC32XXDMA.h>

UARTCC32XXDMA_Object uartCC3220SDmaObjects[CC3220SF_LAUNCHXL_UARTCOUNT];

/* UART configuration structure */
const UARTCC32XXDMA_HWAttrsV1 uartCC3220SDmaHWAttrs[CC3220SF_LAUNCHXL_UARTCOUNT] = {
    {
        .baseAddr = UARTA0_BASE,
        .intNum = INT_UARTA0,
        .intPriority = (~0),
        .rxChannelIndex = UDMA_CH8_UARTA0_RX,
        .txChannelIndex = UDMA_CH9_UARTA0_TX,
        .rxPin = UARTCC32XXDMA_PIN_57_UART0_RX,
        .txPin = UARTCC32XXDMA_PIN_55_UART0_TX

    },
    {
        .baseAddr = UARTA1_BASE,
        .intNum = INT_UARTA1,
        .intPriority = (~0),
        .rxChannelIndex = UDMA_CH10_UARTA1_RX,
        .txChannelIndex = UDMA_CH11_UARTA1_TX,
        .rxPin = UARTCC32XXDMA_PIN_59_UART1_RX,
        .txPin = UARTCC32XXDMA_PIN_58_UART1_TX
    }
};

const UART_Config UART_config[CC3220SF_LAUNCHXL_UARTCOUNT] = {
    {
        .fxnTablePtr = &UARTCC32XXDMA_fxnTable,
        .object = &uartCC3220SDmaObjects[CC3220SF_LAUNCHXL_UART0],
        .hwAttrs = &uartCC3220SDmaHWAttrs[CC3220SF_LAUNCHXL_UART0]
    },
    {
        .fxnTablePtr = &UARTCC32XXDMA_fxnTable,
        .object = &uartCC3220SDmaObjects[CC3220SF_LAUNCHXL_UART1],
        .hwAttrs = &uartCC3220SDmaHWAttrs[CC3220SF_LAUNCHXL_UART1]
    }
};

#else
#include <ti/drivers/uart/UARTCC32XX.h>

UARTCC32XX_Object uartCC3220SObjects[CC3220SF_LAUNCHXL_UARTCOUNT];
unsigned char uartCC3220SRingBuffer[CC3220SF_LAUNCHXL_UARTCOUNT][32];

/* UART configuration structure */
const UARTCC32XX_HWAttrsV1 uartCC3220SHWAttrs[CC3220SF_LAUNCHXL_UARTCOUNT] = {
    {
        .baseAddr = UARTA0_BASE,
        .intNum = INT_UARTA0,
        .intPriority = (~0),
        .flowControl = UART_FLOWCONTROL_NONE,
        .ringBufPtr  = uartCC3220SRingBuffer[CC3220SF_LAUNCHXL_UART0],
        .ringBufSize = sizeof(uartCC3220SRingBuffer[CC3220SF_LAUNCHXL_UART0]),
        .rxPin = UARTCC32XX_PIN_57_UART0_RX,
        .txPin = UARTCC32XX_PIN_55_UART0_TX
    },
    {
        .baseAddr = UARTA1_BASE,
        .intNum = INT_UARTA1,
        .intPriority = (~0),
        .flowControl = UART_FLOWCONTROL_NONE,
        .ringBufPtr  = uartCC3220SRingBuffer[CC3220SF_LAUNCHXL_UART1],
        .ringBufSize = sizeof(uartCC3220SRingBuffer[CC3220SF_LAUNCHXL_UART1]),
        .rxPin = UARTCC32XX_PIN_59_UART1_RX,
        .txPin = UARTCC32XX_PIN_58_UART1_TX
    }
};

const UART_Config UART_config[CC3220SF_LAUNCHXL_UARTCOUNT] = {
    {
        .fxnTablePtr = &UARTCC32XX_fxnTable,
        .object = &uartCC3220SObjects[CC3220SF_LAUNCHXL_UART0],
        .hwAttrs = &uartCC3220SHWAttrs[CC3220SF_LAUNCHXL_UART0]
    },
    {
        .fxnTablePtr = &UARTCC32XX_fxnTable,
        .object = &uartCC3220SObjects[CC3220SF_LAUNCHXL_UART1],
        .hwAttrs = &uartCC3220SHWAttrs[CC3220SF_LAUNCHXL_UART1]
    }
};
#endif /* TI_DRIVERS_UART_DMA */

const uint_least8_t UART_count = CC3220SF_LAUNCHXL_UARTCOUNT;
/*
 *  =============================== Watchdog ===============================
 */
#include <ti/drivers/Watchdog.h>
#include <ti/drivers/watchdog/WatchdogCC32XX.h>

WatchdogCC32XX_Object watchdogCC3220SObjects[CC3220SF_LAUNCHXL_WATCHDOGCOUNT];

const WatchdogCC32XX_HWAttrs watchdogCC3220SHWAttrs[CC3220SF_LAUNCHXL_WATCHDOGCOUNT] = {
    {
        .baseAddr = WDT_BASE,
        .intNum = INT_WDT,
        .intPriority = (~0),
        .reloadValue = 80000000 // 1 second period at default CPU clock freq
    }
};

const Watchdog_Config Watchdog_config[CC3220SF_LAUNCHXL_WATCHDOGCOUNT] = {
    {
        .fxnTablePtr = &WatchdogCC32XX_fxnTable,
        .object = &watchdogCC3220SObjects[CC3220SF_LAUNCHXL_WATCHDOG0],
        .hwAttrs = &watchdogCC3220SHWAttrs[CC3220SF_LAUNCHXL_WATCHDOG0]
    }
};

const uint_least8_t Watchdog_count = CC3220SF_LAUNCHXL_WATCHDOGCOUNT;

#if defined(__SF_DEBUG__)
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(ulDebugHeader, ".dbghdr")
#elif defined(__IAR_SYSTEMS_ICC__)
#pragma data_location=".dbghdr"
#elif defined(__GNUC__)
__attribute__ ((section (".dbghdr")))
#endif
const unsigned long ulDebugHeader[]=
{
                0x5AA5A55A,
                0x000FF800,
                0xEFA3247D
};
#endif

CC3220SF_LAUNCHXL.h

0 Shlomi Itzhak over 7 years ago in reply to Vincent Vuarnoz

TI__Guru 64455 points

Hello,

I do not see on your *.c file any === GPIO === section.

What tool are you using? cloud or desktop version? what version?

Shlomi

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

Online. (https://dev.ti.com/pinmux/app.html)

v4.0.1510

0 Shlomi Itzhak over 7 years ago in reply to Vincent Vuarnoz

TI__Guru 64455 points

Can you please use the Desktop version?

I have sen some issues with the cloud version.

Shlomi

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

Same issue with the desktop version...

(Windows installer, v4.0.1510)

0 Shlomi Itzhak over 7 years ago in reply to Vincent Vuarnoz

TI__Guru 64455 points

Can you send me all the pins you want to assign and i can try to run it locally.

Maybe it is a combination of pins that make it behave this way although I do not see any conflicts.

Regards,

Shlomi

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

Hm, I'll send my .pinmux file in attachement.

But I don't believe it's related to pins selection. Because if I start with a new project and simply add 1 GPIO, the issue also happens. The ".h" is not updated at all (eventhough the timestamp at the top of the file is changing).

I am selecting the chip CC3220SF in "mod" package. Note that selecting "default" package does not change anything regarding that issue.

Are you able to reproduce?

Thanks for your time !

7522.CC3220SF.pinmux.zip

0 Shlomi Itzhak over 7 years ago in reply to Vincent Vuarnoz

TI__Guru 64455 points

As I mentioned, I can see that the .h file is not updated but I don't see that it has been used.

Can you verify whether your application works?

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

What do you mean?

0 Shlomi Itzhak over 7 years ago in reply to Vincent Vuarnoz

TI__Guru 64455 points

CC3220SF_LAUNCHXL_GPIOName defined on the header file is not used anywhere.

Besides the fact that the header file doesn't seem to reflect your settings, do you see any issues while running?

The c file looks OK to me.

Shlomi

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

Well, how do I access the pin from the application then? I thought that that was precisely the function of "CC3220SF_LAUNCHXL.h" (the enums are then used in "Board.h").

Do we have to populate the CC3220SF_LAUNCHXL_GPIOName enum manually? How then do the GPIO driver know which value correspond to which pin ?

Thanks for your time.

0 Shlomi Itzhak over 7 years ago in reply to Vincent Vuarnoz

TI__Guru 64455 points

Hello,

I see your point and you are absolutly right.

At the moment, I suggest you do it manually and I will open a bug in the tools team.

Sorry for the inconvenience.

Shlomi

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

Alright. Thanks.

So I assume that the order in the "CC3220SF_LAUNCHXL_GPIOName" enum (in ".h" file) must correspond to the order of "GPIO_PinConfig gpioPinConfigs[]" array (in ".c" file). Can you confirm that this is correct?

0 Ralph Guditz over 7 years ago in reply to Vincent Vuarnoz

Intellectual 785 points

Vincent,

Yes, they must correspond exactly.

This approach seems to be an effort to conserve RAM. Given that an array indexed by gpio number would only have 33 entries (for GPIO 0 thru 32) and we have a megabyte of RAM (for the CC3220SF part), it doesn't seem necessary!

See attached screenshot showing how I added 4 GPIO outputs to drive scope traces for debugging.

I'm sure you also noticed that CC3220SF_LAUNCHXL_GPIOCOUNT is never referenced. Note (on line 240 of my CC3220_LAUNCHXL.c) that GPIRO32XX_Config field ".numberOfPinConfigs," which one would expect to use CC3220SF_LAUNCHXL_GPIOCOUNT, instead does a compile-time compute using "sizeof()/sizeof()."

It appears that the PinMux tool has been abandoned for Gen2/CC32XX. It may still be useful for PLANNING GPIO pin usage (though I have not used it for that, since my GPIO usage was already well defined under Gen1), but not for code generation as it was under Gen1.

Anyone: For some reason, neither "Insert Media" nor "Insert File" seems to work -- after I browse to the file I want, the "Insert" button stays greyed out. Someone please tell me how to insert a file (inline) and ALSO how to attach it in case the insert lacks sufficient resolution (my screen shot is from a large monitor). Thanks.

0 Shlomi Itzhak over 7 years ago in reply to Vincent Vuarnoz

TI__Guru 64455 points

I confirm, yes.

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

Thank you !

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

One more question:
The "CC3220SF_LAUNCHXL.c" file generated by the PinMux tool doesn't seem to have any Timer_config objects (compared to the "CC3220SF_LAUNCHXL.c" file that is present in the SDK's examples).
How to access the micro-processor's internal timers from the application ?

0 Vincent Vuarnoz over 7 years ago in reply to Vincent Vuarnoz

Expert 2545 points

any update ?

0 Shlomi Itzhak over 7 years ago in reply to Vincent Vuarnoz

TI__Guru 64455 points

Hi,

Do you use it for internal usage of counting/measuring time or need to use the device pins as well (e.g. PWM, CCP)?

You are right that it is not generated, and again I would add it to the bug report, but you can add it manually for now.

Regards,

Shlomi

0 Vincent Vuarnoz over 7 years ago in reply to Shlomi Itzhak

Expert 2545 points

Thanks !

Wi-Fi

Wi-Fi forum

PINMUXTOOL: CC3220SF_LAUNCHXL.h does not update
