CC3220: VDD-ANA2 pin use

Tom Roberts

Part Number: CC3220

Hi,

I am using the CC3220S and find conflicting info on the datasheet, it says to DNP R8 which means no need to connect pin 47 to VCC.

My prototypes are using pin 47 floating (just decouple cap) without issues. Is the VCC connection needed? If so, why?

Thanks, Tom

over 7 years ago

0 Charles Oladimeji over 7 years ago

TI__Mastermind 33805 points

Hi,

The recommendation is the place a 10uF decoupling cap to ground. If you intend to use pin 45 as a GPIO then you need the decoupling cap to ground and pull up to VCC on pin 47.

Regards,

Charles O

0 Tom Roberts over 7 years ago in reply to Charles Oladimeji

Expert 1155 points

Thanks Charles,

I do not need pin 45, so I will leave pin 47 floating.

Thanks, Tom

0 Charles Oladimeji over 7 years ago in reply to Tom Roberts

TI__Mastermind 33805 points

Hi,

Just to be clear, you need to add the 10uF cap.

Regards,
Charles O

0 Tom Roberts over 7 years ago in reply to Charles Oladimeji

Expert 1155 points

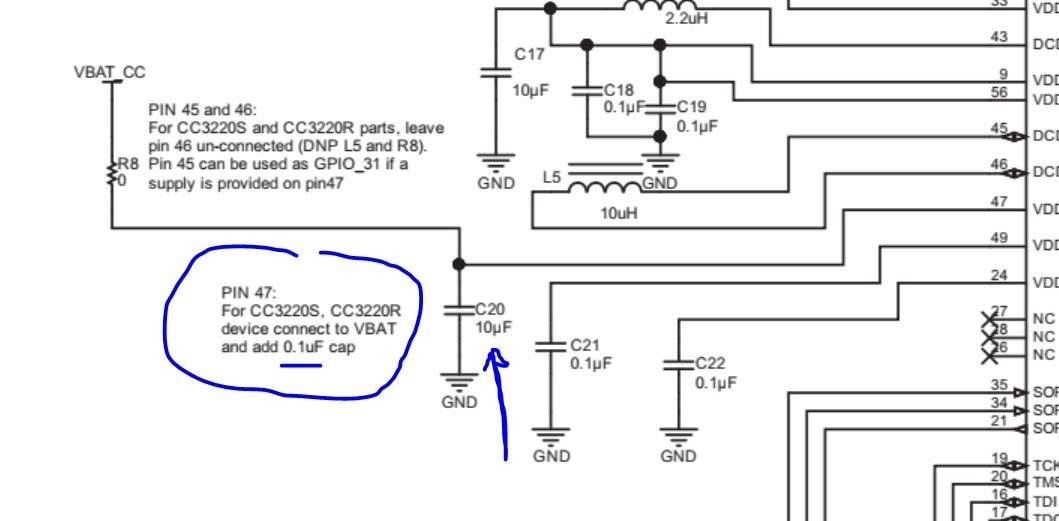

I am using a 0.1uF with no issues, but here is the confusion in the datasheet:
