CC3220MODA: Reference board design for module with external antenna

Chris Allen

Part Number: CC3220MODA
Other Parts Discussed in Thread: CC3220MOD,

on the launchpad cc3220modasf the antenna is attached to the cc3220. My question is when you just buy cc3220modasf is the antenna attached to the chip? or do we have to create the cicruit to connect the antenna to the chip?

over 7 years ago

0 Hnz over 7 years ago

Guru 39650 points

Hi,

CC3220MODAx contains antenna on module. For CC3220MODx (without A) you need to use external antenna (on your PCB, etc.)

From datasheets:

Jan

0 Chris Allen over 7 years ago in reply to Hnz

Prodigy 170 points

So what do i need to do to ant_sel1 and ant_secl? Do i just don't connect anything to it? connect it to ground?

0 Hnz over 7 years ago in reply to Chris Allen

Guru 39650 points

Hi,

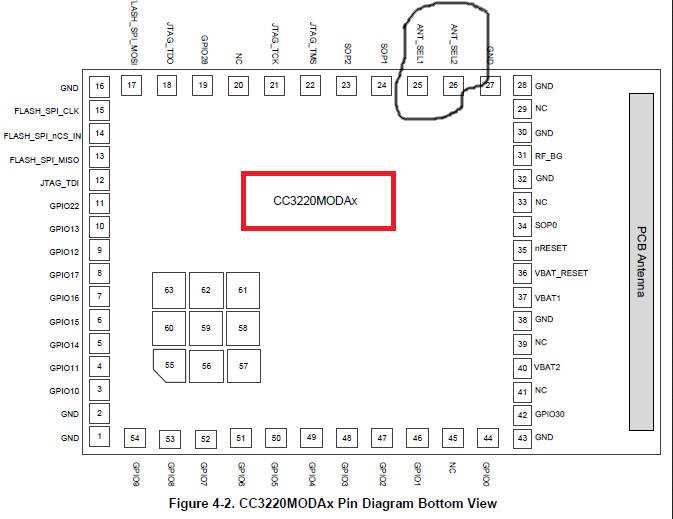

Left this pins (ANT_SEL1, ANT_SEL2) NC same as RF_BG in case of selecting CC3220MODA.

Theoretically ANT_SEL pins can be used as GPIO outputs, but it is not recommended practice.

As reference for your design you should use:
- design files for CC3220MODA LaunchPad ( www.ti.com/.../swrc342 )
- datasheet for CC3220MOD ( www.ti.com/.../cc3220moda, for CC3220MODA is very important chapter 7.3.3 ).

Update: I forgot link one important document - http://www.ti.com/general/docs/lit/getliterature.tsp?baseLiteratureNumber=swru462

Jan
