CC3100: eagle library for cc3100

kary

Expert 1165 points

Part Number: CC3100

hello,

I was looking for eagle library for cc3100 boost , can anybody help me?

over 7 years ago

0 Hnz over 7 years ago

Guru 39650 points

Hi,

- Design files for CC3100BOOST are created at Allegro PCB Designer ( www.ti.com/.../swrc288 ). According this discussion ( forums.autodesk.com/.../6859348 )it looks that Eagle does not supports import files from Allegro PCB Designer.
- CAD files for CC3100 QFN and MOD you find here webench.ti.com/.../cad.cgi

Jan

0 kary over 7 years ago in reply to Hnz

Expert 1165 points

The CAD file is not working when i import it to eagle library.

0 Hnz over 7 years ago in reply to kary

Guru 39650 points

Hi,

Did you export Ultra Librarian files into Eagle properly (e.g. learn.linksprite.com/.../ )?

Jan

0 kary over 7 years ago in reply to Hnz

Expert 1165 points

i did it online from Ultra Librarian :

https://app.ultralibrarian.com/UploadBXL

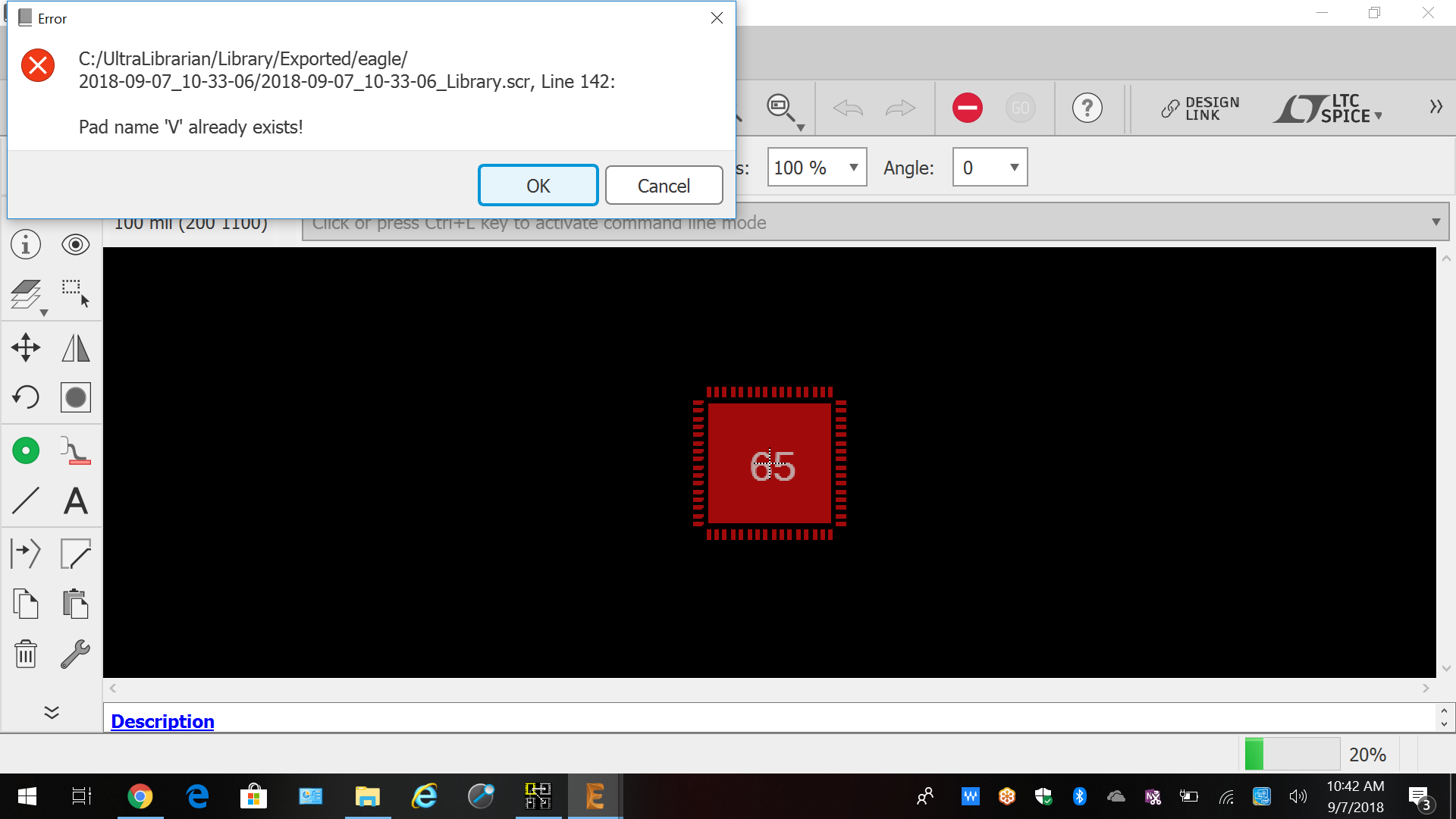

The problem is:

0 Hnz over 7 years ago in reply to kary

Guru 39650 points

Hi,

OK, it looks like same issue with a CC3220 library ( e2e.ti.com/.../2556089 ). Please wait for answer from TI, maybe they will be able provide to you fixed library.

But I think fastest way could be create library by yourself.

Jan

0 Vincent Rodriguez over 7 years ago in reply to Hnz

TI__Mastermind 28285 points

Kary,

If you click ok does the footprint import?

0 kary over 7 years ago in reply to Vincent Rodriguez

Expert 1165 points

if you click cancel then the footprint is there, if you click okay then same message keeps popping up. but the footprint is not usable, because there problem in schematics too.

0 Seong Kim over 7 years ago in reply to kary

TI__Mastermind 46471 points

Hi kary,

There are often issues when converting CAD files. After exporting, the three main parts of the design files (schematic, layout, component library) do not always map to each other correctly.

Have you tried using the offline version of Ultra Librarian? You can download it for free on TI.com: http://webench.ti.com/cad/

BR,

Seong

0 kary over 7 years ago in reply to Seong Kim

Expert 1165 points

I tried using the offline version of Ultra Librarian, the same problem continues.

0 kary over 7 years ago in reply to kary

Expert 1165 points

I created my own footprint. attached here is the cc3100 footprint for eagle. 8270.CC3100.zip

0 Seong Kim over 7 years ago in reply to kary

TI__Mastermind 46471 points

Hey kary,

Our tools team is currently working on creating a new bxl file, so thank you for bringing this to our attention.
I'm glad you decided to create your own as this is the best way to ensure that all three parts of the design files map to each other on Eagle.

BR,
Seong

0 Seong Kim over 7 years ago in reply to Seong Kim

TI__Mastermind 46471 points

Kary,

Our tools team has updated the CC3100 BXL file. I know you've created your own, but just as an FYI - it's been uploaded to TI.com, and I've also attached it here: CC3100_RGC_64.bxl

BR,

Seong
