Original question:

CC2538-CC2592EMK: ZNP code modification for configuring UART interface.

CC2538: zigbee 3.0 gateway modification for ZNP with uart interface.

Dhanraj
Guru 14820 points
Part Number: CC2538
Other Parts Discussed in Thread: , Z-STACK, LAUNCHXL-CC26X2R1, CC2531EMK

Hello

what are the changes required in zigbee 3.0 gateway to use cc2538 znp with UART interface?

any documentation for that.

  • 0
    Guru 14820 points

    Part Number: CC2538

    Hello,

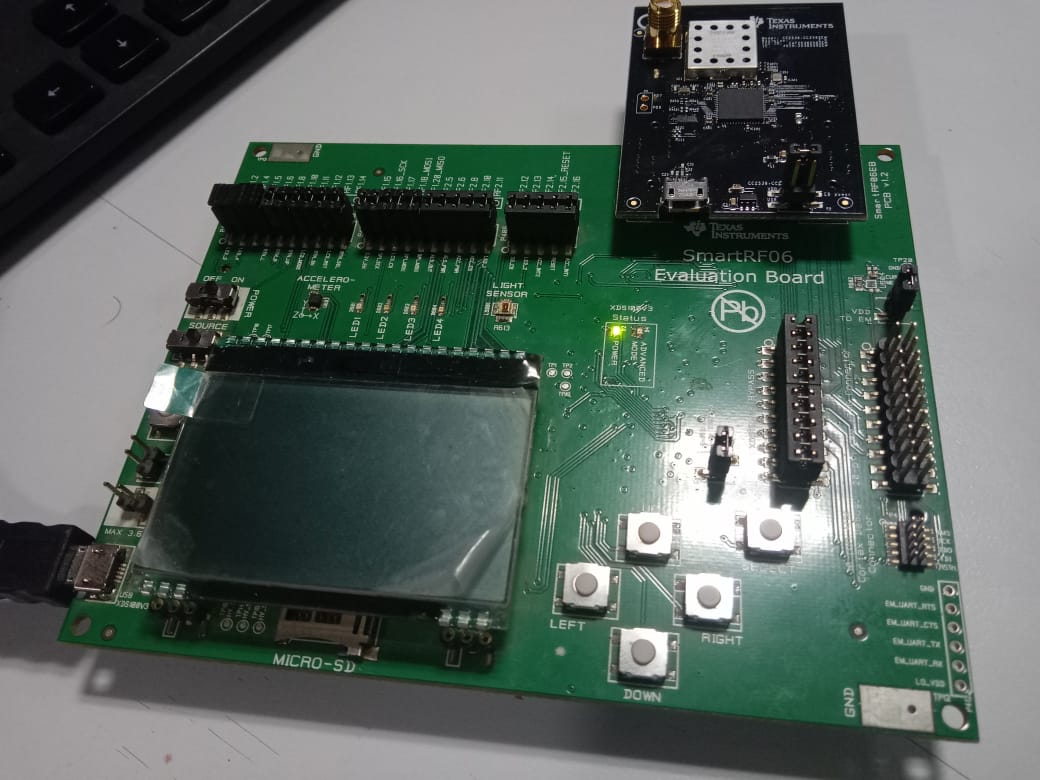

    I am using cc2538-cc2592emk as znp with UART interface with Raspberry pi 3 and zigbee 3.0 gateway.

    But its not working.

    when I run the ZigbeeHAgw it does not starts.

    PFA for  gateway logs

    Fullscreen UartZnpIssue.txt Download
    Platform type selected automatically as bbb.
To override this selection, please stop this script, and then run it again,
specifying the desired platform type at the command line:
  ./zigbeeHAgw [help | bbb | x86 ]

running ./zigbeeHAgw on an ARM
done processing arguments, board type bbb, target arm
NPI                 is 'NPI_lnx_arm_server'
Zstack linux server is 'ZLSZNP_arm'
gateway server      is 'GATEWAY_SRVR_arm'
network manager     is 'NWKMGR_SRVR_arm'
OTA server     	  is 'OTA_SRVR_arm'
Starting the ZigBee gateway subsystem
making sure there are no lingering servers...
there are 0 NPI servers
there are 0 ZLS servers
there are 0 GATEWAY servers
there are 0 NWKMGR servers
there are 0 OTA servers
(total 0)
done
Executing reset from external scripts
===================================================
starting NPI, cmd ' ./NPI_lnx_arm_server NPI_Gateway.cfg -v 0x0000010E ' on Tue Mar 19 23:01:04 IST 2019
[23:01:04.011,410] [NPISRVR/MAIN] UNMSKBL:
[23:01:04.011,916] [NPISRVR/MAIN] UNMSKBL:  ************************************************
[23:01:04.011,956] [NPISRVR/MAIN] UNMSKBL:  *  NPI Server v1.0.2d                          *
[23:01:04.012,008] [NPISRVR/MAIN] UNMSKBL:  ************************************************
[23:01:04.012,040] [NPISRVR/MAIN] UNMSKBL:
getaddrinfo error: Servname not supported for ai_socktype
Startup phase 1 completed successfully, server started (NPI_PID=4824) on Tue Mar 19 23:01:04 IST 2019
===================================================
starting ZLSZNP, cmd ' ' on Tue Mar 19 23:01:04 IST 2019
[23:01:04.049,318] [Z_STACK/MAIN] UNMSKBL:
[23:01:04.050,031] [Z_STACK/MAIN] UNMSKBL:  ************************************************
[23:01:04.050,091] [Z_STACK/MAIN] UNMSKBL:  *  ZStack Server for ZNP v1.0.2d               *
[23:01:04.050,126] [Z_STACK/MAIN] UNMSKBL:  ************************************************
[23:01:04.050,158] [Z_STACK/MAIN] UNMSKBL:
[23:01:04.050,270] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [AREQ] 08:5F:00:02:5A:5F:53:54:41:43:4B
[23:01:04.050,675] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 02:25:3E:FF:FF
Trying default port: 2533 instead
[23:01:04.050,619] [NPISRVR/MAIN] PKT_HEX: New incoming connection from client Z_STACK (connection # 5)
[23:01:04.050,934] [NPISRVR/MAIN] PKT_HEX: [SOCZIGB<<NPISRVR                                    ] [send] 02:25:3E:FF:FF
[23:01:06.050,917] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:06.051,043] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:06.051,143] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 01:2F:09:00
[23:01:08.051,395] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:08.051,518] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:08.051,600] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 01:2F:06:00
Synchronous Request Timeout...
[23:01:10.051,590] [NPISRVR/MAIN] PKT_HEX: [SOCZIGB<<NPISRVR                                    ] [send] 01:2F:09:00
[23:01:10.051,870] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:10.051,952] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:10.052,030] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 01:2F:02:08
[23:01:10.052,305] [NPISRVR/U_RX] PKT_HEX: [SOCZIGB>>NPISRVR                                    ] [ASNC] 01:2F:09:00
[23:01:10.052,422] [NPISRVR/ACBK] PKT_HEX: [         NPISRVR>>Z_STACK                           ] [bcst] 01:2F:09:00
[23:01:12.052,311] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:12.052,437] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:12.052,530] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 05:2F:08:00:00:00:00:00
[23:01:14.052,784] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:14.052,920] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:14.053,011] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 05:2F:08:01:00:08:00:00
Synchronous Request Timeout...
[23:01:16.052,283] [NPISRVR/MAIN] PKT_HEX: [SOCZIGB<<NPISRVR                                    ] [send] 01:2F:06:00
[23:01:16.053,250] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:16.053,336] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:16.053,433] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 06:21:09:83:00:00:02:FF:FF
[23:01:18.053,731] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:18.053,860] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:18.053,954] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 05:21:09:87:00:00:01:00
[23:01:20.054,217] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:20.054,344] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:20.054,444] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 07:21:15:96:00:C4:64:00:00:00
Synchronous Request Timeout...
[23:01:22.052,888] [NPISRVR/MAIN] PKT_HEX: [SOCZIGB<<NPISRVR                                    ] [send] 01:2F:02:08
[23:01:22.054,694] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:22.054,805] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:22.058,002] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 01:2F:05:04
Startup phase 2 completed successfully, server started (ZLSZNP_PID=4832) on Tue Mar 19 23:01:22 IST 2019
===================================================
starting NETWORK_MGR, cmd ' ./NWKMGR_SRVR_arm 127.0.0.1:2536 -v 0x0000460E ' on Tue Mar 19 23:01:22 IST 2019
[23:01:22.087,915] [NWK_MGR/MAIN] UNMSKBL:
[23:01:22.088,417] [NWK_MGR/MAIN] UNMSKBL:  ************************************************
[23:01:22.088,468] [NWK_MGR/MAIN] UNMSKBL:  *  Network Manager Server v1.0.2d              *
[23:01:22.088,532] [NWK_MGR/MAIN] UNMSKBL:  ************************************************
[23:01:22.088,582] [NWK_MGR/MAIN] UNMSKBL:
[23:01:22.088,737] [NWK_MGR/MAIN] PKTTYPE: [                  Z_STACK<<NWK_MGR                  ] [AREQ] 08:00:5F:00:03:4E:57:4B:5F:4D:47:52
[23:01:22.089,215] [NWK_MGR/MAIN] PKTTYPE: [                  Z_STACK<<NWK_MGR                  ] devZDOCBReq
[23:01:22.089,347] [NWK_MGR/MAIN] PKTBODY:                                                          cmdID = DEV_ZDO_CBS_REQ
[23:01:22.089,395] [NWK_MGR/MAIN] PKTBODY:                                                          srcRtgIndCB = 1
[23:01:22.089,438] [NWK_MGR/MAIN] PKTBODY:                                                          concentratorIndCb = 1
[23:01:22.089,478] [NWK_MGR/MAIN] PKTBODY:                                                          nwkDiscCnfCB = 1
[23:01:22.089,518] [NWK_MGR/MAIN] PKTBODY:                                                          beaconNotIndCB = 1
[23:01:22.089,560] [NWK_MGR/MAIN] PKTBODY:                                                          joinCnfCB = 1
[23:01:22.089,600] [NWK_MGR/MAIN] PKTBODY:                                                          leaveCnfCB = 1
[23:01:22.089,640] [NWK_MGR/MAIN] PKTBODY:                                                          leaveIndCB = 1
[23:01:22.089,683] [NWK_MGR/MAIN] PKTBODY:                                                          nwkAddrRsp = 1
[23:01:22.089,724] [NWK_MGR/MAIN] PKTBODY:                                                          ieeeAddrRsp = 1
[23:01:22.089,765] [NWK_MGR/MAIN] PKTBODY:                                                          nodeDescRsp = 1
[23:01:22.089,808] [NWK_MGR/MAIN] PKTBODY:                                                          powerDescRsp = 1
[23:01:22.089,850] [NWK_MGR/MAIN] PKTBODY:                                                          simpleDescRsp = 1
[23:01:22.089,891] [NWK_MGR/MAIN] PKTBODY:                                                          activeEndpointRsp = 1
[23:01:22.089,949] [NWK_MGR/MAIN] PKTBODY:                                                          matchDescRsp = 1
[23:01:22.089,994] [NWK_MGR/MAIN] PKTBODY:                                                          complexDescRsp = 1
[23:01:22.090,033] [NWK_MGR/MAIN] PKTBODY:                                                          userDescRsp = 1
[23:01:22.090,097] [NWK_MGR/MAIN] PKTBODY:                                                          discoveryCacheRsp = 1
[23:01:22.090,156] [NWK_MGR/MAIN] PKTBODY:                                                          userDescCnf = 1
[23:01:22.090,214] [NWK_MGR/MAIN] PKTBODY:                                                          serverDiscoveryRsp = 1
[23:01:22.090,262] [NWK_MGR/MAIN] PKTBODY:                                                          endDeviceTimeoutRsp = 1
[23:01:22.090,307] [NWK_MGR/MAIN] PKTBODY:                                                          bindRsp = 1
[23:01:22.090,346] [NWK_MGR/MAIN] PKTBODY:                                                          endDeviceBindRsp = 1
[23:01:22.090,386] [NWK_MGR/MAIN] PKTBODY:                                                          unbindRsp = 1
[23:01:22.090,430] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtNwkDiscRsp = 1
[23:01:22.090,470] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtLqiRsp = 1
[23:01:22.090,510] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtRtgRsp = 1
[23:01:22.090,557] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtBindRsp = 1
[23:01:22.090,607] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtLeaveRsp = 1
[23:01:22.090,650] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtDirectJoinRsp = 1
[23:01:22.090,691] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtPermitJoinRsp = 1
[23:01:22.090,731] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtNwkUpdateNotify = 1
[23:01:22.090,772] [NWK_MGR/MAIN] PKTBODY:                                                          deviceAnnounce = 1
[23:01:22.090,814] [NWK_MGR/MAIN] PKTBODY:                                                          devStateChange = 1
[23:01:22.090,856] [NWK_MGR/MAIN] PKTBODY:                                                          tcDeviceInd = 1
[23:01:22.092,521] [NWK_MGR/MAIN] PKTTYPE: [                  Z_STACK<<NWK_MGR                  ] sysNwkInfoReadReq
[23:01:22.092,603] [NWK_MGR/MAIN] PKTBODY:                                                          cmdID = SYS_NWK_INFO_READ_REQ
[23:01:22.091,437] [Z_STACK/LSTN] CONNECT: Connected to new client, connection # 5
[23:01:22.091,589] [Z_STACK/LSTN] CONNECT: Client at connection # 5 identified itself as NWK_MGR
[23:01:22.091,966] [Z_STACK/LSTN] PKTTYPE: [                  Z_STACK>>NWK_MGR                  ] zstackDefaultRsp
[23:01:22.092,071] [Z_STACK/LSTN] PKTBODY:                                                          cmdID = DEV_ZDO_CBS_REQ
[23:01:22.092,129] [Z_STACK/LSTN] PKTBODY:                                                          status = ZSuccess
[23:01:24.058,403] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:24.058,539] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:24.058,604] [Z_STACK/LSTN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 00:25:50
[23:01:24.092,867] [NWK_MGR/MAIN] ERROR  : SRSP Cond Wait timed out!
[23:01:24.093,014] [NWK_MGR/MAIN] ERROR  : apicSendSynchData() failed getting response
[23:01:24.095,199] [NWK_MGR/MAIN] ERROR  : Reading Local Network Information Failed
[23:01:24.095,319] [NWK_MGR/MAIN] UNMSKBL: Initialization failed. Quitting now.

Startup phase 3 failed
waiting for Zstack linux to exit
waiting for NPI to exit
making sure there are no lingering servers...
there are 0 NPI servers
there are 0 ZLS servers
there are 0 GATEWAY servers
there are 0 NWKMGR servers
there are 0 OTA servers
(total 0)
done
Executing reset from external scripts
^Ccaught SIGTERM, killing all the servers and cleaning up
making sure there are no lingering servers...
there are 0 NPI servers
there are 0 ZLS servers
there are 0 GATEWAY servers
there are 0 NWKMGR servers
there are 0 OTA servers
(total 0)
done
terminating zigbeeHAGW (pid 4781)

  • 0
    TI__Mastermind 35030 points
    Hi,

    Make sure deviceKey is 0 in NPI_Gateway.cfg.

    This is mentioned in section "5.1 NPI Server" in "Z-Stack Linux Gateway User Guide.pdf".



    Regards,
    Toby
  • 0 in reply to Toby
    Guru 14820 points
    that is bydefault
    deviceKey=0 ; UART
  • 0 in reply to Dhanraj
    Guru 14820 points
    PA0/PA1 are configured for UART 0 or UART 1 ??
  • 0 in reply to Dhanraj
    Guru 735685 points
    PA0/PA1 are configured for UART 0. I suggest you to connect your CC2538-CC2592EMK to ZTool and see if it works first.
  • 0 in reply to YiKai Chen
    Guru 14820 points
    ok so before that .
    For cc2538 znp firmware, changes mentioned in the document Z-Stack ZNP Interface Specification are enough ?
  • 0 in reply to Dhanraj
    Guru 14820 points

    I have connected to z-TOOL , as shown above and Z-tool connection ststus.

  • 0 in reply to Dhanraj
    Guru 735685 points
    Since it works with ZTool, I suggest you to connect it to Zigbee 3.0 Gateway and debug with IAR to see what is missed.
  • 0 in reply to YiKai Chen
    Guru 14820 points

    prior to that ...I wanted to know what are the changes required in zigbee 3.0 gateway to use znp with UART interface instead of USB?
    Beause it is different from old gateway so we can not follow your blog also -sunmaysky.blogspot.com/.../how-to-run-ti-z-stack-linux-home.html

  • 0 in reply to Dhanraj
    Guru 735685 points
    can you provide the predefined symbols used in prebuilt CC2538 ZNP FW of Z-Stack 3.0 Gateway reference design?
  • 0 in reply to YiKai Chen
    Guru 14820 points

    When i start the "zigbeeHAgw " - It always throws the error as shown below-

    pi@raspberrypi:~/Desktop/zigbee_gateway_v3.0/out/Precompiled/servers $ sudo ./zigbeeHAgw
Platform type selected automatically as bbb.
To override this selection, please stop this script, and then run it again,
specifying the desired platform type at the command line:
  ./zigbeeHAgw [help | bbb | x86 ]

running ./zigbeeHAgw on an ARM
done processing arguments, board type bbb, target arm
NPI                 is 'NPI_lnx_arm_server'
Zstack linux server is 'ZLSZNP_arm'
gateway server      is 'GATEWAY_SRVR_arm'
network manager     is 'NWKMGR_SRVR_arm'
OTA server     	  is 'OTA_SRVR_arm'
Starting the ZigBee gateway subsystem
making sure there are no lingering servers...
there are 0 NPI servers
there are 0 ZLS servers
there are 0 GATEWAY servers
there are 0 NWKMGR servers
there are 0 OTA servers
(total 0)
done
Executing reset from external scripts
===================================================
starting NPI, cmd ' ./NPI_lnx_arm_server NPI_Gateway.cfg -v 0x0000010E ' on Thu Mar 21 22:06:06 IST 2019
[22:06:06.859,425] [NPISRVR/MAIN] UNMSKBL:
[22:06:06.859,898] [NPISRVR/MAIN] UNMSKBL:  ************************************************
[22:06:06.859,942] [NPISRVR/MAIN] UNMSKBL:  *  NPI Server v1.0.2d                          *
[22:06:06.859,974] [NPISRVR/MAIN] UNMSKBL:  ************************************************
[22:06:06.860,009] [NPISRVR/MAIN] UNMSKBL:
getaddrinfo error: Servname not supported for ai_socktype
Startup phase 1 completed successfully, server started (NPI_PID=1292) on Thu Mar 21 22:06:06 IST 2019
===================================================
starting ZLSZNP, cmd ' ' on Thu Mar 21 22:06:06 IST 2019
[22:06:06.898,664] [Z_STACK/MAIN] UNMSKBL:
[22:06:06.899,037] [Z_STACK/MAIN] UNMSKBL:  ************************************************
[22:06:06.899,079] [Z_STACK/MAIN] UNMSKBL:  *  ZStack Server for ZNP v1.0.2d               *
[22:06:06.899,116] [Z_STACK/MAIN] UNMSKBL:  ************************************************
[22:06:06.899,148] [Z_STACK/MAIN] UNMSKBL:
[22:06:06.899,263] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [AREQ] 08:5F:00:02:5A:5F:53:54:41:43:4B
[22:06:06.899,559] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 02:25:3E:FF:FF
Trying default port: 2533 instead
[22:06:06.899,883] [NPISRVR/MAIN] PKT_HEX: New incoming connection from client Z_STACK (connection # 5)
[22:06:06.900,020] [NPISRVR/MAIN] PKT_HEX: [SOCZIGB<<NPISRVR                                    ] [send] 02:25:3E:FF:FF
[22:06:08.899,755] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:08.899,874] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:08.899,955] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 01:2F:09:00
[22:06:10.900,241] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:10.900,343] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:10.900,424] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 01:2F:06:00
Synchronous Request Timeout...
[22:06:12.900,576] [NPISRVR/MAIN] PKT_HEX: [SOCZIGB<<NPISRVR                                    ] [send] 01:2F:09:00
[22:06:12.900,725] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:12.900,791] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:12.900,868] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 01:2F:02:08
[22:06:14.901,215] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:14.901,322] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:14.901,408] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 05:2F:08:00:00:00:00:00
[22:06:16.901,729] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:16.901,840] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:16.901,930] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 05:2F:08:01:00:20:00:00
Synchronous Request Timeout...
[22:06:18.901,302] [NPISRVR/MAIN] PKT_HEX: [SOCZIGB<<NPISRVR                                    ] [send] 01:2F:06:00
[22:06:18.902,218] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:18.902,281] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:18.902,372] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 06:21:09:83:00:00:02:FF:FF
[22:06:20.902,652] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:20.902,767] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:20.902,859] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 05:21:09:87:00:00:01:00
[22:06:22.903,168] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:22.903,282] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:22.903,380] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 07:21:15:96:00:C4:64:00:00:00
Synchronous Request Timeout...
[22:06:24.901,962] [NPISRVR/MAIN] PKT_HEX: [SOCZIGB<<NPISRVR                                    ] [send] 01:2F:02:08
[22:06:24.903,667] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:24.903,730] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:24.906,210] [Z_STACK/MAIN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 01:2F:05:04
Startup phase 2 completed successfully, server started (ZLSZNP_PID=1300) on Thu Mar 21 22:06:24 IST 2019
===================================================
starting NETWORK_MGR, cmd ' ./NWKMGR_SRVR_arm 127.0.0.1:2536 -v 0x0000460E ' on Thu Mar 21 22:06:24 IST 2019
[22:06:24.931,537] [Z_STACK/LSTN] CONNECT: Connected to new client, connection # 5
[22:06:24.931,811] [NWK_MGR/MAIN] UNMSKBL:
[22:06:24.932,818] [NWK_MGR/MAIN] UNMSKBL:  ************************************************
[22:06:24.932,858] [NWK_MGR/MAIN] UNMSKBL:  *  Network Manager Server v1.0.2d              *
[22:06:24.932,940] [NWK_MGR/MAIN] UNMSKBL:  ************************************************
[22:06:24.932,998] [NWK_MGR/MAIN] UNMSKBL:
[22:06:24.933,159] [NWK_MGR/MAIN] PKTTYPE: [                  Z_STACK<<NWK_MGR                  ] [AREQ] 08:00:5F:00:03:4E:57:4B:5F:4D:47:52
[22:06:24.933,427] [Z_STACK/LSTN] CONNECT: Client at connection # 5 identified itself as NWK_MGR
[22:06:24.933,644] [NWK_MGR/MAIN] PKTTYPE: [                  Z_STACK<<NWK_MGR                  ] devZDOCBReq
[22:06:24.933,775] [NWK_MGR/MAIN] PKTBODY:                                                          cmdID = DEV_ZDO_CBS_REQ
[22:06:24.933,825] [NWK_MGR/MAIN] PKTBODY:                                                          srcRtgIndCB = 1
[22:06:24.933,896] [NWK_MGR/MAIN] PKTBODY:                                                          concentratorIndCb = 1
[22:06:24.933,963] [NWK_MGR/MAIN] PKTBODY:                                                          nwkDiscCnfCB = 1
[22:06:24.934,030] [NWK_MGR/MAIN] PKTBODY:                                                          beaconNotIndCB = 1
[22:06:24.934,096] [NWK_MGR/MAIN] PKTBODY:                                                          joinCnfCB = 1
[22:06:24.934,162] [NWK_MGR/MAIN] PKTBODY:                                                          leaveCnfCB = 1
[22:06:24.934,228] [NWK_MGR/MAIN] PKTBODY:                                                          leaveIndCB = 1
[22:06:24.934,294] [NWK_MGR/MAIN] PKTBODY:                                                          nwkAddrRsp = 1
[22:06:24.934,359] [NWK_MGR/MAIN] PKTBODY:                                                          ieeeAddrRsp = 1
[22:06:24.934,424] [NWK_MGR/MAIN] PKTBODY:                                                          nodeDescRsp = 1
[22:06:24.934,487] [NWK_MGR/MAIN] PKTBODY:                                                          powerDescRsp = 1
[22:06:24.934,529] [NWK_MGR/MAIN] PKTBODY:                                                          simpleDescRsp = 1
[22:06:24.934,596] [NWK_MGR/MAIN] PKTBODY:                                                          activeEndpointRsp = 1
[22:06:24.934,662] [NWK_MGR/MAIN] PKTBODY:                                                          matchDescRsp = 1
[22:06:24.934,728] [NWK_MGR/MAIN] PKTBODY:                                                          complexDescRsp = 1
[22:06:24.934,793] [NWK_MGR/MAIN] PKTBODY:                                                          userDescRsp = 1
[22:06:24.934,860] [NWK_MGR/MAIN] PKTBODY:                                                          discoveryCacheRsp = 1
[22:06:24.934,925] [NWK_MGR/MAIN] PKTBODY:                                                          userDescCnf = 1
[22:06:24.934,991] [NWK_MGR/MAIN] PKTBODY:                                                          serverDiscoveryRsp = 1
[22:06:24.935,057] [NWK_MGR/MAIN] PKTBODY:                                                          endDeviceTimeoutRsp = 1
[22:06:24.935,122] [NWK_MGR/MAIN] PKTBODY:                                                          bindRsp = 1
[22:06:24.935,188] [NWK_MGR/MAIN] PKTBODY:                                                          endDeviceBindRsp = 1
[22:06:24.935,255] [NWK_MGR/MAIN] PKTBODY:                                                          unbindRsp = 1
[22:06:24.935,320] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtNwkDiscRsp = 1
[22:06:24.935,384] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtLqiRsp = 1
[22:06:24.935,566] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtRtgRsp = 1
[22:06:24.935,905] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtBindRsp = 1
[22:06:24.935,957] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtLeaveRsp = 1
[22:06:24.936,023] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtDirectJoinRsp = 1
[22:06:24.936,821] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtPermitJoinRsp = 1
[22:06:24.938,741] [NWK_MGR/MAIN] PKTBODY:                                                          mgmtNwkUpdateNotify = 1
[22:06:24.938,843] [NWK_MGR/MAIN] PKTBODY:                                                          deviceAnnounce = 1
[22:06:24.938,889] [NWK_MGR/MAIN] PKTBODY:                                                          devStateChange = 1
[22:06:24.938,935] [NWK_MGR/MAIN] PKTBODY:                                                          tcDeviceInd = 1
[22:06:24.939,976] [Z_STACK/LSTN] PKTTYPE: [                  Z_STACK>>NWK_MGR                  ] zstackDefaultRsp
[22:06:24.940,182] [Z_STACK/LSTN] PKTBODY:                                                          cmdID = DEV_ZDO_CBS_REQ
[22:06:24.940,277] [Z_STACK/LSTN] PKTBODY:                                                          status = ZSuccess
[22:06:24.940,861] [NWK_MGR/MAIN] PKTTYPE: [                  Z_STACK<<NWK_MGR                  ] sysNwkInfoReadReq
[22:06:24.940,944] [NWK_MGR/MAIN] PKTBODY:                                                          cmdID = SYS_NWK_INFO_READ_REQ
[22:06:26.906,638] [Z_STACK/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:26.906,765] [Z_STACK/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:26.907,090] [Z_STACK/LSTN] PKTTYPE: [         NPISRVR<<Z_STACK                           ] [SREQ] 00:25:50
[22:06:26.941,322] [NWK_MGR/MAIN] ERROR  : SRSP Cond Wait timed out!
[22:06:26.941,469] [NWK_MGR/MAIN] ERROR  : apicSendSynchData() failed getting response
[22:06:26.942,896] [NWK_MGR/MAIN] ERROR  : Reading Local Network Information Failed
[22:06:26.942,991] [NWK_MGR/MAIN] UNMSKBL: Initialization failed. Quitting now.

Startup phase 3 failed
waiting for Zstack linux to exit
waiting for NPI to exit
making sure there are no lingering servers...
there are 0 NPI servers
there are 0 ZLS servers
there are 0 GATEWAY servers
there are 0 NWKMGR servers
there are 0 OTA servers
(total 0)
done
^Ccaught SIGTERM, killing all the servers and cleaning up
making sure there are no lingering servers...
there are 0 NPI servers
there are 0 ZLS servers
there are 0 GATEWAY servers
there are 0 NWKMGR servers
there are 0 OTA servers
(total 0)
done
terminating zigbeeHAGW (pid 1250)
Killed

  • 0 in reply to Dhanraj
    TI__Mastermind 35030 points

    Please see this related post: e2e.ti.com/.../766240

    It suggests the following macros using the ZNP from Z-Stack 3.0.2:

    BDB_FINDING_BINDING_CAPABILITY_ENABLED=0
TC_LINKKEY_JOIN
NWK_MAX_DEVICE_LIST=2
ZDSECMGR_TC_DEVICE_MAX=2
DISABLE_GREENPOWER_BASIC_PROXY
POWER_SAVING
xFEATURE_SYSTEM_STATS
MT_GP_CB_FUNC
ZNP_ALT                     // To disable flow control

  • 0 in reply to Toby
    Guru 14820 points
    I have used same setting only ...as you can see in my previous response ..cc2538 znp based on UART is working with Z-tool...but it doesn't work with Zigbee 3.0 gateway.

    my Cc2538 znp based on USB works with Zigbee 3.0 gateway but UART based cc2538 znp does not works .
  • 0 in reply to Dhanraj
    TI__Mastermind 35030 points
    The "getaddrinfo error: Servname not supported for ai_socktype" concerns me.

    While you have the gateway running, can you show what you see after running the following command:
    netstat -l
  • 0 in reply to Dhanraj
    Guru 735685 points

    Do you build zigbeeHAgw by yourself?

  • 0 in reply to Toby
    Intellectual 470 points

    Below is the command out put while running the zigbeeHAgw(modified for UART) script.

    Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State
tcp 0 0 0.0.0.0:2533 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:5900 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:ssh 0.0.0.0:* LISTEN
tcp6 0 0 [::]:5900 [::]:* LISTEN
tcp6 0 0 [::]:ssh [::]:* LISTEN
udp 0 0 0.0.0.0:bootpc 0.0.0.0:*
udp 0 0 0.0.0.0:mdns 0.0.0.0:*
udp 0 0 0.0.0.0:50462 0.0.0.0:*
udp6 0 0 [::]:mdns [::]:*
udp6 0 0 [::]:37693 [::]:*
raw6 0 0 [::]:ipv6-icmp [::]:* 7
Active UNIX domain sockets (only servers)
Proto RefCnt Flags Type State I-Node Path
unix 2 [ ACC ] STREAM LISTENING 13588 /run/user/1000/pcmanfm-socket--0
unix 2 [ ACC ] STREAM LISTENING 13313 @/tmp/.X11-unix/X0
unix 2 [ ACC ] STREAM LISTENING 10531 /var/run/dbus/system_bus_socket
unix 2 [ ACC ] STREAM LISTENING 10534 /run/thd.socket
unix 2 [ ACC ] STREAM LISTENING 10536 /var/run/avahi-daemon/socket
unix 2 [ ACC ] STREAM LISTENING 316 /run/systemd/private
unix 2 [ ACC ] SEQPACKET LISTENING 13885 /var/run/bluealsa/hci0
unix 2 [ ACC ] SEQPACKET LISTENING 323 /run/udev/control
unix 2 [ ACC ] STREAM LISTENING 342 /run/systemd/journal/stdout
unix 2 [ ACC ] STREAM LISTENING 12832 /tmp/ssh-RR7F4JpAS8hv/agent.522
unix 2 [ ACC ] STREAM LISTENING 13415 /run/user/1000/systemd/private
unix 2 [ ACC ] STREAM LISTENING 362 /run/systemd/fsck.progress
unix 2 [ ACC ] STREAM LISTENING 13420 /run/user/1000/gnupg/S.gpg-agent
unix 2 [ ACC ] STREAM LISTENING 13423 /run/user/1000/bus
unix 2 [ ACC ] STREAM LISTENING 12400 /var/run/dhcpcd.sock
unix 2 [ ACC ] STREAM LISTENING 13425 /run/user/1000/gnupg/S.gpg-agent.browser
unix 2 [ ACC ] STREAM LISTENING 12402 /var/run/dhcpcd.unpriv.sock
unix 2 [ ACC ] STREAM LISTENING 13427 /run/user/1000/gnupg/S.gpg-agent.extra
unix 2 [ ACC ] STREAM LISTENING 13429 /run/user/1000/gnupg/S.gpg-agent.ssh
unix 2 [ ACC ] STREAM LISTENING 11254 /tmp/ssh-LXF6JC1Rmkh0/agent.624
unix 2 [ ACC ] STREAM LISTENING 16538 /run/user/1000/.lxterminal-socket-:0.0
unix 2 [ ACC ] STREAM LISTENING 12711 /tmp/.vnc-vncservice/vncserver-x11.CtrlComms
unix 2 [ ACC ] STREAM LISTENING 13314 /tmp/.X11-unix/X0
unix 2 [ ACC ] STREAM LISTENING 23903 /tmp/geany_socket.3363b50c
unix 2 [ ACC ] STREAM LISTENING 13024 /run/user/1000/menu-cached-:0
  • 0 in reply to YiKai Chen
    Intellectual 470 points
    yeah we have used the cross-compiler tool chain and built the gateway arm binaries
  • 0 in reply to Prem Shamsundar
    Guru 735685 points
    Do you have CC2531EMK or LAUNCHXL-CC26x2R1 to test this with prebuilt ZNP image and see if it works first?
  • 0 in reply to YiKai Chen
    Intellectual 470 points

    We have LAUNCHXL-CC26x2R1 (Both Revision C and Revision E) which one shall I test with ? There are pre built znp.hex images available in the gateway folder should i use that to test ?

  • 0 in reply to YiKai Chen
    Intellectual 470 points
    LAUNCHXL-CC26x2R1 Rev C is working
  • 0 in reply to Prem Shamsundar
    Guru 735685 points
    If you use prebuilt CC2538_GW_ZNP_SRF06+EM_UART.hex to test it, does it work?
  • 0 in reply to YiKai Chen
    Guru 14820 points
    If we use prebuilt CC2538_GW_ZNP_SRF06+EM_UART.hex to test it, It does not work ?
  • 0 in reply to Dhanraj
    Guru 735685 points
    Do you mean you already test with prebuilt CC2538_GW_ZNP_SRF06+EM_UART.hex and it doesn't work?
  • 0 in reply to YiKai Chen
    Guru 14820 points

    yes , i have tested once again now it does not work with prebuilt CC2538_GW_ZNP_SRF06+EM_UART.hex

    Strange thing is that  prebuilt CC2538_GW_ZNP_SRF06+EM_UART.hex does not work with Z-tool

  • 0 in reply to Dhanraj
    Genius 3415 points

    Are you using XDS100v3 thought USB for communication or UART pins directly?

  • 0 in reply to Jose Maria Alvarez
    Guru 14820 points
    First of all , m really sorry to trouble you all.

    @
    when I test prebuilt CC2538_GW_ZNP_SRF06+EM_UART.hex I have used XDS100v3 through USB for communication with Enable UART over XDS jumper cponnected .And it does not work with Z-tool


    when I test my ZNP over UART code, I have used XDS100v3 through USB as well as UART pins directly for communication.
    and it was working with XDS100v3 through USB with z-tool.
    and it was not working with UART pins directly from smart RF board uart header (P412).After troubleshooting i found that GND pin of P412 header was not connected to GND of smart RF board.later I connected GND from different header and it started working.
  • 0 in reply to Dhanraj
    Guru 735685 points
    So, does everything work now?
  • 0 in reply to YiKai Chen
    Guru 14820 points
    with my code , YES everything works now.
  • 0 in reply to Dhanraj
    Guru 735685 points
    Cheers and I suggest you to mark this thread as solved.
