CC2530: how to change sample projects in zstack as I need.

I am reading codes and documents about three month but H can't run my code. I write HalLedBlink in HAL_led.c in this section:

void HalLedInit (void)
{
#if (HAL_LED == TRUE)
/* Initialize all LEDs to OFF */
HalLedSet(HAL_LED_ALL,HAL_LED_MODE_BLINK);
#endif /* HAL_LED */
#ifdef BLINK_LEDS
/* Initialize sleepActive to FALSE */
HalLedStatusControl.sleepActive = FALSE;
#endif
}

and define pins in hal_board_cfg in this section:

#define LED1_BV BV(1)
#define LED1_SBIT P1_1
#define LED1_DDR P1DIR
#define LED1_POLARITY ACTIVE_HIGH

but I have two problems:

1. I can't define my sightly pin. H mean when I use another pin like P0_1 H can't even turn on the led. and if I define as above and don't comment the halLcdInit() in Hal_drivers the led was turned on and I can turn it off. why I can't do this work and define any pin for led?

2. how can I see the led blinking for all time? I mean where is the while(1) loop in the sample?

can you send me a video that show how can I do this work or another work?

my third problem is HAL_UART doesn't TRUE and when I change it in hal_board_cfg and compile code this error occured:

Error[e16]: Segment XDATA_Z (size: 0x1ce9 align: 0) is too long for segment definition. At least 0xea more bytes needed. The problem occurred while processing the
segment placement command "-Z(XDATA)XDATA_Z,XDATA_I=_XDATA_START-_XDATA_END", where at the moment of placement the available memory ranges
were "XDATA:301-1eff"
Reserved ranges relevant to this placement:
XDATA:1-300 XSTACK
XDATA:301-1eff XDATA_Z
BIT:0-7 BREG
BIT:80-87 SFR_AN
BIT:90-97 SFR_AN
BIT:a0-af SFR_AN
BIT:b8-c7 SFR_AN
BIT:e8-ef SFR_AN
BIT:f8-ff SFR_AN
Error while running Linker.

note that i don't use an empty mdule. I try to program a DRF1605 module.

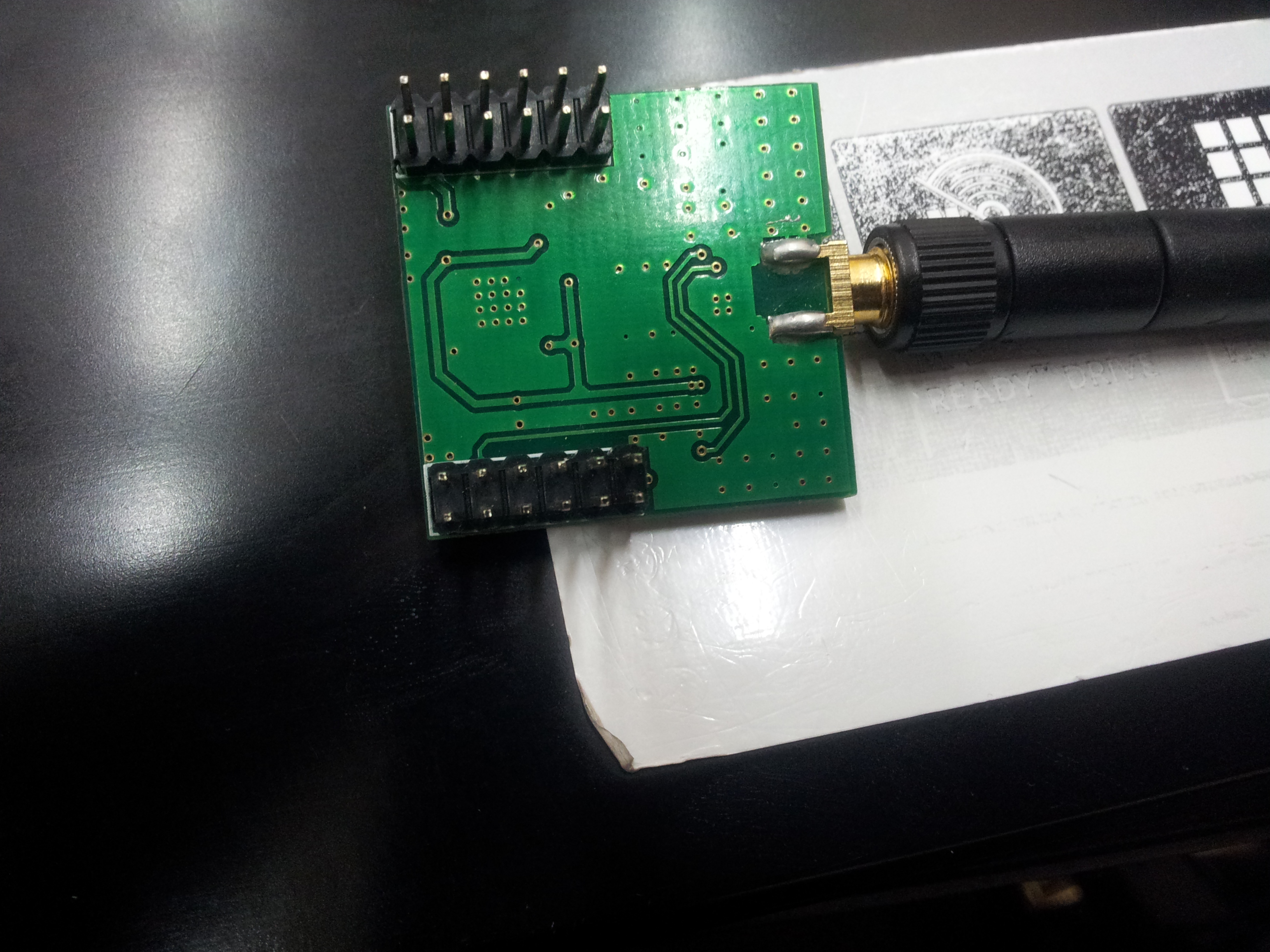

1.It has some pin header that I can connect the led in breadboard. the attached pictures is drf1605. in these picture the bottom pin header named J2 and the another one named J1. in this module pin connection is:

J1_1:P2_1

J1_2:P2_2

J1_3:P1_7

J1_4:P2_0

J1_5:P1_5

J1_6:P1_6

J1_7:P1_3

J1_8:P1_4

J1_9:P1_1

J1_10:P1_2

J1_11:not connected

J1_12:not connected

J2_1:RESET_N

J2_2:P0_0

J2_3:P0_1

J2_4:P0_2

J2_5:P0_3

J2_6:P0_4

J2_7:P0_5

J2_8:P0_6

J2_9:P0_7

J2_10:P1_0

J2_11:gnd

J2_12:VCC

I understand this connections by following PCB in module.

2. do you mean after use HalLedSet in hal_led.c I write HalLedBlink(HAL_LED_1, 0, 50,50)?

Thanks for your help.

thank you for your help. you are a good man.

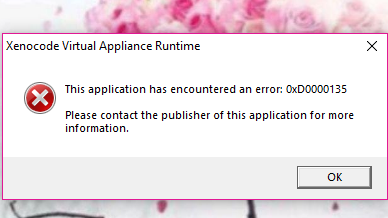

why when I try to open ztool I get this error?

1. I use cp2102 module to convert Uart to USB. I connect J2-4 and J2-5 to Tx and Rx and connect 3.3 and gnd. is the uart pin in ZNP P0_2 and P0_3?

2. I didn't change anything.

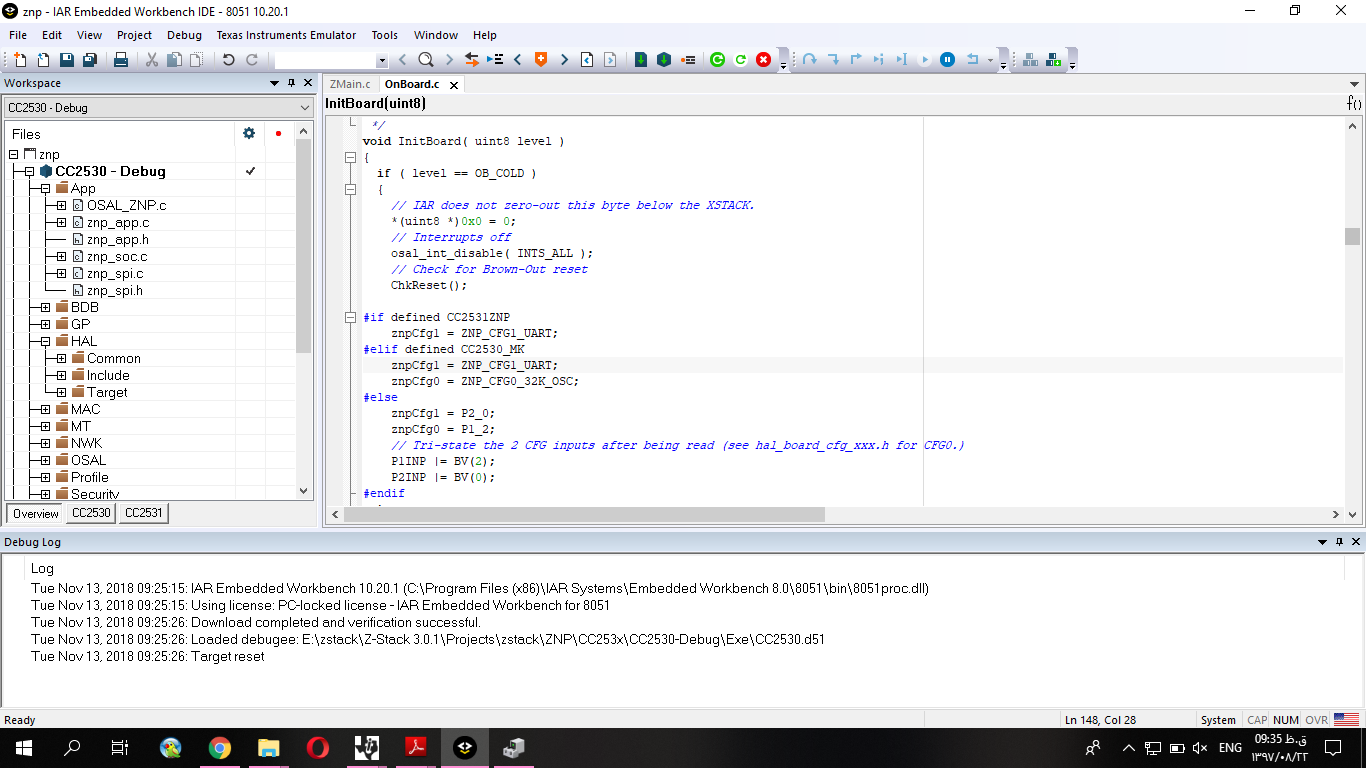

I change this as follows but z-tool can't find any device yet.

can you please tell me where can I change baud rate and UART pins in ZNP????
