CC2530 Longer sleep time

bin liu1

Other Parts Discussed in Thread: CC2530, Z-STACK

Hi Everyone,

I'm just trying to program my end device to enter in LITE sleep mode. I've already followed the instruccions in Power Management documentation but the sleep time is not long.I found the nwk_set_poll_evt and HAL_LED_BLINK_EVENT is always trigger.How can i stop the event?

Thanks

bin

over 12 years ago

0 YiKai Chen over 12 years ago

Guru 735685 points

Would you specify which ZStack example you use?

0 bin liu1 over 12 years ago in reply to YiKai Chen

Prodigy 180 points

Hi,YiKai Chen

I'm using ZStack-CC2530-2.5.1a.The example I use is SampleApp.I am now designing a low-power products, and these events frequently triggered.Project defined symbols are as follows:

xNWK_AUTO_POLL
ZTOOL_P1
MT_TASK
MT_SYS_FUNC
MT_ZDO_FUNC
LCD_SUPPORTED=DEBUG
POWER_SAVING
HAL_LED=TRUE
HAL_KEY=FALSE
BLINK_LEDS
NV_RESTORE
NV_INIT

My RATE set are as follows:

-DPOLL_RATE=3000,-DQUEUED_POLL_RATE=0,-DRESPONSE_POLL_RATE=0,-DREJOIN_POLL_RATE=0

What is the cause of these events frequently trigger？

Thanks

bin

0 YiKai Chen over 12 years ago in reply to bin liu1

Guru 735685 points

You can define "HAL_LED = FALSE" to disable HAL_LED_BLINK_EVENT. As for nwk_set_poll_evt, I do not see it in my ZStack. Do you create this event by yourself? Or you can point out where the location is.

0 bin liu1 over 12 years ago in reply to YiKai Chen

Prodigy 180 points

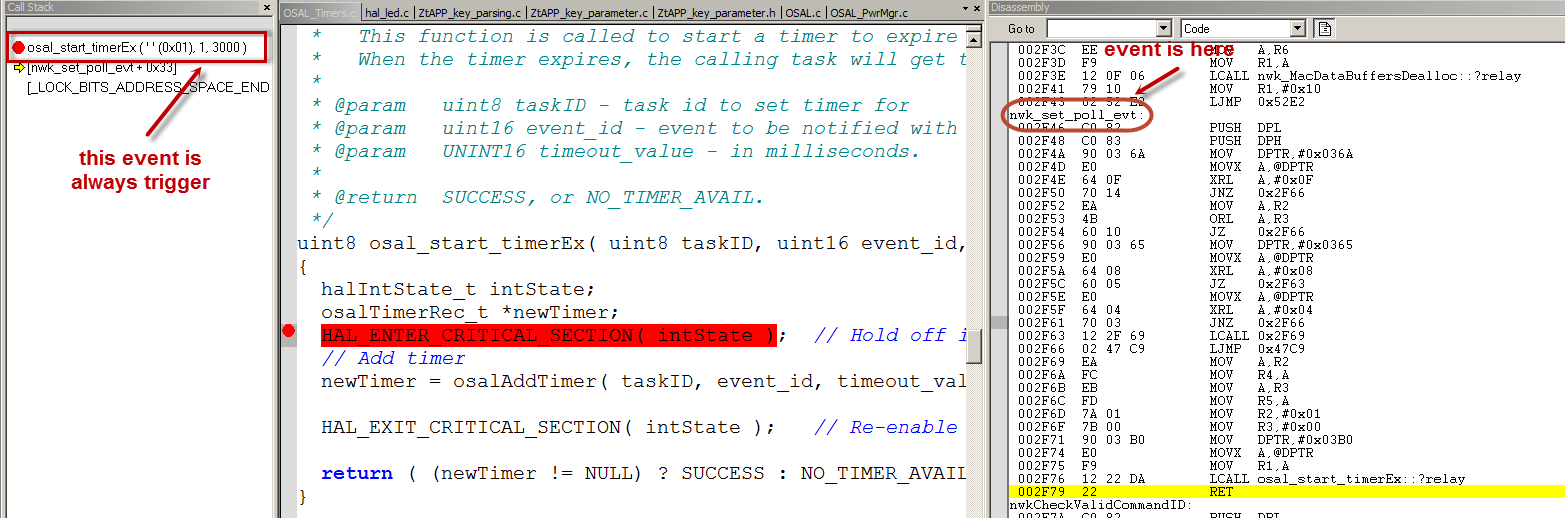

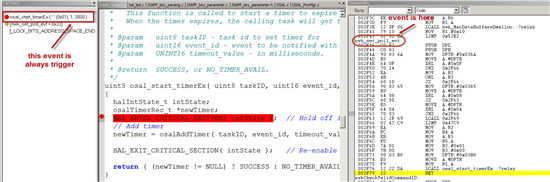

Thank you for your suggestion.The event is above,and it is triggered frequently.When I define "HAL_LED = FALSE" to disable HAL_LED_BLINK_EVENT ,I could not control the LEDs ON/OFF by call the function HalLedSet,and In my project, I need to control LEDs ON/OFF.How would i do?

0 YiKai Chen over 12 years ago in reply to bin liu1

Guru 735685 points

If you want to set "-DPOLL_RATE=3000", you need to enable "NWK_AUTO_POLL".

0 bin liu1 over 12 years ago in reply to YiKai Chen

Prodigy 180 points

The purpose I set "NWK_AUTO_POLL"disable is to disable the nwk_set_poll_evt.Is there any way disable the HAL_LED_BLINK_EVENT and can control the LED on/off and blink?

0 YiKai Chen over 12 years ago in reply to bin liu1

Guru 735685 points

LED on/off and blink are just to control GPO. You can copy and rename the function in HAL_LED.c to do it.

0 bin liu1 over 12 years ago in reply to YiKai Chen

Prodigy 180 points

Hi Chen

thank you for your suggestions! I also have a question.If my end device want to keep the communication with coordination,the nwk_set_poll_evt would have been always triggered?Is it right?

Is it affect the sleep mode when I use the watchdog?

thanks

bin

0 YiKai Chen over 12 years ago in reply to bin liu1

Guru 735685 points

Yes, the nwk_set_poll_evt would be always triggered if your end device keeps communication with coordinator. As for watch dog, it won't affect sleep mode.

0 bin liu1 over 12 years ago in reply to YiKai Chen

Prodigy 180 points

so,use watch dog don't increasing the power consumption?But I saw in the main funstion that when I use watchdog must define WDT_IN_PM1.Is it say the watchdog had better use in PM1 mode?

#ifdef WDT_IN_PM1
/* If WDT is used, this is a good place to enable it. */
WatchDogEnable( WDTIMX );
#endif

0 Simon Najman over 9 years ago in reply to bin liu1

Prodigy 80 points

Hi,

I have exatcly the same problem, nwk_poll_evt is waking my CC2530 from sleep all the time. What is solution for this?

Thank you

Simon

0 YiKai Chen over 9 years ago in reply to Simon Najman

Guru 735685 points

Can you elaborate your problem? Which Z-Stack and example you are testing. The latest timer event in Z-Stack can be set you uint32 which is good enough to wake up CC2530 from a long scheduled event.

0 Simon Najman over 9 years ago in reply to YiKai Chen

Prodigy 80 points

Z-Stack 1.2.1, I'm using my code loosly based on temperature sensor example.
My current consumption is around 200-300 uA when in sleep mode. In datasheet this should be around 0.1 uA in PM2.
In debbug mode i have seen that when osal is looking for the shortest timer timeout, it almost always gets the timeout from NWK_AUTO_POLL_EVT. even when i disable auto poll feature. This timeout probably prevents cc2530 from entering pm2.

0 YiKai Chen over 9 years ago in reply to Simon Najman

Guru 735685 points

Try to set POLL_RATE to a larger value.

0 Simon Najman over 9 years ago in reply to YiKai Chen

Prodigy 80 points

Can you please tell me what power consumption did you achieved?

0 YiKai Chen over 9 years ago in reply to Simon Najman

Guru 735685 points

For a very simple device with PM2, I can get about 2~3uA when it goes to sleeping mode.
