CC2530 home automation

Sebastian P J

Other Parts Discussed in Thread: CC2530, Z-STACK, CC2530EM

I have 3 cc2530 modules and an arduino uno with ethernet sheild. And I am developing a home automation project

I want to control the GPIO pins of the routers(or end devices) remotely by sending data from the coordinator module, and also the routers(or end devices) should give back the status of GPIOs to the coordinator module.

I don't know which z-stack package is suitable for my application and how to use this in my application

Please help me to do my project ..................................

over 10 years ago

0 YiKai Chen over 10 years ago

Guru 735695 points

You can download Z-Stack HOME 1.2.2 and install it. There are SampleLight and SampleSwitch example in Z-Stack Home that you can start with.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

I already downloaded the z-stack home automation and IAR workbench .And also loaded the SampleLight and SampleSwitch .
But which file i need to modify and where i get the uart code ,IO pin configuration,and the status monitoring code...............

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

SampleLight and SampleSwitch have enable UART by default. If you connect UART to PC, you can use ZTool to send MT commands to communicate with SampleLight and SampleSwitch.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

My ztool shows "no device found.("I am using cp2102 usb)

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

What is your baud rate settings?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

i checked using both 9600 and 115200

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Try to use 38400 and use RTS/CTS in handshaking.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

i am changed the settings of ztool as you said but it does not connecting(i am using zigbee development board and cc debugger to debug the code).

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Can you take a picture to show me how you connect CC2530 to your PC?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

So, you don't use CC2530DK from TI. You have to make sure you CC2530 module uses P0.2 as UART RX and P0.3 as UART TX.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

It is connecting
which boot loader should i load?
Is the boot loader and download (by IAR)program are same?
Why boot loader is used

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

I am confused by you. Is it already OK to connect your CC2530 to ZTool? What do you mean which boot loader you should use?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

no it is not connecting with ztool

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Do you check if you use P0.2 and P0.3 as UART RX and TX?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

yes

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

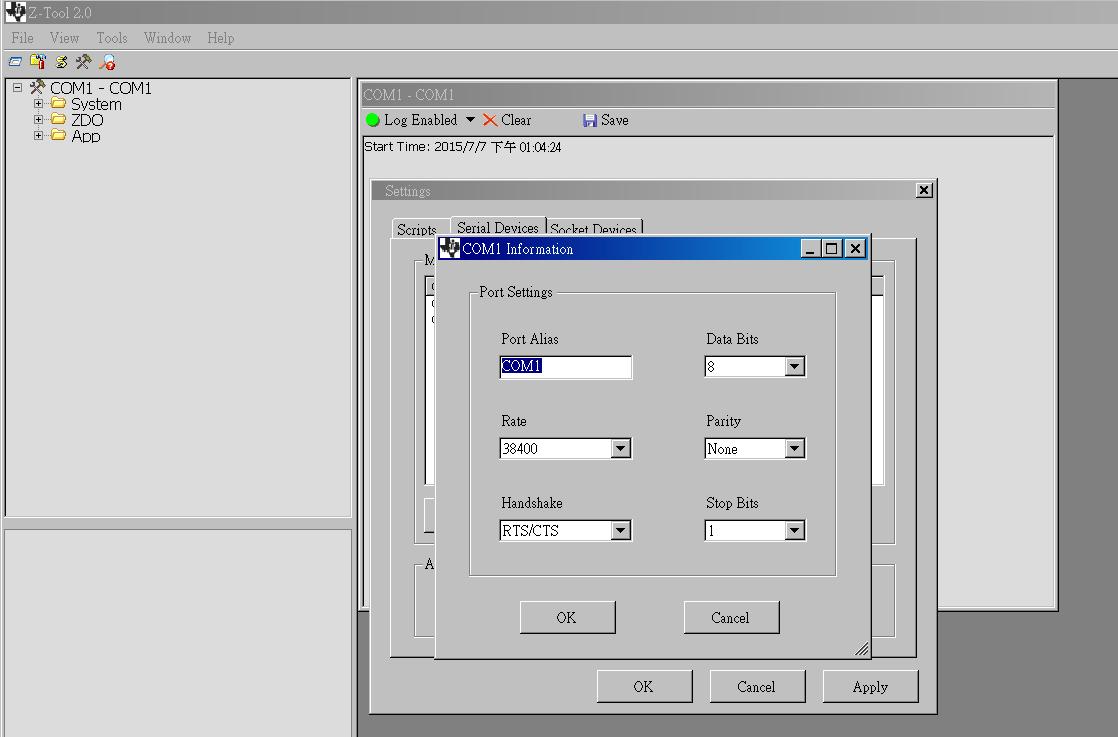

Can you show me your COM port settings in ZTool?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Try to select RTS/CTS on handshake field.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir

Unable to connect using ztool, i enabled cts/rts as you told me

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

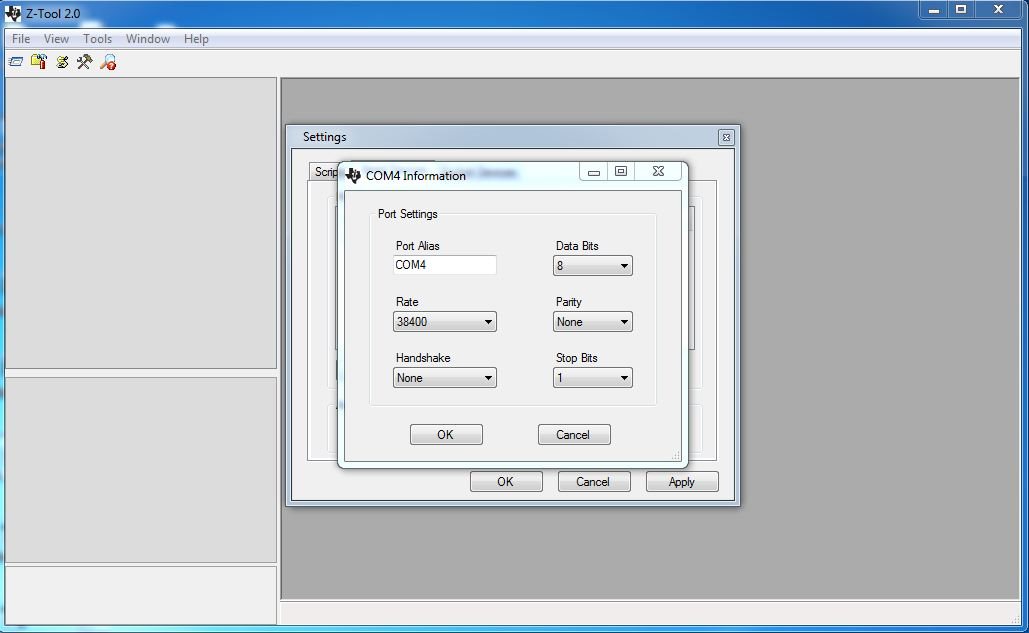

I just test with SampleLight of Z-Stack Home 1.2.2 and have no problem connecting Ztool with the following settings:

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

is there any other options than ztool?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

No. Do you use Z-Stack Home 1.2.2? Which example is your test based on?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

yes Z-Stack Home 1.2.2.42930, the SampleLight and SampleSwitch projects are using now.............................................................................................................................................

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Do you modify anything on source code?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

0 kumar singh over 10 years ago in reply to Sebastian P J

Guru 10875 points

Hi Sebastian,

Sorry to interrupt in this post.

I also had faced similar problem in past.

If you don't mind just take a try once by modifying following code

1)disable the flow control

static void HalUARTOpenDMA(halUARTCfg_t *config) //in _hal_uart_dma.c file

{

if (config->flowControl)

{

//UxUCR = UCR_FLOW | UCR_STOP; //comment this line

UxUCR &= ~UCR_FLOW; //add lines in red

UxUCR |= UCR_STOP;

2)In z-tool set same baud rate as used in "MT_UART.h" (default baud rate 38400). Select handshake as none.

3)After downloading the code restart Z-Tool. I think now you may be able to connect to Z-tool

0 Sebastian P J over 10 years ago in reply to kumar singh

Expert 1775 points

Hi kumar singh

I edited the code as per your replay it works

Thank you sir

0 kumar singh over 10 years ago in reply to Sebastian P J

Guru 10875 points

Its good to know it got detected.

0 YiKai Chen over 10 years ago in reply to kumar singh

Guru 735695 points

It seems that your problem is that your HW doesn't support flow control. You don't have to change that in HalUARTOpenDMA. You can change "uartConfig.flowControl=MT_UART_DEFAULT_OVERFLOW;" to ""uartConfig.flowControl=FALSE;"" in MT_UartInit() of MT_UART.c.

0 kumar singh over 10 years ago in reply to YiKai Chen

Guru 10875 points

ok. will try once when working on zigbee. Right now not working on zigbee. Thanks.

0 YiKai Chen over 10 years ago in reply to kumar singh

Guru 735695 points

Sorry, I make a mistake. You should change uartConfig.flowControl=FALSE not uartConfig.intEnable=FALSE in MT_UartInit().

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

Can I send these codes from terminal emulator ,If yes how can i send the codes?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

What do you mean to send these codes from terminal emulator?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

yes

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

You have to modify these source code in MT_UART.c, rebuild it and download using IAR or Flash programmer.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

what modifications ?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

I am confused by you now. Do you still have problem connecting ZTool to you CC2530?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

I want to send a commands from arduino to the coordinator zigbee(wired connection),and it should send received command to the router and turn on the led connected to the router..................................................................................
for this which commands i need to send
how can i send this?
how to configure the router and coordinator
pls help me.............................................................................................

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

My suggestion is to study SampleLight and SampleSwitch and get familiar with Zigbee fundamental thing first.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir

where i set the pan id for coordinator and router

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

You can modify -DZDAPP_CONFIG_PAN_ID=0xFFFF in f8wconfig.cfg.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

How to connect the router to the coordinator?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

If you don't define HOLD_AUTO_START and NV_RESTORE in your compile option, router would sends beacon requests to start joining coordinator automatically after power on.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

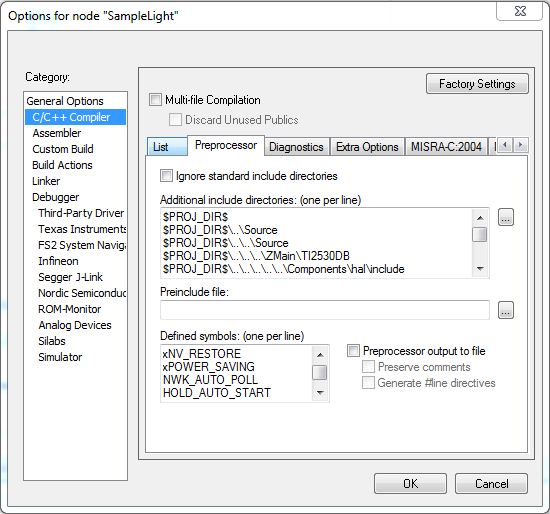

My compiler options shows like this what i need to do?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Just add a "x" in front of HOLD_AUTO_START.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

I connected green,red,yellow led's on p1_0,p1_1,p1_4 respectively and a switch on pin 2_0 .On both coordinator and router zigbees.
The router zigbee blinks led (as i saw in digi Xbee)
When i press the switch the led will glow

is it connected to the coordinator?
How i know is it connected?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

I cannot know if your router joins Xbee coordinator by your descriptions. The possible way to check it is to use TI packet sniffer to check over the air messages.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

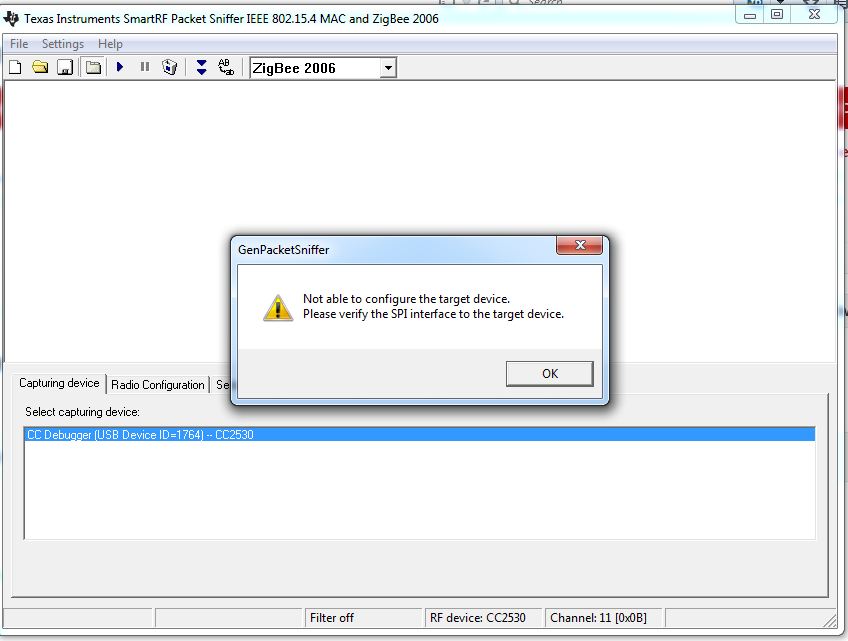

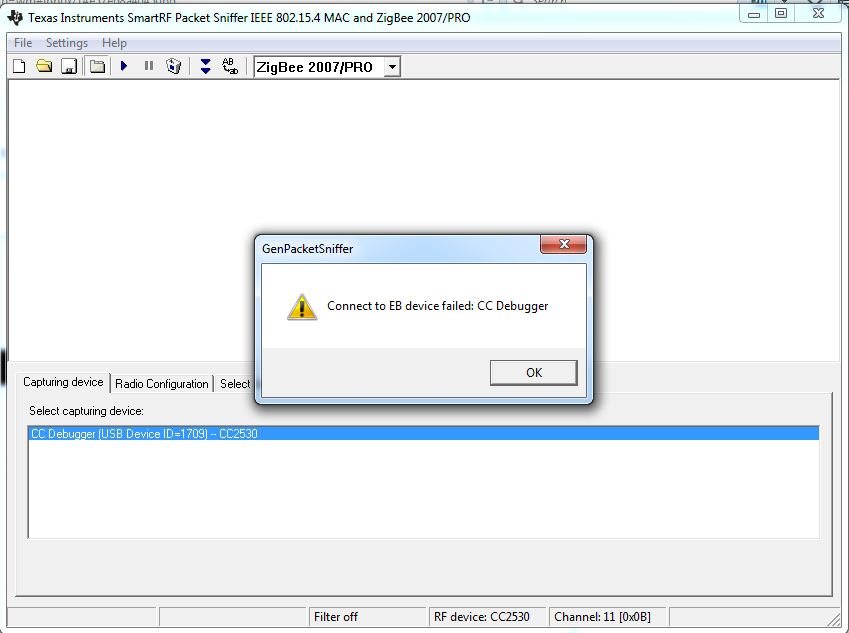

Sir my packet sniffer shows like this...................................

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points
