cc2530 writing code

Sebastian P J

Other Parts Discussed in Thread: Z-STACK, CC2530, CC2531

I have three gb2530 module,and a ccdebugger .I already downloaded the z stack simple light program to my modules one as coordinator and other two are routers.

I want to connect 4 leds on each router.

And i want to control these leds from the arduino attatched to the coordinator

Where i write my code (in the z stack?Can i make a new file or edit the existing files) ?

please help me ......................................

over 10 years ago

0 YiKai Chen over 10 years ago

Guru 735695 points

I suggest you to start from testing SampleLight and SampleSwitch in Z-Stack Home 1.2.2.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

1.what are the difference between sample light and sample switch applications in z stack?

2.I am using zigbee development board so where should i connect switches and light?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

SampleSwitch can send ON/OFF toggle command to control LED1 on SampleLight. You can config SampleLight as coordinator and SampleSwitch as end device. Try to refer to Z-Stack Home Sample Application User's Guide.pdf.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

i want to pair it using sw2.in which pin sw2 is connected(bcoz i am using dev.board)

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

What is your dev board? Is it CC2530DK?

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

I connected switches on pins P0_1 and P2_0 ,in both the end device and the coordinator.Is it right?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

If you don't use CC2530DK, you have to revise hal_key.c to fit your dev. board.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir
i cannot able to identify which pin is connected to sw2 as per the sample light and switch,please help me

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

In SampleLight and SampleSwitch, SW2 is triggered by reading ADC input from Joystick on SmartRF05EB. To revise it to use GPI, you have to refer to SW_6 implementation which uses P0.1 as GPI and falling edge to trigger key event.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

thank you sir,
i don't know how to make this pin into digital input.what modification should i make?
sir please help me in detail....................................................................

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

You can read CC2530 user guide and check SW6 related settings in hal_key.c.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir
is keiluvision supports cc2530 ?
if yes how i use it?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

No, Z-Stack can only be built by IAR.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir cannot able to pair the two devices yet ,is there any automatic pairing methord ?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Can you specify which Z-Stack examples you are testing?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

Z-Stack Home 1.2.2.42930
Sample light as coordinator and Sample switch as router

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Try to remove HOLD_AUTO_START, NV_RESTORE, and ZCL_EZMODE in both SampleLight and SampleSwitch. Then, test again.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir, in the coordinator side,when the switch connected to the p2_0 press the led will toggles and the router side all the led's are on
is it paired?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

I can not judge from this. Please use Ubiqua Packet Analyzer to check this.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

it shows Idle
Settings:
protocol stack - IEEE 802.15.4 2006
Baud rate - 38400
Channel - 11

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

What's your point?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

which point?
i cannot see any points in ubiqua

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Can you attach your screen shot of Ubiqua?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

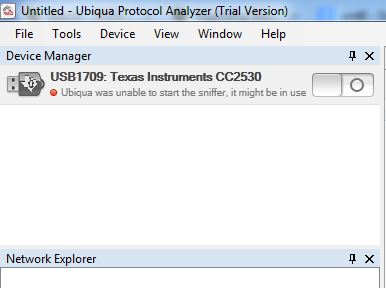

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

You have to turn on CC2531 USB dongle in Ubiqua Packet Analyzer to make it to start sniffer.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Do you download sniffer FW to your CC2531 USB dongle?
