cc2530 binding using z stack

Sebastian P J

Other Parts Discussed in Thread: CC2530, Z-STACK, CC2531, CC2531EMK, MSP430F5438

I have three cc2530 zigbee modules ,zigbee development board by GBAN and cc debugger .I want to know about pairng(binding) two zigbees.

I configured one module as coordinator and other two are routers.

In my development board there is no joystick, so how i pair these devices without having a joystick.............

it has only a ping key in the board connected to p0_1

please help me as soon as possible..................................................................................

over 10 years ago

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Can you let me know you want to use CC2530 as Zigbee SoC mode or ZAP+ZNP mode?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir
what are the difference between Zigbee SoC mode and ZAP+ZNP mode
Can you please explain?

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

hi sir

I have few doubts,

1.How can i use ZAP+ZNP mode

2.can I use arduino as ZAP

3.In the interface specifications provided by TI shows many command ,How to use this commands in c program

I hope you can understand my problems , please help me as soon as possible.

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

There are SampleSwitch and SampleLight examples which use MSP430 as ZAP. You can find those ZAP examples under Z-Stack example/ZAP folder. The examples are programmed by C so it should be OK to porting to arduino.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir
I got the example files from the zap folder.I opened it using IAR Embedded workbench for msp430.
1.how to use this zap.?
2.which file i wants to modify or port to arduino?
3.Which boot loader should i used for this zap+znp mode

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

1. To run those ZAP examples, you have to use MSP430F5438 Experimenter Board
2.&3 You have to check the whole SampleLight or SampleSwitch ZAP example project to know which files you should use.

Personally, I write my own ZAP for my coordinator and don't do porting from TI examples. So, I cannot give you details about how to do it on Arduino.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir my IAR workbench's trial period was over .Is there any other IDE suitable for my development

How can i use contiki in my project (simple coordinator router communication)

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

IAR is the only IDE that can be used to build Z-Stack. You can refer to processors.wiki.ti.com/.../Contiki-6LOWPAN for TI 6LowPAN.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

Is it any possiblity to do coding using eclipse ide

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

can i able to program my cc2530 using contiki

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

No, you can't use eclipse IDE to build Z-Stack examples.

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Yes, Contiki supports CC2530.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

where i get support for this

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

For CC2530 Contiki, you can refer to processors.wiki.ti.com/.../Getting_started_with_Contiki_and_CC2530

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sniffer data.psd
hi sir

I bought new packet sniffer today .Here i am attatching my sniffer data is it works fine.

When i press the switch in the router then the led on the coordinator will toggle!!!!!!!!!!!!!!!!!!!

Can you please check it and tell me is it ok

Regards

Sebastian

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

Sir
I have two zigbee development boards and a packet sniffer now.
I checked the code in the folder homeautomation/sampleLight as coordinator and homeautomation/sampleswitch as router,with my hardware i think it works fine.I don't have MSP board.
I want to control two or more router (or end devices) using arduino and cc2530 as coordinator and cc2530 as router (or end device).
Here i want to control lights according to the code send from the serial port(In my pc to arduino and the cc2530 forwards it to the routers (or end devices).
And each of the modules will send me back an acknoledgement (is it on or off).

As I explained above,which methord should i use either ZAP+ZNP or Soc ? .
can you please tell me how to use it ?.
Then which project need to be edit and in that project where i edit the code ?

please consider me as a beginner i am stucked here.Please help me sir for my further development .

Regards
Sebastian

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

From the sniffer log, I can see your device sending toggle command. However, I also see that it seems that the device and coordinator trigger EZ-MODE over and over again. Do you intend to do this?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

I need only when i press the key then it will join the network and operete normally as a remote switch

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

If you want to control lights according to the code send from the serial port, you can try to use MT commands to do this. The UART MT command is enabled by default in SampleLight and SampleSwitch. You can refer to Z-Stack Monitor and Test API.pdf in document folder and test on it using Ztool to get familiar with it first.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

ok ,i have some questions
1,which firmware should i used for it CC2530 or CC2530ZNP ?
2,Is there any program need to download for this(using IAR workbench)?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

1. You just use SampleLight and SampleSwitch with MT command enabled by default.
2. Yes, you need IAR to build and download SampleLight and SampleSwitch to your CC2530.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir

I edited the pin as follows

" if ( keys & HAL_KEY_SW_2 )" to " if ( keys & HAL_KEY_SW_6 )" in zclSampleLight_HandleKeys().

now i got packets like this ,

1.is it paired?

2.Why beacon request comes always?

3.How can i pair the both devices?

4.Yesterday i paired the both devices but you said me some requests comes again (beacons)

(I already attateched the frames yesterday)

Now i am attatching the frames which i got todaySNIFFER DATA2.psd

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

No, the device is not paired with coordinator. I see device is sending beacon requests. Do you use EZ-mode in your code?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir

thank you for analysing my frames

what modification is need for enabling ez mode in my code and how to pair

i already read the doccument but i cannot understand what i do?

can you please help me

Regards

Sebastian

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

EZ-Mode is defined by default in Z-Stack Home example and SW2 can trigger EZ-Mode.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

Thank you sir
I read your answers in the "e2e.ti.com/.../431623"
From this I understand that ZAP+ZNP is suitable for me.I have some questions about this
1.Can I use Arduino as ZAP?
2.Now I am coded the ZNP firmware on CC2530 using SmartRF flash programer,is it enough or should i download any code using IAR?
3.Can I able to control remote zigbee's GPIO's by using The ZNP AS Coordinator?
Will you please answer me?

Regards
Sebastian

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

1. If you refer to discussions at e2e.ti.com/.../807722, you will see that derek could do a coordinator in about 8kB and an end-device in less, about 5kB of flash. If your Arduino has such flash size, it should be OK.
2. You can use flash programmer to download prebuild ZNP hex file. IAR is not necessary tool in ZAP+ZNP architecture.
3. It should be OK and you can refer to section 3.8.1.17 SYS_GPIO in Z-Stack Monitor and Test API.pdf

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir

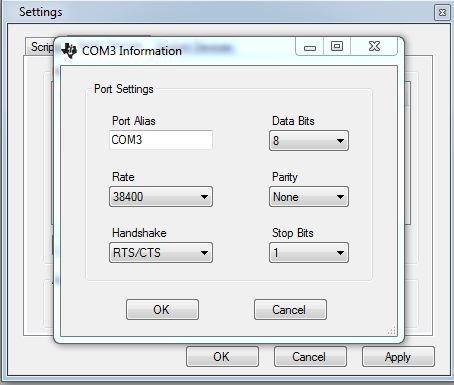

i flashed the code using smart rf flash programer(attatching the sceen shot) but now z-tool does not detecting the device,why?

is it the right way?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

You have to make sure the UART connection between CC2530 and your PC is correct.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

i am using cp2102

and P0.3 as tx and P0.2 as rx

Then i connected ground of the zigbee to the cp2102

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Since you don't use RTS/CTS, you should select none in Handshake.

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

By the way, I know P0.3 of CC2530 is TX and P0.2 is RX. The problem is that you your connect P0.3 of CC2530 to RX of CP2102 and P0.2 of CC2530 to TX of CP2102?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

I changed it to none but still it is not working

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

ok i changed the pins but still have the same problen

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Do you flash hex file in C:\Texas Instruments\Z-Stack Home 1.2.2.42930\Projects\zstack\ZAP\ZNP-HexFiles\CC2530 to your CC2530?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

yes i flashed the code but the z tool shows the same,

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

i write the CC2530ZNP-Pro.hex code
It also contains these files
CC2530ZNP-Pro-Secure_LinkKeyJoin.hex
CC2530ZNP-Pro-Secure_Standard.hex

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

It seems that your HW and SW settings are correct. Try to restart your PC and see if it would make Z-Tool works.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir,
I restarted my loptop.............................................................but
it is not detecting..............................

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

I suggest you using scope to check if there is signal on TX/RX pins when ZTool tries to connect with CC2530.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sorry i don't have any oscilloscope.......................

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

hi sir
can you please show me how a frame send using arduino.I made some frames based on my idea but it is not working.
is it send in the form of HEX or ASCII?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

It should be in hex format. You can refer to chapter 2 Monitor and Test Transport Protocol in Z-Stack Monitor and Test API.pdf.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

As per the doccument i sent data as follows
void ping(){
Serial.write(0xFE);
Serial.write(0x00);
Serial.write(0x21);
Serial.write(0x01);
Serial.write(0x20);
}

Is this methord is right ?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

It looks fine.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir,

As per your Instructions I programed the CC2530ZNP-Pro.hex into my cc2530 using smartRfflash programer.But it is not detecting the z tool.Sorry I don't have any osciloscope to check as per your instruction.Is there any other way to detect the chip in my laotop?
.Now I am really stucked here can you please help me sir.

Regards

Sebastian

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Since you don't use CC2530DK and don't have scope to check HW signal, I really don't know how you help you.
