Z-Stack cc2650 IAR Workbench Download and Debug Freeze

Akash Ashok

Other Parts Discussed in Thread: Z-STACK, CC2650, SYSBIOS, TIMAC

Hi,

I was following the instructions in Z-Stack Home Sample Application User’s Guide and I was trying to compile the sample switch application.

I am using a cc2650 device with SmartRF06EB boards which came with cc2650DK.

IAR workbench version is IAR Embedded Workbench for ARM 7.40.3.8938

Zstack compiles and gets flashed onto the device but while compiling the Sample Switch Application It freezer without an response for almost an hour

Building configuration: SampleSwitch - SmartRF06
Updating build tree...

Performing Pre-Build Action
"c:\ti\xdctools_3_30_06_67_core/xs" --xdcpath="C:\ti\tirtos_simplelink_2_11_01_09\packages;C:\ti\tirtos_simplelink_2_11_01_09\products\bios_6_41_02_41\
packages;C:\ti\tirtos_simplelink_2_11_01_09\products\cc26xxware_2_20_06_14829\inc;C:\ti\tirtos_simplelink_2_11_01_09\products\
cc26xxware_2_20_06_14829\driverlib;C:\ti\tirtos_simplelink_2_11_01_09\products\cc26xxware_2_20_06_14829" iar.tools.configuro -c "C:\Program Files (x86)\
IAR Systems\Embedded Workbench 7.2\arm" --cc "C:\Program Files (x86)\IAR Systems\Embedded Workbench 7.2\arm\bin\iccarm.exe" --device
"CC2650F128" --compileOptions "-D ZSTACK_MANUAL_START -D ZCL_READ -D ZCL_WRITE -D ZCL_BASIC -D ZCL_ON_OFF -D ZCL_IDENTIFY -D
ZCL_EZMODE -D xZCL_GROUPS -D xZCL_SCENES -D ZCL_STANDALONE -D ZG_SECURE_ENABLED -D ewarm -D USE_ICALL -D
HEAPMGR_SIZE=4096 -D ICALL_HOOK_ABORT_FUNC=halAssertHandler -D xdc_runtime_Log_DISABLE_ALL -D xdc_runtime_Assert_DISABLE_ALL -D
MODULE_CC26XX_7X7 -D TI_DRIVERS_LCD_INCLUDED --diag_suppress Pa050 -o C:\ti\simplelink\zstack_home_1_02_02_42930\Projects\zstack\
HomeAutomation\SampleSwitch\CC26xx\SmartRF06\Obj\ --debug --endian=little --cpu=Cortex-M3 -f C:\ti\simplelink\zstack_home_1_02_02_42930\Projects\
zstack\HomeAutomation\SampleSwitch\CC26xx\configPkg\compiler.opt.defs -f C:\ti\simplelink\zstack_home_1_02_02_42930\Projects\zstack\
HomeAutomation\SampleSwitch\CC26xx\..\..\..\Core\Thread\CC26xx\Config\coreEndDevice.cfg -e --fpu=None --dlib_config \"C:\Program Files (x86)\IAR
Systems\Embedded Workbench 7.2\arm\INC\c\DLib_Config_Normal.h\" -I C:\ti\simplelink\zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\
SampleSwitch\CC26xx\.\ -I C:\ti\simplelink\zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\Source\ -I C:\ti\
simplelink\zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\common\CC26xx\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\common\CC26xx\appport\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\common\CC26xx\SmartRF06\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\applib\heap\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\mac\include\cc26xx\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\hal\include\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\hal\target\_common\cc26xx\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\hal\target\CC2650\rom\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\hal\target\CC2650TIRTOS\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\icall\include\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\osal\include\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\services\nv\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\services\nv\cc26xx\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\services\saddr\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\stack\icall\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\stack\icall\client\ -I C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Components\stack\zcl\ -I C:\ti\tirtos_simplelink_2_11_01_09\
products\cc26xxware_2_20_06_14829/\ -I C:\ti\tirtos_simplelink_2_11_01_09\products\cc26xxware_2_20_06_14829/inc\ -I C:\ti\tirtos_simplelink_2_11_01_09\
products\cc26xxware_2_20_06_14829/driverlib\ -Ohz" --linkOptions "-o C:\ti\simplelink\zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\
SampleSwitch\CC26xx\SmartRF06\Exe\SampleSwitch.out --config_def CC2650=1 --config_def USE_SYSBIOS_IN_ROM=1 --map C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\SmartRF06\List\SampleSwitch.map --config C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\cc26xx_app.icf --keep __vector_table -f C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\configPkg\linker.cmd -f C:\ti\simplelink\
zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\Core\Thread\CC26xx\Config\coreEndDevice.xcl --semihosting
C:\ti\tirtos_simplelink_2_11_01_09\products\cc26xxware_2_20_06_14829/driverlib/bin/iar/driverlib.lib C:\ti\simplelink\zstack_home_1_02_02_42930\Projects\
zstack\HomeAutomation\SampleSwitch\CC26xx\..\..\..\..\..\Projects\common\TIMAC_ROM_Release\03282014\timac_rom_PATCH.symbols --entry
__iar_program_start --vfe" --profile release --projFile "C:\ti\simplelink\zstack_home_1_02_02_42930\Projects\zstack\HomeAutomation\SampleSwitch\
CC26xx\SampleSwitch.ewp"
Using RTSC configuration file: C:/ti/simplelink/zstack_home_1_02_02_42930/Projects/zstack/HomeAutomation/SampleSwitch/CC26xx/app.cfg...

Could you please help me out here.

over 10 years ago

0 YiKai Chen over 10 years ago

Guru 735685 points

Try to restart your PC and build again.

0 Akash Ashok over 10 years ago in reply to YiKai Chen

Prodigy 150 points

Thanks a lot. That worked.

0 YiKai Chen over 10 years ago in reply to Akash Ashok

Guru 735685 points

You are welcome and it's good to know this works for your case.

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

what z stack should I download for cc2650 zigbee module. There are 5 stacks . Should I download z stack home or z stack energy or z stack lighting

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

You should download Z-STACK-HOME: 1.2.2 for CC2650.

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

thanks yikai. Do u also need the TIMAC library and software stack

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

No, Z-STACK-HOME: 1.2.2 contains both application and Zigbee stack for CC2650.

0 Shivaraman Ilango over 9 years ago in reply to Shivaraman Ilango

Genius 4565 points

hi

How do you debug sensor tag application in cc2650 while using z stack and zigbee protocol? Is the sensor debugger dev pack enough or would you need the smart rf06 board. For ble the debugger devpack was enough

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

CC-DEVPACK-DEBUGGER is enough.

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

thanks yikai. I have my Bluetooth firmware programmed already . Do I have to erase it and then debug this application. How do I know whether the program works. Is there a possibility to see the results. For Bluetooth I could see my temperature reading in my smart phone. Where do I view the results for zigbee

0 Shivaraman Ilango over 9 years ago in reply to Shivaraman Ilango

Genius 4565 points

the only sensor that zigbee supports is temperature sensor . is it true?

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

Zigbee also supports humidity.

0 Shivaraman Ilango over 9 years ago in reply to Shivaraman Ilango

Genius 4565 points

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

Yes, you have to erase flash, download Z-Stack core first, and Z-Stack application. If you want to see temperature reading in Zigbee network, you have to setup a Zigbee coordinator to form Zigbee network and make Zigbee SensorTag join the network.

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

could you tell me how to setupa zigbee network. Is it okay to use a packet sniffer or do u need something else. Do u have a sample code for seeing the temperature readings

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

You can refer to Z-Stack Home Sample Application User's Guide.pdf in Z-Stack Home 1.2.2 document folder.

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

hi yikai . When I try to debug the sensor tag app from z stack after compiling it. is says Fri Sep 18, 2015 10:53:24: Missing or malformed flash loader specification file: C:\Program Files (x86)\IAR Systems\Embedded Workbench 7.2\arm\config\flashloader\

0 Shivaraman Ilango over 9 years ago in reply to Shivaraman Ilango

Genius 4565 points

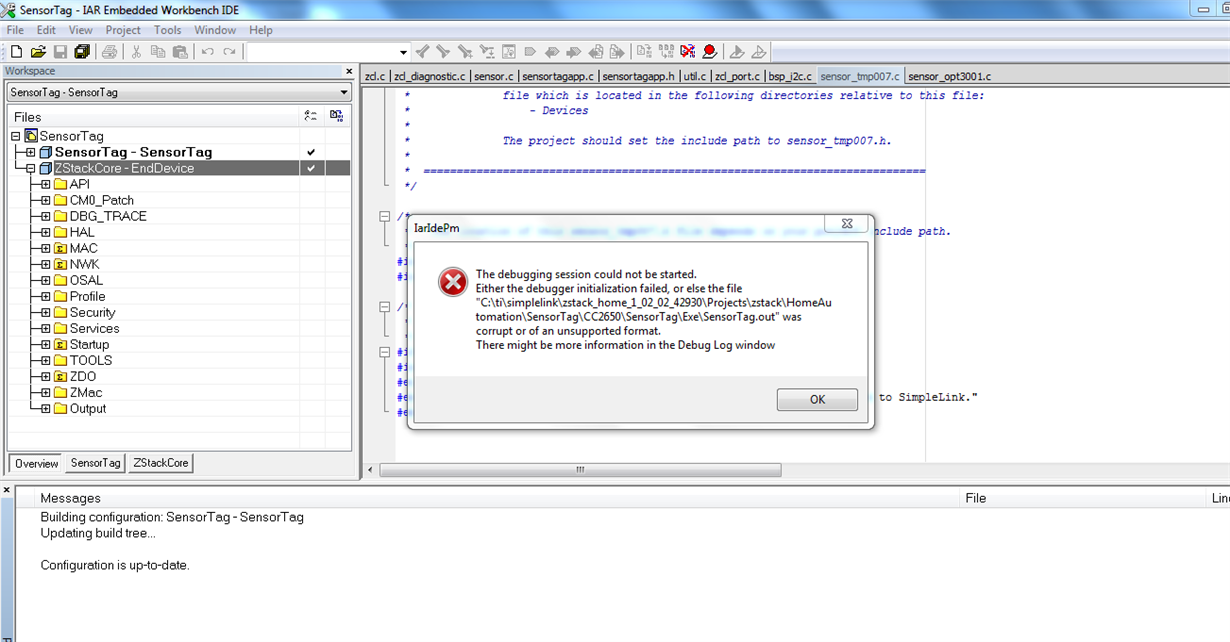

Fri Sep 18, 2015 11:00:29: Fatal error: Only ARM9/Cortex-R4/M/A supported Session aborted!
This comes when I choose debug without downloading

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

You have to change Emulator to "TI XDS110 Emulator!"

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

hi yikai. I did that but still no change

0 Shivaraman Ilango over 9 years ago in reply to Shivaraman Ilango

Genius 4565 points

but the sample temperature sensor works correctly . only the sensor tag app doesn't work

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

What IAR EWARM version do you use?

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

7.40.1

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

Refer to processors.wiki.ti.com/.../CC13xx_CC26xx_Tools_Overview.

You have to use version after IAR 7.40.2
IAR 7.40.2+ has built-in support for XDS110 debugger that works together with CC13xx/CC26xx devices. To enable XDS110 support, follow the below steps.

Install the included XDS Emulation Software Package on your computer (Important: use "Run as administrator" on Win7)
It is recommended to use the default installation directory
Configure your IAR project to use XDS110 debugger

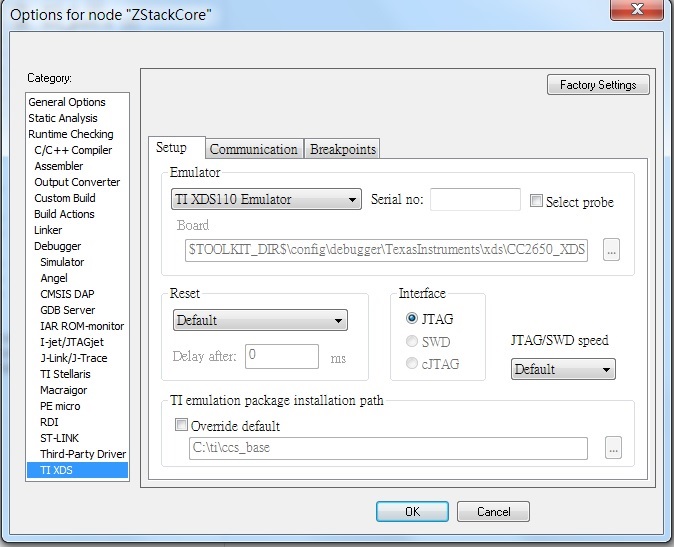

Project > Options > Debugger: Select "TI XDS" as the Debugger driver
Project > Options > Debugger > TI XDS:
Select "TI XDS110 Emulator" from drop down menu.
Click OK to save settings.
Repeat for each project in the Workspace.
Connect your XDS110 debugger to your CC26xx target and make sure both are powered up.

You should be able to download and debug your CC26xx project using XDS110.

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

hi yikai

after downloading the sample temperature sensor project there seems to be a red led blinking. may I know why and how do I toggle betwwen zigbee mode and bluettoh mode. I don't know whether I am using zigbee mode or not

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

Why do you download sample temperature example, you should use SensorTag example. What do you mean toggle between Zigbee and BLE? After you download Zigbee core and application, it runs Zigbee.

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

hi yikai. Thank you so much. I downloaded sensor tag example. I have doubt . While you download sensor tag example in ble stack normally you can see the blinking of led. But when you download the sensor tag example from z stack there is no green indication on the led or any indication that I have downloaded zigbee application. How do I check whether the sensor tag communicates via zigbee. I don't have a smartrf06 board.

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

You have to setup a coordinator to allow Zigbee SensorTag to join. Do you setup a coordinator?

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

sorry yikhai I am really new to zigbee . Could you tell me how to set up a coordinator?

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

Do you have SmartRF06EB+CC2650EM? Or you only have one CC2650 SensorTag?

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

I only have the cc2650 sensor tag

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

To test Zigbee network, the easiest way is to buy a CC2530DK or CC2538DK to act as Zigbee coordinator.

0 Shivaraman Ilango over 9 years ago in reply to YiKai Chen

Genius 4565 points

I have xbee digi development kit though. Can I use this?

0 YiKai Chen over 9 years ago in reply to Shivaraman Ilango

Guru 735685 points

It should work.

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

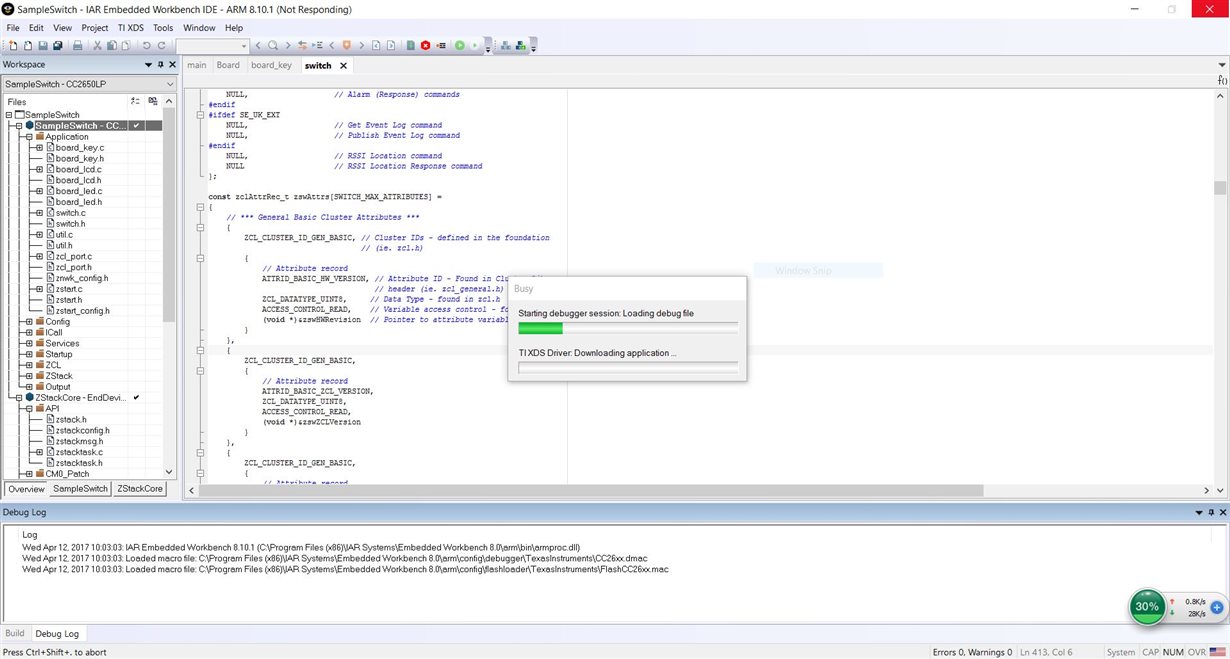

I tried several times to restart my computer. it just keeps freezing when loading debugging files

0 YiKai Chen over 8 years ago in reply to CHAO DUAN

Guru 735685 points

I couldn't understand your question. Can you elaborate?

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

I use CC2650 Launchpad to start a zigbee project. I follow the whole steps on processors.wiki.ti.com/.../CC2650_LaunchPad_User's_Guide_for_ZigBee when I try to debug and download the sample project, it always froze. I attach a picture to show the freeze window.

0 YiKai Chen over 8 years ago in reply to CHAO DUAN

Guru 735685 points

You should use IAR EWARM 7.40.2 to build Z-Stack Home 1.2.2a example for CC26XX.

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

In user guild, it said support IAR EWARM 7.40.2. but when I choose CC2650 in IAR website, it download automatically IAR 8.10.1. So do you know where I can download IAR EWARM 7.40.2.

Thanks a lot

0 YiKai Chen over 8 years ago in reply to CHAO DUAN

Guru 735685 points

You can download IAR EWARM 7.40.2 from www.iar.com/.../
