cc2531 usb dongle

Sebastian P J

Other Parts Discussed in Thread: CC2531, CC2530, Z-STACK

Hi sir ,

I want to develop system ,a zigbee based light controlling from pc.I have two cc2530 zigbee modules having ZNP firmware and a cc2531 usb dongle that i programed with ZNP firmware.

the cc2531 dongle is now detecting my ztool but it is not giving back any responce,here i am attatching my screenshots.

Can you please help me to rectify this problem

Regards

Sebastian

over 10 years ago

0 YiKai Chen over 10 years ago

Guru 735695 points

You can read Section 3.1 ZNP startup procedure in Z-Stack ZNP Interface Specification.pdf

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir

Thank you for your replay,Now i can able to start the cc2531 usb dongle.

How can i know is the network formed ?

is there any graphical tool for it?

please help me

Regards

Sebastain

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

You can try to add a device into the Zigbee network you formed and use Ubiqua Packet Analyzer to check over the air messages to confirm it.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir,

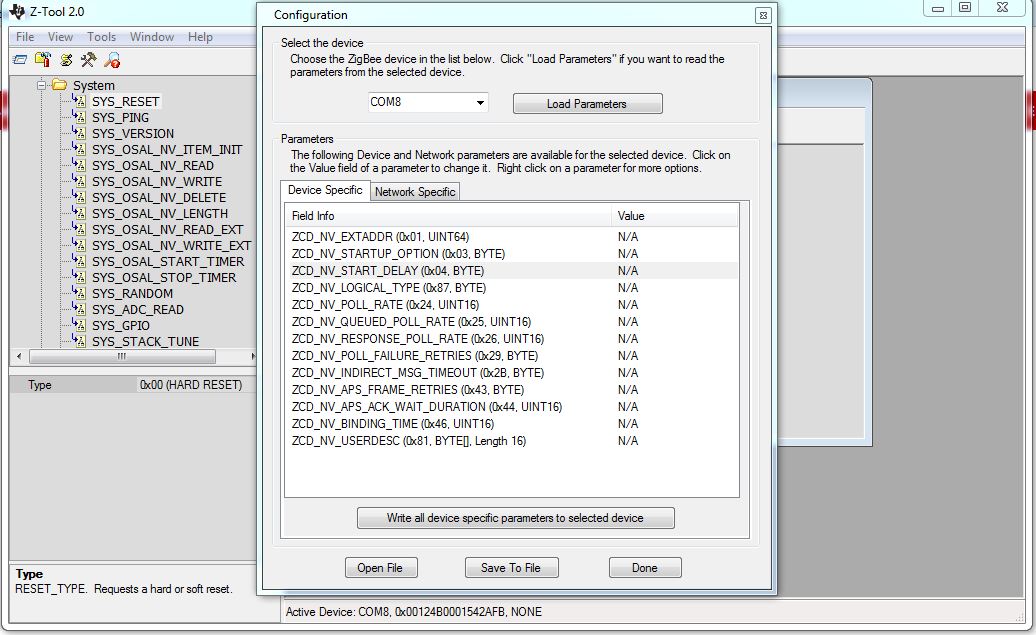

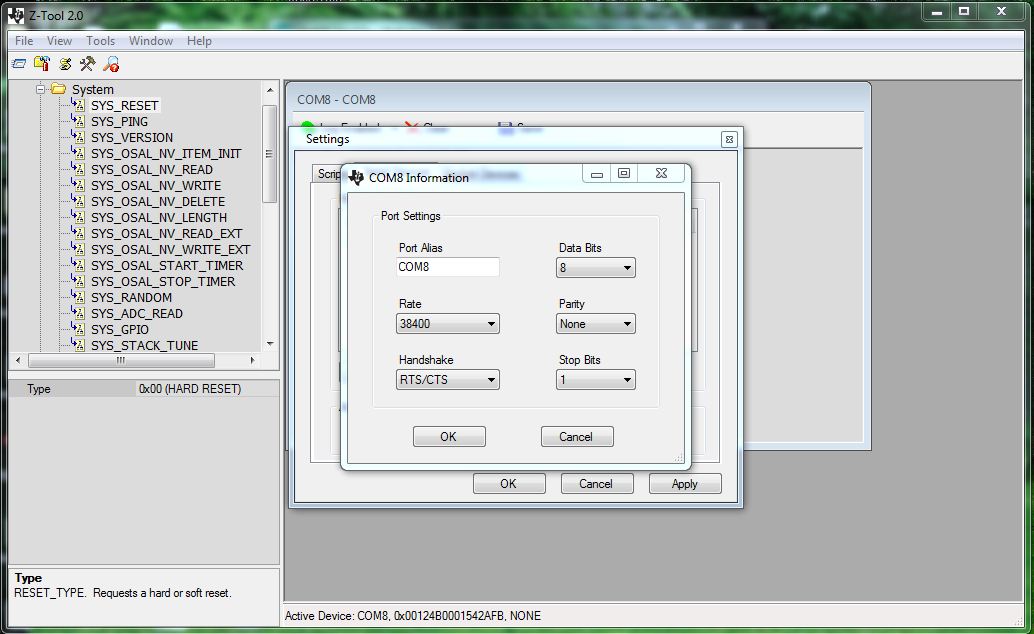

Now i connected the cc2531 usb dongle to my pc and i configured it using ztool as per interface specification doccument .

I already programed two cc2530 modules and a cc2531 usb dongle and powered up them.But i can't able to add those devices in my network .How can i do this using ztool.?Please help me

Regards

Sebastian

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Do you enable permit join on coordinator?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

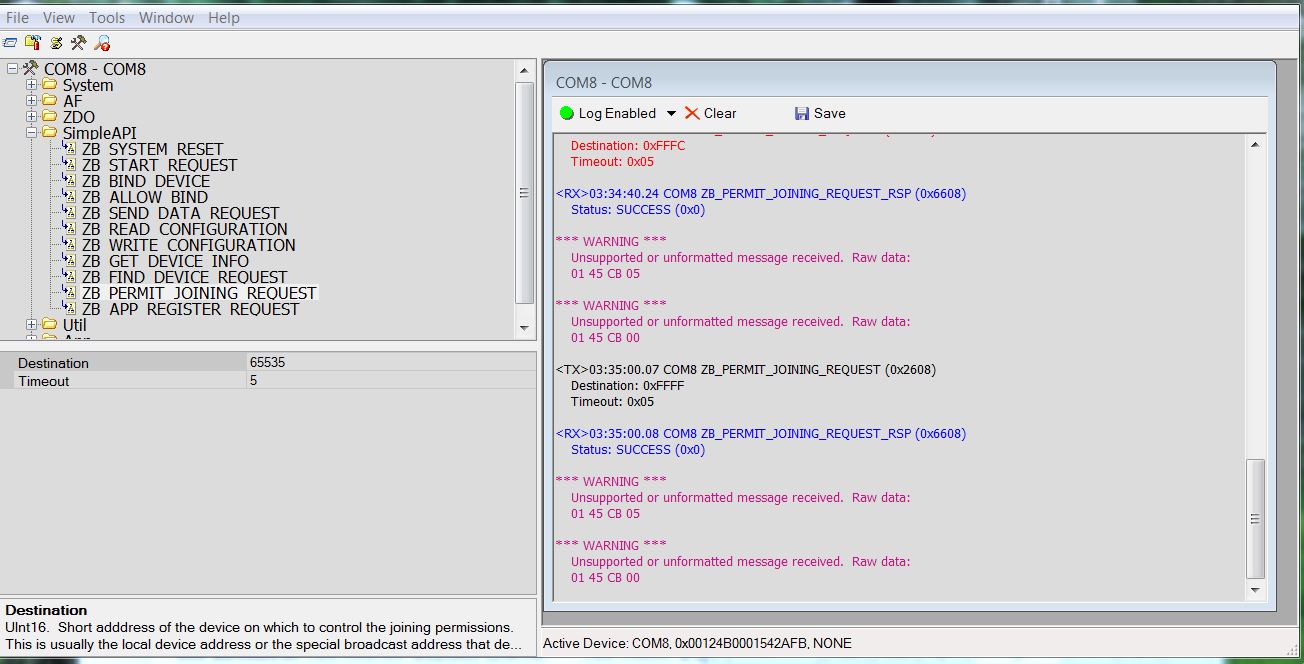

yes i enabled the join,but it shows like this

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Set timeout to 255.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

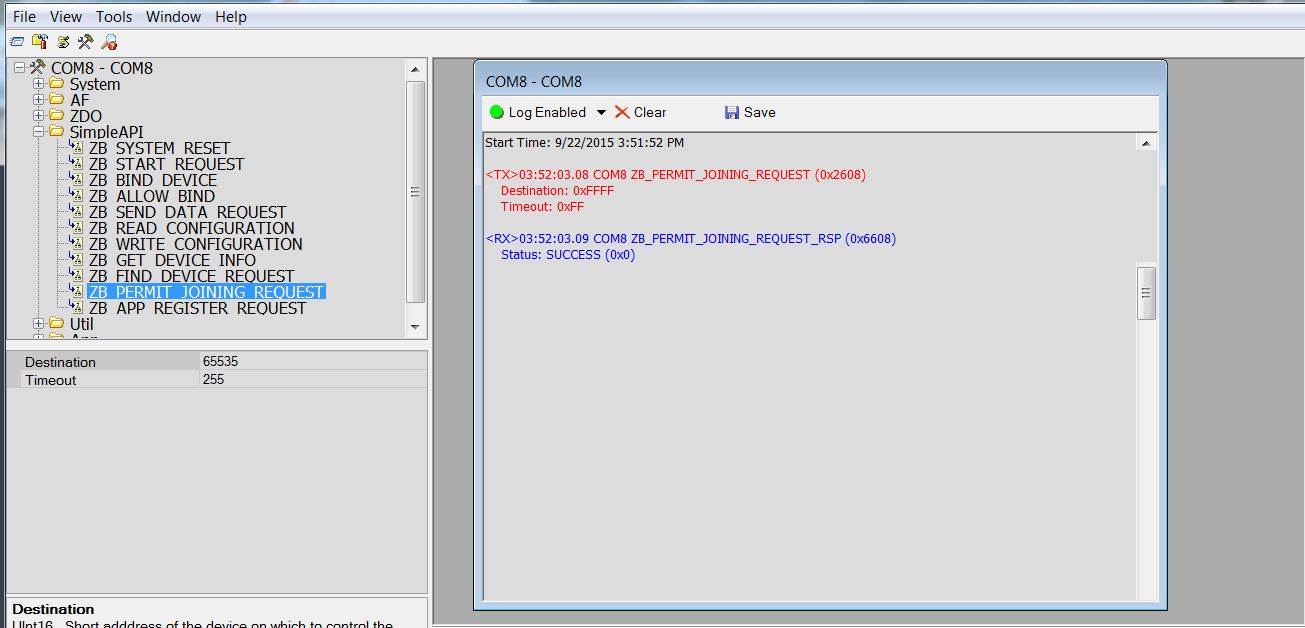

i set the timeout to 255 here i am attatching the screen shot,

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Do you start ZED or ZR to join coordinator after enable permit join?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

i just programmed the znp firmware on the remote zigbees and powered up.where i want to set up these configurations

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

If your ZED is based on ZNP, do you follow Section 3.1 ZNP startup procedure in Z-Stack ZNP Interface Specification.pdf to start ZED?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

I want to use the zigbees as routers.................

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

It's the same. Do you follow Section 3.1 ZNP startup procedure in Z-Stack ZNP Interface Specification.pdf to start ZR? I don't see you do those steps for ZC too in your screen shot of ZTool.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

i configured my remote device as router (also the panid channel and the logical type)by using ztool and removed it from usb port and powered up seperatly .
Then i connected another usb dongle and set it as coordinattor (also the panid channel and the logical type)by using ztool and also enabled the join ,then i started the device by ZB_START_REQUEST.
Is it the right way ?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

You should start ZC and enable permit join first. Then, start ZR to join ZC. By the way, I suggest you to use Ubiqua Packet Analyzer to check over the air message whe you do this.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

when i configure the zigbee using the ZB_WRITE_CONFIGURATION command,then is it store the configuration permenantly on the chip or is it lost the configuration when i removed from the ztool?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

It would keep on ZNP.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

COM8data.rtfhere i am attatching my ztool log as rtf file can you please check it?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Can you separate the log for your router? After ZR starts, you can use UTIL_GET_DEVICE_INFO to check its status.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

Coordinator.rtf Router.rtfhi sir,

Here i am attatching the logs,i started the coordinator first from one pc and a router from another pc

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

From the files, I see

<RX>10:48:40.2 COM8 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)
Status: SUCCESS (0x0)
IEEEAddr: 0x00124B0001542AFB
ShortAddress: 0x0000
DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)
DeviceState: DEV_ZB_COORD (0x9)
NumAssocDevices: 0x00
AssocDevicesList

<RX>10:48:22.52 COM4 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)
Status: SUCCESS (0x0)
IEEEAddr: 0x00124B0001542C11
ShortAddress: 0x0000
DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)
DeviceState: DEV_ZB_COORD (0x9)
NumAssocDevices: 0x00
AssocDevicesList

So, you config both to coordinator not one coordinator and one router.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

test.rtfhere i can't change the logical type using ZB_WRITE_CONFIGURATION command,can you please check my command on log

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Do you call ZDO_STARTUP_FROM_APP to either form a network (if the device is a coordinator) or join a network (if the device is a router or end device)?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

but both of my devices starts as coordinator after i set the logical type why this happends ?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Do you still see it start as coordinator after you set logical type to router and send ZDO_STARTUP_FROM_APP ?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

yes it still both shows as coordinator
(here i am using both coordinator and router are cc2531 usb dongles,is there any problem with this?)

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Can you show me your latest log to start ZR with ZDO_STARTUP_FROM_APP?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

ROUTER ON STARTUP FROM APP.rtf Coordinator startup from app.rtf

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

I test those steps again and see no problem. The followings are my logs

For coordinator,

Start Time: 2015/9/23 下午 03:27:13

<RX>03:31:15.5 COM27 ZB_WRITE_CONFIGURATION_RSP (0x6605)

Status: SUCCESS (0x0)

<TX>03:31:15.5 COM27 ZB_WRITE_CONFIGURATION (0x2605)

ConfigId: 0x87

Len: 0x01

Value: . (0x00)

<TX>03:31:22.18 COM27 ZB_READ_CONFIGURATION (0x2604)

ConfigId: 0x87

<RX>03:31:22.19 COM27 ZB_READ_CONFIGURATION_RSP (0x6604)

Status: SUCCESS (0x0)

ConfigId: 0x87

Len: 0x01

Value: . (0x00)

<TX>03:32:09.42 COM27 ZB_APP_REGISTER_REQUEST (0x260A)

AppEndPoint: 0x01

AppProfileID: 0x0104

DeviceId: 0x0001

DeviceVersion: 0x01

Unused: 0x00

InputCommandsNum: 0x01

InputCommandsList: 0x0001

OutputCommandsNum: 0x01

OutputCommandsList: 0x0001

<RX>03:32:09.42 COM27 ZB_APP_REGISTER_RSP (0x660A)

Status: afStatus_SUCCESS (0x0)

<TX>03:32:13.77 COM27 ZB_START_REQUEST (0x2600)

<RX>03:32:14.52 COM27 ZB_START_REQUEST_RSP (0x6600)

<RX>03:32:14.52 COM27 ZDO_STATE_CHANGE_IND (0x45C0)

State: 8 (0x8)

<RX>03:32:15.03 COM27 ZDO_STATE_CHANGE_IND (0x45C0)

State: 8 (0x8)

<RX>03:32:15.54 COM27 ZDO_STATE_CHANGE_IND (0x45C0)

State: 8 (0x8)

<RX>03:32:16.05 COM27 ZDO_STATE_CHANGE_IND (0x45C0)

State: 8 (0x8)

<RX>03:32:16.56 COM27 ZDO_STATE_CHANGE_IND (0x45C0)

State: 8 (0x8)

<RX>03:32:17.07 COM27 ZDO_STATE_CHANGE_IND (0x45C0)

State: 8 (0x8)

<RX>03:32:17.58 COM27 ZDO_STATE_CHANGE_IND (0x45C0)

State: 8 (0x8)

<RX>03:32:18.61 COM27 ZDO_STATE_CHANGE_IND (0x45C0)

State: 9 (0x9)

<RX>03:32:18.61 COM27 ZB_START_CONFIRM (0x4680)

Status: SUCCESS (0x0)

<TX>03:32:30.27 COM27 UTIL_GET_DEVICE_INFO (0x2700)

<RX>03:32:30.27 COM27 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)

Status: SUCCESS (0x0)

IEEEAddr: 0x00124B0001DD55B0

ShortAddress: 0x0000

DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)

DeviceState: DEV_ZB_COORD (0x9)

NumAssocDevices: 0x00

AssocDevicesList

<TX>03:32:59.3 COM27 ZDO_MGMT_PERMIT_JOIN_REQUEST (0x2536)

AddrMode: 0x00 (ADDRESS_NOT_PRESENT) (0x0)

DstAddr: 0x0000

Duration: 0xFF

TCSignificance: 0x00

<RX>03:32:59.3 COM27 ZDO_MGMT_PERMIT_JOIN_REQ_SRSP (0x6536)

Status: SUCCESS (0x0)

<TX>03:34:36.8 COM27 UTIL_GET_DEVICE_INFO (0x2700)

<RX>03:34:36.81 COM27 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)

Status: SUCCESS (0x0)

IEEEAddr: 0x00124B0001DD55B0

ShortAddress: 0x0000

DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)

DeviceState: DEV_ZB_COORD (0x9)

NumAssocDevices: 0x00

AssocDevicesList

For router,

Start Time: 2015/9/23 下午 03:33:11

<RX>03:33:28.61 COM29 ZB_WRITE_CONFIGURATION_RSP (0x6605)
    Status: SUCCESS (0x0)

<TX>03:33:28.61 COM29 ZB_WRITE_CONFIGURATION (0x2605)
    ConfigId: 0x87
    Len: 0x01
    Value: . (0x01)

<TX>03:33:33.94 COM29 ZB_READ_CONFIGURATION (0x2604)
    ConfigId: 0x87

<RX>03:33:33.95 COM29 ZB_READ_CONFIGURATION_RSP (0x6604)
    Status: SUCCESS (0x0)
    ConfigId: 0x87
    Len: 0x01
    Value: . (0x01)

<TX>03:34:19.31 COM29 ZB_APP_REGISTER_REQUEST (0x260A)
    AppEndPoint: 0x01
    AppProfileID: 0x0104
    DeviceId: 0x0002
    DeviceVersion: 0x02
    Unused: 0x00
    InputCommandsNum: 0x01
    InputCommandsList: 0x0002
    OutputCommandsNum: 0x01
    OutputCommandsList: 0x0002

<RX>03:34:19.31 COM29 ZB_APP_REGISTER_RSP (0x660A)
    Status: afStatus_SUCCESS (0x0)

<TX>03:34:24 COM29 ZB_START_REQUEST (0x2600)

<RX>03:34:24.63 COM29 ZB_START_REQUEST_RSP (0x6600)

<RX>03:34:24.64 COM29 ZDO_STATE_CHANGE_IND (0x45C0)
    State: 7 (0x7)

<RX>03:34:24.65 COM29 ZB_START_CONFIRM (0x4680)
    Status: SUCCESS (0x0)

<TX>03:34:45.39 COM29 UTIL_GET_DEVICE_INFO (0x2700)

<RX>03:34:45.4 COM29 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)
    Status: SUCCESS (0x0)
    IEEEAddr: 0x00124B0002F1DC2B
    ShortAddress: 0x96E3
    DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)
    DeviceState: DEV_ROUTER (0x7)
    NumAssocDevices: 0x00
    AssocDevicesList

By the way, do you enable Permit Join on coordinator before you start router to join?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir

Thank you for your replay ,here i am attatching the latest log,i think here i am done the operations as per your steps,can you please check it?

coordinator as per you.rtf ROUTER AFER CONFIG AS PER YOU.rtf

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

What ZNP hex file do you use on your CC2531 USB dongle?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

CC2531ZNP-Pro-Secure_Standard.hex
from the folder C:\Texas Instruments\Z-Stack Home 1.2.2.42930\Projects\zstack\ZAP\ZNP-HexFiles\CC2531

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

Try to download CC2531ZNP-Pro.hex and test again.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

Thank you sir ,when i programed the CC2531ZNP-Pro.hex on both devices then it works fine ..............
Is it added in my network permanantly ?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

I don't understand your latest question. Can you elaborate?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

my coordinator shows linke this NumAssocDevices: 0x01,now how can i control the router's GPIO pins?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735695 points

I don't try to use GPIO through ZNP but it say you can use SYS_GPIO to control 4 GPIOs in Z-Stack Monitor and Test API.pdf.
