Z-Stack Home 1.2.2a.44539 sampleswitch event trigger using custom board

Yikai Chen,

I did connect a button on P0.1 as you said like this diagram: (active low)

and I changed the following code HAL_KEY_SW_1 to HAL_KEY_SW_6

static void zclSampleSw_HandleKeys( byte shift, byte keys )
{
// toggle remote light
if ( keys & HAL_KEY_SW_6 )
{
giSwScreenMode = SW_MAINMODE; // remove help screen if there

// Using this as the "Light Switch"
#ifdef ZCL_ON_OFF
zclGeneral_SendOnOff_CmdToggle( SAMPLESW_ENDPOINT, &zclSampleSw_DstAddr, FALSE, 0 );
#endif
#ifdef LCD_SUPPORTED
HalLcdWriteString( (char *)sCmdSent, HAL_LCD_LINE_2 );

// clear message on screen after 3 seconds
osal_start_timerEx( zclSampleSw_TaskID, SAMPLESW_MAIN_SCREEN_EVT, 3000 );
#endif
}

I made SECURITY=0 on both coordinator and router nodes

I checked the OTA packets and no toggle command packet is transmitted after pressing button on P0.1

can you guide?

I didn't bring any changes in the sample code, except just for the HAL_KEY_SW_6.

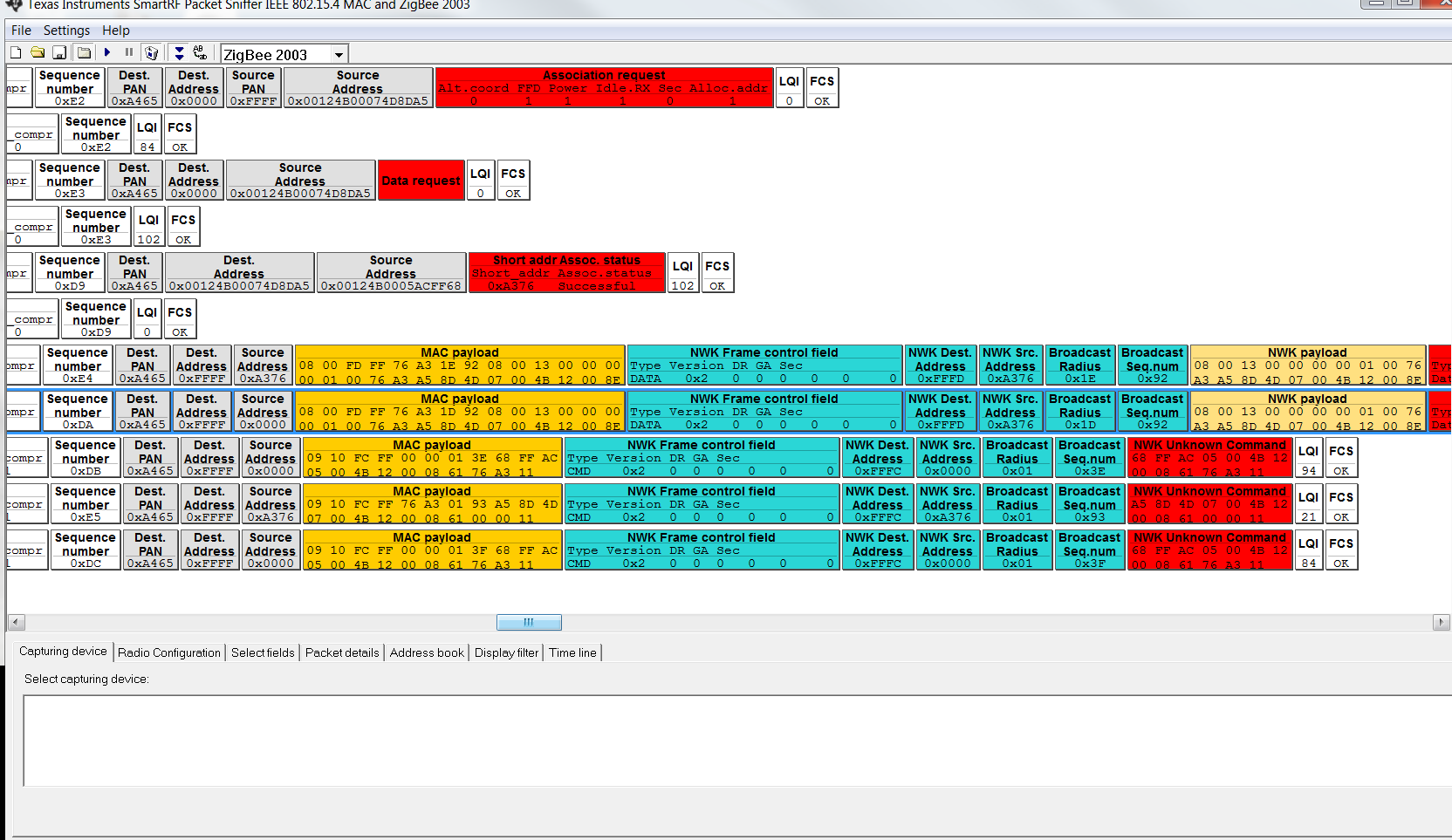

This is what I get from packet sniffer please see if binding occurs or not?

But no packet about toggle command appears on sniffer when I press the button.

I am attaching the packet sniffer file.

lightswitchsamplep0.1key6.psd

The EZ-mode does it trigger after the ZDO_STATE_CHANGE? if it triggers why is there need for a second button?

uint16 zclSampleSw_event_loop( uint8 task_id, uint16 events )

{

 afIncomingMSGPacket_t *MSGpkt;

 (void)task_id;  // Intentionally unreferenced parameter

 if ( events & SYS_EVENT_MSG )

 {

   while ( (MSGpkt = (afIncomingMSGPacket_t *)osal_msg_receive( zclSampleSw_TaskID )) )

   {

     switch ( MSGpkt->hdr.event )

     {

#ifdef ZCL_EZMODE

       case ZDO_CB_MSG:

         zclSampleSw_ProcessZDOMsgs( (zdoIncomingMsg_t *)MSGpkt );

         break;

#endif

       case ZCL_INCOMING_MSG:

         // Incoming ZCL Foundation command/response messages

         zclSampleSw_ProcessIncomingMsg( (zclIncomingMsg_t *)MSGpkt );

         break;

       case KEY_CHANGE:

         zclSampleSw_HandleKeys( ((keyChange_t *)MSGpkt)->state, ((keyChange_t *)MSGpkt)->keys );

         break;

       case ZDO_STATE_CHANGE:

         zclSampleSw_NwkState = (devStates_t)(MSGpkt->hdr.status);

         // now on the network

         if ( (zclSampleSw_NwkState == DEV_ZB_COORD) ||

              (zclSampleSw_NwkState == DEV_ROUTER)   ||

              (zclSampleSw_NwkState == DEV_END_DEVICE) )

         {

#ifndef HOLD_AUTO_START

           giSwScreenMode = SW_MAINMODE;

           zclSampleSw_LcdDisplayUpdate();

#endif

#ifdef ZCL_EZMODE

           zcl_EZModeAction( EZMODE_ACTION_NETWORK_STARTED, NULL );

#endif

Hi Yikai,

To check the trigger event of HAL_KEY_SW_6 on P0.1:

I did initialize the P0_2 as output and i set it as 1, after the network state change:

case ZDO_STATE_CHANGE:

         zclSampleSw_NwkState = (devStates_t)(MSGpkt->hdr.status);

         P0DIR |= 0x04;

           P0 |= 0x04;

and in here to check whether the HAL_key_sw6 is triggered or not, I added:

static void zclSampleSw_HandleKeys( byte shift, byte keys )
{
// toggle remote light
if ( keys & HAL_KEY_SW_6 )
{
P0_4 = ~(P0_4);

The P0_2 is not changing its state when I press the P0_1 button,

I still couldn't figure out the how to trigger the button please guide

Shouldn't you use P0_2 instead of P0_4 if you intend to control P0.2?

Yikai,

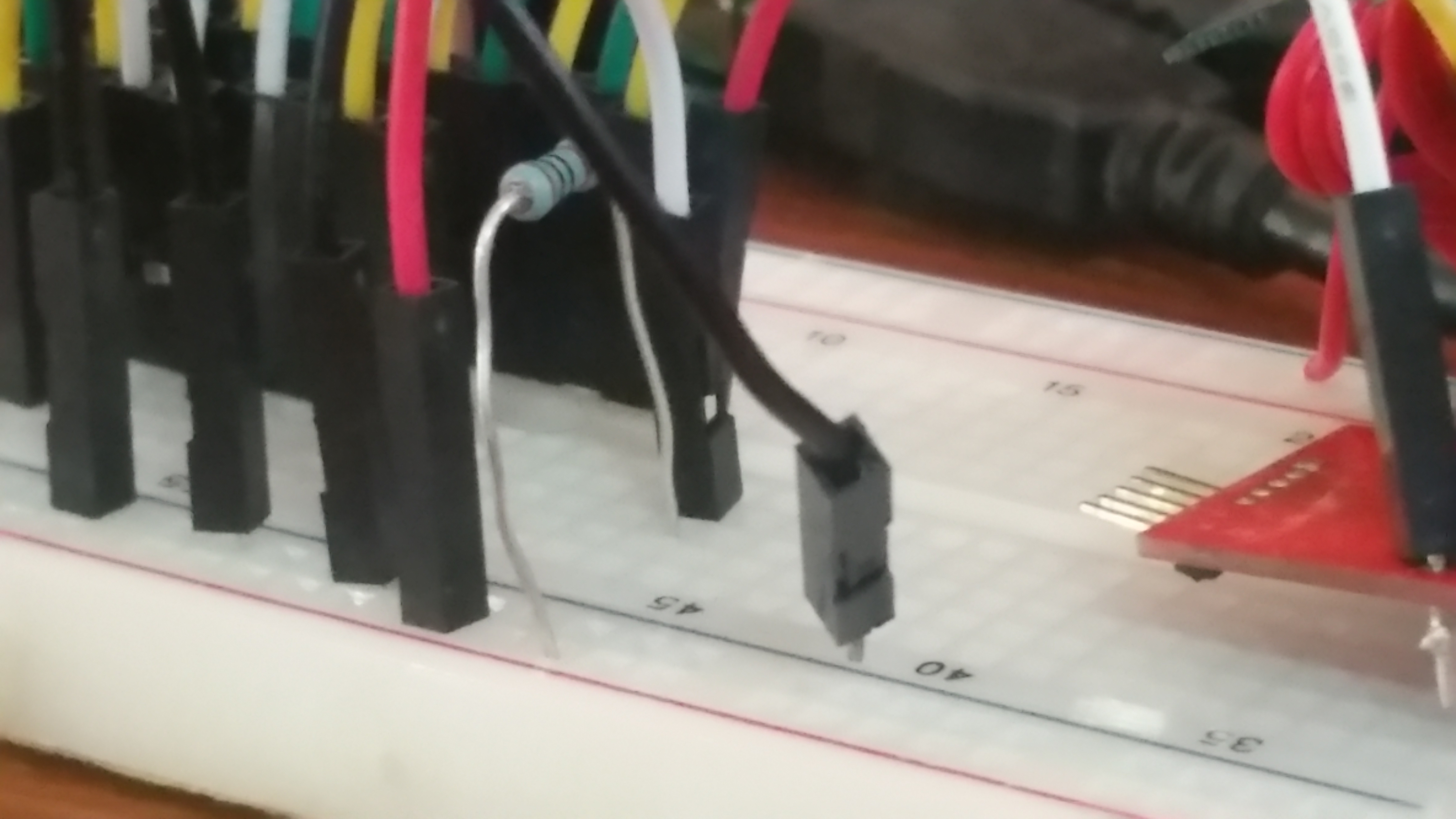

Look at the photo below. White wire is P0.1 and is connected to Vcc using 10k resistor. Black ground wire on the right is how I trigger by touching it to white wire. I.e. active low

Am I correct?

Thank you it worked, why was it not set by default in z-stack? can you elaborate
