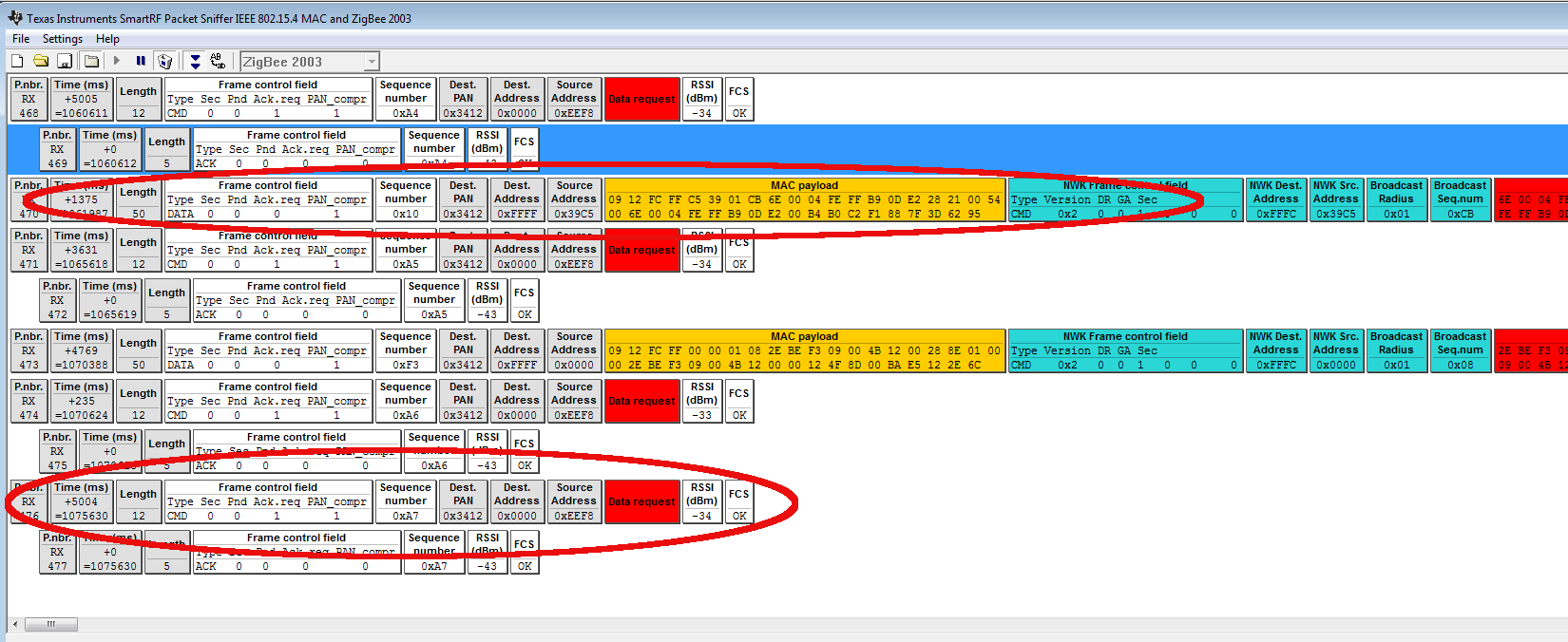

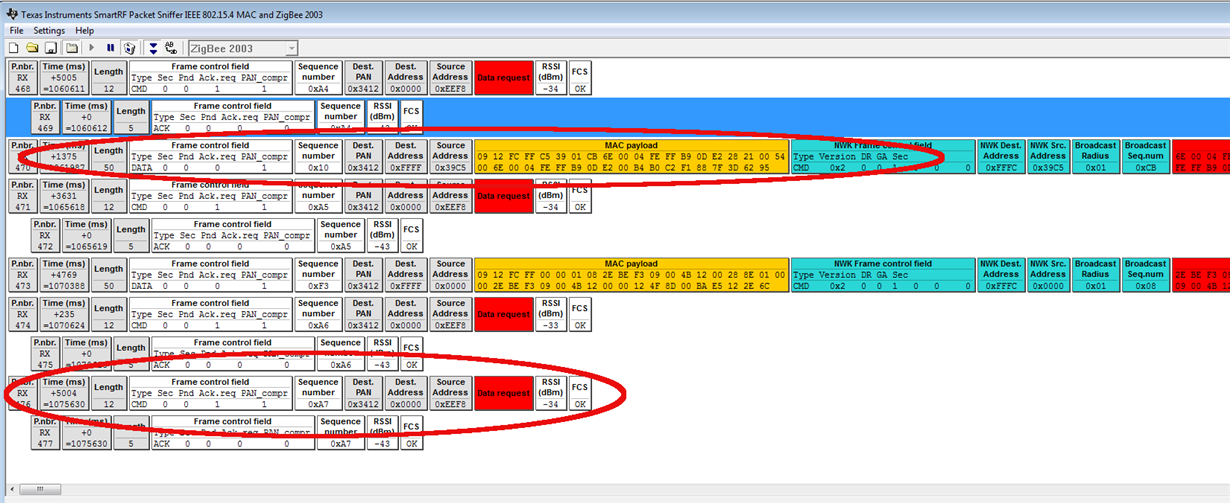

I am using the C2530 Packet Sniffer to look at data on my zigbee network (www.ti.com/.../packet-sniffer). The device is a CC2530 running ZNP, connected to z-tool. It appears that a switch device is sending broadcast messages to the network when a button is pressed, however I do not receive anything on z-tool. Here is a snap shot of the packet data.

Is there a way to receive these messages and pass them up to z-tool? Also, it appears the switch is sending "Data request" to address of the coordinator "0x0000", however I don't get any notification on z-tool.

over 9 years ago

0 YiKai Chen over 9 years ago

Guru 735695 points

Can you attach sniffer log?

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

Here is a log from the TI SmartRF Packet Sniffer application showing the PAN coordinator 0x1234 active. I power up a switch device and it re-connects to the PAN. I then press a button and you can see the switch at address 0xBED5 sending data to the coordinator at 0x0000. I do not see any information come in on Z-Tool for this button press. How can I receive this data?broadcast_switch.psd

0 CLISystems over 9 years ago in reply to CLISystems

Intellectual 550 points

The log appears not to show the button press. I will attach a new log. What are the "Data requests" sent by the switch device?

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

Data requests means end device does polling to its parent node.

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

I spoke with the manufacturer of sensors we are using and they said their sensors will send out a request when they first associate with a PAN. I do not see this information come across the UART link.

I have attached sniffer logs, broadcast data appears to be transferred starting with packet # 60. Can someone explain what is going on between the coordinator and the device (0xC685) with this transfer? How can I receive this data via the ZNP firmware?

door_sensor_startup.psd

0 CLISystems over 9 years ago in reply to CLISystems

Intellectual 550 points

Here is a different sensor, which joins the network multiple times, sends out broadcast data and then leaves the network. How can I receive this using ZNP firmware?

smoke_alarm_connect.psd

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

It's strange that those two sensors, door sensor and smoke alarm sensor, send leave request after they join network a while. You should check with manufacture why those sensors would send leave request.

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

I know why the sensors disconnect, that is not my question

Question: How do I receive the data they transmit?

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

Those device send match request with cluster ID 0x0500 so your coordinator has to respond with ZDO_MATCH_DESC_RSP.

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

I do not see a ZDO_MATCH_DESC_REQ message come in on z-tool. Do I have to subscribe to this message?

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

I think you only need to add ZCL_CLUSTER_ID_SS_IAS_ZONE into your out cluster list of simple descriptor on ZC.

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

Thank you I will try that and post here

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

You are welcome.

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

I added cluster 0x0500 to my out cluster and the devices stay connected to the PAN. I then configure the Binary Input cluster (0x000F) on end point 2 to report changes. Using the sniffer I can see that these messages are broadcasted out, however I don't see them on Z-tool. I have a binding with cluster 0x000F and the reporting command seems to have worked:

<TX>06:38:24.09 COM4 ZDO_SIMPLE_DESC_REQ (0x2504)

DstAddr: 0x2B38

NWKAddrOfInterest: 0x2B38

Endpoint: 0x02

<RX>06:38:24.12 COM4 ZDO_SIMPLE_DESC_REQ_SRSP (0x6504)

Status: afStatus_SUCCESS (0x0)

<RX>06:38:25.64 COM4 ZDO_SIMPLE_DESC_RSP (0x4584)

SrcAddr: 0x2B38

Status: ZDP_SUCCESS (0x0)

NwkAddr: 0x2B38

Len: 0x14

Endpoint: 0x02

ProfileID: 0xC2DF

DeviceID: 0x000C

DeviceVersion: VER_100 (0x0)

NumInClusters: 0x05

InClusterList: 0x0000, 0x0001, 0x0003, 0x000F, 0x0B05

NumOutClusters: 0x01

OutClusterList: 0x0003

<TX>07:00:19.73 COM4 ZDO_BIND_REQ (0x2521)

DstAddr: 0x2B38

SrcAddress: 0x000D6F000BBC4330

SrcEndpoint: 0x02

ClusterID: 0x000F

BindAddrMode: 0x03 (ADDRESS_64_BIT) (0x3)

BindAddr: ..K..... (0x00, 0x12, 0x4B, 0x00, 0x09, 0xF3, 0xBE, 0x2E)

BindEndpoint: 0x07

<RX>07:00:19.76 COM4 ZDO_BIND_REQ_SRSP (0x6521)

Status: afStatus_SUCCESS (0x0)

<RX>07:00:20.28 COM4 ZDO_BIND_RSP (0x45A1)

SrcAddr: 0x2B38

Status: ZDP_SUCCESS (0x0)

<TX>06:58:27.82 COM4 AF_DATA_REQUEST (0x2401)

DstAddr: 0x2B38

DestEndpoint: 0x02

SrcEndpoint: 0x07

ClusterID: 0x000F

TransID: 0x01

Options: 0x10

Radius: 0x01

Len: 0x09

Data: ..U...... (0x00, 0x00, 0x55, 0x00, 0x10, 0x00, 0x00, 0x05, 0x00)

<RX>06:58:27.85 COM4 AF_DATA_REQUEST_SRSP (0x6401)

Status: afStatus_SUCCESS (0x0)

<RX>06:58:29.53 COM4 AF_DATA_CONFIRM (0x4480)

Status: afStatus_SUCCESS (0x0)

Endpoint: 0x07

TransID: 0x01

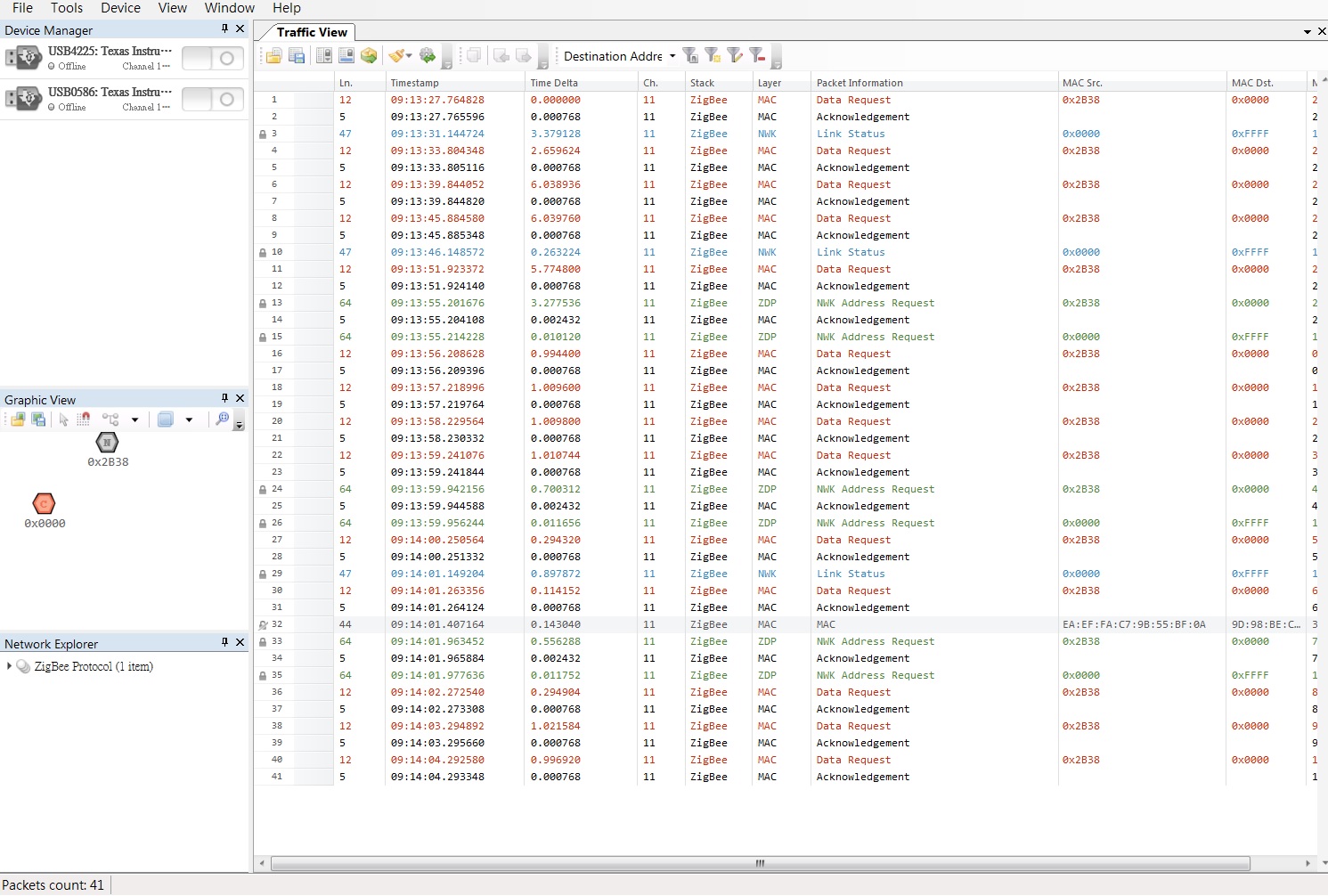

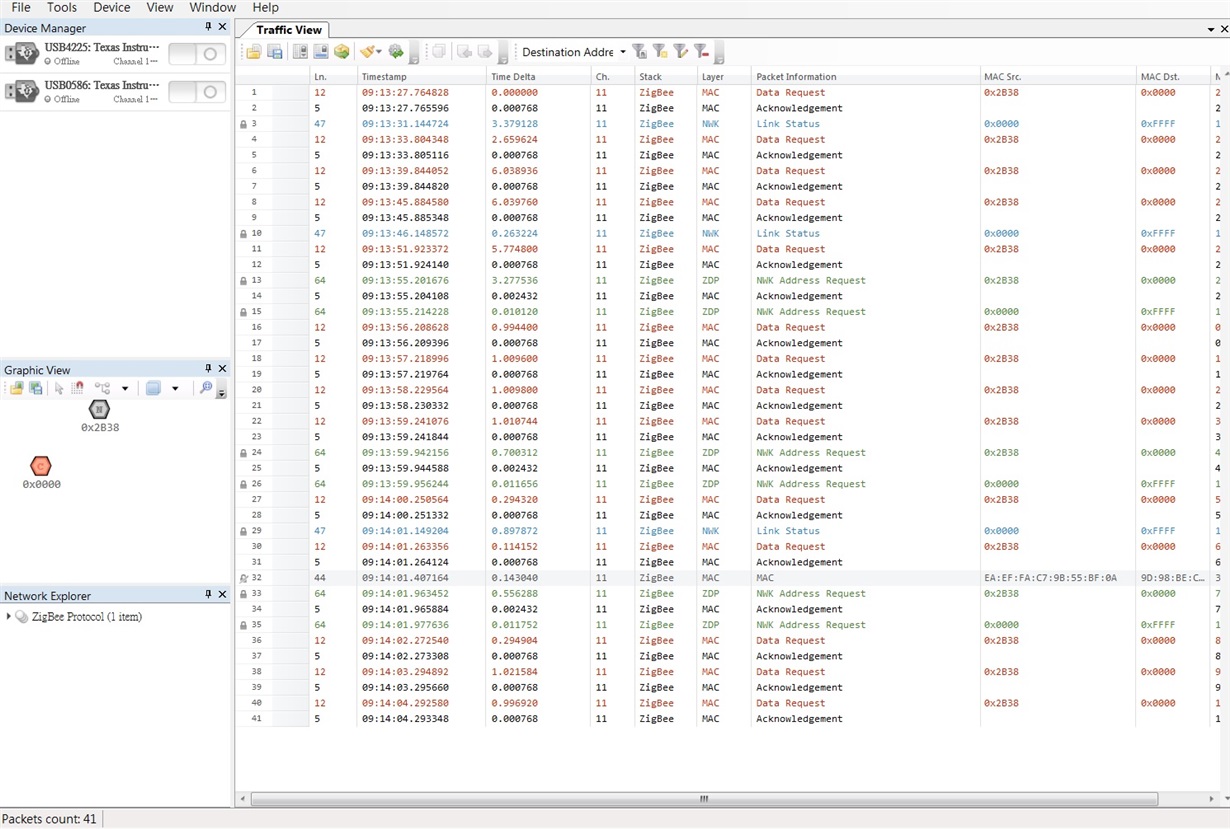

I can see the data from the sensor on the sniffer but not on z-tool

door_sensor_reporting.psd

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

Actually, I don't see any report from door sensor in your log.

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

It looked like packets 24,26, 33,35 were generated when I triggered the switch.

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

Those four packets are network address request. Do you do that in your application?

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

Those are sent out by the sensor, not the coordinator

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

I know but don't you implement the sensor?

0 CLISystems over 9 years ago in reply to YiKai Chen

Intellectual 550 points

I do not implement the sensor, I only implement the coordinator

0 YiKai Chen over 9 years ago in reply to CLISystems

Guru 735695 points

Then, I suggest you to check with manufacturer why the sensor sends network address requests.
