CC2530: Binding table

Akhi G

Part Number: CC2530

In this function-

static void MT_UtilBindAddEntry(uint8 *pBuf)

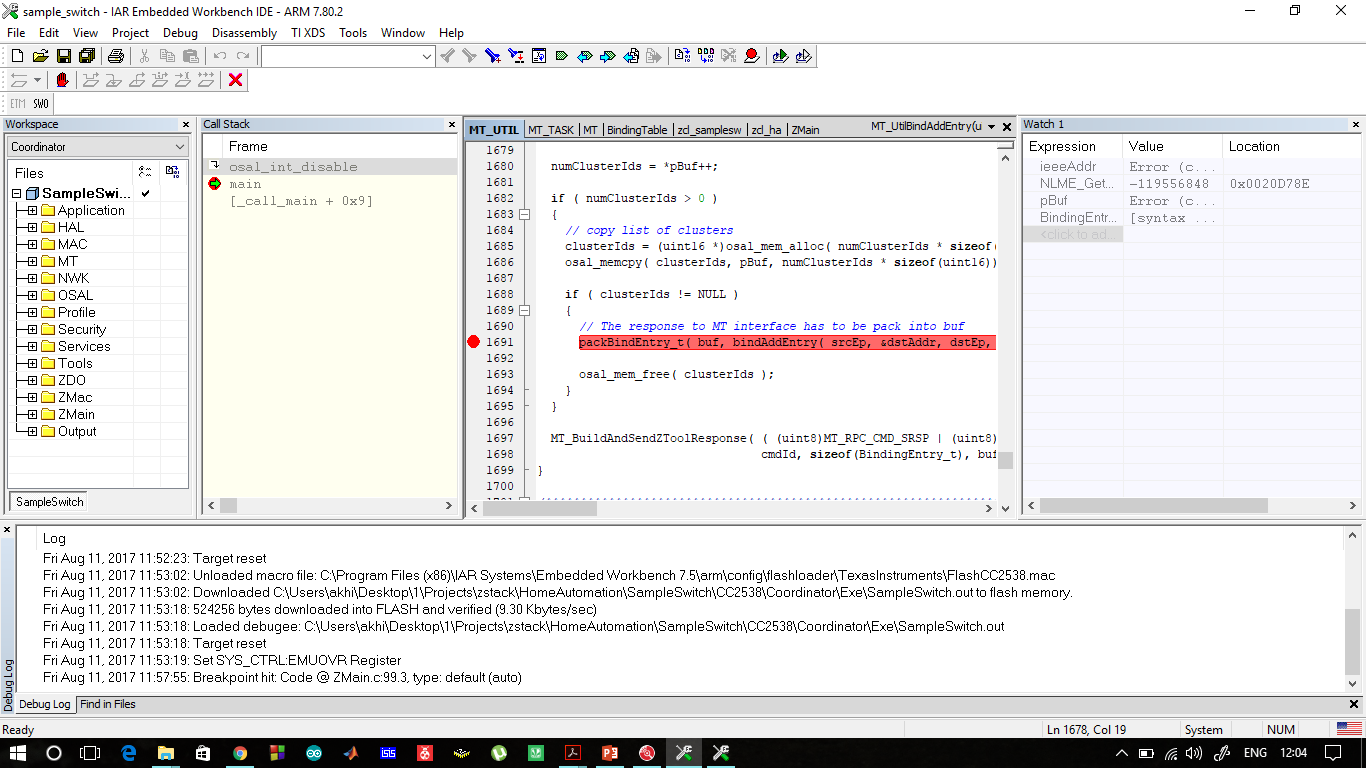

Here the bindAddEntry is used to create the binding table. But I am unable to set the break point at packBindEntry.

if ( clusterIds != NULL )
{
// The response to MT interface has to be pack into buf
packBindEntry_t( buf, bindAddEntry( srcEp, &dstAddr, dstEp, numClusterIds, clusterIds ));

osal_mem_free( clusterIds );

Why is the breakpoint not getting set here?

This is at the coordinator (sample switch,cc2538) side.

over 8 years ago

0 YiKai Chen over 8 years ago

Guru 735685 points

Try to set optimization level to low and test again.

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

It is already set to low. And not working.

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

Does MT_UTIL is defined in your project?

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

MT_TASK
MT_APP_FUNC
MT_SYS_FUNC
MT_ZDO_FUNC

These are the only MT which are enabled in the compiler option.

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

You have to add MT_UTIL to test it.

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

Added in compiler option. But, still the same behaviour. But when I added MT_UTIL_FUNC in the compiler option, the breakpoints are set but my program is not getting stopped at those breakpoints instead after binding.
#if defined (MT_UTIL_FUNC) // this I wrote and enabled in the compiler option.
static void MT_UtilGetDeviceInfo(void);
static void MT_UtilGetNvInfo(void);
static void MT_UtilSetPanID(uint8 *pBuf);

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

MT_UTIL is my typo. MT_UTIL_FUNC is the correct define. I will check when I can access to my desktop. By the way, why do you need to use MT_UtilBindAddEntry? It's not normal behavior to access binding table using it from application.

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

OK. check and then tell me. I have checked that in binding table, there is an argument which carries the ieee address, network address. I want to send data using these parameters to a specific device for which I need to write some extra lines of code. I am, actually trying to understand the whole structure.

0 YiKai Chen over 8 years ago

Guru 735685 points

What do you mean set breakpoint at packBindEntry? Do you mean to set breakpoint at the line" packBindEntry_t( buf, bindAddEntry( srcEp, &dstAddr, dstEp, numClusterIds, clusterIds ));"?

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

I mean any where inside this file. Yes, I tried at this.

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

I don't understand your question well but I think you can set a breakpoint inside function bindAddEntry() and trace it.

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

Yeah. That all I want, but failed to trace.

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

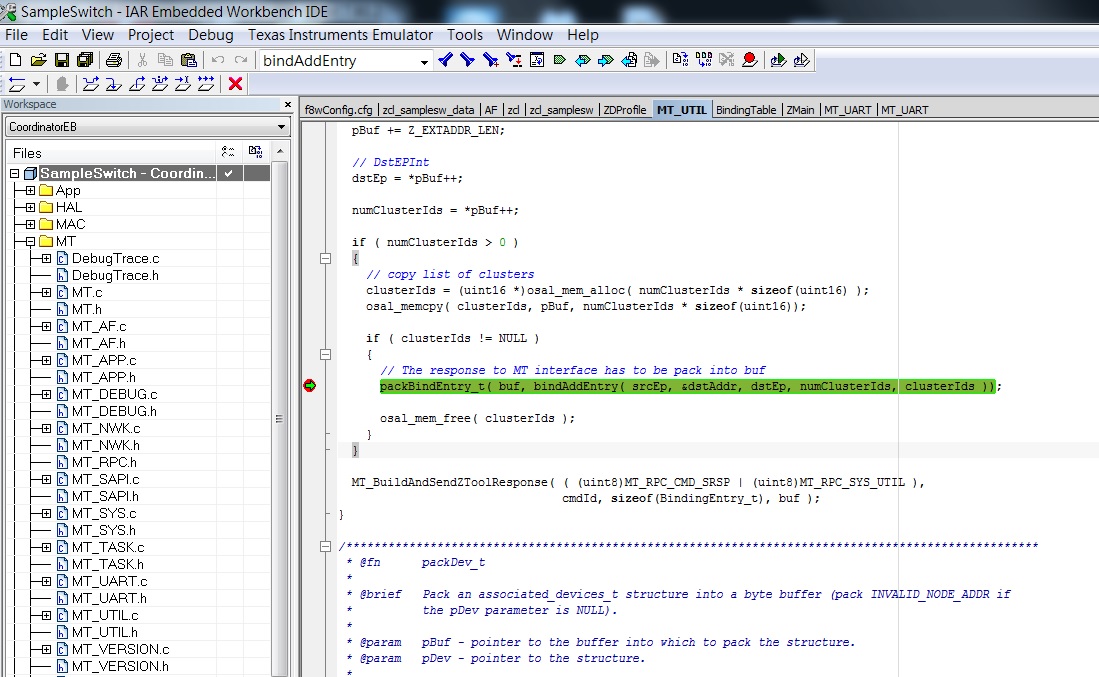

I can set breakpoint on "packBindEntry_t( buf, bindAddEntry( srcEp, &dstAddr, dstEp, numClusterIds, clusterIds ));" and it hits when I send UTIL_BIND_ADD_ENTRY from my ZTool.

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

Mine is still not working.

I have coordinator, sample switch and end device, sample light. Both are powered on. By pressing key 2 on both, it is getting binded with end device bind request. Now the binding table should be formed. So, I am tracing this point (packBindEntryEntry_t) to check the binding table.

I did no change in code.

Using only sample application code.

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

You have to send MT command UTIL_BIND_ADD_ENTRY from ZTool to make breakpoint hit.

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

Why this? Binding table should be formed by itself just after end device binding takes place.

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

The breakpoint you set is on the path only triggered by MT command UTIL_BIND_ADD_ENTRY. If you use end device binding, you should set breakpoint inside bindAddEntry().

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

I didnt get the concept of MT commands. What are these and when and how to use?

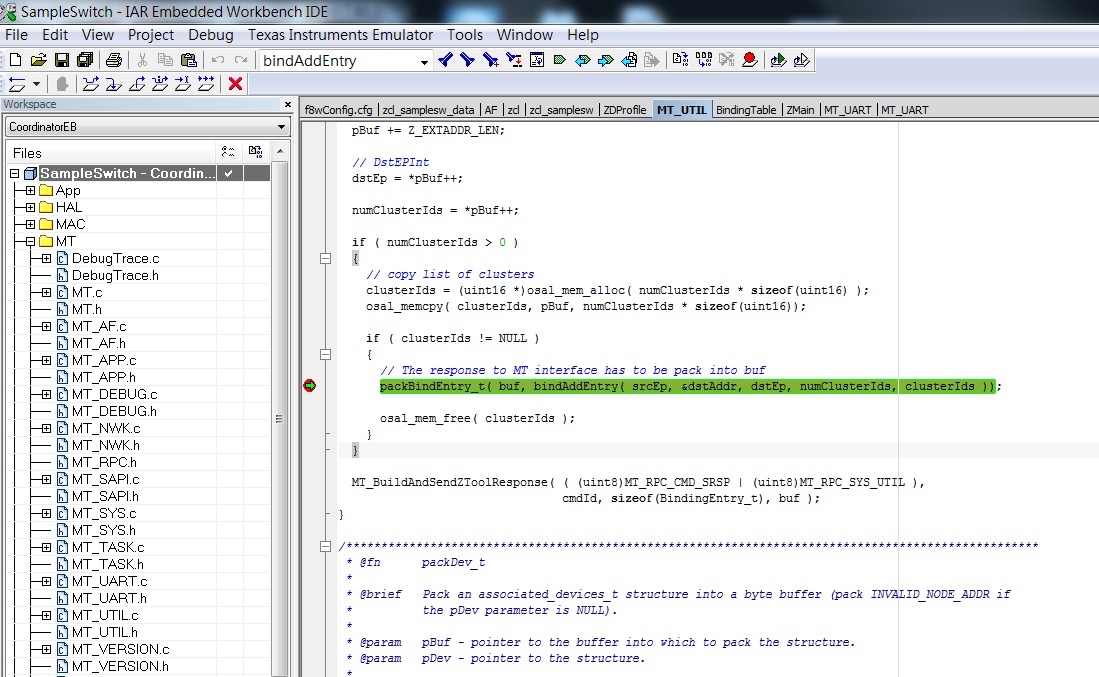

Beside it, I can set the breakpoint inside bindAddEntry and able to trace entries of binding table 1 by 1.

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

MT command is for ZAP-ZNP architecture which is to make CC253x act as Zigbee network processor and you need an extra MCU to act as Zigbee application processer.

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

OK Thankyou.
There is a dstIdx in BindingEntry_t. What is this and what is its function? What value does it take?

0 YiKai Chen over 8 years ago in reply to Akhi G

Guru 735685 points

If I remember correctly, it is index to look up element in address manager.

0 Akhi G over 8 years ago in reply to YiKai Chen

Genius 3410 points

Didnt get it. Explain please.
What I have observed that when 2 end devices are binded to the coordinator, dstIdx is 0 for the one end device and 1 for the another end device.
