CC2530: Problem with using different Flash IC

Arun Krish

Part Number: CC2530

Hi,

In my custom design I am using Flash chip "W25X20CLSNIG". But with this IC OTA firmware upgrade is not happening. If the IC is replaced with "M25PE20-VMN6TP TR" which is used in TI's reference design(SmartRF05EB), OTA is working fine.

I have found that Pin configuration is same in both IC's. Is there any other functionality changes in the newer IC(W25X20CLSNIG)?

Or else any other configuration changes required for using the IC(W25X20CLSNIG).

over 8 years ago

0 YiKai Chen over 8 years ago

Guru 735695 points

Try to check if device ID of Flash chip causes the issue.

0 Arun Krish over 8 years ago in reply to YiKai Chen

Expert 1810 points

Device Id is same for both devices. So some other issue is present.

0 YiKai Chen over 8 years ago in reply to Arun Krish

Guru 735695 points

I can only suggest you to trace into your code to debug it.

0 Arun Krish over 8 years ago in reply to YiKai Chen

Expert 1810 points

Trying to READ/WRITE the data from the Flash.

uint8 dev_id;

dev_id=0x90;

HalFlashWrite(0,&dev_id,1);

HalFlashRead(HAL_OTA_CRC_ADDR / HAL_FLASH_PAGE_SIZE,

HAL_OTA_CRC_ADDR % HAL_FLASH_PAGE_SIZE,

&dev_id, sizeof(dev_id));

HalFlashRead(0,0,0,0);

if(dev_id== 0xEF)

{

HalLedBlink ( HAL_LED_2, 10, 50, 2000 );

}

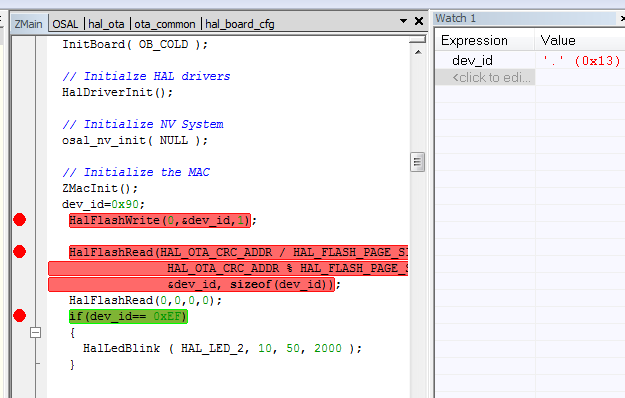

This code is written on zmain.c and checking it in debug mode, device id is detected as 0x13. But it should be 0xEFh.

0 YiKai Chen over 8 years ago in reply to Arun Krish

Guru 735695 points

Do you use scope or SPI protocol analyzer to check if the SPI command is sent correctly?
