CC2530: sending data from router to coordinator

navidrct ansari

Expert 1975 points

Part Number: CC2530
Other Parts Discussed in Thread: CC2531

i have coordinator that it is znp

and router that it is 8051

till now i have device indication in coordinator so router is joined with coordinator and ready to send data

im using these codes to send data to coordinator and none of them work

static endPointDesc_t DoorSensorEndPoint =
{
  1,
  1,
  &zclSampleLight_TaskID,
  (SimpleDescriptionFormat_t *)NULL,  // No Simple description for this test endpoint
  (afNetworkLatencyReq_t)0            // No Network Latency req
};

            navidm =   (afAddrMode_t)Addr16Bit ;
            navid.addr.shortAddr = 0 ;
            navid.addrMode = navidm ;
            navid.endPoint = 1 ;
            navid.panId = 0 ;

            stat = AF_DataRequest(&navid,&DoorSensorEndPoint,0,1,"n",0,0,7);

            #ifdef mDebugAfterComis
            printf("Result of AF Data req is =  %x \r\n" , stat);
            #endif

            navidm =   (afAddrMode_t)Addr16Bit ;
            navid.addr.shortAddr = 0xFFFF ;
            navid.addrMode = navidm ;
            navid.endPoint = 1 ;
            navid.panId = 0 ;

            stat = AF_DataRequest(&navid,&DoorSensorEndPoint,0,1,"n",0,0,7);

            #ifdef mDebugAfterComis
            printf("Result of AF Data req is =  %x \r\n" , stat);
            #endif

            navidm =   (afAddrMode_t)Addr16Bit ;
            navid.addr.shortAddr = 0 ;
            navid.addrMode = navidm ;
            navid.endPoint = 1 ;
            navid.panId = 0xFFFF ;

            stat = AF_DataRequest(&navid,&DoorSensorEndPoint,0,1,"n",0,0,7);

            #ifdef mDebugAfterComis
            printf("Result of AF Data req is =  %x \r\n" , stat);
            #endif

            navidm =   (afAddrMode_t)Addr16Bit ;
            navid.addr.shortAddr = 0xFFFF ;
            navid.addrMode = navidm ;
            navid.endPoint = 1 ;
            navid.panId = 0xFFFF ;

            stat = AF_DataRequest(&navid,&DoorSensorEndPoint,0,1,"n",0,0,7);

            #ifdef mDebugAfterComis
            printf("Result of AF Data req is =  %x \r\n" , stat);
            #endif

this code below is for afregister znp coordinator

0xFE,0x09,0x24,0x00,0x01,0x01,0x00,0x01,0x00,0x01,0x00,0x00,0x00

this code below is for afregister router

afRegister(&DoorSensorEndPoint);

why data is not sended?

over 8 years ago

0 YiKai Chen over 8 years ago

Guru 735695 points

What is your DoorSensorEndPoint?

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

i added it above the code

static endPointDesc_t DoorSensorEndPoint =
{
  1,
  1,
  &zclSampleLight_TaskID,
  (SimpleDescriptionFormat_t *)NULL,  // No Simple description for this test endpoint
  (afNetworkLatencyReq_t)0            // No Network Latency req
};

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

1. Define the following two global variables
byte SampleLightApp_TransID=0; // This is the unique message ID (counter)
endPointDesc_t SampleLightApp_epDesc; //SampleLight

2. Fill out the endpoint description in your zclSampleLight_Init()
SampleLightApp_epDesc.endPoint = SAMPLELIGHT_ENDPOINT;
SampleLightApp_epDesc.task_id = &zclSampleLight_TaskID;
SampleLightApp_epDesc.simpleDesc = (SimpleDescriptionFormat_t *)&zclSampleLight_SimpleDesc;
SampleLightApp_epDesc.latencyReq = noLatencyReqs;

3. Use the following code to send message to coordiantor.
char theMessageData[] = "Hello World";

navid.addrMode = (afAddrMode_t)Addr16Bit ;
navid.addr.shortAddr = 0x0000 ;
navid.endPoint = This should be destination endpoint ; //Since you want to send data to coordinator, you should use coordinator endpoint here

SampleLightApp_TransID++;
AF_DataRequest( &GenericApp_DstAddr, &SampleLightApp_epDesc,
                             You have to use a cluster ID here, //You should check ZCL spec to get one.
                             (byte)osal_strlen( theMessageData ) + 1,
                             (byte *)&theMessageData,
                             &SampleLightApp_TransID,
                             AF_DISCV_ROUTE, AF_DEFAULT_RADIUS );

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

Error[Pe020]: identifier "GenericApp_DstAddr" is undefined

Error[Pe020]: identifier "SampleLightApp_TransID" is undefined

gave me this two error

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

You should use navid instead of GenericApp_DstAddr and use your own taskID instead of SampleLightApp_TransID

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

i did all of it but not sending anything

0 YiKai Chen over 8 years ago

Guru 735695 points

Yes, you can use zclSampleLight_TaskID.

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

it return AF_DATA_CONFIRM_CMD event but no data recieved in coordinator

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

Try to use the following code and check what's the return value is.

afStatus_t ret_af;

ret_af=AF_DataRequest( &navid , &SampleLightApp_epDesc,
You have to use a cluster ID here, //You should check ZCL spec to get one.
(byte)osal_strlen( theMessageData ) + 1,
(byte *)&theMessageData,
&SampleLightApp_TransID,
AF_DISCV_ROUTE, AF_DEFAULT_RADIUS );

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

note that im tryuing to send data on case BDB_COMMISSIONING_SUCCESS: on bdbCommissioningModeMsg->bdbCommissioningStatus where it is saying The device is now on a network and broadcasted a Management Permit Joining ZDO frame
i tested it and it return 0

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

Do you check the return value of AF_DataRequest?

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

yes it is zero that means successful

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

Since you send message to endpoint 1 of coordinator, do you register 1 as endpoint on coordinator?

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

yes i did it in znp coordinator

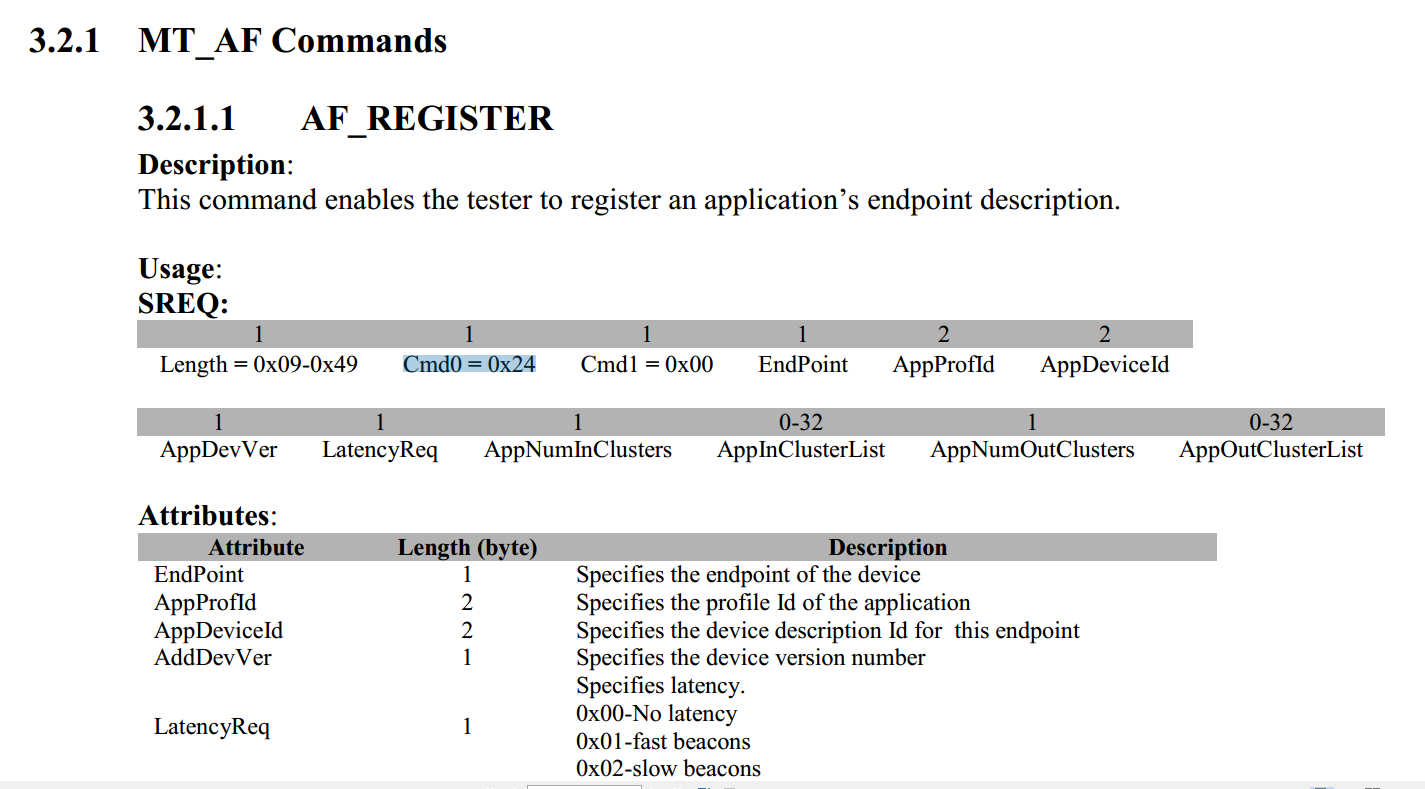

0x09,0x24,0x00,0x01,0x01,0x00,0x01,0x00,0x01,0x00,0x00,0x00

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

I think you should put cluster ID in in cluster list.

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

but with znp router it work

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

Do you mean send the same package?

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

i mean with ztool it is what ztool send and it work

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

AF_DataRequest returning 0 means it sends message connectly. I think you have to use Ubiqua Protocol Analyzer to be check what happens over the air to verify this.

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

thanks allot

then i should wait till cc2531 dongle to come

0 navidrct ansari over 8 years ago in reply to YiKai Chen

Expert 1975 points

my antivirus dont let me to download Ubiqua Protocol Analyzer
can u upload it somewhere that we can download it?

0 YiKai Chen over 8 years ago in reply to navidrct ansari

Guru 735695 points

I cannot do that. Try to disable antivirus sw to download and install it.
