CC2530: PIN

nn hh

Intellectual 550 points

Part Number: CC2530
Other Parts Discussed in Thread: CC-DEBUGGER, , Z-STACK

Hello

Good time

Which pins should connect to the CC-debugger for initial setup of the module?

And,which pins should connect to the CC-debugger for uart of the module?

over 7 years ago

0 YiKai Chen over 7 years ago

Guru 735685 points

Try to refer to CC Debugger User's Guide.

0 TER over 7 years ago in reply to YiKai Chen

TI__Guru**** 317180 points

CCDebugger does not support UART.

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

Thanks, There were two pins in this file, one for connection with the module and one for debugging.
What should I use to connect uart?

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

As TER has replied, CCDebugger does not support UART.

0 nn hh over 7 years ago in reply to TER

Intellectual 550 points

What should I use to connect uart?

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

Can you elaborate what you want to connect to CC2530 UART?

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

In"Connecting the CC Debugger to a Transceiver "

The cc2530 do not supported.

What should I do to send the data?

0 TER over 7 years ago in reply to nn hh

TI__Guru**** 317180 points

What is your overall system requirements? I assume you are not going to use a CCDebugger in the final product so why are you trying to communicate via this?

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

Couldn't understand your descriptions. Can you use a diagram to show me what your connection is?

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

I want to network a few nodes (cc2530) to send and receive data on this network.
So far, I have understood that I use the cc debugger to initialize the module.
I want to know how to transfer the data?

0 nn hh over 7 years ago in reply to TER

Intellectual 550 points

I'm not trying. Just confused,i do not know what to do?
I wish there was a general plan for beginners.

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

What SW do you run on CC2530?

0 TER over 7 years ago in reply to nn hh

TI__Guru**** 317180 points

From a top level, how is your network going to look like?

From where/ what does the nodes get the data they are sending on the RF network?

Where do you want the data to end up? Which "thing" is going to read out the data you send?

Which type of network are you planning to use?

0 nn hh over 7 years ago in reply to TER

Intellectual 550 points

A number of sensor nodes send data (one byte) to the coordinator.

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

Please elaborate your application and do you run Z-Stack on your CC2530?

0 TER over 7 years ago in reply to nn hh

TI__Guru**** 317180 points

nn hh: TO be able to help you we would need more than a one line description.

0 nn hh over 7 years ago in reply to TER

Intellectual 550 points

Ok, I want to use z-stack and try Sample Temperature. I must first run the znp program on the modules using a cc-dibuger.
Now the data from the sensors is sent to the coordinator and the module coordinator must give the information to the computer. it's true?
What is the interface between the module and the pc? by cc-debugger?

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

CC Debugger is used for programming ZNP firmware into CC2530. To make ZNP work, you will need ZAP which can be another MCU or a PC. I suppose you want to use PC as ZAP in your case. If so, you should connect USB-to-UART converter between your desktop and CC2530 and use ZTool. For using ZTool to act as coordinator to form Zigbee network, you can refer to sunmaysky.blogspot.tw/.../use-ztool-z-stack-30-znp-to-set-up.html

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

Thank you, It was so good.

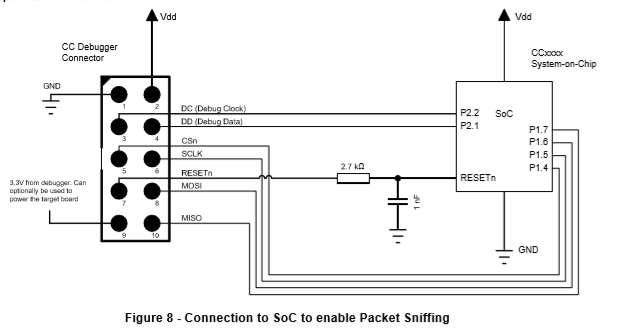

But I did not get the answer to the question of the connection for Packet Sniffer that CC2530 PA1 have not the pins P1.4 to P1.7 , and what should I see on file about pin out of IC ?

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

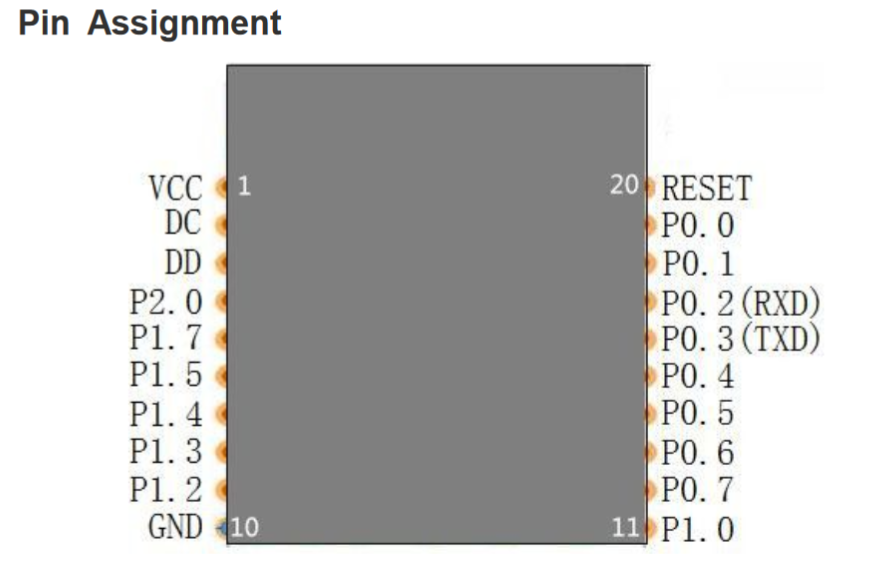

What is CC2530 PA1?

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

Please see this:

shop.aftabrayaneh.com/.../RL-CC2530-PA1 English V1.1.pdf

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

This module is made by 3rd party and if they don't make pins P1.4 to P1.7 available on the module, you can do nothing.

0 YiKai Chen over 7 years ago in reply to YiKai Chen

Guru 735685 points

Actually, I see pins P1.4 to P1.7 available on the module. What is your question exactly?

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

I means is p1.4 to p.
1.7 in connection for sniffer that as MOSI and MISO and ...
In datasheet CC2530 does not exist these pins.

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

I really couldn’t understand your descriptions.

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

Ok.

Do not have CS, SCLK, MISO and MOSI in the CC2530-PA1 ?

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

CS, SCLK, MISO and MOSI are connected to P1.4, P1.5, P1.7, and P1.6, and your module has those pins available.

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

Thank you,

But i do not see p1.6.

0 YiKai Chen over 7 years ago in reply to nn hh

Guru 735685 points

Oops. So, you cannot use this connection.

0 nn hh over 7 years ago in reply to YiKai Chen

Intellectual 550 points

Ok.

Thank you, as well as Ryan

0 TER over 7 years ago in reply to nn hh

TI__Guru**** 317180 points

Still a bit lost on what you want to do but it looks like the UART is available together with the debugger interface. UART is typically used in applications like this to send data from the concentrator to a unit outside the network.

0 nn hh over 7 years ago in reply to TER

Intellectual 550 points

I have to start the project to find out what is needed and what I can not use.
Thanks again for your guidance
