CC2530: Zigbee Known Issues and Proposed Fixes - Questions

Jack Loop

Part Number: CC2530
Other Parts Discussed in Thread: Z-STACK

Hi,

I've tried make the change on "BDB reporting doesn't support read/write attribute data callback functions". However, I get an error that "gAttrDataValue" is undefined. I am wondering if this is already a defined value, and I should just use extern to resolve my issue. Or is there something missing?

http://processors.wiki.ti.com/index.php/Zigbee_Known_Issues_and_Proposed_Fixes

over 7 years ago

0 YiKai Chen over 7 years ago

Guru 735685 points

Ryan Brown1 I think this patch is incomplete in the processors.wiki.ti.com/.../Zigbee_Known_Issues_and_Proposed_Fixes links. Can you help to verify this.

0 YiKai Chen over 7 years ago in reply to YiKai Chen

Guru 735685 points

Jack Loop I suppose you can claim a global variable "uint8 *gAttrDataValue;" in bdb_Reporting.c to fix the issue.

0 Ryan Brown1 over 7 years ago

TI__Guru**** 217607 points

Hi Jack,

Please define the global variable as suggested by YK, I will update the Wiki page.

Regards,
Ryan

0 YiKai Chen over 7 years ago in reply to Ryan Brown1

Guru 735685 points

Thanks Ryan to confirm this.

0 Jack Loop over 7 years ago in reply to YiKai Chen

Guru 17870 points

For this fix: Errors due to BDB header build types, can you post a screen shot of how to do: "Change the device library with -C $PROJ_DIR$\..\..\..\Libraries\TI2530DB\bin\AllDevice-Pro.libz"?

0 YiKai Chen over 7 years ago in reply to Jack Loop

Guru 735685 points

This issue is raised from discussions in e2e.ti.com/.../708833 so you can follow the discussions there.

0 Jack Loop over 7 years ago in reply to YiKai Chen

Guru 17870 points

I see that. This issue is on the ZigBee Issues wiki. I just want to ask how I "Change the device library"? I don't know how to do that.

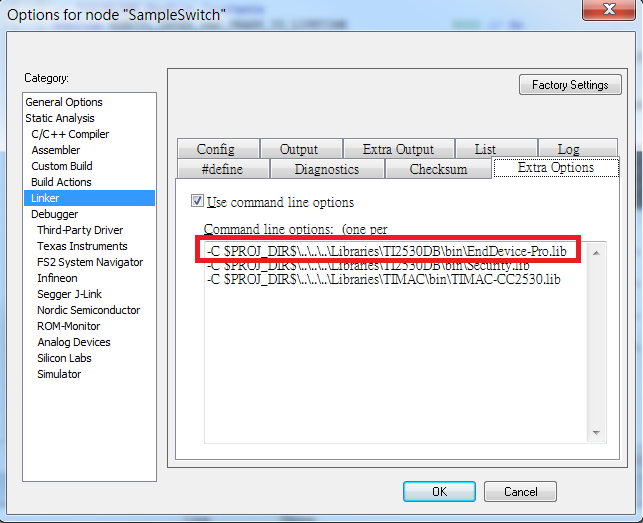

0 YiKai Chen over 7 years ago in reply to Jack Loop

Guru 735685 points

0 Pavel Kosenko over 7 years ago in reply to Jack Loop

Genius 4540 points

You can do it in option of linker in IAR.

0 Jack Loop over 7 years ago in reply to Pavel Kosenko

Guru 17870 points

I get an error when I changed the library: Error[e12]: Unable to open file 'C:\Users\Alex F\Desktop\Z-Stack 3\Projects\zstack\HomeAutomation\GenericApp\CC2530DB\..\..\..\Libraries\TI2530DB\bin\AllDevice-Pro.libz'. How can I fix this?

0 YiKai Chen over 7 years ago in reply to Jack Loop

Guru 735685 points

You should use AllDevice-Pro.lib instead of AllDevice-Pro.libz. The last character "z" is typo.

0 Jack Loop over 7 years ago in reply to YiKai Chen

Guru 17870 points

I get this error now: Error[e46]: Undefined external "gLINK_STATUS_JITTER_MASK" referred in nwk ( C:\Users\Alex F\Desktop\Z-Stack 3\Projects\zstack\Libraries\TI2530DB\bin\AllDevice-Pro.lib ). How can I fix this?

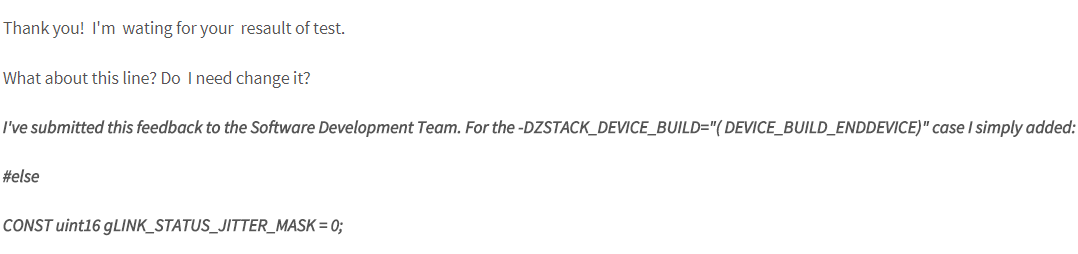

I see on the other link you sent me, they added some code. If this is the solution, where do I add it?

0 YiKai Chen over 7 years ago in reply to Jack Loop

Guru 735685 points

Find all "#if ( ZSTACK_ROUTER_BUILD ) || defined ( ZBIT )" and replace it with "#if ( ZSTACK_ROUTER_BUILD ) || (ZG_BUILD_ENDDEVICE_TYPE) || defined ( ZBIT )".

0 Jack Loop over 7 years ago in reply to YiKai Chen

Guru 17870 points

Thanks. I also have this warning: Warning[Pe047]: incompatible redefinition of macro "BDB_NETWORK_FORMATION_CAPABILITY" (declared at line 106) C:\Users\Alex F\Desktop\Z-Stack 3\Components\stack\bdb\bdb.h 112. How do I resolve this?

0 YiKai Chen over 7 years ago in reply to Jack Loop

Guru 735685 points

I don't see this warning when I applied those changes. I suggest you to check if you do something wrong.

0 Jack Loop over 7 years ago in reply to YiKai Chen

Guru 17870 points

Hi,

I am currently trying to implement this fix "1. Stagger the joining of ZED devices, i.e. make your join event sporadic (osal_rand() % 30000) <--- random amount of time between 0 and 30 seconds" from "ZC sends ZEDs Leave Reqs after MAC Association".

Each time "bdb_StartCommissioning(BDB_COMMISSIONING_MODE_NWK_STEERING)" is called, it seems to activate a timer for "zclGenericApp_ProcessCommissioningStatus". What is this timer called?

0 YiKai Chen over 7 years ago in reply to Jack Loop

Guru 735685 points

I suppose that is timer of finding and binding.

0 Jack Loop over 7 years ago in reply to YiKai Chen

Guru 17870 points

What is the name of of this timer in the code?

0 YiKai Chen over 7 years ago in reply to Jack Loop

Guru 735685 points

I cannot access to my desktop for now and I suggest you to trace into bdb_StartCommissioning to know it.

0 Ryan Brown1 over 7 years ago in reply to Jack Loop

TI__Guru**** 217607 points

Hi Jack,

BDB_COMMISSIONING_MODE_NWK_STEERING is only handled inside of bdb_StartCommissioning for devices already on a network, steering causes them to enable permit joining.

Instead of "bdbCommissioningProcedureState.bdbCommissioningState = BDB_COMMISSIONING_STATE_START_RESUME;" and "osal_set_event( bdb_TaskID, BDB_CHANGE_COMMISSIONING_STATE );" at the end of bdb_StartCommissioning, replace with "osal_start_timerEx( zclGenericApp_TaskID, GENERICAPP_JOIN_EVT, (osal_rand() % 3000) );" with GENERICAPP_JOIN_EVT declared in zcl_genericapp.h. Handle this event in zclGenericApp_event_loop to start the commissioning process.

Edit: Also see the first parameter of ZDOInitDeviceEx & extendedDelay

Regards,
Ryan

0 Ryan Brown1 over 7 years ago

TI__Guru**** 217607 points

Hi Jack,

We have since updated bdb_RepFindAttrEntry, please check the Wiki page for the newest version.

Regards,
Ryan
