Part Number: CC2530
Other Parts Discussed in Thread: Z-STACK

Tool/software: TI C/C++ Compiler

hello ti,

I debug znp on cc2530_pA1 , and I set baudrate and every thing needed, but when I run it and scan whit ztool,, ztool couldn't find it, I check every thing , could u please help me why this happen?

over 7 years ago

0 Sean M over 7 years ago

TI__Intellectual 2780 points

Hey there,

I recommend making sure you look at the Z-Stack ZNP Interface Specification document inside the Documents/API directory.

In there you will see you need to make sure you are using the 'UART' configuration meaning,

delete "HAL_UART_USB" and the "USB_SETUP_MAX_NUMBER_OF_INTERFACES=5" preprocessor defines from IAR.

Then once you connect the CC2530 to your computer make sure your Device Manager is able to see it.

BAUDRATE needs to be 115200, and the other port settings are as follows: 8-N-1.

Best,
Sean

0 Ryan Brown1 over 7 years ago

TI__Guru**** 217527 points

Hello,

Are you using a SMARTRF05EB? Please read through both the User's Guide (SWRU210) and the Z-Stack ZNP Interface Specification (SWRA442, C:\Texas Instruments\Z-Stack 3.0.1\Documents\API) to make sure you are using the correct hardware settings and compile options.

e2e.ti.com/.../660606

Regards,
Ryan

0 YiKai Chen over 7 years ago

Guru 735685 points

Try to set znpCfg1 = ZNP_CFG1_UART in InitBoard() and make sure you use P0.2 as UART RX and P0.3 as UART TX

0 ti ti74 over 7 years ago in reply to Ryan Brown1

Intellectual 790 points

excuse me, I did all them, and once ztool connected, but I can't connect anymore, all wires and connections and znp are ok, but no connection.

I use SMARTRF04EB ,maybe for this?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735685 points

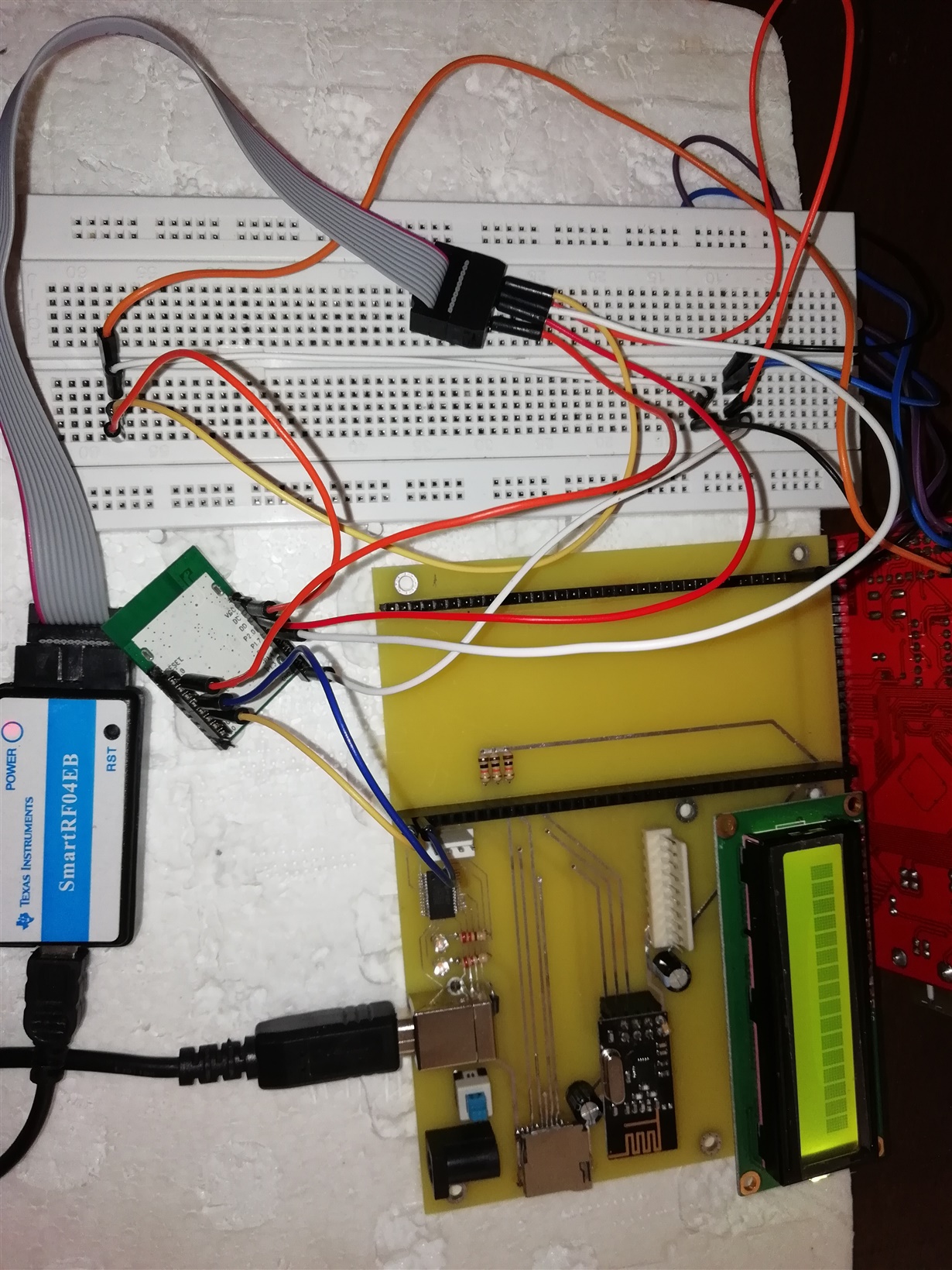

Can you take a picture to show me your HW connection?

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

0 ti ti74 over 7 years ago in reply to ti ti74

Intellectual 790 points

I use lpc1768 just for 3.3v

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735685 points

How do you connect CC2530 UART to PC for ZTool communication?

0 Ryan Brown1 over 7 years ago in reply to ti ti74

TI__Guru**** 217527 points

You need to verify your UART communication lines with an oscilloscope or logic analyzer.

Regards,
Ryan

0 ti ti74 over 7 years ago in reply to Ryan Brown1

Intellectual 790 points

Hi

I program znp on module and now I want to send mt commands with ztool,is it necessary to use ccdebuger when I using ztool?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735685 points

No, you don't need CC debugger when you use Ztool.

0 Pavel Kosenko over 7 years ago in reply to ti ti74

Genius 4540 points

You must connect uart from your module to your PC (via UART- USB for example ) , set right setting to Z-Tool and send command
