Tool/software: TI C/C++ Compiler

Hello TI

I'm working on cc2530 modules and I can forming a network and starting timer with samples, samplelight and sampleswitch,

now I wanna send a number of data bits (for example a hundred of bits) in a specific time and when the light module gets them, led on and off .

could you please help me where should I define the bits in sampleswitch and what codes should I add in sampleswitch and samplelight timers?

so thanks

over 7 years ago

0 YiKai Chen over 7 years ago

Guru 735695 points

Ryan and I had tried to help you in your another similar post at e2e.ti.com/.../737639 . If you are not familar with Zigbee funndamental, I would suggest you to read www.waveshare.com/.../Zigbee-Wireless-Networking.pdf and www.zigbee.org/.../07-5123-06-zigbee-cluster-library-specification.pdf

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

ok,thanks for helping
but I wanna know
1)where should I put the data in samples to send ? where should I write it? I can't find it.
2)What functions should I use in the code I add?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

This depends on your application so can you elaborate how you get the data? I suppose you should put the code to send data at where you get hte data.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

I wanna send the desired data (specific data) with switch module, and when sending is completed , LED toggles in light module. in both sides, I have 2 cc2530 modules, and there is nothing in light side to show the data that has sent ,just I have LEDs in samplelight side.
could you please helping in codes?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

Do you have to use Zigbee 3.0 for such easy task? If not, I would suggest you to refer to GenericApp example in Z-Stack mesh 1.0.0 and it already show you how to send and receive "Hello World" between two modules.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

yes , I use zstack 3.0.1 and load samplelight and sampleswitch in it on modules.
Now how can I send a number of data bits (for example a hundred of bits) in a specific time and when the light module gets them, led on and off.
1)where should I put the data in samples to send ? where should I write it?
2)What functions should I use in the code I add?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

I completely understand your question so you don't have to repeat your descriptions again. I have give your replies and suggestion. How about having a look at GenericApp example in Z-Stack mesh 1.0.0 instead of samplelight/sampleswitch examples in Z-Stack 3.0.1?

0 Ryan Brown1 over 7 years ago in reply to YiKai Chen

TI__Guru**** 223267 points

I'd advise that you refer to the application implementation from the Z-Stack Mesh GenericApp example but we do not recommend downgrading stacks to accomplish this functionality, in fact please consider using Z-Stack 3.0.2 with the AF_DataRequest API.

Regards,
Ryan

0 ti ti74 over 7 years ago in reply to Ryan Brown1

Intellectual 790 points

Hello

In order to send the data when use Z-tool, we used command AF_DataRequest and enter the data in the Data part.
To send the data when use Samples, we also use the command AF_DataRequest , but which option to enter the data? buf Place???

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
In Z-Tool :
<TX>03:44:56.22 COM8 AF_DATA_REQUEST (0x2401)
DstAddr: 0xBB26
DestEndpoint: 0x01
SrcEndpoint: 0x01
ClusterID: 0x0104
TransID: 0x00
Options: 0x00
Radius: 0x1E
Len: 0x01
Data: x (0x78)

////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

In samples : AF_DataRequest( (dstAddr), afFindEndPointDesc( (srcEP) ), (cID), (len), (buf), (transID), (options), (radius) )

please help me

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

What do you mean “To send in Samples”?

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

send the data when use samples!!!

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

!!!Which samples? Do you mean SampleLight and SampleSwitch?Please ask your question clearly.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

Ok, SampleSwitch

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

I would suggest you to refer to GenericApp example in Z-Stack mesh 1.0.0 to know how to use AF_DataRequest API.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

Tnx, please give me link

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

You can download Z-Stack mesh 1.0.0 from Z-STACK-ARCHIVE

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

Thank you

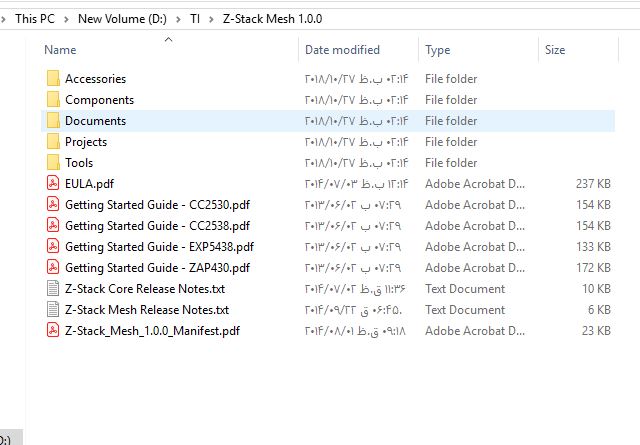

I run Z-Stack mesh 1.0.0. where is the GenericApp example ?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

After you install Z-Stack mesh 1.0.0, GenericApp will be inside examples folder.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

I can not find:(

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

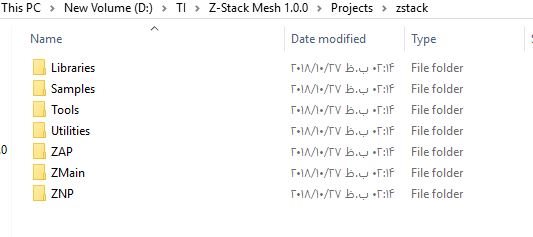

Go inside Projects folder.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

Maybe more complete address?

0 ti ti74 over 7 years ago in reply to ti ti74

Intellectual 790 points

I can not Generic App example PDF.

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

Inside Samples

0 ti ti74 over 7 years ago in reply to ti ti74

Intellectual 790 points

Please answer my question with a simple example.
Do not refer.
tnx

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

code Generic App was also included in Stack 3 !!! I thought this was a guide Pdf .

0 ti ti74 over 7 years ago in reply to ti ti74

Intellectual 790 points

It is possible ?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

It’s an example not guide pdf.

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

What do you mean it is possible?!

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

I know, but I asked you a question that the answer is ultimately a sentence!
As a beginner, I can not analyze this example so I can not find the answer to my question.
If you may be able to answer my question very simply, which part of the Sample Switch I would to enter the DATA ?
Thanks

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

I meant to explain the my question with a simple example.

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

It depends on your application, for example, using AF_DataRequest to send data when a button is pressed.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

Yes, quite right, I just have a module
I have no hardware
And I used to send a timer that does not need a key.

And I know that I should use the AF command, but where does my data to be entered?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

This still depends on your application to get data from where.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

Ok,
Can I not manually enter myself? Or is there a way to define the data variable myself?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

Can you elaborate where is your data from? If it’s from sensor connecting to CC2530, I suppose you can send the data right after you read it.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

It's true. After reading the sensor, which part of the Sample Switch?
I do not have a sensor yet
And now I just want to test and write the digital data manually on the Sample Switch .
Please show the location of write the data in the Sample Switch

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

We usually create a periodic timer event to read sensor data and that’s what you have to add by yourself into SampleSwitch.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

Ok, tnx
Define the data in the buf variable?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

Yes, just put the data you want to send in parameter buf of AF_DataRequest.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

Ok , so thanks for your answers and so sorry on many questions, could you pleas say ,in a network, in using this:

AF_DataRequest( afAddrType_t *dstAddr, endPointDesc_t *srcEP, uint16 cID, uint16 len, uint8 *buf, uint8 *transID, uint8 options, uint8 radius )

,( except pbuf : [I defined it : uint8 pBuf[20] ={1,1,1,1,0,0,1,1}; ; ])

what should I diffine ? I think other input parameters of this function will be ok when the module is in the network, for example for [endPointDesc_t *srcEP] how should I diffine it?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

Do you study GenericApp in Z-Stack mesh 1.0.0 to see how it send “Hello World” using AF_DataRequest?

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

yes, but I can't find my answer in GenericApp, i cant't define them truly

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

I suppose you can use zclSampleSw_SimpleDesc instead of GenericApp_epDesc as srcEP parameter of AF_DataRequest.

0 ti ti74 over 7 years ago in reply to YiKai Chen

Intellectual 790 points

ok, thanks
could you please say about other parameters? how should I deffine cId , &transId , txOpts, radius ?

0 YiKai Chen over 7 years ago in reply to ti ti74

Guru 735695 points

Those are the same like you did in ZTool and you can also refer to Z-Stack API.pdf.
