Compiler/CC2530: CC2530 ZNP keep send SYS_RESET_IND command

Phuc Cao Hoang

Part Number: CC2530
Other Parts Discussed in Thread: Z-STACK

Tool/software: TI C/C++ Compiler

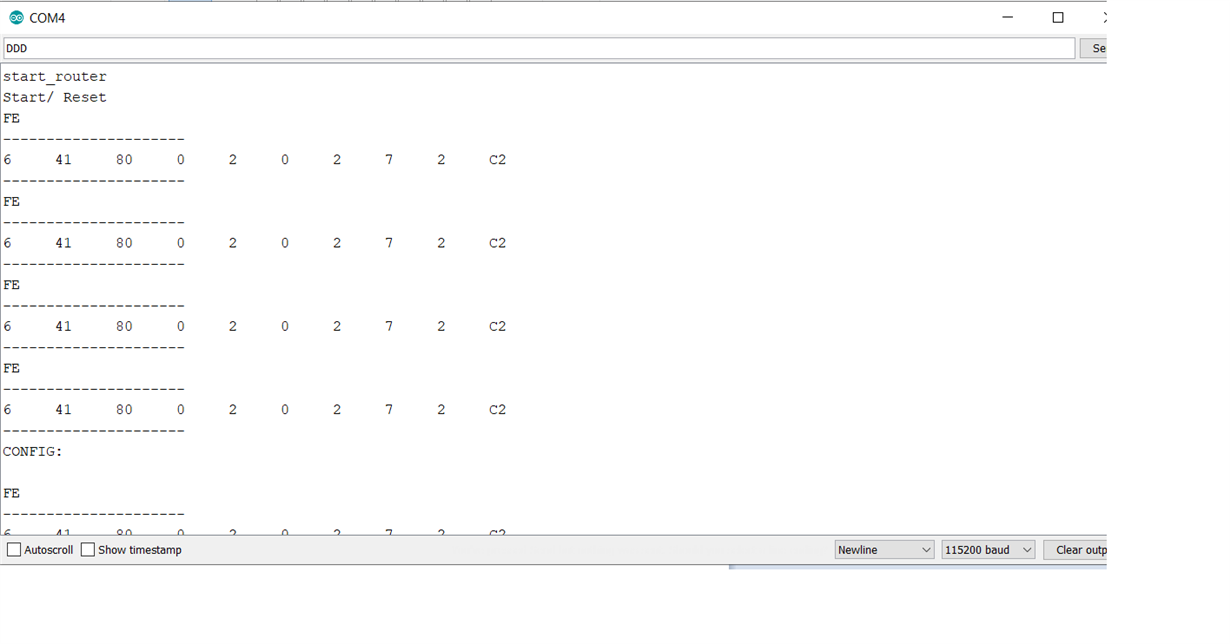

Hi everyone, I build CC2530 ZNP by ZStack 3.0.2, I can't send SYS_OSAL_NV_WRITE_EXT command from Arduino to CC2530 via UART. I always receiver SYS_RESET_IND command from CC2530. Can you help me? Thank you so much.

over 5 years ago

0 YiKai Chen over 5 years ago

Guru 735695 points

Do you use TI CC2530 developing kit? If not and it's your custom CC2530 design, you might need to check your HW first.

0 Ryan Brown1 over 5 years ago

TI__Guru**** 220627 points

Hi Phuc,

Along the lines of what YK has recommended, I suggest you first test your hardware using a PC connection to Z-Tool software. Make sure that you are powering the CC2530 properly (2 to 3.6 V)and are using voltage translators between this SoC and the Arduino as I am aware that these boards typically operate at 5V.

Regards,
Ryan

0 Phuc Cao Hoang over 5 years ago in reply to Ryan Brown1

Prodigy 30 points

Hi Ryan,

Thank you so much.

1 . Can you send me AF_REGISTER command example?

2. After joining network, I keep receiver command:

FE 0B 45 C8 00 00 D9 7A D4 14 00 4B 12 00 01 BD

What does It mean?

0 Ryan Brown1 over 5 years ago in reply to Phuc Cao Hoang

TI__Guru**** 220627 points

Hi Phuc,

You can review usage of AF_REGISTER in the Z-Stack Monitor and Test API from the Z-Stack 3.0.2\Documents\API folder. This document will also help you dissect the message received, with CMD0=0x45 and CMD1=0xC8 it appears to be a MT_ZDO_CONCENTRATOR_IND_CB after referencing MT.h definitions.

Regards,
Ryan
