RTOS/CC2640: XDC110 problem

chethan sv

Expert 1040 points

Part Number: CC2640

Tool/software: TI-RTOS

Hi,

I'm facing a problem while flashing the code to the board. It shows some errors below as shown

ERROR

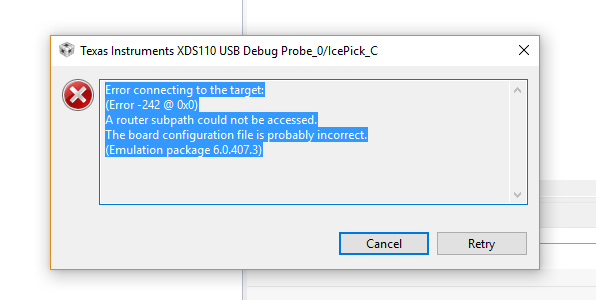

"IcePick_C: Error connecting to the target: (Error -242 @ 0x0) A router subpath could not be accessed. The board configuration file is probably incorrect. (Emulation package 6.0.407.3)"

over 7 years ago

0 IUsedToBeARealPerson (M-W) over 7 years ago

TI__Guru 58425 points

Hi Chethan,

How does your target configuration for the device look, are you using an existing project which you are trying to flash to an device?
Have you tried re-powering the device and restarting the IDE?

0 TER over 7 years ago

TI__Guru**** 317180 points

- Is this a custom board or a TI evaluation board?
- Which XDS110 do you use?
- How do you connect the XDS110 with the board (provide picture)

This a typical error message if you have not connected the jtag correctly or the jtag is locked.

0 chethan sv over 7 years ago in reply to TER

Expert 1040 points

Hi,

1. I'm using a custom board but before I'm flashing the code without error.

2. XDC110 USB debug probe default

3. I checked the JTAG connection is fine.

but still, I'm getting an error

Error connecting to the target:

(Error -242 @ 0x0)

A router subpath could not be accessed.

The board configuration file is probably incorrect.

(Emulation package 6.0.407.3)

0 TER over 7 years ago in reply to chethan sv

TI__Guru**** 317180 points

Do you get this issue regardless on how you try to connect (program used). Have you tried with SmartRF Studio/ flash programmer 2?

0 chethan sv over 7 years ago in reply to TER

Expert 1040 points

yes i used flash programmer their also not flashing the code.

0 chethan sv over 7 years ago in reply to chethan sv

Expert 1040 points

hi
i 'm getting a new error
please help me anybody

ERROR:-
Error connecting to the target:
(Error -242 @ 0x0)
A router subpath could not be accessed.
The board configuration file is probably incorrect.
(Emulation package 6.0.407.3)

0 chethan sv over 7 years ago

Expert 1040 points

Part Number: CC2640

Tool/software: TI-RTOS

Hi,

how to resolve this problem ?

ERROR:-

This error is generated by TI's USCIF driver or utilities.

The value is '-242' (0xffffff0e).
The title is 'SC_ERR_ROUTER_ACCESS_SUBPATH'.

The explanation is:
A router subpath could not be accessed.
The board configuration file is probably incorrect.

[End: Texas Instruments XDS110 USB Debug Probe_0]

0 Matt Calvo over 7 years ago

TI__Genius 14800 points

Hello,

This post is extremely similar to the topic in question on your E2E thread from yesterday ( e2e.ti.com/.../716084 ). I am going to close this thread so that you can continue getting support on the original thread. It is easier for us to track and for the community to find answers to their questions if all of the support is on the same thread. Please go ahead and add any new comments and inquiries related to this issue to the original post. Thanks!

Best regards,

Matt Calvo

0 chethan sv over 7 years ago in reply to Matt Calvo

Expert 1040 points

where i need to set the board configuration. which file is having the board configuare

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

Try to replace an USB cable and restart your system to test again.

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

I try to help you in your another post.

0 chethan sv over 7 years ago in reply to YiKai Chen

Expert 1040 points

Hi Yikai ,

yes i tried, restart the system and changed the USB cable, same problem i'm facing.

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

Can you take a picture to show me your connection between your windows system and CC2640?

0 IUsedToBeARealPerson (M-W) over 7 years ago in reply to chethan sv

TI__Guru 58425 points

In you project, open the "targetConfigs" folder and open up the CC2640.ccxml file (the .ccxml file is the board configuration file). What board is selected in the board or device list?

If you go to the advanced view and check the "* USB Debug Probe", what is "Debug Probe Selection" set to?

0 chethan sv over 7 years ago in reply to YiKai Chen

Expert 1040 points

yes i tried both restart and USB cable replace then also same problem

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

Can you take a picture to show me your connection between your desktop and CC2640?

0 chethan sv over 7 years ago in reply to YiKai Chen

Expert 1040 points

Hi,

I tried the same project to build and run to TI launch pad the code is flashing fine but

for our customized launch pad flashing is not happening.

I'm getting the error is as shown in the image

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

This is usually caused by bad debugger pin connection so I suggest you to check connection first on your custom board.

0 TER over 7 years ago in reply to YiKai Chen

TI__Guru**** 317180 points

You wrote "I checked the JTAG connection is fine" but how did you do this? Errors like this is most of the time caused by the connection between the XDS110 and the jtag on the chip including the cable, how this is wired, your custom board etc.

0 chethan sv over 7 years ago in reply to TER

Expert 1040 points

Sorry, till 2 days back with the same connection I worked fine. But after that, it showing the above-mentioned error.

here is my board and pin connection,

0 TER over 7 years ago in reply to chethan sv

TI__Guru**** 317180 points

Did you/ could you have changed the CCFG section of the chip last time you successfully managed to flash the device meaning that you could have locked the jtag interface?

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

Do you give power from CC-DEVPACK-DEBUGGER? If yes, try to power your custom board using external power supply. By the way, if you test it with another custom board, does it work?

0 chethan sv over 7 years ago in reply to YiKai Chen

Expert 1040 points

1. I have not changed any CCFG file.

2. Other custom boards also showing the same error

And I test the target connection then it showing,

/*****************************************************************************************

-----[Print the reset-command hardware log-file]-----------------------------

The scan-path will be reset by toggling the JTAG TRST signal.

The controller is the XDS110 with USB interface.

The link from controller to target is direct (without cable).

The software is configured for XDS110 features.

The controller cannot monitor the value on the EMU[0] pin.

The controller cannot monitor the value on the EMU[1] pin.

The controller cannot control the timing on output pins.

The controller cannot control the timing on input pins.

The scan-path link-delay has been set to exactly '0' (0x0000).

An error occurred while hard opening the controller.

-----[An error has occurred and this utility has aborted]--------------------

This error is generated by TI's USCIF driver or utilities.

The value is '-242' (0xffffff0e).

The title is 'SC_ERR_ROUTER_ACCESS_SUBPATH'.

The explanation is:

A router subpath could not be accessed.

The board configuration file is probably incorrect.

[End: Texas Instruments XDS110 USB Debug Probe_0]

what are those bolded line EMU [0] and EMU [1]?

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

1. Do you try to give power to your custom board by external power supply?
2. Do you have another CC-DEVPACK-DEBUGGER to replace current one to test again?

0 chethan sv over 7 years ago in reply to YiKai Chen

Expert 1040 points

1. yes I gave the power by external USB cable.
2. and yes i have another debugger, from that also I had tried the same problem happening.

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

According to your previous picture, I see you give power from CC-DEVPACK-DEBUGGER.

0 TER over 7 years ago in reply to YiKai Chen

TI__Guru**** 317180 points

Do you see this issue with more than one custom board or have you only tested a single board?

0 chethan sv over 7 years ago in reply to YiKai Chen

Expert 1040 points

after that, I gave directly to my custom board also and I checked the pin voltage it's giving 3.3 v approximately.

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

Try to refer to processors.wiki.ti.com/.../CC26xx_HW_Troubleshooting to do some HW debug.

0 chethan sv over 7 years ago in reply to YiKai Chen

Expert 1040 points

Hi,

Now i gave the power supply for both debugger and my controller board now flashing the code is happening for only the app, not for the stack.

I'm getting the error like,

Error connecting to the target:
(Error -151 @ 0x0)
One of the FTDI driver functions used during the connect
returned bad status or an error. The cause may be one or
more of: no XDS100 is plugged in, invalid XDS100 serial number,
blank XDS100 EEPROM, missing FTDI drivers, faulty USB cable.
Use the xds100serial command-line utility in the 'common/uscif'
folder to verify the XDS100 can be located.
(Emulation package 6.0.407.3)

0 YiKai Chen over 7 years ago in reply to chethan sv

Guru 735695 points

Replace a USB cable to test again.

0 TER over 7 years ago in reply to chethan sv

TI__Guru**** 317180 points

So what you are saying is that the XDS110 errors are dependent on the software you are trying to flash?

Does this error only happen with only one image? How many different images have you tried to flash?
