AM387x - Internal Temperature Sensor

Michael Questo

Is their an internal core temperature sensor that Smart Reflex uses to determine the Adaptive Voltage Scaling of the processor? If so must it be enabled in the kernel or in u-boot? Cann its values be accessed, i was unabl to find a register in the TRM.

Technical Reference Manual:

http://www.ti.com/lit/ug/sprugz7b/sprugz7b.pdf

There is a similar post with an external temperature sensor recommendation.

http://e2e.ti.com/support/other_analog/temperature_sensors/f/243/t/156118.aspx

over 12 years ago

0 Pavel Botev over 12 years ago

TI__Guru**** 170625 points

Hi Michael,

We are discussing similar subject here:

https://e2e.ti.com/support/dsp/davinci_digital_media_processors/int-dm814x/f/720/t/233518.aspx?Redirected=true

Pavel

0 Michael Questo over 12 years ago in reply to Pavel Botev

TI__Expert 6000 points

Thanks Pavel!

I've reviewed the other E2E posts and summarized my findings below.

The BANDGAP0_CTRL contain the ADC value for the internal die temperature. This temperature is internally used for AVS and its reference was removed in revision B of the TRM. More information about using the AVS can be found in the following links.

AVS User Guide:

http://processors.wiki.ti.com/index.php/TI81XX_PSP_PM_AVS_Driver_User_Guide

http://processors.wiki.ti.com/index.php/TI81XX_PSP_AVS_FAQ

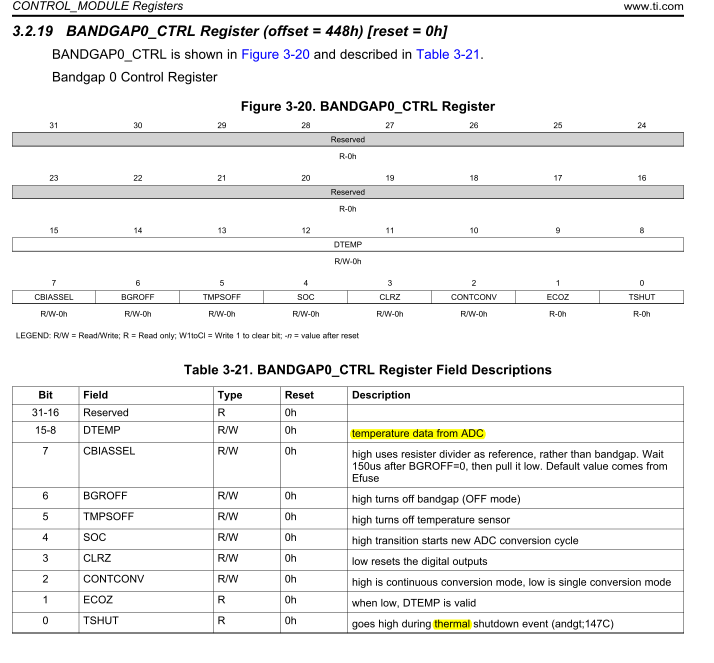

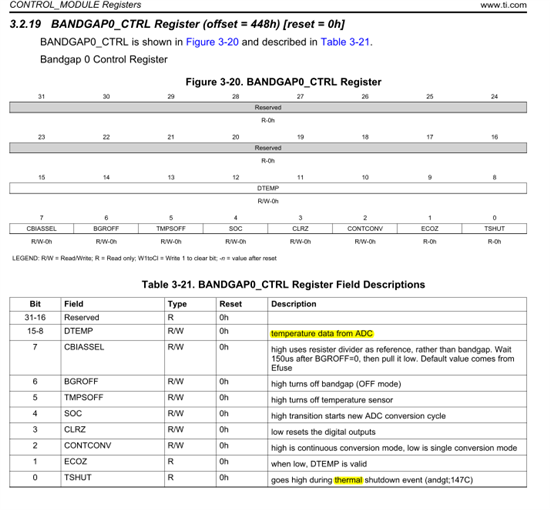

BANDGAP0_CTL Reference From sprugz7a.pdf:
