TS321: TS321 PSPICE

Kevin Huang8

Genius 4646 points

Part Number: TS321
Other Parts Discussed in Thread: LM324

Tool/software:

Hi Team,

Please provide TS321 PSPICE file.

0 Clemens Ladisch 7 months ago

Guru 317390 points

On the product web page, click on "Design & development", then "Design tools & simulation".

0 Kevin Huang8 7 months ago in reply to Clemens Ladisch

Genius 4646 points

Hi Clemens,

Only see the PSICE files for LM324, but not TS321

0 Clemens Ladisch 7 months ago in reply to Kevin Huang8

Guru 317390 points

The electrical characteristics are the same.

0 Raymond Zhang1 7 months ago

Hi Kevin,

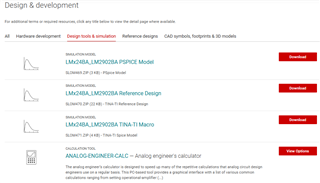

As Clemens indicated, the file can be found in the link below. The combined Spice model is for TS321, LM324x and LM2902x general purpose op amps.

If you have other questions, please let us know.

Best,

Raymond
