Spice Model for THS4501

Julian E

Other Parts Discussed in Thread: THS4500, THS4501, THS4502, TINA-TI

Hello,

i am looking for a spice model for the THS4500 family of OpAmps. In the Datasheet it is mentioned there would be one available:

"A SPICE model for the THS4500 family of devices is available through either the Texas Instruments web site (www.ti.com) or as one model on a disk from the Texas Instruments Product Information Center..."

but i could not find anything on the web site.

Can anybody help me out or give me a hint?

over 12 years ago

0 Hooman Hashemi over 12 years ago

TI__Mastermind 22825 points

Hi Julian,

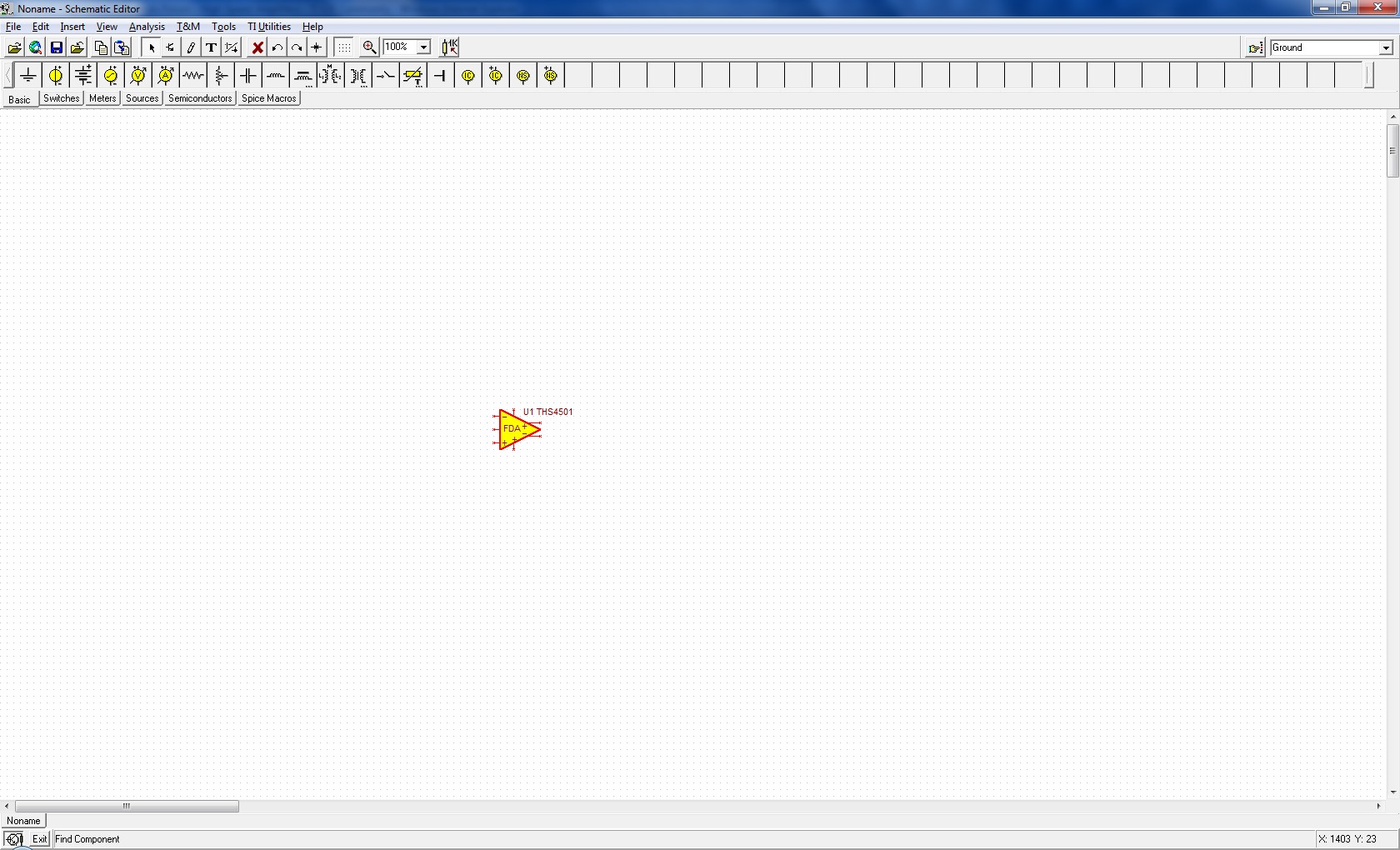

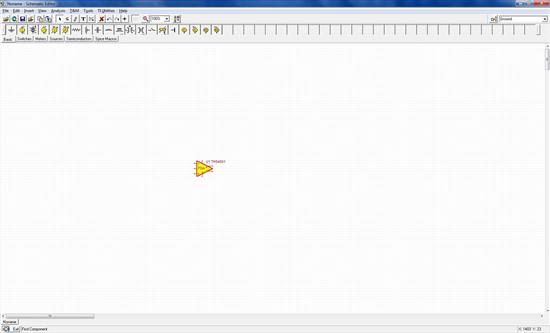

You can get the THS4501 or THS4502 TINA-TI models from directly within TINA-TI:

Please let me know if you still have issues?

Regards,

Hooman

0 Hooman Hashemi over 12 years ago in reply to Hooman Hashemi

TI__Mastermind 22825 points

I use "Find Component" icon in the top right hand corner.

Regards,

Hooman

0 Julian E over 12 years ago in reply to Hooman Hashemi

Prodigy 200 points

Hello,

thanks for your quick answer. I want to use the model within a different Spice programm (LTspice). Is it possible to extract the model from TINA-TI?

0 Hooman Hashemi over 12 years ago in reply to Julian E

TI__Mastermind 22825 points

Hi Julian,

The THS4501 model can be imported into other simulators because it does not seem to be encrypted (although I've not done it). If you double click the device and select "Enter Macro", you'd see the text file associated with it. You could save this text file as *.lib and then do your importation.

Regards,

Hooman

0 Julian E over 12 years ago in reply to Hooman Hashemi

Prodigy 200 points

Hey Hooman,

you are awesome! Thank you very much!

0 Julian E over 12 years ago in reply to Julian E

Prodigy 200 points

Just one more thing:

You have to copy the whole file "Fully-Differential Amplifiers.LIB" located in the "SPICELIB" folder in your TINA-TI installation. Because the THS4501 macro uses two subcircuits (diff2_f1, diff2_f2) who are missing in the export from TINA-TI as mentioned by Hooman.
