LMH6553 EVAL PCB layout files, SNOA528A, LMH6553SDEVAL

Ken Henderson
Intellectual 670 points

Other Parts Discussed in Thread: LMH6553

Hi,

Are the layout files for the LMH6553 Eval Board available?

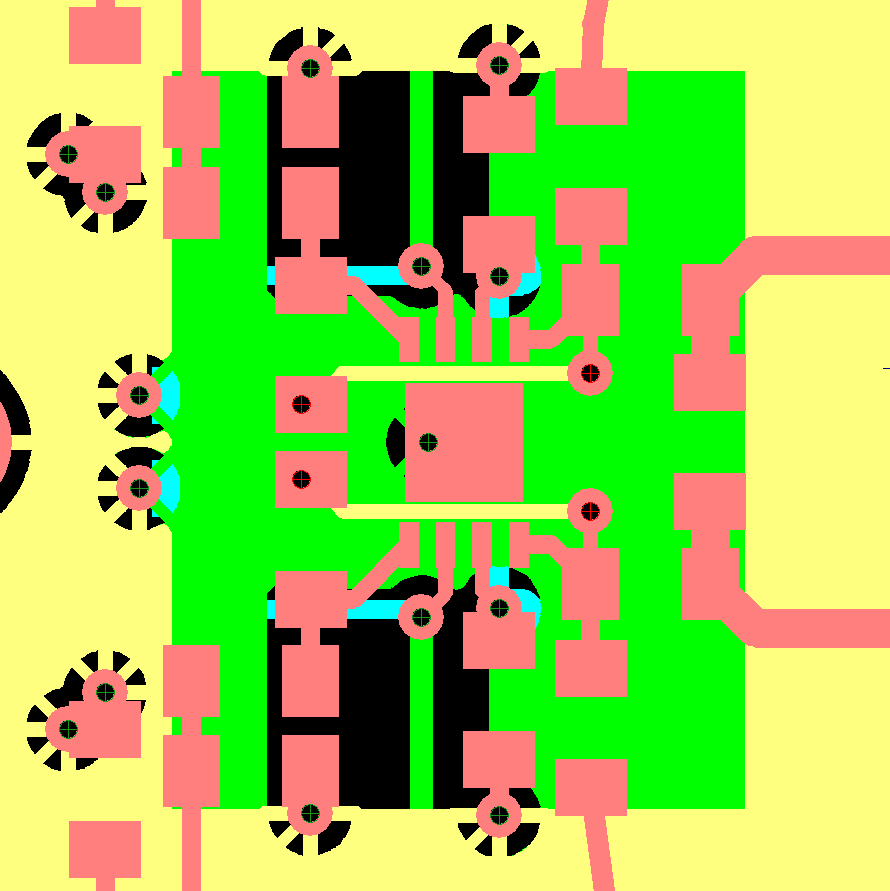

I'm trying to see how the outputs connect back to the feedback resistors R3 & R4. It is not very clear from Fig 2 in the app note SNOA528A.

Any help much appreciated!
