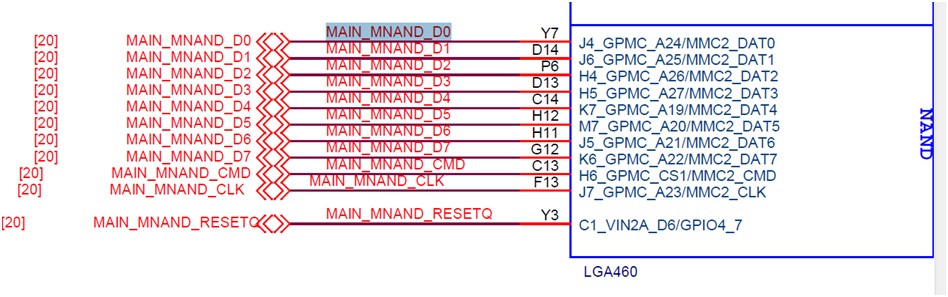

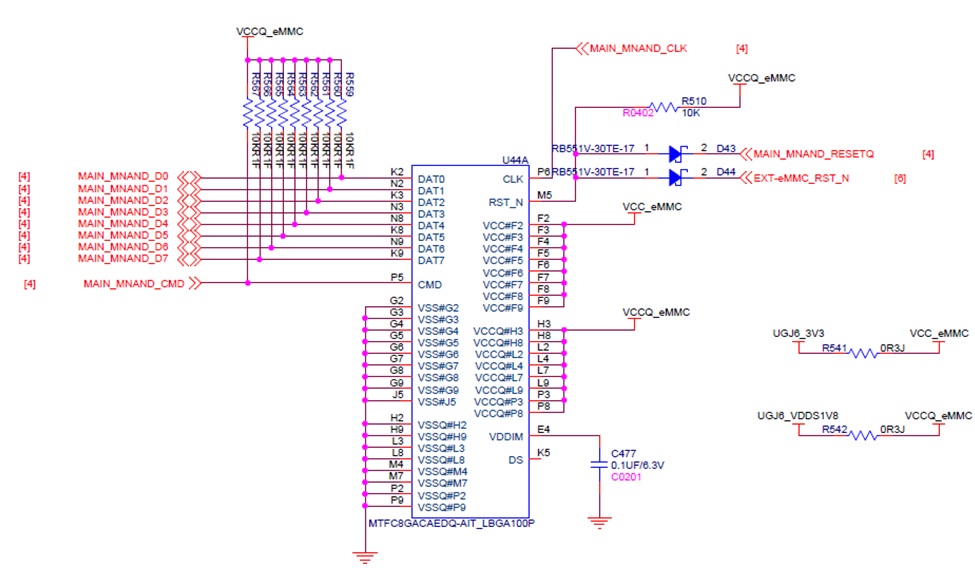

Linux/DRA752: eMMC interface with error code -110

/*
 * Copyright (C) 2013 Texas Instruments Incorporated - http://www.ti.com/
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License version 2 as
 * published by the Free Software Foundation.
 * Based on "omap4.dtsi"
 */

#include <dt-bindings/interrupt-controller/arm-gic.h>
#include <dt-bindings/pinctrl/dra.h>

#include "skeleton.dtsi"

#define MAX_SOURCES 400

/ {
	#address-cells = <2>;
	#size-cells = <2>;

	compatible = "ti,dra7xx";
	interrupt-parent = <&crossbar_mpu>;

	aliases {
		i2c0 = &i2c1;
		i2c1 = &i2c2;
		i2c2 = &i2c3;
		i2c3 = &i2c4;
		i2c4 = &i2c5;
		serial0 = &uart1;
		serial1 = &uart2;
		serial2 = &uart3;
		serial3 = &uart4;
		serial4 = &uart5;
		serial5 = &uart6;
		serial6 = &uart7;
		serial7 = &uart8;
		serial8 = &uart9;
		serial9 = &uart10;
		ethernet0 = &cpsw_emac0;
		ethernet1 = &cpsw_emac1;
		d_can0 = &dcan1;
		d_can1 = &dcan2;
	};

	timer {
		compatible = "arm,armv7-timer";
		interrupts = <GIC_PPI 13 (GIC_CPU_MASK_SIMPLE(2) | IRQ_TYPE_LEVEL_LOW)>,
			     <GIC_PPI 14 (GIC_CPU_MASK_SIMPLE(2) | IRQ_TYPE_LEVEL_LOW)>,
			     <GIC_PPI 11 (GIC_CPU_MASK_SIMPLE(2) | IRQ_TYPE_LEVEL_LOW)>,
			     <GIC_PPI 10 (GIC_CPU_MASK_SIMPLE(2) | IRQ_TYPE_LEVEL_LOW)>;
		interrupt-parent = <&gic>;
	};

	gic: interrupt-controller@48211000 {
		compatible = "arm,cortex-a15-gic";
		interrupt-controller;
		#interrupt-cells = <3>;
		reg = <0x0 0x48211000 0x0 0x1000>,
		      <0x0 0x48212000 0x0 0x1000>,
		      <0x0 0x48214000 0x0 0x2000>,
		      <0x0 0x48216000 0x0 0x2000>;
		interrupts = <GIC_PPI 9 (GIC_CPU_MASK_SIMPLE(2) | IRQ_TYPE_LEVEL_HIGH)>;
		interrupt-parent = <&gic>;
	};

	wakeupgen: interrupt-controller@48281000 {
		compatible = "ti,omap5-wugen-mpu", "ti,omap4-wugen-mpu";
		interrupt-controller;
		#interrupt-cells = <3>;
		reg = <0x0 0x48281000 0x0 0x1000>;
		interrupt-parent = <&gic>;
	};

	cpus {
		#address-cells = <1>;
		#size-cells = <0>;

		cpu0: cpu@0 {
			device_type = "cpu";
			compatible = "arm,cortex-a15";
			reg = <0>;

			operating-points-v2 = <&cpu0_opp_table>;
			cpu-opp-domain = <&oppdm_mpu>;
			ti,syscon-efuse = <&scm_wkup 0x20c 0xf80000 19>;
			ti,syscon-rev = <&scm_wkup 0x204>;

			clocks = <&dpll_mpu_ck>;
			clock-names = "cpu";

			clock-latency = <300000>; /* From omap-cpufreq driver */

			/* cooling options */
			cooling-min-level = <0>;
			cooling-max-level = <2>;
			#cooling-cells = <2>; /* min followed by max */
		};
	};

	cpu0_opp_table: opp_table0 {
		compatible = "operating-points-v2";
		opp-shared;

		opp_nom@1000000000 {
			opp-hz = /bits/ 64 <1000000000>;
			opp-microvolt = <1060000 850000 1150000>;
			opp-supported-hw = <0xFF 0x01>;
			opp-suspend;
		};

		opp_od@1176000000 {
			opp-hz = /bits/ 64 <1176000000>;
			opp-microvolt = <1160000 885000 1160000>;
			opp-supported-hw = <0xFF 0x02>;
		};

		opp_high@1500000000 {
			opp-hz = /bits/ 64 <1500000000>;
			opp-microvolt = <1210000 950000 1250000>;
			opp-supported-hw = <0xFF 0x04>;
		};
	};

	/*
	 * The soc node represents the soc top level view. It is used for IPs
	 * that are not memory mapped in the MPU view or for the MPU itself.
	 */
	soc {
		compatible = "ti,omap-infra";
		mpu {
			compatible = "ti,omap5-mpu";
			ti,hwmods = "mpu";
		};
	};

	/*
	 * XXX: Use a flat representation of the SOC interconnect.
	 * The real OMAP interconnect network is quite complex.
	 * Since it will not bring real advantage to represent that in DT for
	 * the moment, just use a fake OCP bus entry to represent the whole bus
	 * hierarchy.
	 */
	ocp {
		compatible = "ti,dra7-l3-noc", "simple-bus";
		#address-cells = <1>;
		#size-cells = <1>;
		ranges = <0x0 0x0 0x0 0xc0000000>;
		ti,hwmods = "l3_main_1", "l3_main_2";
		reg = <0x0 0x44000000 0x0 0x1000000>,
		      <0x0 0x45000000 0x0 0x1000>;
		interrupts-extended = <&crossbar_mpu GIC_SPI 4 IRQ_TYPE_LEVEL_HIGH>,
				      <&wakeupgen GIC_SPI 10 IRQ_TYPE_LEVEL_HIGH>;

		l4_cfg: l4@4a000000 {
			compatible = "ti,dra7-l4-cfg", "simple-bus";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges = <0 0x4a000000 0x22c000>;

			scm: scm@2000 {
				compatible = "ti,dra7-scm-core", "simple-bus";
				reg = <0x2000 0x2000>;
				#address-cells = <1>;
				#size-cells = <1>;
				ranges = <0 0x2000 0x2000>;

				scm_conf: scm_conf@0 {
					compatible = "syscon", "simple-bus";
					reg = <0x0 0x1400>;
					#address-cells = <1>;
					#size-cells = <1>;
					ranges = <0 0x0 0x1400>;

					pbias_regulator: pbias_regulator {
						compatible = "ti,pbias-dra7", "ti,pbias-omap";
						reg = <0xe00 0x4>;
						syscon = <&scm_conf>;
						pbias_mmc_reg: pbias_mmc_omap5 {
							regulator-name = "pbias_mmc_omap5";
							regulator-min-microvolt = <1800000>;
							regulator-max-microvolt = <3000000>;
						};
					};

					scm_conf_clocks: clocks {
						#address-cells = <1>;
						#size-cells = <0>;
					};
				};

				dra7_pmx_core: pinmux@1400 {
					compatible = "ti,dra7-padconf",
						     "pinctrl-single";
					reg = <0x1400 0x0468>;
					#address-cells = <1>;
					#size-cells = <0>;
					#interrupt-cells = <1>;
					interrupt-controller;
					pinctrl-single,register-width = <32>;
					pinctrl-single,function-mask = <0x3fffffff>;
				};

				scm_conf1: scm_conf@1c04 {
					compatible = "syscon";
					reg = <0x1c04 0x0020>;
				};

				scm_conf_pcie: scm_conf@1c24 {
					compatible = "syscon";
					reg = <0x1c24 0x0024>;
				};

				sdma_xbar: dma-router@b78 {
					compatible = "ti,dra7-dma-crossbar";
					reg = <0xb78 0xfc>;
					#dma-cells = <1>;
					dma-requests = <205>;
					ti,dma-safe-map = <0>;
					dma-masters = <&sdma>;
				};

				edma_xbar: dma-router@c78 {
					compatible = "ti,dra7-dma-crossbar";
					reg = <0xc78 0x7c>;
					#dma-cells = <2>;
					dma-requests = <204>;
					ti,dma-safe-map = <0>;
					dma-masters = <&edma>;
				};
			};

			cm_core_aon: cm_core_aon@5000 {
				compatible = "ti,dra7-cm-core-aon";
				reg = <0x5000 0x2000>;

				cm_core_aon_clocks: clocks {
					#address-cells = <1>;
					#size-cells = <0>;
				};

				cm_core_aon_clockdomains: clockdomains {
				};
			};

			cm_core: cm_core@8000 {
				compatible = "ti,dra7-cm-core";
				reg = <0x8000 0x3000>;

				cm_core_clocks: clocks {
					#address-cells = <1>;
					#size-cells = <0>;
				};

				cm_core_clockdomains: clockdomains {
				};
			};
		};

		l4_wkup: l4@4ae00000 {
			compatible = "ti,dra7-l4-wkup", "simple-bus";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges = <0 0x4ae00000 0x3f000>;

			counter32k: counter@4000 {
				compatible = "ti,omap-counter32k";
				reg = <0x4000 0x40>;
				ti,hwmods = "counter_32k";
			};

			prm: prm@6000 {
				compatible = "ti,dra7-prm";
				reg = <0x6000 0x3000>;
				interrupts = <GIC_SPI 6 IRQ_TYPE_LEVEL_HIGH>;

				prm_clocks: clocks {
					#address-cells = <1>;
					#size-cells = <0>;
				};

				prm_clockdomains: clockdomains {
				};
			};

			scm_wkup: scm_conf@c000 {
				compatible = "syscon";
				reg = <0xc000 0x1000>;
			};
		};

		axi@0 {
			compatible = "simple-bus";
			#size-cells = <1>;
			#address-cells = <1>;
			ranges = <0x51000000 0x51000000 0x3000
				  0x0	     0x20000000 0x10000000>;
			pcie1: pcie@51000000 {
				compatible = "ti,dra7-pcie";
				reg = <0x51000000 0x2000>, <0x51002000 0x14c>, <0x1000 0x2000>;
				reg-names = "rc_dbics", "ti_conf", "config";
				interrupts = <0 232 0x4>, <0 233 0x4>;
				#address-cells = <3>;
				#size-cells = <2>;
				device_type = "pci";
				ranges = <0x81000000 0 0          0x03000 0 0x00010000
					  0x82000000 0 0x20013000 0x13000 0 0xffed000>;
				#interrupt-cells = <1>;
				num-lanes = <1>;
				linux,pci-domain = <0>;
				ti,hwmods = "pcie1";
				phys = <&pcie1_phy>;
				phy-names = "pcie-phy0";
				interrupt-map-mask = <0 0 0 7>;
				interrupt-map = <0 0 0 1 &pcie1_intc 1>,
						<0 0 0 2 &pcie1_intc 2>,
						<0 0 0 3 &pcie1_intc 3>,
						<0 0 0 4 &pcie1_intc 4>;
				pcie1_intc: interrupt-controller {
					interrupt-controller;
					#address-cells = <0>;
					#interrupt-cells = <1>;
				};
			};
		};

		axi@1 {
			compatible = "simple-bus";
			#size-cells = <1>;
			#address-cells = <1>;
			ranges = <0x51800000 0x51800000 0x3000
				  0x0	     0x30000000 0x10000000>;
			status = "disabled";
			pcie@51800000 {
				compatible = "ti,dra7-pcie";
				reg = <0x51800000 0x2000>, <0x51802000 0x14c>, <0x1000 0x2000>;
				reg-names = "rc_dbics", "ti_conf", "config";
				interrupts = <0 355 0x4>, <0 356 0x4>;
				#address-cells = <3>;
				#size-cells = <2>;
				device_type = "pci";
				ranges = <0x81000000 0 0          0x03000 0 0x00010000
					  0x82000000 0 0x30013000 0x13000 0 0xffed000>;
				#interrupt-cells = <1>;
				num-lanes = <1>;
				linux,pci-domain = <1>;
				ti,hwmods = "pcie2";
				phys = <&pcie2_phy>;
				phy-names = "pcie-phy0";
				interrupt-map-mask = <0 0 0 7>;
				interrupt-map = <0 0 0 1 &pcie2_intc 1>,
						<0 0 0 2 &pcie2_intc 2>,
						<0 0 0 3 &pcie2_intc 3>,
						<0 0 0 4 &pcie2_intc 4>;
				pcie2_intc: interrupt-controller {
					interrupt-controller;
					#address-cells = <0>;
					#interrupt-cells = <1>;
				};
			};
		};

		ocmcram1: ocmcram@40300000 {
			compatible = "mmio-sram";
			reg = <0x40300000 0x80000>;
			ranges = <0x0 0x40300000 0x80000>;
			#address-cells = <1>;
			#size-cells = <1>;
			/*
			 * This is a placeholder for an optional reserved
			 * region for use by secure software. The size
			 * of this region is not known until runtime so it
			 * is set as zero to either be updated to reserve
			 * space or left unchanged to leave all SRAM for use.
			 * On HS parts that that require the reserved region
			 * either the bootloader can update the size to
			 * the required amount or the node can be overriden
			 * from the board dts file for the secure platform.
			 */
			sram-hs@0 {
				compatible = "ti,secure-ram";
				reg = <0x0 0x0>;
			};
		};

		/*
		 * NOTE: ocmcram2 and ocmcram3 are not available on all
		 * DRA7xx and AM57xx variants. Confirm availability in
		 * the data manual for the exact part number in use
		 * before enabling these nodes in the board dts file.
		 */
		ocmcram2: ocmcram@40400000 {
			status = "disabled";
			compatible = "mmio-sram";
			reg = <0x40400000 0x100000>;
			ranges = <0x0 0x40400000 0x100000>;
			#address-cells = <1>;
			#size-cells = <1>;
		};

		ocmcram3: ocmcram@40500000 {
			status = "disabled";
			compatible = "mmio-sram";
			reg = <0x40500000 0x100000>;
			ranges = <0x0 0x40500000 0x100000>;
			#address-cells = <1>;
			#size-cells = <1>;
		};

		bandgap: bandgap@4a0021e0 {
			reg = <0x4a0021e0 0xc
				0x4a00232c 0xc
				0x4a002380 0x2c
				0x4a0023C0 0x3c
				0x4a002564 0x8
				0x4a002574 0x50>;
				compatible = "ti,dra752-bandgap";
				interrupts = <GIC_SPI 121 IRQ_TYPE_LEVEL_HIGH>;
				#thermal-sensor-cells = <1>;
		};

		dsp1_system: dsp_system@40d00000 {
			compatible = "syscon";
			reg = <0x40d00000 0x100>;
		};

		dra7_iodelay_core: padconf@4844a000 {
			compatible = "ti,dra7-iodelay";
			reg = <0x4844a000 0x0d1c>;
			#address-cells = <1>;
			#size-cells = <0>;
		};

		sdma: dma-controller@4a056000 {
			compatible = "ti,omap4430-sdma";
			reg = <0x4a056000 0x1000>;
			interrupts = <GIC_SPI 7 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 8 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 9 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 10 IRQ_TYPE_LEVEL_HIGH>;
			#dma-cells = <1>;
			dma-channels = <32>;
			dma-requests = <127>;
		};

		edma: edma@43300000 {
			compatible = "ti,edma3-tpcc";
			ti,hwmods = "tpcc";
			reg = <0x43300000 0x100000>;
			reg-names = "edma3_cc";
			interrupts = <GIC_SPI 361 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 360 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 359 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "edma3_ccint", "emda3_mperr",
					  "edma3_ccerrint";
			dma-requests = <64>;
			#dma-cells = <2>;

			ti,tptcs = <&edma_tptc0 7>, <&edma_tptc1 0>;

			/*
			 * memcpy is disabled, can be enabled with:
			 * ti,edma-memcpy-channels = <20 21>;
			 * for example. Note that these channels need to be
			 * masked in the xbar as well.
			 */
		};

		edma_tptc0: tptc@43400000 {
			compatible = "ti,edma3-tptc";
			ti,hwmods = "tptc0";
			reg =	<0x43400000 0x100000>;
			interrupts = <GIC_SPI 370 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "edma3_tcerrint";
		};

		edma_tptc1: tptc@43500000 {
			compatible = "ti,edma3-tptc";
			ti,hwmods = "tptc1";
			reg =	<0x43500000 0x100000>;
			interrupts = <GIC_SPI 371 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "edma3_tcerrint";
		};

		gpio1: gpio@4ae10000 {
			compatible = "ti,omap4-gpio";
			reg = <0x4ae10000 0x200>;
			interrupts = <GIC_SPI 24 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpio1";
			gpio-controller;
			#gpio-cells = <2>;
			interrupt-controller;
			#interrupt-cells = <2>;
		};

		gpio2: gpio@48055000 {
			compatible = "ti,omap4-gpio";
			reg = <0x48055000 0x200>;
			interrupts = <GIC_SPI 25 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpio2";
			gpio-controller;
			#gpio-cells = <2>;
			interrupt-controller;
			#interrupt-cells = <2>;
		};

		gpio3: gpio@48057000 {
			compatible = "ti,omap4-gpio";
			reg = <0x48057000 0x200>;
			interrupts = <GIC_SPI 26 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpio3";
			gpio-controller;
			#gpio-cells = <2>;
			interrupt-controller;
			#interrupt-cells = <2>;
		};

		gpio4: gpio@48059000 {
			compatible = "ti,omap4-gpio";
			reg = <0x48059000 0x200>;
			interrupts = <GIC_SPI 27 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpio4";
			gpio-controller;
			#gpio-cells = <2>;
			interrupt-controller;
			#interrupt-cells = <2>;
		};

		gpio5: gpio@4805b000 {
			compatible = "ti,omap4-gpio";
			reg = <0x4805b000 0x200>;
			interrupts = <GIC_SPI 28 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpio5";
			gpio-controller;
			#gpio-cells = <2>;
			interrupt-controller;
			#interrupt-cells = <2>;
		};

		gpio6: gpio@4805d000 {
			compatible = "ti,omap4-gpio";
			reg = <0x4805d000 0x200>;
			interrupts = <GIC_SPI 29 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpio6";
			gpio-controller;
			#gpio-cells = <2>;
			interrupt-controller;
			#interrupt-cells = <2>;
		};

		gpio7: gpio@48051000 {
			compatible = "ti,omap4-gpio";
			reg = <0x48051000 0x200>;
			interrupts = <GIC_SPI 30 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpio7";
			gpio-controller;
			#gpio-cells = <2>;
			interrupt-controller;
			#interrupt-cells = <2>;
		};

		gpio8: gpio@48053000 {
			compatible = "ti,omap4-gpio";
			reg = <0x48053000 0x200>;
			interrupts = <GIC_SPI 116 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpio8";
			gpio-controller;
			#gpio-cells = <2>;
			interrupt-controller;
			#interrupt-cells = <2>;
		};

		uart1: serial@4806a000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x4806a000 0x100>;
			interrupts-extended = <&crossbar_mpu GIC_SPI 67 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart1";
			clock-frequency = <48000000>;
			status = "disabled";
			dmas = <&edma_xbar 49 0>, <&edma_xbar 50 0>;
			dma-names = "tx", "rx";
		};

		uart2: serial@4806c000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x4806c000 0x100>;
			interrupts = <GIC_SPI 68 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart2";
			clock-frequency = <48000000>;
			status = "disabled";
			dmas = <&edma_xbar 51 0>, <&edma_xbar 52 0>;
			dma-names = "tx", "rx";
		};

		uart3: serial@48020000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x48020000 0x100>;
			interrupts = <GIC_SPI 69 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart3";
			clock-frequency = <48000000>;
			status = "disabled";
			dmas = <&edma_xbar 53 0>, <&edma_xbar 54 0>;
			dma-names = "tx", "rx";
		};

		uart4: serial@4806e000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x4806e000 0x100>;
			interrupts = <GIC_SPI 65 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart4";
			clock-frequency = <48000000>;
                        status = "disabled";
			dmas = <&edma_xbar 55 0>, <&edma_xbar 56 0>;
			dma-names = "tx", "rx";
		};

		uart5: serial@48066000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x48066000 0x100>;
			interrupts = <GIC_SPI 100 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart5";
			clock-frequency = <48000000>;
			status = "disabled";
			dmas = <&edma_xbar 63 0>, <&edma_xbar 64 0>;
			dma-names = "tx", "rx";
		};

		uart6: serial@48068000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x48068000 0x100>;
			interrupts = <GIC_SPI 101 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart6";
			clock-frequency = <48000000>;
			status = "disabled";
			dmas = <&edma_xbar 79 0>, <&edma_xbar 80 0>;
			dma-names = "tx", "rx";
		};

		uart7: serial@48420000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x48420000 0x100>;
			interrupts = <GIC_SPI 218 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart7";
			clock-frequency = <48000000>;
			status = "disabled";
		};

		uart8: serial@48422000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x48422000 0x100>;
			interrupts = <GIC_SPI 219 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart8";
			clock-frequency = <48000000>;
			status = "disabled";
		};

		uart9: serial@48424000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x48424000 0x100>;
			interrupts = <GIC_SPI 220 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart9";
			clock-frequency = <48000000>;
			status = "disabled";
		};

		uart10: serial@4ae2b000 {
			compatible = "ti,dra742-uart", "ti,omap4-uart";
			reg = <0x4ae2b000 0x100>;
			interrupts = <GIC_SPI 221 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "uart10";
			clock-frequency = <48000000>;
			status = "disabled";
		};

		mailbox1: mailbox@4a0f4000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x4a0f4000 0x200>;
			interrupts = <GIC_SPI 21 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 135 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 134 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox1";
			#mbox-cells = <1>;
			ti,mbox-num-users = <3>;
			ti,mbox-num-fifos = <8>;
			status = "disabled";
		};

		mailbox2: mailbox@4883a000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x4883a000 0x200>;
			interrupts = <GIC_SPI 237 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 238 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 239 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 240 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox2";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox3: mailbox@4883c000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x4883c000 0x200>;
			interrupts = <GIC_SPI 241 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 242 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 243 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 244 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox3";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox4: mailbox@4883e000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x4883e000 0x200>;
			interrupts = <GIC_SPI 245 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 246 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 247 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 248 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox4";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox5: mailbox@48840000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x48840000 0x200>;
			interrupts = <GIC_SPI 249 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 250 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 251 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 252 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox5";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox6: mailbox@48842000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x48842000 0x200>;
			interrupts = <GIC_SPI 253 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 254 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 255 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 256 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox6";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox7: mailbox@48844000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x48844000 0x200>;
			interrupts = <GIC_SPI 257 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 258 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 259 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 260 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox7";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox8: mailbox@48846000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x48846000 0x200>;
			interrupts = <GIC_SPI 261 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 262 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 263 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 264 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox8";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox9: mailbox@4885e000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x4885e000 0x200>;
			interrupts = <GIC_SPI 265 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 266 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 267 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 268 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox9";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox10: mailbox@48860000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x48860000 0x200>;
			interrupts = <GIC_SPI 269 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 270 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 271 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 272 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox10";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox11: mailbox@48862000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x48862000 0x200>;
			interrupts = <GIC_SPI 273 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 274 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 275 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 276 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox11";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox12: mailbox@48864000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x48864000 0x200>;
			interrupts = <GIC_SPI 277 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 278 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 279 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 280 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox12";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		mailbox13: mailbox@48802000 {
			compatible = "ti,omap4-mailbox";
			reg = <0x48802000 0x200>;
			interrupts = <GIC_SPI 379 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 380 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 381 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 382 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mailbox13";
			#mbox-cells = <1>;
			ti,mbox-num-users = <4>;
			ti,mbox-num-fifos = <12>;
			status = "disabled";
		};

		timer1: timer@4ae18000 {
			compatible = "ti,omap5430-timer";
			reg = <0x4ae18000 0x80>;
			interrupts = <GIC_SPI 32 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer1";
			ti,timer-alwon;
		};

		timer2: timer@48032000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48032000 0x80>;
			interrupts = <GIC_SPI 33 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer2";
		};

		timer3: timer@48034000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48034000 0x80>;
			interrupts = <GIC_SPI 34 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer3";
		};

		timer4: timer@48036000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48036000 0x80>;
			interrupts = <GIC_SPI 35 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer4";
		};

		timer5: timer@48820000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48820000 0x80>;
			interrupts = <GIC_SPI 36 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer5";
		};

		timer6: timer@48822000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48822000 0x80>;
			interrupts = <GIC_SPI 37 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer6";
		};

		timer7: timer@48824000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48824000 0x80>;
			interrupts = <GIC_SPI 38 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer7";
		};

		timer8: timer@48826000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48826000 0x80>;
			interrupts = <GIC_SPI 39 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer8";
		};

		timer9: timer@4803e000 {
			compatible = "ti,omap5430-timer";
			reg = <0x4803e000 0x80>;
			interrupts = <GIC_SPI 40 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer9";
		};

		timer10: timer@48086000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48086000 0x80>;
			interrupts = <GIC_SPI 41 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer10";
		};

		timer11: timer@48088000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48088000 0x80>;
			interrupts = <GIC_SPI 42 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer11";
		};

		timer12: timer@4ae20000 {
			compatible = "ti,omap5430-timer";
			reg = <0x4ae20000 0x80>;
			interrupts = <GIC_SPI 90 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer12";
			ti,timer-alwon;
			ti,timer-secure;
		};

		timer13: timer@48828000 {
			compatible = "ti,omap5430-timer";
			reg = <0x48828000 0x80>;
			interrupts = <GIC_SPI 339 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer13";
			status = "disabled";
		};

		timer14: timer@4882a000 {
			compatible = "ti,omap5430-timer";
			reg = <0x4882a000 0x80>;
			interrupts = <GIC_SPI 340 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer14";
			status = "disabled";
		};

		timer15: timer@4882c000 {
			compatible = "ti,omap5430-timer";
			reg = <0x4882c000 0x80>;
			interrupts = <GIC_SPI 341 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer15";
			status = "disabled";
		};

		timer16: timer@4882e000 {
			compatible = "ti,omap5430-timer";
			reg = <0x4882e000 0x80>;
			interrupts = <GIC_SPI 342 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "timer16";
			status = "disabled";
		};

		wdt2: wdt@4ae14000 {
			compatible = "ti,omap3-wdt";
			reg = <0x4ae14000 0x80>;
			interrupts = <GIC_SPI 75 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "wd_timer2";
		};

		hwspinlock: spinlock@4a0f6000 {
			compatible = "ti,omap4-hwspinlock";
			reg = <0x4a0f6000 0x1000>;
			ti,hwmods = "spinlock";
			#hwlock-cells = <1>;
		};

		dmm@4e000000 {
			compatible = "ti,omap5-dmm";
			reg = <0x4e000000 0x800>;
			interrupts = <GIC_SPI 108 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "dmm";
		};

		ipu1: ipu@58820000 {
			compatible = "ti,dra7-ipu";
			reg = <0x58820000 0x10000>;
			reg-names = "l2ram";
			ti,hwmods = "ipu1";
			iommus = <&mmu_ipu1>;
			ti,rproc-standby-info = <0x4a005520>;
			status = "disabled";
		};

		ipu2: ipu@55020000 {
			compatible = "ti,dra7-ipu";
			reg = <0x55020000 0x10000>;
			reg-names = "l2ram";
			ti,hwmods = "ipu2";
			iommus = <&mmu_ipu2>;
			ti,rproc-standby-info = <0x4a008920>;
			status = "disabled";
		};

		dsp1: dsp@40800000 {
			compatible = "ti,dra7-dsp";
			reg = <0x40800000 0x48000>,
			      <0x40e00000 0x8000>,
			      <0x40f00000 0x8000>;
			reg-names = "l2ram", "l1pram", "l1dram";
			ti,hwmods = "dsp1";
			syscon-bootreg = <&scm_conf 0x55c>;
			iommus = <&mmu0_dsp1>, <&mmu1_dsp1>;
			ti,rproc-standby-info = <0x4a005420>;
			status = "disabled";
		};

		gpu: gpu@56000000 {
			compatible = "ti,dra7-sgx544", "img,sgx544";
			reg = <0x56000000 0x10000>;
			reg-names = "gpu_ocp_base";
			interrupts = <GIC_SPI 16 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "gpu";
			clocks = <&l3_iclk_div>, <&gpu_core_gclk_mux>,
				 <&gpu_hyd_gclk_mux>;
			clock-names = "iclk", "fclk1", "fclk2";
		};

		bb2d: bb2d@59000000 {
			compatible = "ti,dra7-bb2d";
			reg = <0x59000000 0x0700>;
			interrupts = <GIC_SPI 120 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "bb2d";
			clocks = <&dpll_core_h24x2_ck>;
			clock-names = "fck";
		};

		i2c1: i2c@48070000 {
			compatible = "ti,omap4-i2c";
			reg = <0x48070000 0x100>;
			interrupts = <GIC_SPI 51 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "i2c1";
			status = "disabled";
		};

		i2c2: i2c@48072000 {
			compatible = "ti,omap4-i2c";
			reg = <0x48072000 0x100>;
			interrupts = <GIC_SPI 52 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "i2c2";
			status = "disabled";
		};

		i2c3: i2c@48060000 {
			compatible = "ti,omap4-i2c";
			reg = <0x48060000 0x100>;
			interrupts = <GIC_SPI 56 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "i2c3";
			status = "disabled";
		};

		i2c4: i2c@4807a000 {
			compatible = "ti,omap4-i2c";
			reg = <0x4807a000 0x100>;
			interrupts = <GIC_SPI 57 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "i2c4";
			status = "disabled";
		};

		i2c5: i2c@4807c000 {
			compatible = "ti,omap4-i2c";
			reg = <0x4807c000 0x100>;
			interrupts = <GIC_SPI 55 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "i2c5";
			status = "disabled";
		};

		mmc1: mmc@4809c000 {
			compatible = "ti,dra7-hsmmc", "ti,omap4-hsmmc";
			reg = <0x4809c000 0x400>;
			interrupts = <GIC_SPI 78 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mmc1";
			ti,dual-volt;
			ti,needs-special-reset;
			dmas = <&sdma_xbar 61>, <&sdma_xbar 62>;
			dma-names = "tx", "rx";
			status = "disabled";
			pbias-supply = <&pbias_mmc_reg>;
			sd-uhs-sdr104;
			sd-uhs-sdr50;
			sd-uhs-ddr50;
			sd-uhs-sdr25;
			sd-uhs-sdr12;
		};

		mmc2: mmc@480b4000 {
			compatible = "ti,dra7-hsmmc", "ti,omap4-hsmmc";
			reg = <0x480b4000 0x400>;
			interrupts = <GIC_SPI 81 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mmc2";
			ti,needs-special-reset;
			dmas = <&sdma_xbar 47>, <&sdma_xbar 48>;
			dma-names = "tx", "rx";
			status = "disabled";
#if 0
			sd-uhs-sdr25;
			sd-uhs-sdr12;
			mmc-hs200-1_8v;
			mmc-ddr-1_8v;
#endif
		};

		mmc3: mmc@480ad000 {
			compatible = "ti,dra7-hsmmc", "ti,omap4-hsmmc";
			reg = <0x480ad000 0x400>;
			interrupts = <GIC_SPI 89 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mmc3";
			ti,needs-special-reset;
			dmas = <&sdma_xbar 77>, <&sdma_xbar 78>;
			dma-names = "tx", "rx";
			status = "disabled";
			sd-uhs-sdr12;
			sd-uhs-sdr25;
			sd-uhs-sdr50;
		};

		mmc4: mmc@480d1000 {
			compatible = "ti,dra7-hsmmc", "ti,omap4-hsmmc";
			reg = <0x480d1000 0x400>;
			interrupts = <GIC_SPI 91 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mmc4";
			ti,needs-special-reset;
			dmas = <&sdma_xbar 57>, <&sdma_xbar 58>;
			dma-names = "tx", "rx";
			status = "disabled";
#if 0
			sd-uhs-sdr12;
			sd-uhs-sdr25;
#endif
		};

		mmu0_dsp1: mmu@40d01000 {
			compatible = "ti,dra7-dsp-iommu";
			reg = <0x40d01000 0x100>;
			interrupts = <GIC_SPI 23 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mmu0_dsp1";
			#iommu-cells = <0>;
			ti,syscon-mmuconfig = <&dsp1_system 0x0>;
			status = "disabled";
		};

		mmu1_dsp1: mmu@40d02000 {
			compatible = "ti,dra7-dsp-iommu";
			reg = <0x40d02000 0x100>;
			interrupts = <GIC_SPI 145 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mmu1_dsp1";
			#iommu-cells = <0>;
			ti,syscon-mmuconfig = <&dsp1_system 0x1>;
			status = "disabled";
		};

		mmu_ipu1: mmu@58882000 {
			compatible = "ti,dra7-iommu";
			reg = <0x58882000 0x100>;
			interrupts = <GIC_SPI 395 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mmu_ipu1";
			#iommu-cells = <0>;
			ti,iommu-bus-err-back;
			status = "disabled";
		};

		mmu_ipu2: mmu@55082000 {
			compatible = "ti,dra7-iommu";
			reg = <0x55082000 0x100>;
			interrupts = <GIC_SPI 396 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "mmu_ipu2";
			#iommu-cells = <0>;
			ti,iommu-bus-err-back;
			status = "disabled";
		};

		pruss1: pruss@4b200000 {
			compatible = "ti,am5728-pruss";
			ti,hwmods = "pruss1";
			reg = <0x4b200000 0x2000>,
			      <0x4b202000 0x2000>,
			      <0x4b210000 0x8000>,
			      <0x4b226000 0x2000>,
			      <0x4b22e000 0x31c>,
			      <0x4b232000 0x58>;
			reg-names = "dram0", "dram1", "shrdram2", "cfg",
				    "iep", "mii_rt";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges;
			status = "disabled";

			pruss1_intc: intc@4b220000 {
				compatible = "ti,am5728-pruss-intc";
				reg = <0x4b220000 0x2000>;
				reg-names = "intc";
				interrupts = <GIC_SPI 186 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 187 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 188 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 189 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 190 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 191 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 192 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 193 IRQ_TYPE_LEVEL_HIGH>;
				interrupt-names = "host2", "host3", "host4",
						  "host5", "host6", "host7",
						  "host8", "host9";
				interrupt-controller;
				#interrupt-cells = <1>;
			};

			pru1_0: pru0@4b234000 {
				compatible = "ti,am5728-pru";
				reg = <0x4b234000 0x3000>,
				      <0x4b222000 0x400>,
				      <0x4b222400 0x100>;
				reg-names = "iram", "control", "debug";
				status = "disabled";
			};

			pru1_1: pru1@4b238000 {
				compatible = "ti,am5728-pru";
				reg = <0x4b238000 0x3000>,
				      <0x4b224000 0x400>,
				      <0x4b224400 0x100>;
				reg-names = "iram", "control", "debug";
				status = "disabled";
			};

			pruss1_mdio: mdio@4b232400 {
				compatible = "ti,davinci_mdio";
				#address-cells = <1>;
				#size-cells = <0>;
				clocks = <&dpll_gmac_h13x2_ck>;
				clock-names = "fck";
				bus_freq = <1000000>;
				reg = <0x4b232400 0x90>;
				status = "disabled";
			};
		};

		pruss2: pruss@4b280000 {
			compatible = "ti,am5728-pruss";
			ti,hwmods = "pruss2";
			reg = <0x4b280000 0x2000>,
			      <0x4b282000 0x2000>,
			      <0x4b290000 0x8000>,
			      <0x4b2a6000 0x2000>,
			      <0x4b2ae000 0x31c>,
			      <0x4b2b2000 0x58>;
			reg-names = "dram0", "dram1", "shrdram2", "cfg",
				    "iep", "mii_rt";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges;
			status = "disabled";

			pruss2_intc: intc@4b2a0000 {
				compatible = "ti,am5728-pruss-intc";
				reg = <0x4b2a0000 0x2000>;
				reg-names = "intc";
				interrupts = <GIC_SPI 196 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 197 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 198 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 199 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 200 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 201 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 202 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 203 IRQ_TYPE_LEVEL_HIGH>;
				interrupt-names = "host2", "host3", "host4",
						  "host5", "host6", "host7",
						  "host8", "host9";
				interrupt-controller;
				#interrupt-cells = <1>;
			};

			pru2_0: pru0@4b2b4000 {
				compatible = "ti,am5728-pru";
				reg = <0x4b2b4000 0x3000>,
				      <0x4b2a2000 0x400>,
				      <0x4b2a2400 0x100>;
				reg-names = "iram", "control", "debug";
				status = "disabled";
			};

			pru2_1: pru1@4b2b8000 {
				compatible = "ti,am5728-pru";
				reg = <0x4b2b8000 0x3000>,
				      <0x4b2a4000 0x400>,
				      <0x4b2a4400 0x100>;
				reg-names = "iram", "control", "debug";
				status = "disabled";
			};

			pruss2_mdio: mdio@4b2b2400 {
				compatible = "ti,davinci_mdio";
				#address-cells = <1>;
				#size-cells = <0>;
				clocks = <&dpll_gmac_h13x2_ck>;
				clock-names = "fck";
				bus_freq = <1000000>;
				reg = <0x4b2b2400 0x90>;
				status = "disabled";
			};
		};

		abb_mpu: regulator-abb-mpu {
			compatible = "ti,abb-v3";
			regulator-name = "abb_mpu";
			#address-cells = <0>;
			#size-cells = <0>;
			clocks = <&sys_clkin1>;
			ti,settling-time = <50>;
			ti,clock-cycles = <16>;

			reg = <0x4ae07ddc 0x4>, <0x4ae07de0 0x4>,
			      <0x4ae06014 0x4>, <0x4a003b20 0xc>,
			      <0x4ae0c158 0x4>;
			reg-names = "setup-address", "control-address",
				    "int-address", "efuse-address",
				    "ldo-address";
			ti,tranxdone-status-mask = <0x80>;
			/* LDOVBBMPU_FBB_MUX_CTRL */
			ti,ldovbb-override-mask = <0x400>;
			/* LDOVBBMPU_FBB_VSET_OUT */
			ti,ldovbb-vset-mask = <0x1F>;

			/*
			 * NOTE: only FBB mode used but actual vset will
			 * determine final biasing
			 */
			ti,abb_info = <
			/*uV		ABB	efuse	rbb_m fbb_m	vset_m*/
			1060000		0	0x0	0 0x02000000 0x01F00000
			1160000		0	0x4	0 0x02000000 0x01F00000
			1210000		0	0x8	0 0x02000000 0x01F00000
			>;
		};

		abb_ivahd: regulator-abb-ivahd {
			compatible = "ti,abb-v3";
			regulator-name = "abb_ivahd";
			#address-cells = <0>;
			#size-cells = <0>;
			clocks = <&sys_clkin1>;
			ti,settling-time = <50>;
			ti,clock-cycles = <16>;

			reg = <0x4ae07e34 0x4>, <0x4ae07e24 0x4>,
			      <0x4ae06010 0x4>, <0x4a0025cc 0xc>,
			      <0x4a002470 0x4>;
			reg-names = "setup-address", "control-address",
				    "int-address", "efuse-address",
				    "ldo-address";
			ti,tranxdone-status-mask = <0x40000000>;
			/* LDOVBBIVA_FBB_MUX_CTRL */
			ti,ldovbb-override-mask = <0x400>;
			/* LDOVBBIVA_FBB_VSET_OUT */
			ti,ldovbb-vset-mask = <0x1F>;

			/*
			 * NOTE: only FBB mode used but actual vset will
			 * determine final biasing
			 */
			ti,abb_info = <
			/*uV		ABB	efuse	rbb_m fbb_m	vset_m*/
			1055000		0	0x0	0 0x02000000 0x01F00000
			1150000		0	0x4	0 0x02000000 0x01F00000
			1250000		0	0x8	0 0x02000000 0x01F00000
			>;
		};

		abb_dspeve: regulator-abb-dspeve {
			compatible = "ti,abb-v3";
			regulator-name = "abb_dspeve";
			#address-cells = <0>;
			#size-cells = <0>;
			clocks = <&sys_clkin1>;
			ti,settling-time = <50>;
			ti,clock-cycles = <16>;

			reg = <0x4ae07e30 0x4>, <0x4ae07e20 0x4>,
			      <0x4ae06010 0x4>, <0x4a0025e0 0xc>,
			      <0x4a00246c 0x4>;
			reg-names = "setup-address", "control-address",
				    "int-address", "efuse-address",
				    "ldo-address";
			ti,tranxdone-status-mask = <0x20000000>;
			/* LDOVBBDSPEVE_FBB_MUX_CTRL */
			ti,ldovbb-override-mask = <0x400>;
			/* LDOVBBDSPEVE_FBB_VSET_OUT */
			ti,ldovbb-vset-mask = <0x1F>;

			/*
			 * NOTE: only FBB mode used but actual vset will
			 * determine final biasing
			 */
			ti,abb_info = <
			/*uV		ABB	efuse	rbb_m fbb_m	vset_m*/
			1055000		0	0x0	0 0x02000000 0x01F00000
			1150000		0	0x4	0 0x02000000 0x01F00000
			1250000		0	0x8	0 0x02000000 0x01F00000
			>;
		};

		abb_gpu: regulator-abb-gpu {
			compatible = "ti,abb-v3";
			regulator-name = "abb_gpu";
			#address-cells = <0>;
			#size-cells = <0>;
			clocks = <&sys_clkin1>;
			ti,settling-time = <50>;
			ti,clock-cycles = <16>;

			reg = <0x4ae07de4 0x4>, <0x4ae07de8 0x4>,
			      <0x4ae06010 0x4>, <0x4a003b08 0xc>,
			      <0x4ae0c154 0x4>;
			reg-names = "setup-address", "control-address",
				    "int-address", "efuse-address",
				    "ldo-address";
			ti,tranxdone-status-mask = <0x10000000>;
			/* LDOVBBGPU_FBB_MUX_CTRL */
			ti,ldovbb-override-mask = <0x400>;
			/* LDOVBBGPU_FBB_VSET_OUT */
			ti,ldovbb-vset-mask = <0x1F>;

			/*
			 * NOTE: only FBB mode used but actual vset will
			 * determine final biasing
			 */
			ti,abb_info = <
			/*uV		ABB	efuse	rbb_m fbb_m	vset_m*/
			1090000		0	0x0	0 0x02000000 0x01F00000
			1210000		0	0x4	0 0x02000000 0x01F00000
			1280000		0	0x8	0 0x02000000 0x01F00000
			>;
		};

		oppdm_mpu: oppdm@4a003b20 {
			compatible = "ti,omap5-oppdm";
			#oppdm-cells = <0>;
			vbb-supply = <&abb_mpu>;
			reg = <0x4a003b20 0xc>;
			ti,efuse-settings = <
			/* uV   offset */
			1060000 0x0
			1160000 0x4
			1210000 0x8
			>;
			ti,absolute-max-voltage-uv = <1500000>;
		};

		oppdm_ivahd: oppdm@4a0025cc {
			compatible = "ti,omap5-oppdm";
			#oppdm-cells = <0>;
			vbb-supply = <&abb_ivahd>;
			reg = <0x4a0025cc 0xc>;
			ti,efuse-settings = <
			/* uV   offset */
			1055000 0x0
			1150000 0x4
			1250000 0x8
			>;
			ti,absolute-max-voltage-uv = <1500000>;
		};

		oppdm_dspeve: oppdm@4a0025e0 {
			compatible = "ti,omap5-oppdm";
			#oppdm-cells = <0>;
			vbb-supply = <&abb_dspeve>;
			reg = <0x4a0025e0 0xc>;
			ti,efuse-settings = <
			/* uV   offset */
			1055000 0x0
			1150000 0x4
			1250000 0x8
			>;
			ti,absolute-max-voltage-uv = <1500000>;
		};

		oppdm_gpu: oppdm@4a003b08 {
			compatible = "ti,omap5-oppdm";
			#oppdm-cells = <0>;
			vbb-supply = <&abb_gpu>;
			reg = <0x4a003b08 0xc>;
			ti,efuse-settings = <
			/* uV   offset */
			1090000 0x0
			1210000 0x4
			1280000 0x8
			>;
			ti,absolute-max-voltage-uv = <1500000>;
		};

		oppdm_core: oppdm@4a0025f4 {
			compatible = "ti,omap5-core-oppdm";
			#oppdm-cells = <0>;
			reg = <0x4a0025f4 0x4>;
			ti,efuse-settings = <
			/* uV   offset */
			1090000 0x0
			>;
			ti,absolute-max-voltage-uv = <1500000>;
		};

		mcspi1: spi@48098000 {
			compatible = "ti,omap4-mcspi";
			reg = <0x48098000 0x200>;
			interrupts = <GIC_SPI 60 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "mcspi1";
			ti,spi-num-cs = <4>;
			dmas = <&sdma_xbar 35>,
			       <&sdma_xbar 36>,
			       <&sdma_xbar 37>,
			       <&sdma_xbar 38>,
			       <&sdma_xbar 39>,
			       <&sdma_xbar 40>,
			       <&sdma_xbar 41>,
			       <&sdma_xbar 42>;
			dma-names = "tx0", "rx0", "tx1", "rx1",
				    "tx2", "rx2", "tx3", "rx3";
			status = "disabled";
		};

		mcspi2: spi@4809a000 {
			compatible = "ti,omap4-mcspi";
			reg = <0x4809a000 0x200>;
			interrupts = <GIC_SPI 61 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "mcspi2";
			ti,spi-num-cs = <2>;
			dmas = <&sdma_xbar 43>,
			       <&sdma_xbar 44>,
			       <&sdma_xbar 45>,
			       <&sdma_xbar 46>;
			dma-names = "tx0", "rx0", "tx1", "rx1";
			status = "disabled";
		};

		mcspi3: spi@480b8000 {
			compatible = "ti,omap4-mcspi";
			reg = <0x480b8000 0x200>;
			interrupts = <GIC_SPI 86 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "mcspi3";
			ti,spi-num-cs = <2>;
			dmas = <&sdma_xbar 15>, <&sdma_xbar 16>;
			dma-names = "tx0", "rx0";
			status = "disabled";
		};

		mcspi4: spi@480ba000 {
			compatible = "ti,omap4-mcspi";
			reg = <0x480ba000 0x200>;
			interrupts = <GIC_SPI 43 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "mcspi4";
			ti,spi-num-cs = <1>;
			dmas = <&sdma_xbar 70>, <&sdma_xbar 71>;
			dma-names = "tx0", "rx0";
			status = "disabled";
		};

		qspi: qspi@4b300000 {
			compatible = "ti,dra7xxx-qspi";
			reg = <0x4b300000 0x100>,
			      <0x5c000000 0x4000000>;
			reg-names = "qspi_base", "qspi_mmap";
			syscon-chipselects = <&scm_conf 0x558>;
			#address-cells = <1>;
			#size-cells = <0>;
			ti,hwmods = "qspi";
			clocks = <&qspi_gfclk_div>;
			clock-names = "fck";
			num-cs = <4>;
			interrupts = <GIC_SPI 343 IRQ_TYPE_LEVEL_HIGH>;
			status = "disabled";
		};

		/* OCP2SCP3 */
		ocp2scp@4a090000 {
			compatible = "ti,omap-ocp2scp";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges;
			reg = <0x4a090000 0x20>;
			ti,hwmods = "ocp2scp3";
			sata_phy: phy@4A096000 {
				compatible = "ti,phy-pipe3-sata";
				reg = <0x4A096000 0x80>, /* phy_rx */
				      <0x4A096400 0x64>, /* phy_tx */
				      <0x4A096800 0x40>; /* pll_ctrl */
				reg-names = "phy_rx", "phy_tx", "pll_ctrl";
				syscon-phy-power = <&scm_conf 0x374>;
				clocks = <&sys_clkin1>, <&sata_ref_clk>;
				clock-names = "sysclk", "refclk";
				syscon-pllreset = <&scm_conf 0x3fc>;
				#phy-cells = <0>;
			};

			pcie1_phy: pciephy@4a094000 {
				compatible = "ti,phy-pipe3-pcie";
				reg = <0x4a094000 0x80>, /* phy_rx */
				      <0x4a094400 0x64>; /* phy_tx */
				reg-names = "phy_rx", "phy_tx";
				syscon-phy-power = <&scm_conf_pcie 0x1c>;
				syscon-pcs = <&scm_conf_pcie 0x10>;
				clocks = <&dpll_pcie_ref_ck>,
					 <&dpll_pcie_ref_m2ldo_ck>,
					 <&optfclk_pciephy1_32khz>,
					 <&optfclk_pciephy1_clk>,
					 <&optfclk_pciephy1_div_clk>,
					 <&optfclk_pciephy_div>,
					 <&sys_clkin1>;
				clock-names = "dpll_ref", "dpll_ref_m2",
					      "wkupclk", "refclk",
					      "div-clk", "phy-div", "sysclk";
				#phy-cells = <0>;
			};

			pcie2_phy: pciephy@4a095000 {
				compatible = "ti,phy-pipe3-pcie";
				reg = <0x4a095000 0x80>, /* phy_rx */
				      <0x4a095400 0x64>; /* phy_tx */
				reg-names = "phy_rx", "phy_tx";
				syscon-phy-power = <&scm_conf_pcie 0x20>;
				syscon-pcs = <&scm_conf_pcie 0x10>;
				clocks = <&dpll_pcie_ref_ck>,
					 <&dpll_pcie_ref_m2ldo_ck>,
					 <&optfclk_pciephy2_32khz>,
					 <&optfclk_pciephy2_clk>,
					 <&optfclk_pciephy2_div_clk>,
					 <&optfclk_pciephy_div>,
					 <&sys_clkin1>;
				clock-names = "dpll_ref", "dpll_ref_m2",
					      "wkupclk", "refclk",
					      "div-clk", "phy-div", "sysclk";
				#phy-cells = <0>;
				status = "disabled";
			};
		};

		sata: sata@4a141100 {
			compatible = "snps,dwc-ahci";
			reg = <0x4a140000 0x1100>, <0x4a141100 0x7>;
			interrupts = <GIC_SPI 49 IRQ_TYPE_LEVEL_HIGH>;
			phys = <&sata_phy>;
			phy-names = "sata-phy";
			clocks = <&sata_ref_clk>;
			ti,hwmods = "sata";
		};

		rtc: rtc@48838000 {
			compatible = "ti,am3352-rtc";
			reg = <0x48838000 0x100>;
			interrupts = <GIC_SPI 217 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 217 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "rtcss";
			clocks = <&sys_32k_ck>;
		};

		/* OCP2SCP1 */
		ocp2scp@4a080000 {
			compatible = "ti,omap-ocp2scp";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges;
			reg = <0x4a080000 0x20>;
			ti,hwmods = "ocp2scp1";

			usb2_phy1: phy@4a084000 {
				compatible = "ti,dra7x-usb2", "ti,omap-usb2";
				reg = <0x4a084000 0x400>;
				syscon-phy-power = <&scm_conf 0x300>;
				clocks = <&usb_phy1_always_on_clk32k>,
					 <&usb_otg_ss1_refclk960m>;
				clock-names =	"wkupclk",
						"refclk";
				#phy-cells = <0>;
			};

			usb2_phy2: phy@4a085000 {
				compatible = "ti,dra7x-usb2-phy2",
					     "ti,omap-usb2";
				reg = <0x4a085000 0x400>;
				syscon-phy-power = <&scm_conf 0xe74>;
				clocks = <&usb_phy2_always_on_clk32k>,
					 <&usb_otg_ss2_refclk960m>;
				clock-names =	"wkupclk",
						"refclk";
				#phy-cells = <0>;
			};

			usb3_phy1: phy@4a084400 {
				compatible = "ti,omap-usb3";
				reg = <0x4a084400 0x80>,
				      <0x4a084800 0x64>,
				      <0x4a084c00 0x40>;
				reg-names = "phy_rx", "phy_tx", "pll_ctrl";
				syscon-phy-power = <&scm_conf 0x370>;
				clocks = <&usb_phy3_always_on_clk32k>,
					 <&sys_clkin1>,
					 <&usb_otg_ss1_refclk960m>;
				clock-names =	"wkupclk",
						"sysclk",
						"refclk";
				#phy-cells = <0>;
			};
		};

		omap_dwc3_1: omap_dwc3_1@48880000 {
			compatible = "ti,dwc3";
			ti,hwmods = "usb_otg_ss1";
			reg = <0x48880000 0x10000>;
			interrupts = <GIC_SPI 72 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <1>;
			utmi-mode = <2>;
			ranges;
			usb1: usb@48890000 {
				compatible = "snps,dwc3";
				reg = <0x48890000 0x17000>;
				interrupts = <GIC_SPI 71 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 71 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 72 IRQ_TYPE_LEVEL_HIGH>;
				interrupt-names = "peripheral",
						  "host",
						  "otg";
				phys = <&usb2_phy1>, <&usb3_phy1>;
				phy-names = "usb2-phy", "usb3-phy";
				tx-fifo-resize;
				maximum-speed = "super-speed";
				dr_mode = "otg";
				snps,dis_u3_susphy_quirk;
				snps,dis_u2_susphy_quirk;
			};
		};

		omap_dwc3_2: omap_dwc3_2@488c0000 {
			compatible = "ti,dwc3";
			ti,hwmods = "usb_otg_ss2";
			reg = <0x488c0000 0x10000>;
			interrupts = <GIC_SPI 87 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <1>;
			utmi-mode = <2>;
			ranges;
			usb2: usb@488d0000 {
				compatible = "snps,dwc3";
				reg = <0x488d0000 0x17000>;
				interrupts = <GIC_SPI 73 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 73 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 87 IRQ_TYPE_LEVEL_HIGH>;
				interrupt-names = "peripheral",
						  "host",
						  "otg";
				phys = <&usb2_phy2>;
				phy-names = "usb2-phy";
				tx-fifo-resize;
				maximum-speed = "high-speed";
				dr_mode = "otg";
				snps,dis_u3_susphy_quirk;
				snps,dis_u2_susphy_quirk;
			};
		};

		/* IRQ for DWC3_3 and DWC3_4 need IRQ crossbar */
		omap_dwc3_3: omap_dwc3_3@48900000 {
			compatible = "ti,dwc3";
			ti,hwmods = "usb_otg_ss3";
			reg = <0x48900000 0x10000>;
			interrupts = <GIC_SPI 344 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <1>;
			utmi-mode = <2>;
			ranges;
			//status = "disabled";
			usb3: usb@48910000 {
				compatible = "snps,dwc3";
				reg = <0x48910000 0x17000>;
				interrupts = <GIC_SPI 88 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 88 IRQ_TYPE_LEVEL_HIGH>,
					     <GIC_SPI 344 IRQ_TYPE_LEVEL_HIGH>;
				interrupt-names = "peripheral",
						  "host",
						  "otg";
				tx-fifo-resize;
				maximum-speed = "high-speed";
				dr_mode = "otg";
				snps,dis_u3_susphy_quirk;
				snps,dis_u2_susphy_quirk;
			};
		};

		elm: elm@48078000 {
			compatible = "ti,am3352-elm";
			reg = <0x48078000 0xfc0>;      /* device IO registers */
			interrupts = <GIC_SPI 1 IRQ_TYPE_LEVEL_HIGH>;
			ti,hwmods = "elm";
			status = "disabled";
		};

		gpmc: gpmc@50000000 {
			compatible = "ti,am3352-gpmc";
			ti,hwmods = "gpmc";
			reg = <0x50000000 0x37c>;      /* device IO registers */
			interrupts = <GIC_SPI 15 IRQ_TYPE_LEVEL_HIGH>;
			dmas = <&edma_xbar 4 0>;
			dma-names = "rxtx";
			gpmc,num-cs = <8>;
			gpmc,num-waitpins = <2>;
			#address-cells = <2>;
			#size-cells = <1>;
			interrupt-controller;
			#interrupt-cells = <2>;
			gpio-controller;
			#gpio-cells = <2>;
			status = "disabled";
		};

		atl: atl@4843c000 {
			compatible = "ti,dra7-atl";
			reg = <0x4843c000 0x3ff>;
			ti,hwmods = "atl";
			ti,provided-clocks = <&atl_clkin0_ck>, <&atl_clkin1_ck>,
					     <&atl_clkin2_ck>, <&atl_clkin3_ck>;
			clocks = <&atl_gfclk_mux>;
			clock-names = "fck";
			status = "disabled";
		};

		mcasp1: mcasp@48460000 {
			compatible = "ti,dra7-mcasp-audio";
			ti,hwmods = "mcasp1";
			reg = <0x48460000 0x2000>,
			      <0x45800000 0x1000>;
			reg-names = "mpu","dat";
			interrupts = <GIC_SPI 104 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 103 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "tx", "rx";
			dmas = <&edma_xbar 129 1>, <&edma_xbar 128 1>;
			dma-names = "tx", "rx";
			clocks = <&mcasp1_aux_gfclk_mux>, <&mcasp1_ahclkx_mux>,
				 <&mcasp1_ahclkr_mux>;
			clock-names = "fck", "ahclkx", "ahclkr";
			status = "disabled";
		};

		mcasp2: mcasp@48464000 {
			compatible = "ti,dra7-mcasp-audio";
			ti,hwmods = "mcasp2";
			reg = <0x48464000 0x2000>,
			      <0x45c00000 0x1000>;
			reg-names = "mpu","dat";
			interrupts = <GIC_SPI 149 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 148 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "tx", "rx";
			dmas = <&edma_xbar 131 1>, <&edma_xbar 130 1>;
			dma-names = "tx", "rx";
			clocks = <&mcasp2_aux_gfclk_mux>, <&mcasp2_ahclkx_mux>,
				 <&mcasp2_ahclkr_mux>;
			clock-names = "fck", "ahclkx", "ahclkr";
			status = "disabled";
		};

		mcasp3: mcasp@48468000 {
			compatible = "ti,dra7-mcasp-audio";
			ti,hwmods = "mcasp3";
			reg = <0x48468000 0x2000>,
			      <0x46000000 0x1000>;
			reg-names = "mpu","dat";
			interrupts = <GIC_SPI 151 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 150 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "tx", "rx";
			dmas = <&edma_xbar 133 1>, <&edma_xbar 132 1>;
			dma-names = "tx", "rx";
			clocks = <&mcasp3_aux_gfclk_mux>, <&mcasp3_ahclkx_mux>;
			clock-names = "fck", "ahclkx";
			status = "disabled";
		};

		mcasp4: mcasp@4846c000 {
			compatible = "ti,dra7-mcasp-audio";
			ti,hwmods = "mcasp4";
			reg = <0x4846c000 0x2000>,
			      <0x48436000 0x1000>;
			reg-names = "mpu","dat";
			interrupts = <GIC_SPI 153 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 152 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "tx", "rx";
			dmas = <&edma_xbar 135 1>, <&edma_xbar 134 1>;
			dma-names = "tx", "rx";
			clocks = <&mcasp4_aux_gfclk_mux>, <&mcasp4_ahclkx_mux>;
			clock-names = "fck", "ahclkx";
			status = "disabled";
		};

		mcasp5: mcasp@48470000 {
			compatible = "ti,dra7-mcasp-audio";
			ti,hwmods = "mcasp5";
			reg = <0x48470000 0x2000>,
			      <0x4843a000 0x1000>;
			reg-names = "mpu","dat";
			interrupts = <GIC_SPI 155 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 154 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "tx", "rx";
			dmas = <&edma_xbar 137 1>, <&edma_xbar 136 1>;
			dma-names = "tx", "rx";
			clocks = <&mcasp5_aux_gfclk_mux>, <&mcasp5_ahclkx_mux>;
			clock-names = "fck", "ahclkx";
			status = "disabled";
		};

		mcasp6: mcasp@48474000 {
			compatible = "ti,dra7-mcasp-audio";
			ti,hwmods = "mcasp6";
			reg = <0x48474000 0x2000>,
			      <0x4844c000 0x1000>;
			reg-names = "mpu","dat";
			interrupts = <GIC_SPI 157 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 156 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "tx", "rx";
			dmas = <&edma_xbar 139 1>, <&edma_xbar 138 1>;
			dma-names = "tx", "rx";
			clocks = <&mcasp6_aux_gfclk_mux>, <&mcasp6_ahclkx_mux>;
			clock-names = "fck", "ahclkx";
			status = "disabled";
		};

		mcasp7: mcasp@48478000 {
			compatible = "ti,dra7-mcasp-audio";
			ti,hwmods = "mcasp7";
			reg = <0x48478000 0x2000>,
			      <0x48450000 0x1000>;
			reg-names = "mpu","dat";
			interrupts = <GIC_SPI 159 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 158 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "tx", "rx";
			dmas = <&edma_xbar 141 1>, <&edma_xbar 140 1>;
			dma-names = "tx", "rx";
			clocks = <&mcasp7_aux_gfclk_mux>, <&mcasp7_ahclkx_mux>;
			clock-names = "fck", "ahclkx";
			status = "disabled";
		};

		mcasp8: mcasp@4847c000 {
			compatible = "ti,dra7-mcasp-audio";
			ti,hwmods = "mcasp8";
			reg = <0x4847c000 0x2000>,
			      <0x48454000 0x1000>;
			reg-names = "mpu","dat";
			interrupts = <GIC_SPI 161 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 160 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "tx", "rx";
			dmas = <&edma_xbar 143 1>, <&edma_xbar 142 1>;
			dma-names = "tx", "rx";
			clocks = <&mcasp8_aux_gfclk_mux>, <&mcasp8_ahclkx_mux>;
			clock-names = "fck", "ahclkx";
			status = "disabled";
		};

		crossbar_mpu: crossbar@4a002a48 {
			compatible = "ti,irq-crossbar";
			reg = <0x4a002a48 0x130>;
			interrupt-controller;
			interrupt-parent = <&wakeupgen>;
			#interrupt-cells = <3>;
			ti,max-irqs = <160>;
			ti,max-crossbar-sources = <MAX_SOURCES>;
			ti,reg-size = <2>;
			ti,irqs-reserved = <0 1 2 3 5 6 131 132>;
			ti,irqs-skip = <10 133 139 140>;
			ti,irqs-safe-map = <0>;
		};

		mac: ethernet@48484000 {
			compatible = "ti,dra7-cpsw","ti,cpsw";
			ti,hwmods = "gmac";
			clocks = <&dpll_gmac_ck>, <&gmac_gmii_ref_clk_div>;
			clock-names = "fck", "cpts";
			cpdma_channels = <8>;
			ale_entries = <1024>;
			bd_ram_size = <0x2000>;
			no_bd_ram = <0>;
			rx_descs = <64>;
			mac_control = <0x20>;
			slaves = <2>;
			active_slave = <0>;
			cpts_clock_mult = <0x80000000>;
			cpts_clock_shift = <29>;
			reg = <0x48484000 0x1000
			       0x48485200 0x2E00>;
			#address-cells = <1>;
			#size-cells = <1>;

			/*
			 * Do not allow gating of cpsw clock as workaround
			 * for errata i877. Keeping internal clock disabled
			 * causes the device switching characteristics
			 * to degrade over time and eventually fail to meet
			 * the data manual delay time/skew specs.
			 */
			ti,no-idle;

			/*
			 * rx_thresh_pend
			 * rx_pend
			 * tx_pend
			 * misc_pend
			 */
			interrupts = <GIC_SPI 334 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 335 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 336 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 337 IRQ_TYPE_LEVEL_HIGH>;
			ranges;
			syscon = <&scm_conf>;
			status = "disabled";

			davinci_mdio: mdio@48485000 {
				compatible = "ti,cpsw-mdio";
				#address-cells = <1>;
				#size-cells = <0>;
				ti,hwmods = "davinci_mdio";
				bus_freq = <1000000>;
				reg = <0x48485000 0x100>;
			};

			cpsw_emac0: slave@48480200 {
				/* Filled in by U-Boot */
				mac-address = [ 00 00 00 00 00 00 ];
			};

			cpsw_emac1: slave@48480300 {
				/* Filled in by U-Boot */
				mac-address = [ 00 00 00 00 00 00 ];
			};

			phy_sel: cpsw-phy-sel@4a002554 {
				compatible = "ti,dra7xx-cpsw-phy-sel";
				reg= <0x4a002554 0x4>;
				reg-names = "gmii-sel";
			};
		};

		dcan1: can@481cc000 {
			compatible = "ti,dra7-d_can";
			ti,hwmods = "dcan1";
			reg = <0x4ae3c000 0x2000>;
			syscon-raminit = <&scm_conf 0x558 0>;
			interrupts = <GIC_SPI 222 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&dcan1_sys_clk_mux>;
			status = "disabled";
		};

		dcan2: can@481d0000 {
			compatible = "ti,dra7-d_can";
			ti,hwmods = "dcan2";
			reg = <0x48480000 0x2000>;
			syscon-raminit = <&scm_conf 0x558 1>;
			interrupts = <GIC_SPI 225 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&sys_clkin1>;
			status = "disabled";
		};

		dss: dss@58000000 {
			compatible = "ti,dra7-dss";
			/* 'reg' defined in dra72x.dtsi and dra74x.dtsi */
			/* 'clocks' defined in dra72x.dtsi and dra74x.dtsi */
			status = "disabled";
			ti,hwmods = "dss_core";
			/* CTRL_CORE_DSS_PLL_CONTROL */
			syscon-pll-ctrl = <&scm_conf 0x538>;
			#address-cells = <1>;
			#size-cells = <1>;
			ranges;

			dispc@58001000 {
				compatible = "ti,dra7-dispc";
				reg = <0x58001000 0x1000>;
				interrupts = <GIC_SPI 20 IRQ_TYPE_LEVEL_HIGH>;
				ti,hwmods = "dss_dispc";
				clocks = <&dss_dss_clk>;
				clock-names = "fck";
				/* CTRL_CORE_SMA_SW_1 */
				syscon-pol = <&scm_conf 0x534>;
			};

			hdmi: encoder@58060000 {
				compatible = "ti,dra7-hdmi";
				reg = <0x58040000 0x200>,
				      <0x58040200 0x80>,
				      <0x58040300 0x80>,
				      <0x58060000 0x19000>;
				reg-names = "wp", "pll", "phy", "core";
				interrupts = <GIC_SPI 96 IRQ_TYPE_LEVEL_HIGH>;
				status = "disabled";
				ti,hwmods = "dss_hdmi";
				clocks = <&dss_48mhz_clk>, <&dss_hdmi_clk>;
				clock-names = "fck", "sys_clk";
				dmas = <&sdma_xbar 76>;
				dma-names = "audio_tx";
			};
		};

		vpe {
			compatible = "ti,vpe";
			ti,hwmods = "vpe";
			clocks = <&dpll_core_h23x2_ck>;
			clock-names = "fck";
			reg = <0x489d0000 0x120>,
			      <0x489d0300 0x20>,
			      <0x489d0400 0x20>,
			      <0x489d0500 0x20>,
			      <0x489d0600 0x3c>,
			      <0x489d0700 0x80>,
			      <0x489d5700 0x18>,
			      <0x489dd000 0x400>;
			reg-names = "vpe_top",
				    "vpe_chr_us0",
				    "vpe_chr_us1",
				    "vpe_chr_us2",
				    "vpe_dei",
				    "sc",
				    "csc",
				    "vpdma";
			interrupts = <GIC_SPI 354 IRQ_TYPE_LEVEL_HIGH>;
			#address-cells = <1>;
			#size-cells = <0>;
		};

		vip1: vip@0x48970000 {
			compatible = "ti,vip1";
			reg = <0x48970000 0x114>,
			      <0x48975500 0xD8>,
			      <0x48975700 0x18>,
			      <0x48975800 0x80>,
			      <0x48975a00 0xD8>,
			      <0x48975c00 0x18>,
			      <0x48975d00 0x80>,
			      <0x4897d000 0x400>;
			reg-names = "vip",
				    "parser0",
				    "csc0",
				    "sc0",
				    "parser1",
				    "csc1",
				    "sc1",
				    "vpdma";
			ti,hwmods = "vip1";
			interrupts = <GIC_SPI 351 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 392 IRQ_TYPE_LEVEL_HIGH>;
			/* CTRL_CORE_SMA_SW_1 */
			syscon-pol = <&scm_conf 0x534>;
			#address-cells = <1>;
			#size-cells = <0>;
			status = "disabled";
			vin1a: port@0 {
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <0>;
				status = "disabled";
			};
			vin2a: port@1 {
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <1>;
				status = "disabled";
			};
			vin1b: port@2 {
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <2>;
				status = "disabled";
			};
			vin2b: port@3 {
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <3>;
				status = "disabled";
			};
		};

		epwmss0: epwmss@4843e000 {
			compatible = "ti,dra7xx-pwmss", "ti,am33xx-pwmss";
			reg = <0x4843e000 0x30>;
			ti,hwmods = "epwmss0";
			#address-cells = <1>;
			#size-cells = <1>;
			status = "disabled";
			ranges;

			ehrpwm0: pwm@4843e200 {
				compatible = "ti,dra7xx-ehrpwm",
					     "ti,am33xx-ehrpwm";
				#pwm-cells = <3>;
				reg = <0x4843e200 0x80>;
				clocks = <&ehrpwm0_tbclk>;
				clock-names = "tbclk";
				status = "disabled";
			};

			ecap0: ecap@4843e100 {
				compatible = "ti,dra7xx-ecap",
					     "ti,am33xx-ecap";
				#pwm-cells = <3>;
				reg = <0x4843e100 0x80>;
				status = "disabled";
			};
		};

		epwmss1: epwmss@48440000 {
			compatible = "ti,dra7xx-pwmss", "ti,am33xx-pwmss";
			reg = <0x48440000 0x30>;
			ti,hwmods = "epwmss1";
			#address-cells = <1>;
			#size-cells = <1>;
			status = "disabled";
			ranges;

			ehrpwm1: pwm@48440200 {
				compatible = "ti,dra7xx-ehrpwm",
					     "ti,am33xx-ehrpwm";
				#pwm-cells = <3>;
				reg = <0x48440200 0x80>;
				clocks = <&ehrpwm1_tbclk>;
				clock-names = "tbclk";
				status = "disabled";
			};

			ecap1: ecap@48440100 {
				compatible = "ti,dra7xx-ecap",
					     "ti,am33xx-ecap";
				#pwm-cells = <3>;
				reg = <0x48440100 0x80>;
				status = "disabled";
			};
		};

		epwmss2: epwmss@48442000 {
			compatible = "ti,dra7xx-pwmss", "ti,am33xx-pwmss";
			reg = <0x48442000 0x30>;
			ti,hwmods = "epwmss2";
			#address-cells = <1>;
			#size-cells = <1>;
			status = "disabled";
			ranges;

			ehrpwm2: pwm@48442200 {
				compatible = "ti,dra7xx-ehrpwm",
					     "ti,am33xx-ehrpwm";
				#pwm-cells = <3>;
				reg = <0x48442200 0x80>;
				clocks = <&ehrpwm2_tbclk>;
				clock-names = "tbclk";
				status = "disabled";
			};

			ecap2: ecap@48442100 {
				compatible = "ti,dra7xx-ecap",
					     "ti,am33xx-ecap";
				#pwm-cells = <3>;
				reg = <0x48442100 0x80>;
				status = "disabled";
			};
		};

		aes1: aes@4b500000 {
			compatible = "ti,omap4-aes";
			ti,hwmods = "aes1";
			reg = <0x4b500000 0xa0>;
			interrupts = <GIC_SPI 80 IRQ_TYPE_LEVEL_HIGH>;
			dmas = <&edma_xbar 111 0>, <&edma_xbar 110 0>;
			dma-names = "tx", "rx";
			clocks = <&l3_iclk_div>;
			clock-names = "fck";
		};

		aes2: aes@4b700000 {
			compatible = "ti,omap4-aes";
			ti,hwmods = "aes2";
			reg = <0x4b700000 0xa0>;
			interrupts = <GIC_SPI 59 IRQ_TYPE_LEVEL_HIGH>;
			dmas = <&edma_xbar 114 0>, <&edma_xbar 113 0>;
			dma-names = "tx", "rx";
			clocks = <&l3_iclk_div>;
			clock-names = "fck";
		};

		des: des@480a5000 {
			compatible = "ti,omap4-des";
			ti,hwmods = "des";
			reg = <0x480a5000 0xa0>;
			interrupts = <GIC_SPI 77 IRQ_TYPE_LEVEL_HIGH>;
			dmas = <&sdma_xbar 117>, <&sdma_xbar 116>;
			dma-names = "tx", "rx";
			clocks = <&l3_iclk_div>;
			clock-names = "fck";
		};

		sham: sham@53100000 {
			compatible = "ti,omap5-sham";
			ti,hwmods = "sham";
			reg = <0x4b101000 0x300>;
			interrupts = <GIC_SPI 46 IRQ_TYPE_LEVEL_HIGH>;
			dmas = <&edma_xbar 119 0>;
			dma-names = "rx";
			clocks = <&l3_iclk_div>;
			clock-names = "fck";
		};

		rng: rng@48090000 {
			compatible = "ti,omap4-rng";
			ti,hwmods = "rng";
			reg = <0x48090000 0x2000>;
			interrupts = <GIC_SPI 47 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&l3_iclk_div>;
			clock-names = "fck";
		};
	};

	thermal_zones: thermal-zones {
		#include "omap4-cpu-thermal.dtsi"
		#include "omap5-gpu-thermal.dtsi"
		#include "omap5-core-thermal.dtsi"
		#include "dra7-dspeve-thermal.dtsi"
		#include "dra7-iva-thermal.dtsi"
	};

};

&cpu_thermal {
	polling-delay = <500>; /* milliseconds */
};

/include/ "dra7xx-clocks.dtsi"
