TAS5827: In HW mode the Mute pin do not work

Lars Jeppesen

Part Number: TAS5827

I have made eval pcb with 2 chips configured as HW mode, mean without I2C control. i got amp up running fine, Audio work fine, but found that i cant get the mute pin(pin 11) to work, when pull it low nothing happens audio still playing. are there something i missed in the datasheet, there are not much explained about this function other than it should stop the output when pulled low, I have added a the schematics I used for this pcb for your ref.ecad-tas5827.pdf

over 1 year ago

0 Luis Fernandes de Pina over 1 year ago

TI__Genius 15080 points

Hello Lars,

Can i see a waveform capture of of the mute pin and the output before the LC filter.
best regards,
Luis

0 Lars Jeppesen over 1 year ago in reply to Luis Fernandes de Pina

Prodigy 10 points

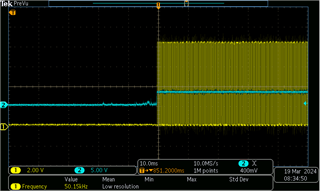

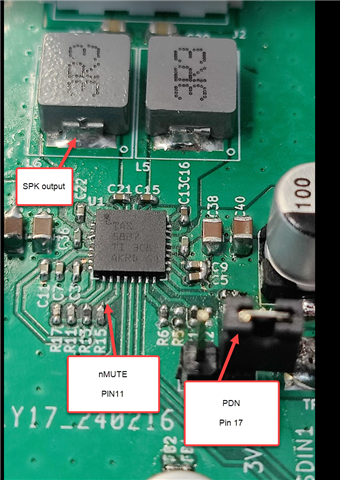

hi, here you go and a picture of the pcb as well were i measure for the screenshot

0 Luis Fernandes de Pina over 1 year ago in reply to Lars Jeppesen

TI__Genius 15080 points

Hello Lars,

Have you done any tests on the EVM prior to creating this board? Want to confirm if this behavior is unique to system or you observe the same behavior on the EVM.

best regards,
Luis

0 Lars Jeppesen over 1 year ago in reply to Luis Fernandes de Pina

Prodigy 10 points

hi,

i have not bought or tested EVM board before making this so dont know

0 Luis Fernandes de Pina over 1 year ago in reply to Lars Jeppesen

TI__Genius 15080 points

Hello Lars,

I'll verify this behavior on bench will comment when I test this on the EVM.

best regard
Luis

0 Luis Fernandes de Pina over 1 year ago in reply to Luis Fernandes de Pina

TI__Genius 15080 points

Hello Lars,
are you able to control the PVDD you are driving into the device. If you drop PVDD below 8V can you check Pin 11 and Pin 9.

best regards,
Luis

0 Lars Jeppesen over 1 year ago in reply to Luis Fernandes de Pina

Prodigy 10 points

hi,

what do that have to do with that i can't get mute function to work in hardware mode ?, in my system i use 12V - 24V supply so i will not go below 10V at anytime. of cause i can try this but for what reason ?

reason for me to ask mute question is that its stated in the datasheet that pin 11 is mute and will turn off output and like to use that feature in my design with TAS5827 set in Hardware mode !

0 Shadow He over 1 year ago in reply to Lars Jeppesen

TI__Mastermind 48730 points

Hi Lars

Lars Jeppesen said:
i use 12V - 24V supply so i will not go below 10V at anytime. of cause i can try this but for what reason ?

Doing this actually want to check the GPIO definition of this device has any problem. There's some history behind it.

Anyway, never mind it. I checked it on the EVM, when drop PVDD below 8V, it's GPIO2 drops, indicates the PD_DET function, not MUTE as datasheet says.

So the real MUTE function is the pin10 GPIO1, as I checked it works fine. I'm sorry for the trouble, and we need to change it quickly.

0 Lars Jeppesen over 1 year ago in reply to Shadow He

Prodigy 10 points

hi,

Thanks, I will test it out with pin 10

what about fault pin now?

it will be nice to get the correct pinout for Hardware mode soon

br Lars

0 Shadow He over 1 year ago in reply to Lars Jeppesen

TI__Mastermind 48730 points

Hi Lars

Fault pin is the final GPIO, we didn't mention. GPIO0, pin 9. The 3 GPIO pin function has some shift among each other, not fully as planed.

0 Shadow He over 1 year ago in reply to Lars Jeppesen

TI__Mastermind 48730 points

Hi Lars

Fault pin is the final GPIO, we didn't mention. GPIO0, pin 9. The 3 GPIO pin function has some shift among each other, not fully as planed.

0 Lars Jeppesen over 1 year ago in reply to Shadow He

Prodigy 10 points

hi,

I have tested mute with pin 10 and it work :), look forward to see a updated datasheet

Br Lars
