TLV320ADC5140: Unable to power on ADCs, device_status[1] reads 0xC0

Philip Hatfield

Part Number: TLV320ADC5140

Tool/software:

Hello!

I'm having some issues initialising the TLV320ADC5140, no matter the configuration I attempt it appears that the ADC's are not powering on as indicated by the device status register [1] always outputting 0xC0 as a result.

My intended configuration is a TDM8 master with the first four channels driven by this IC, I can see the FSYNC and BCLK pulsing at my desired frequencies, though nothing is observed on SDOUT.

I also tried following the recommended command sequence from the thread below as a debugging step, however I end up with the same result, 0xC0.

e2e.ti.com/.../tlv320adc5140-unable-to-powerup-the-input-channels-dev_sts0-and-dev_sts1-indicate-channels-are-not-powered-up

The IC is being used on a custom hardware platform, looking at the evaluation kit and datasheet there doesn't appear to be any major deviations from the recommended design. Are there any suggestions as to why the ADCs may not be powering on?

Thanks and Best Regards,

Philip

3 days ago

0 Garret Godfrey 3 days ago

TI__Intellectual 1325 points

Hi Philip,

Can you provide the I2C code you are using to configure the device? Please allow some time for review and response, as Monday is a US holiday.

Best,

Garret

0 Philip Hatfield 3 days ago in reply to Garret Godfrey

Prodigy 10 points

Hi Garret,

Absolutely, see below for the sequence of commands and associated waits:

w 01 01 #Software Reset

#Wait 1s

w 02 81 #Wake with Internal Regulator

#Wait 1s

w 07 20 #TDM Format, 24bits

#Master mode, 24.576MHz, 48kSample, 192 ratio
w 13 87
w 14 47

w 21 a2 #GPIO -> MCLK, ACT_WEAK

w 73 f0 #Enable channel 1->4 in
w 74 f0 #Enable channel 1->4 out

w 3c a0 #Channel 1, line driven, single ended
w 41 a0 #Channel 2, line driven, single ended
w 46 a0 #Channel 3, line driven, single ended
w 4b a0 #Channel 4, line driven, single ended

w 75 60 #Power On ADC and PLL

#Wait 1s

r 77 #Returns 0xC0

0 Jeff McPherson 21 hours ago in reply to Philip Hatfield

TI__Mastermind 45915 points

Hi Philip,

Today is a U.S. holiday. Please be patient as our team follows up with you tomorrow.

Thank you!
Jeff McPherson

0 Garret Godfrey 2 hours ago in reply to Jeff McPherson

TI__Intellectual 1325 points

Hi Philip,

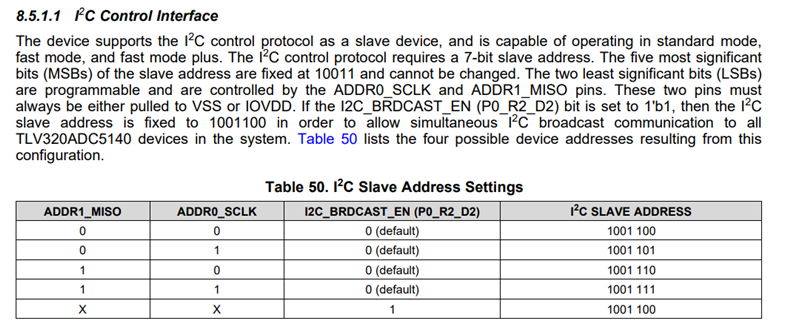

Do you have the I2C slave address programmed anywhere? We usually write commands in the format "w 98 00 00" as defined here:

Best,

Garret
