TAS2563: Does TAS2563 Consumes VBAT in Boost Bypass Mode With Inductor Installed?

Wayne Chen (Audio AE)

Part Number: TAS2563

Hi Sirs,

Addition of the thread of

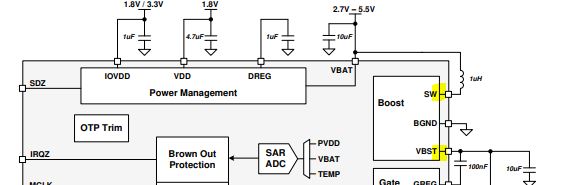

With boost bypass mode and inductor installed, we found the TAS2563 keeps sending output signal from VBAT when PVDD is not presented. Is it a normal behavior? Is there internal connection between SW and VBST in boost bypass mode?

Thank you and Best regard,

Wayne Chen
02/24/2021

over 4 years ago

0 Ivan Salazar over 4 years ago

TI__Guru** 109655 points

Hi Wayne,

VBAT is still used to supply some sections of the device, regardless if using internal boost or not.
Is this the information you needed? Please let us know if you have any further questions.

Best regards,
-Ivan Salazar
Applications Engineer - Low Power Audio & Actuators

0 Wayne Chen (Audio AE) over 4 years ago in reply to Ivan Salazar

TI__Genius 15950 points

Hello Ivan,

We can still listen to music when programming the TAS2563 to boost bypass mode with VBAT on and PVDD off. We can see the TAS2563 drains power from VBAT at this moment. Is it in line with our component design?

Thank you and Best regards,

Wayne Chen
02/25/2021

0 Ivan Salazar over 4 years ago in reply to Wayne Chen (Audio AE)

TI__Guru** 109655 points

Hi Wayne,

Yes, this behavior is expected.

If the device is enabled, even in boost disabled mode and PVDD not powered, the output stage will run from VBAT voltage.

Best regards,
-Ivan Salazar
Applications Engineer - Low Power Audio & Actuators
