[ LMX2582 ] Input Amplitude, Valid Termination for Single-End input and Single-End Output
Part Number: LMX2582
I would like to use the differential output ports as single ended. I need all 4 ports as single ended. Could you please help me with the schematic changes
Each pin (altogether 4 pins) can be used as a SE output. All you need to do is put an external pull-up and then AC-couple it to the load.
We are glad that we were able to resolve this issue, and will now proceed to close this thread.
If you have further questions related to this thread, you may click "Ask a related question" below. The newly created question will be automatically linked to this question.
In reply to Noel Fung:
Thank you. Could you please check the attached sch and confirm whether it's right or wrong?
In reply to Jagannatha K:
please attach the schematic.

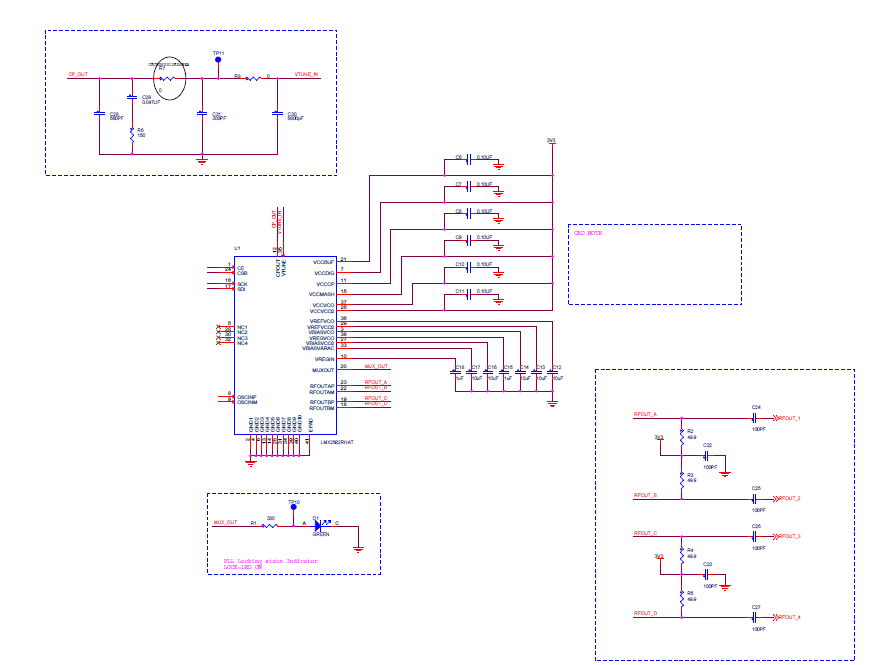

Schematic is attached.
Right, you now have four SE outputs.
