LMK03318: Generator and jitter cleaner mode

Wendy Wang1

Part Number: LMK03318

Hi team,

My customer has several LMK03318 used in the development of single-board evaluation. DS shows that the device has two modes: generator and jitter cleaner. I want to know:
1. Does the generator mode suppress the noise of the input clock source?
2. If there is noise suppression effect in generator mode, is there any quantitative data on noise suppression effect in the two modes?

Thanks a lot!

Thanks & best regards,

Wendy

over 3 years ago

+1 Julian Hagedorn over 3 years ago

TI__Mastermind 20900 points

Hi Wendy,

both modes will suppress noise but only to different extend.

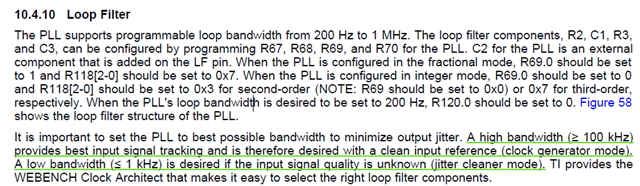

In simple words, a PLL act as a low pass filter for noise on the input. The two modes only differ in the "low pass filter" band width. Jitter cleaner mode is typically <1kHz and clock gen is typ >100kHz.

The selection of which mode to use needs to be made based on the input clock noise profile.

regards,

Julian

0 Wendy Wang1 over 3 years ago in reply to Julian Hagedorn

TI__Genius 16790 points

Hi Julian,

Julian Hagedorn said:
The selection of which mode to use needs to be made based on the input clock noise profile.

Could you please tell me specifically under what circumstances to use generator mode and under what circumstances to use jitter cleaner mode?

Thanks a lot!

Thanks & best regards,

Wendy

+1 Julian Hagedorn over 3 years ago in reply to Wendy Wang1

TI__Mastermind 20900 points

Hi Wendy,

this blog post gives a good insight in that: https://e2e.ti.com/blogs_/b/analogwire/posts/can-a-clock-generator-act-as-a-jitter-cleaner

regards,

Julian
