LMK6C: for 50khz frequency

Jeff YANG

Mastermind 7875 points

Part Number: LMK6C
Other Parts Discussed in Thread: TLC555

Tool/software:

Hi,

May I know there have Oscillator product can provide 50khz?

We may find LTC6907 alternative but seems TI product are support over 1Mhz.

https://www.analog.com/media/en/technical-documentation/data-sheets/6907fa.pdf

Thanks!

Jeff

9 months ago

0 Connor Lewis 9 months ago

TI__Genius 12220 points

Hi Jeff,

We don't currently have any devices that are pin compatible with LTC6907. Most likely the closest match we have that can generate 50 kHz would be a 555 timer. Would that work for your application?

Regards,

Connor

0 Jeff YANG 9 months ago in reply to Connor Lewis

Mastermind 7875 points

Hi Connor,

Seems it for IC internal trimming.

You mean TLC555? It can support 50khZ output? Have any reference design?

Thanks!

Jeff

+1 Connor Lewis 9 months ago in reply to Jeff YANG

TI__Genius 12220 points

Hi Jeff,

There are a few 555 timers to choose from, you can find the whole list here: https://www.ti.com/clocks-timing/real-time-clocks-timers/products.html#404=General-purpose%20timer&

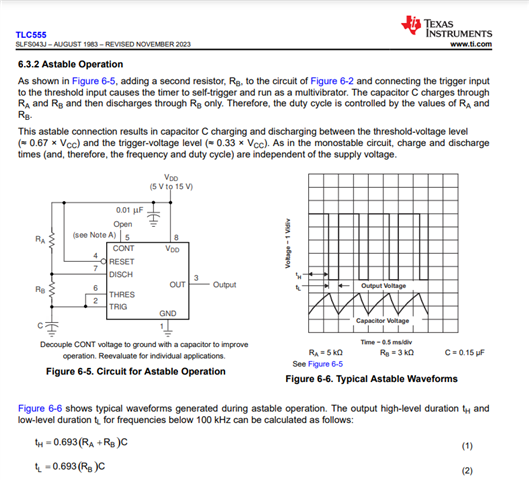

The datasheets include typical application schematics and formulas for calculating the output frequency. For example, for the TLC555 the schematic and formula are shown under section 6.3.2 on page 14:

Regards,

Connor
