TSC2046E: TSC2046E

Hi Liu,

I think that your control byte is incomplete. It appears that for all of the captures you shared PD0=PD1=0

Regards,

Arthur

Hi Arthur,

Appreciate your comment and happy new year.

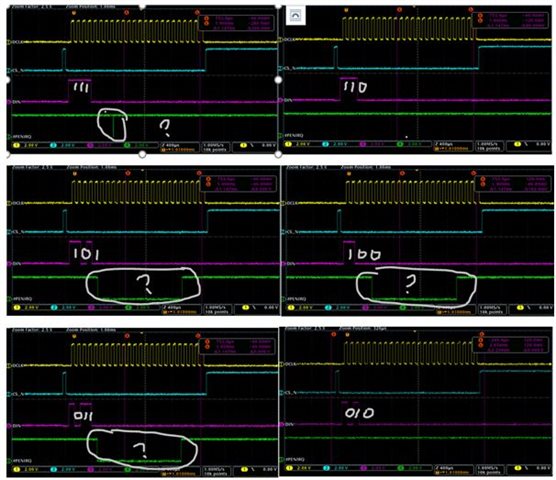

Yes. We are trying all A2,A1,A0 vector combination with PD0, PD1 = 0, 0 to enable the #PENIRQ but failed.

Could you recommend a initialization procedure to enable #PENIRQ driven low when the screen touched ?

Sincerely,

Liu Wang

Hi Liu,

Please see this thread as it discusses the function of PENIRQ quite clearly https://e2e.ti.com/support/data-converters-group/data-converters/f/data-converters-forum/1009367/tsc2046e-how-does-penirq-work-and-how-does-it-detect-when-a-finger-is-released

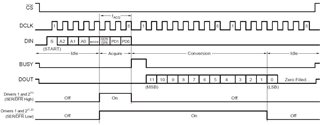

Also Page 16 of the datasheet also explains the function of PENIRQ very well.

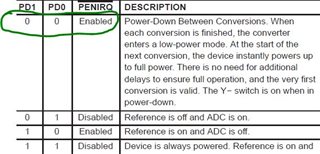

From the two resources above. I think what you need to do is to set PD1 bit = 1 to enable the reference voltages on the screen. from D/S page 16. the PENIRQ should always be available if X,Y voltage references are enabled.

Regards,

Arthur

Hi Arthur,

Appreciate your helping my project.

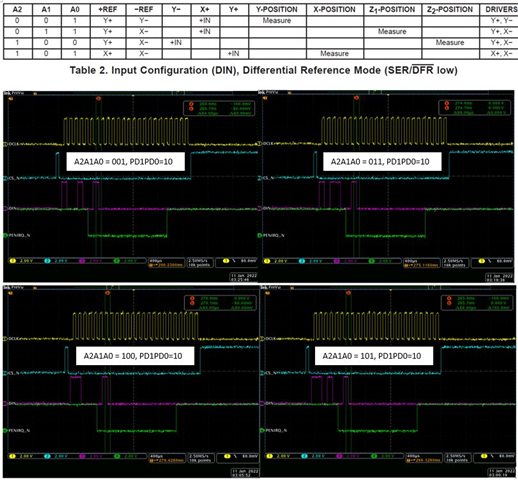

Following your instruction the following experiment has been conducted with A2A1A0 = [001,011,100,101], PD1PD0=[10].

#PENIRQ still could not be driven low when the screen touched.

Could you please help me in sharing more instruction in enabling #PENIRQ being driven low when the screen touched ?

Sincerely,

Liu Wang

Hi Arthur,

Appreciate your helping my project.

With your instruction we conducted the following test cases with A2A1A0=[001,011,100,101], PD1PD0=[10] in initializing TSC2046 to enable #PENIRQ to be driven low when the screen touched.

#PENIRQ is still not driven low after the initialization when the screen touched.

Could you please share more instruction for me to check in enabling the #PENIRQ driven low when the screen touched ?

Sincerely,

Liu Wang

Hi Liu,

Give me a day to test this on an EVM

Regards,

Arthur

Hi Liu,

Can you please share the system schematic so we can review?

Regards,
Arthur

Hi Arthur,

Thanks your support.

Could you please share the EVM waveform of the TSC2046E #PENIRQ enabling sequence ?

Sincerely,

Liu Wang

Hi Arthur, I removed the schematic and will email it to you instead.

If you don't receive it, please reach out to me at j-butler@ti.com

Thank You,

Jacob Butler

Hi Liu, Jacob,

Apologize for the delay here. I have an EVM for this device but no screen module to go with it. So I am not able to test this on an EVM.

Assuming the schematic is correct and the device is not damaged it should only be a matter of using the correct control byte.

I briefly checked the schematic and nothing seemed out of the ordinary. I will read the relevant sections of the data sheet and give my suggestions

Regards,

Arthur
