TSW14J58EVM: TSW12QJ1600EVM interfacing with TSW14J58EVM having a issue with Capturing the Data

Hello Madhu,

This issue is typically caused by the FPGA not receiving a valid clock frequency. Are you able to probe the ADC EVM and verify that the clock is correct?

Thanks,

Eric

Hi Eric,

Thank you for the response. I did not probe the clock yet. Will do that and let you know. Can you please send me the latest schematics for the ADC EVM board.

Thanks

Madhu

Hello Madhu,

Please look at this post for the schematic files

https://e2e.ti.com/support/data-converters-group/data-converters/f/data-converters-forum/1067742/tsw12qj1600evm-schematic-diagram-and-pcb-layout

Best,

Eric

Hi Eric,

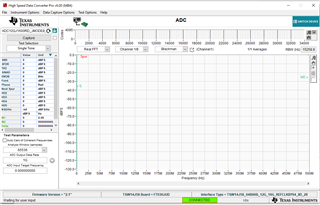

We still cannot capture the data.  We are new to this ADC chip.

We tried looking at the clock on ADC EVM board (TSW12QJ1600EVM) .

FPGA_CORECLK_FMC_P/N

We see 50MHz clock on U1 (pin J7, K7) and U2 (pin J7, K7) and later on J1 (H4, H5)

FPGA_GBTCLKx_FMC_P/N

We DO NOT see anything on U1 (J9,K9) and U2 (J9,K9), and later on J1(B20, B21, D4, D5)

BTW, we noticed in the TSW14J58EVM schematics J3 FMC connector which interfaces and connects to the ADC EVM board

FPGA_CORECLK_FMC_P/N which is coming from the ADC EVM board to TSW14J58EVM is not used in the FPGA EVM board. Why ?

Do we have to program TRIG_CTRLx register ?

We noticed in the ADC EVM GUI "Low Level" tab, if I tried to read all the registers it returns "FF" for all the registers.

We are following exactly what the user's guide suggest.  Purpose of this EVM boards is to help us configure, setup and understand easily but it is taking longer than expected.

Is there a setup issue ? Is there a issue with the boards ? Is there a configuration issue?

We really appreciate, if we could have a conference call and you help/guide us with the initial setup and debug.

Thanks

Madhu

Hi Eric,

We have TSW14J58EVM DC182_A10 version with S/N: 8362400014.

I was looking at the schematics from slwc119.zip (This is what I get when I look for the latest schematics for this board on the website and forum).

I was reading the users guide for this board and I see it mentioning about DS20 and in the SCH and ASY files I see them

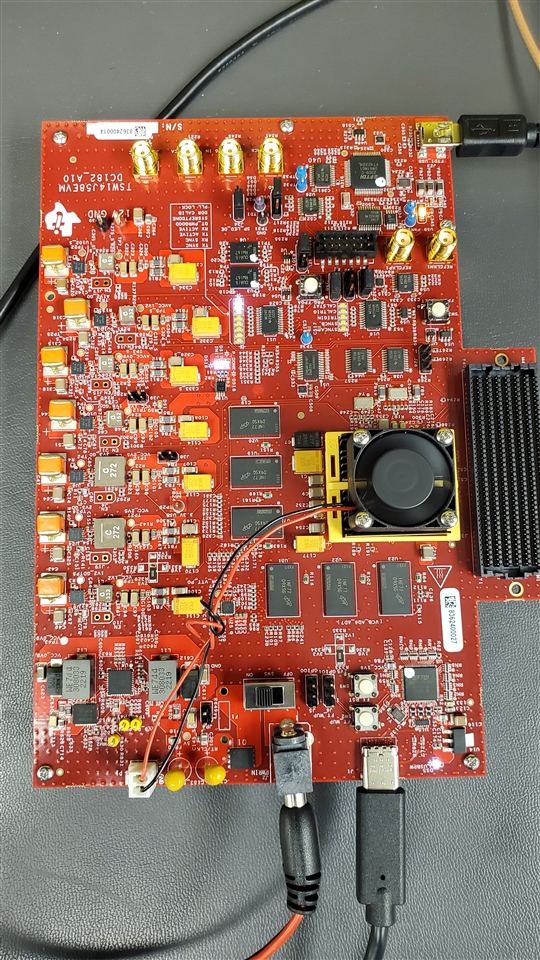

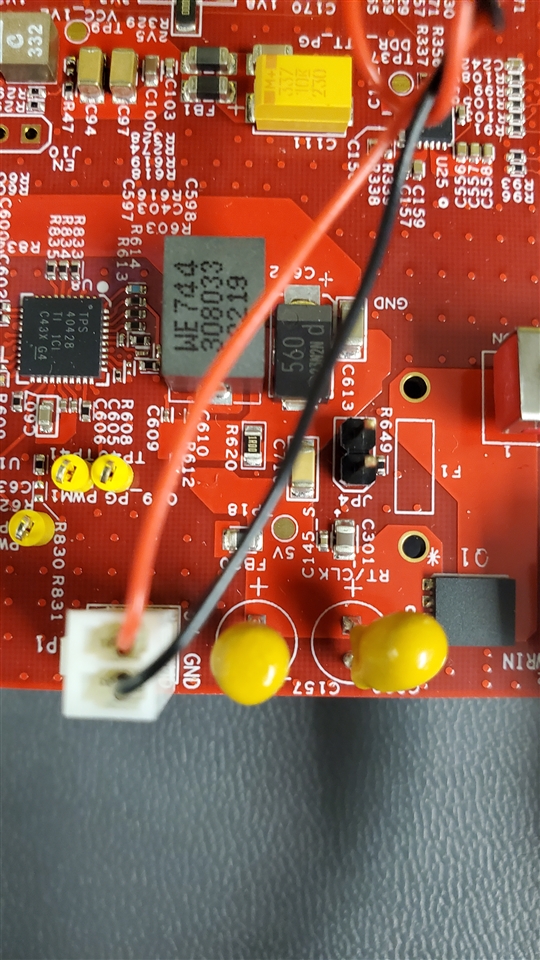

but, on the board I do not see that and I'll attach my board pics in my next message.

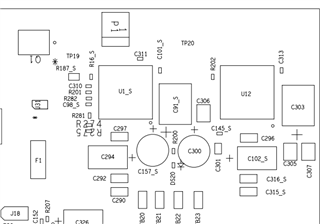

I noticed that these SCH, and ASY files does not match with the board I have (especially the following section)

Please check next message for my board pics.

Thanks

Madhu

slwc119.zip

Here is the zip file where I was looking at the SCH and ASY files.

Hello Madhu,

Thank you for sharing this information, if you could give me until the end of the week to replicate this on my end that would be appreciated.

Thanks,

Eric

Hi Eric,

Thank you for the response. Please do replicate with the same version of the boards though.

We are really in a time crunch, so please do comeback with a resolution and a phone/zoom support will really be appreciated.

Thanks

Madhu

Hi Eric,

GM.

Any update on this one?

Thanks

Madhu

Hi Eric,

What is the status ?

Thanks

Madhu

Hello Madhu,

I am still looking at this on my end, it is taking me longer than I initially anticipated to re create your setup. If you could give me some more time to look at this that would be appreciated. I will aim to have an answer for you by the end of the week.

Best,

Eric

Hi Eric,

GM.

Thank you for the response. If it helps and for faster resolution, how about a call, where you and I performing the same steps on our own hardware setup and discussing the results and differences.

Thanks

Madhu

Hi Eric,

How is it going ? Were you able to resolve ? How about a phone call ?

Thanks

Madhu

Hi Eric,

GM.

Any new updates ?

How is it going on your end ? Any progress on your end ?

Thanks

Madhu

Hello Madhu,

I have narrowed this down to a problem with the GUI programming the ADCs on the board, I am working on a solution for you now.

Best,

Eric

Hi Eric,

Excellent.

Is that something we are doing wrong while programming the ADCs thru the GUI? or

is the default programming of the ADCs thru the GUI on the board?

Is the problem in ADC12QJ1600R Reference Design GUI or HSDC Pro GUI ?

Eagerly waiting for the solution.

What about the TSW14J58EVM DC182_A10 version with S/N: 8362400014. difference between actual board and SCH, and BRD files ?

Thanks

Madhu

Hello Madhu,

It is a problem with the ADC GUI itself. For now please use these provided python files for configuring the ADC board. The programming of the TSW capture card is fine I think.

Best,

Eric

Hi Eric,

When do I load this python file ?

Can you give me a call and guide me thru the process ?

Thanks

Madhu

Step1. unzipped your file.

Step2. Follow TSW12QJ1600 Evaluation Module User's guide

Chapter 3

I do all the steps from 3.1 to 3.7, and then

After Step 3.8, I do the following

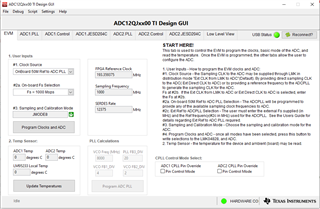

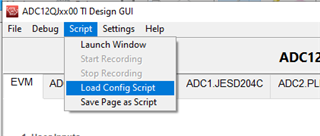

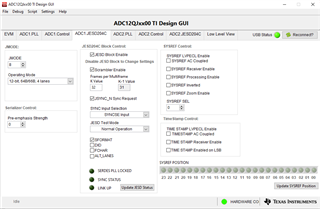

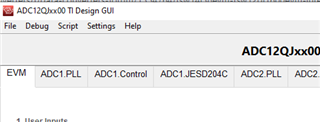

Step 1.In the GUI Menu

2.  Select Script

3.Load Config Script

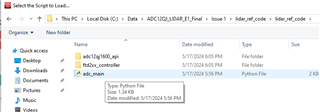

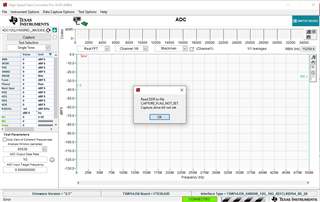

selected the file you sent and

I get the following error

Is this the right way of loading the python file you sent ?

Thanks

Madhu

Hello Madhu,

It is a Python file please run as you would any other Python file, you can use the command prompt or and IDE such as vs code. It is not built to run off the gui.

the correct procedure would be to program the adc first with the python file and then follow the user guide steps to setup the tsw capture card.

best,

Eric

Eric,

Right now, my computer is not setup for all this. Is there a easy way to setup python shell and run this script.

Thanks

Madhu

PS C:\Data\ADC12QJ_LIDAR_E1_Final\Issue 1\lidar_ref_code\lidar_ref_code> python .\adc_main.py
FTDI Error, Cannot open Serial FT4HO0AHA
Error: Device not found. Returned : 2, Check the deivce is plugged in, turned on and the serial number is correct in the script

Eric,

Can you please send me a email directly where I can share my phone number, so we can discuss.

Thanks

MAdhu

Hi Geoff,

Thank you for your response. I did update the serial number in the adc_main.py file.

>>import adc12qj1600_api
>>from ftd2xx_controller import ftd2xxController as ftd

>>jmode = 8
>>sampling_frequnecy = 1000e6
>>adc_ref_clock = 50e6
>>serial_number = "FT57RSZQ"

Hi Eric,

Again I followed the same process

Chapter 3

I do all the steps from 3.1 to 3.8, and then

Step 3.9

Instead of opening the TSW12QJ1600EVM GUI, I programmed the using Windows Powershell updated the ADC board by running adc_main.py file.

I did not use or open TSW12QJ1600EVM GUI  at all. Skipped Step 3.10,

Continued with 3.11 and 3.12.

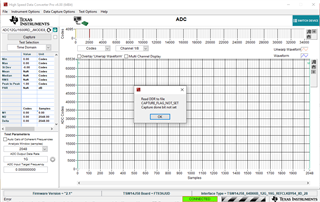

I still get the same error....

Are we doing anything wrong ?

Thank you for all your support, but our main purpose of buying and using these eval boards is the following features:

REDUCE our design time, but it is taking longer than expected.

We have a big list of things to do on this board once we start capturing the data.

we are not sure what all we are going encounter during those steps, so timely response and resolution is greatly appreciated.

Also, we are still surprised why do we need to load different configuration file on our board if these eval boards worked for other customers. Are you asking me to load these new configuration files to debug our board?

We thought these eval boards which are suppose to work right out of the box, then why our board is having these issues ? Is there a setup issue on our end? A simple phone support can resolve these kind of  issues.

We are running out of time. This is taking weeks to resolve, Why can't we get a phone support to resolve this issue?

Please let me know if you have any questions or concerns.

Thanks

Madhu

Madhu,

Eric will setup a time for a call.  In the interim, please try the following

Please uninstall HSDC Pro 6 and install 5.2 from the link below

https://www.ti.com/tool/download/DATACONVERTERPRO-SW/01.00.00.0W

Regards,

Geoff

Hi Eric, and Geoff,

Thank you for the phone support. It definitely helped. I wish we continued talking to sort and clarify few more questions.

Anyway, as I mentioned in our phone conversation and in my previous emails about TSW14J58 Board Revision is not same as the schematics I have. Can you please send the right version of the schematics and ASY file?

Do you want me to continue using 5.2 GUI or 6.0 Pro GUI ?

Do you want me to use command line or GUI version for ADC configuration ?

Thanks

Madhu

Hi Geoff,

Thank you so much for all the support and help.

I will close the post as soon as you or Eric send me the latest Schematics and ASY files for TSW14J58EVM DC182_A10 version with S/N: 8362400014.

Thanks

Madhu
