ADC12DJ5200RFEVM: Error message on HSDC pro

ttd

Part Number: ADC12DJ5200RFEVM
Other Parts Discussed in Thread: TSW14J57EVM, , ADC12DJ3200, TSW14J58EVM, ADC12DJ5200RF

Tool/software:

Dear Technical Supprot team,

About ADC12DJ5200RFEVM + TSW14J57EVM related to previsous post.

ADC12DJ5200RFEVM: ADC GUI script for ADC12DJ5200RFEVM - Data converters forum - Data converters - TI E2E support forums

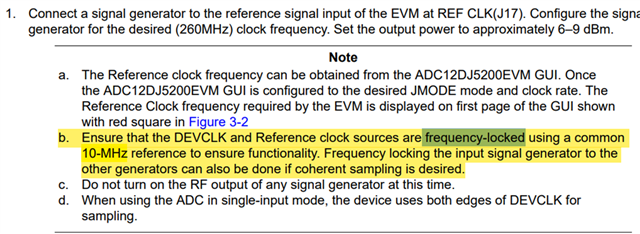

Clock setting is External mode(default).

When click the Capture botton, show following and doesn't show waveform on HSDC pro GUI.

Do you know the reason why this message show?

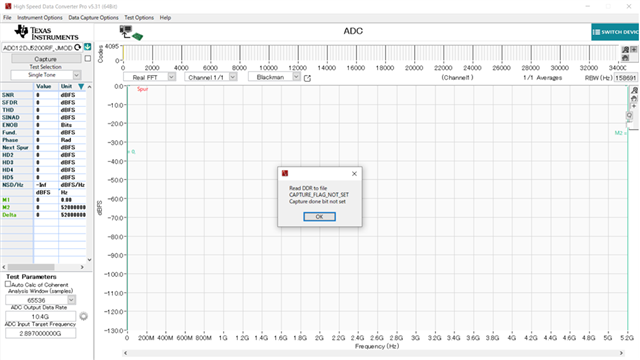

Read DDR to file CAPTURE_FLAG_NOT_SET Capture done bit not set

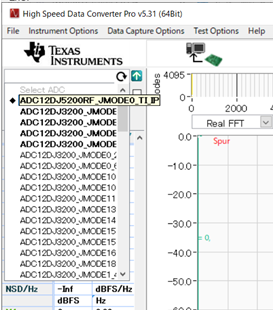

Is it correct to select "JMODE0" for ADC on HSDC pro GUI?

There is not JMODE1 on the list of GUI.

Best Regards,

ttd

3 months ago

0 Eric Kleckner 3 months ago

TI__Expert 6150 points

Hello ttd,

Can you please check that you are giving the correct sampling clock and reference clock to the ADC evm and that they are both reference locked

Thanks,

Eric

0 ttd 3 months ago in reply to Eric Kleckner

Mastermind 8600 points

Hi Eric,

Thank you for your reply.

I tried to set frequency-locked with 10MHz, but appeared same message at GUI.

I'd like to know work around of this message to get correct waveform at GUI(HSDC pro).

Best Regards,

ttd

0 Rob Reeder 3 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

I am not sure that ini file is correct for JMODE0. It says ......JMODE0_TI_IP.

Please use "ADC12DJxx00_JMODE0" instead and let us know what you find.

Regards,

Rob

0 Rob Reeder 3 months ago in reply to Rob Reeder

TI__Mastermind 38690 points

correction: select "ADC12DJxx00RF_JMODE0", my bad.

0 ttd 3 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

Thank you for your reply.

I selected ADC12DJ3200_JMODE0_4G_6G and was able to capture it.

There are other ADC12DJ3200_JMODE0_ as below, which one should I select?

ADC12DJ3200_JMODE0_3G_4G
ADC12DJ3200_JMODE0_6G_6pG

But since the devices are different, are these inherently different settings?

Correct setting is "ADC12DJxx00RF_JMODE0" you said, however I didn't find it on GUI(ver 5.31).

Best Regards,

ttd

0 Rob Reeder 3 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

Please use HSDCPro v5.2 to use "ADC12DJxx00RF_JMODE0". This is also available on the web.

Sorry for the confusion, we are in the middle of cleaning all this up.

Regards,

Rob

0 ttd 3 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

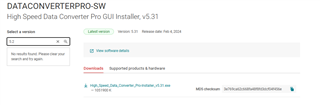

I could't find v5.2 on TI web.

Could you share it on this E2E?

DATACONVERTERPRO-SW GUI for evaluation module (EVM) | TI.com

Best Regards,

ttd

0 ttd 3 months ago in reply to ttd

Mastermind 8600 points

Hi Rob,

Do you have any update so far.
I'd like to get HSDC v5.2.

Best Regards,

ttd

0 Rob Reeder 3 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

It is there on the web, click on both downloads please to find.

Regards,

Rob

0 ttd 3 months ago in reply to Rob Reeder

Mastermind 8600 points

There is no 5.2 ver exe file like this. only 5.31.

0 Rob Reeder 3 months ago in reply to ttd

TI__Mastermind 38690 points

Not sure what happened. We are updating alot of webpages.

Please use this link, it will expire soon.

https://tidrive.ext.ti.com/u/l1yKaafcilWFXIpm/d46d4d54-a4eb-4892-a72f-f6f36237789c?l

access code: 28bRu^w7

Thx,

Rob

0 ttd 3 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

Thank you for updating the installer.

I can choose "ADC12DJxx00RF_JMODE0".

I was able to acquire waveforms in Single Channel, but JMODE of Dual Channel is not displayed and I cannot acquire.
I would like to acquire waveforms with JMODE 2 or 3, preferably 30.
Is there any way to solve this problem?

Best Regards,

ttd

0 Rob Reeder 3 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

When you changed the JMODE to 3 did you change the reference frequency to the FPGA?

Regards,

Rob

0 ttd 3 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

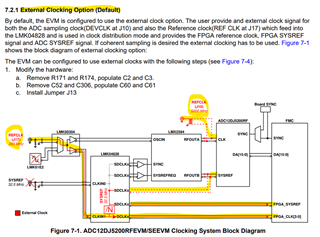

I use "External Clocking Options(Default)" . Should I change the clock setting for ADC GUI or HSDC GUI?

If so, could you attach the GUI what I should change?

On the ADC GUI, I can set the Dual-Channel by changing the JMODE setting,
but HSDC can't appear Dual-Channel JMODE in the list, so it cannot be set.
The Channel switching tab is 1/1 on HSDC, so I can only select 1Channel.

Best Regarsd,

ttd

0 Rob Reeder 3 months ago in reply to ttd

TI__Mastermind 38690 points

TTD,

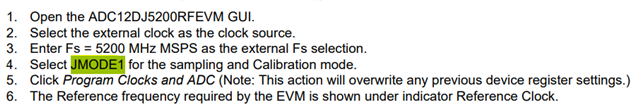

Please use ext clocking/default. You can choose JMODE1 (single channel) or JMODE3 (dual channel). Turns out the FPGA ref clock is the same, 260MHz.

This is selected on the ADC GUI in the drop down list.

Then reprogram the ADC after the JM is selected.

Next, you choose the JM on the HSDCPro, or JM3.

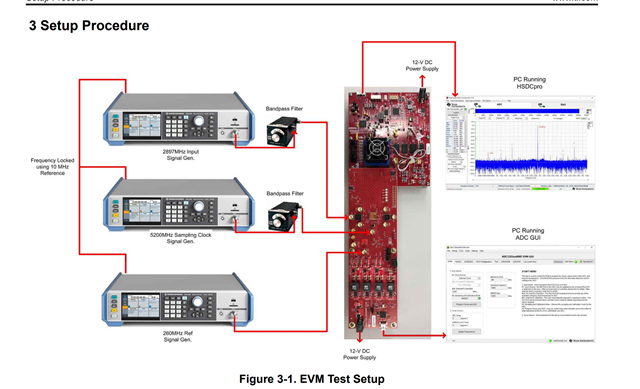

Your EVM setup should look as follows. Is this what you have?

Thanks,

Rob

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

The only JMODE3 that can be selected in HSDC v5.2 is
ADC12DJ3200_JMODE3_2G_3G or
ADC12DJ3200_JMODE3_3G_3p2G
.
This will only work with sampling rates up to 3G.
How can I confirm that it works at 5G?

Best Regards,

ttd

0 Rob Reeder 2 months ago in reply to ttd

TI__Mastermind 38690 points

TTD, please use the correct ini files. These ar the DJ3200, not the DJ5200RF.

Regards,

Rob

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

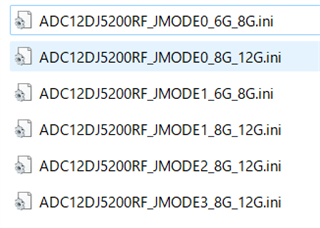

I see a following folder on v5.2 and it seems not to have a JMODE3 file.

C:\Program Files (x86)\Texas Instruments\High Speed Data Converter Pro v5.2\14J58 Details\ADC files

C:\Program Files (x86)\Texas Instruments\High Speed Data Converter Pro v5.2\14J58 Details\ADC files\Configuration Script

According to previous post, Neeraj provided ini files.

e2e.ti.com/.../ADC12DJ5200RF_5F00_TSW14J58.zip

ADC12DJ5200RFEVM: JMODEs with HSDC Pro, ADC12DJ5200RFEVM & TSW14J58EVM - Data converters forum - Data converters - TI E2E support forums

Could you provide latest and suitable ini file for 5G?

My TSW1458EVM has "DC182_A10". I think it means REV A(Version 10)

Best Regards,

ttd

0 ttd 2 months ago in reply to ttd

Mastermind 8600 points

Hi Rob,

Do you have any update so far?

I guess that I need to add patch(.ini) for requred JMODE.

Previous post provide ini files for REV-A7 you confirmed TSW14J58EVM revision.

Can I use this ini files for "DC182_A10" as well for HSDC pro v5.2?

This is other previsous post.

TSW14J58EVM: High Speed Data Converter Pro v5.20 does not support ADC12DJ5200 JMODE1. It supports only 4 JModes. - Data converters forum - Data converters - TI E2E support forums

Regards,

ttd

0 Rob Reeder 2 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

This is the first time the J58 data capture board was mentioned. The post says J57.

Anyway, if you plan to use the J58, let me set this up tomorrow in the lab and I'll confirm my findings.

You are planning to use JMODE 3, correct?

Thanks,

Rob

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

Thank you for supporting us.

Sorry for not sharing my configuration detail about TSW.

Again, my settings and required JMODE is following.

■My ADC + TSW

ADC12DJ5200RFEVM + TSW14J58EVM(DC182_A10)

■HSDC Pro

v5.2 (At first, I used latest version (v5.31), but down version as your advices)

■Required JMODE

JMODE0 ( As your advice, I use HSDCPro v5.2 to use "ADC12DJxx00RF_JMODE0 )

JMODE2

JMODE3

JMODE30 (if possible)

Best Regards,

ttd

0 Rob Reeder 2 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

Thank you for the details, I will look into this.

Please give me a few days to respond back.

Thanks,

Rob

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

Thank you for your cooperation.

I will still need JMODE 30, so please provide this as well.

JMODE0 ( As your advice, I use HSDCPro v5.2 to use "ADC12DJxx00RF_JMODE0 )

JMODE2

JMODE3

JMODE30

Best Regards,

ttd

0 Rob Reeder 2 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

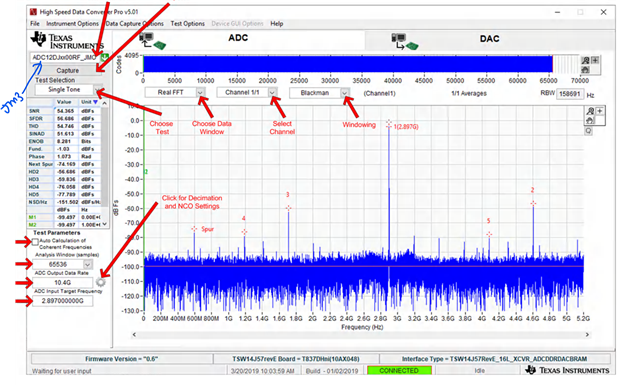

I was able to get JMODE30 to work with the J58, HSDCPro v5.2.

See pic below.

I set it up as normal.

I was not able to get the other JMODEs to work on either HSDCPro with the J58.

I will ask internally if these JMODEs are something we can support on this platform.

I know you can do those JMODEs with a J57.

Regards,

Rob

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

v5.2 has follwoing ini file. Is this the same file you evaluated?

ADC12DJ5200RF_JMODE30.ini

I tried to attach the ADC12DJ5200RF_JMODE3_8G_12G.ini. It seems to work with J58.

e2e.ti.com/.../6403.ADC12DJ5200RF_5F00_TSW14J58.zip

TSW14J58EVM: High Speed Data Converter Pro v5.20 does not support ADC12DJ5200 JMODE1. It supports only 4 JModes. - Data converters forum - Data converters - TI E2E support forums

Best Regards,

ttd

0 ttd 2 months ago in reply to ttd

Mastermind 8600 points

Hi Rob,

I can see ADC12DJ5200RF_JMODE30 at v5.2 and can set JMODE30.

Sorry for my misunderstanding.

In addition, I'd like to JMODE31.

Current status I can set on v5.2 is following.

JMODE0 　←〇　ADC12DJxx00RF_JMODE0

JMODE2 　←〇　ADC12DJ5200RF_JMODE2_8G_12G(add patch file of ADC12DJ5200RF_JMODE2_8G_12G.ini on E2E )

JMODE3　←〇　ADC12DJ5200RF_JMODE3_8G_12G(add patch file of ADC12DJ5200RF_JMODE3_8G_12G.ini on E2E )

JMODE30 　←〇　ADC12DJ5200RF_JMODE30

JMODE31 　←×

Best Regards,

ttd

0 Rob Reeder 2 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

Make a copy of the JMODE30.ini file. Rename it JMODE31 and inside the file, simply change M = 2 and S = 20.

I verified this works.

Regards,

Rob

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

I tried it, and it seems to work in single channel.
If I rewrite JMODE30 ini file, can it work in Dual Channel?
I tried changing Number of channel=2, but it did not work in dual Channel.

Could you send your ini file?

Best Regards,

ttd

0 Rob Reeder 2 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

Please see attached.

Insert this file in the this path and restart HSDCPro v5.2

C:\Program Files (x86)\Texas Instruments\High Speed Data Converter Pro-V5p20\14J58 Details\ADC files

Thanks,

Rob

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/73/6180.ADC12DJ5200RF_5F00_JMODE31.ini

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

Thank you for attaching ini file.

It seems to be changed only M = 2 and S = 20 from JMODE30 to JMODE31.

Can you see this ini file works in dual channel?

Best Regards,

ttd

0 Rob Reeder 2 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

Yes, I verified this. It works.

Regards,

Rob

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

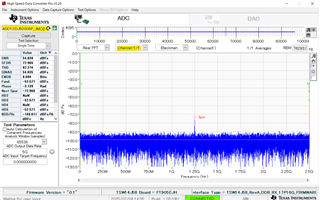

I tried to set your JMODE31 ini file, however it seems to be single channel on HSDC pro v5.2(Channel 1/1).

See attached images. If I need to change settings, please let me know.

Best Regards,

ttd

0 Rob Reeder 2 months ago in reply to ttd

TI__Mastermind 38690 points

Hi TTD,

Please see attached JMODE31.ini file.

I had to make a few more updates in order for the data to show on CHB.

Please check it out.

Thanks,

Rob

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/73/7345.ADC12DJ5200RF_5F00_JMODE31.ini

0 ttd 2 months ago in reply to Rob Reeder

Mastermind 8600 points

Hi Rob,

Thank you for attaching ini file.

I can see JMODE31 correctly.

Best Regards,

ttd
