ADS1299: Ads1299 Trying to take data from a single electrode

Hi Winston,

Thanks for your post!

Can you elaborate?
What is your input signal and what are you expecting to see on the output?
What isn't good about it?

Hi
I'm working with EEG using the FP1 electrode from 10/20 system at ch8 positive pin and the reference electrode to the ear.
I'm trying to see alpha and beta waves.
Thanks for your help

Hi Winston,

What isn't good about the reading that you're currently getting?

I didn't see a difference between take data with closed eyes (it's supposed to be alpha waves) and take data with opened eyes and mental activity (beta). I do the FFT with Matlab and I do not see a real difference there either.

Hi Winston,

This sounds like a software issue, not the ADS1299.

Is there something that you would like help with in regards to the ADS1299?

Hi,

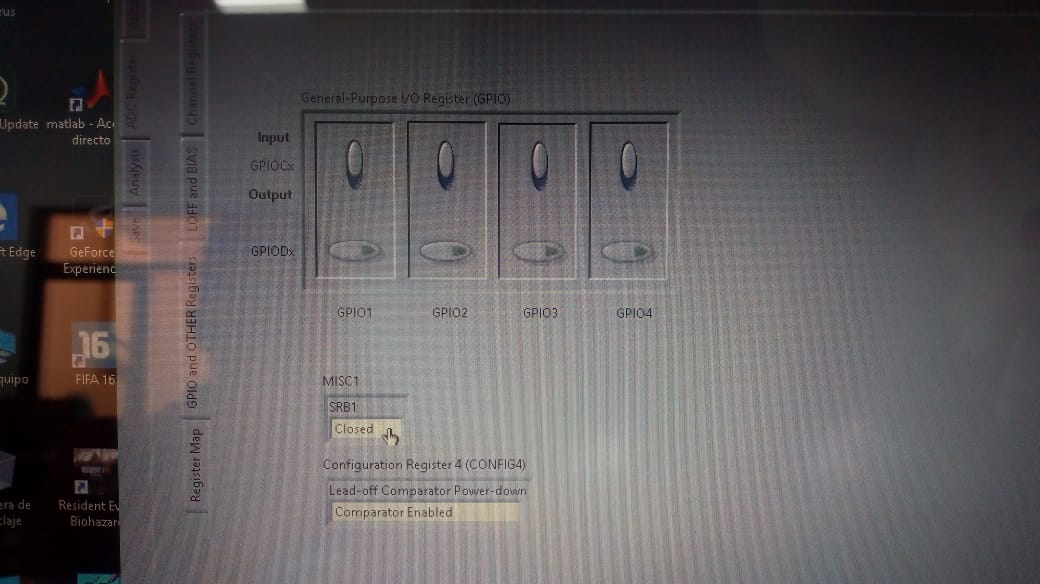

I'm trying to capture alpha and beta waves but I do not know if I'm really capturing those waves with ads1299 or I'm just seeing noise. I already applied the filters of the ads1299 software to the signal seen in the image I uploaded.

Try applying a known input signal like a 100mV, 1kHz sine wave to the input to make sure that the ADS1299 is configured correctly.
Try adjusting the gain settings so that you get a more substantial reading.

This post e2e.ti.com/.../379380 may help for taking advantage of the full-scale range of the ADC.

Hi, I did what you told me and the card received the signal well so I guess it's working fine, thanks
