DAC38RF80EVM: Phase Noise measurements

porat yifrah

Prodigy 150 points

Part Number: DAC38RF80EVM

Hi All,

Does anyone have Phase Noise measurements on DAC38RF80EVM?

Priority to input 5200GHz , Output 850Mhz.

Thanks

Porat.

over 6 years ago

0 jim s over 6 years ago

TI__Guru* 91947 points

Porat,

I have attached what data we have available.

Regards,

Jim

2364.DAC38RF8x_PhaseNoise_Measurements.pdf

0 Nir Flysher over 6 years ago in reply to jim s

TI__Expert 3367 points

Hi Jim,
Customer would like to understand what is the phase noise floor of the DAC.
From the measurements you've attached it seems like if a better source than SMA100A will be used - a better phase noise can be achieved.
Any chance anyone on the team can repeat these measurements with SMA100B ?
f_dac=5120MHz ; f_data=320Msps ; int x16 ; fout=150-1000MHz ?

Regards,
Nir

0 jim s over 6 years ago in reply to Nir Flysher

TI__Guru* 91947 points

Nir,

We will try to do this on Monday if the analyzer is available.

Regards,

Jim

0 jim s over 6 years ago in reply to jim s

TI__Guru* 91947 points

Nir,

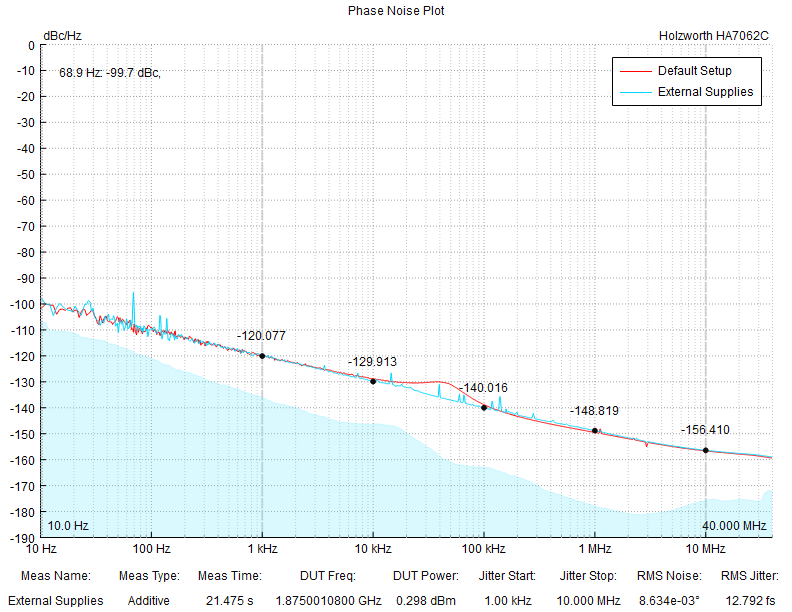

Data attached using a SMA100B and a Agilent E5052A signal source analyzer.

Regards,

Jim

Phase Noise Plots.zip
