Part Number: ADC12DJ3200

Hello evry body

I have a problem about adc12dj3200 evm on kcu105.

I carry out step by step instruction of 'kcu105 adc12djxx00 jesd reffrence design user gide.pdf' document.

In step open Enhance COM PORT, port is opened but when send '0' for opened main menu is not execute.

When send '0' is not happened any thing.

over 5 years ago

0 Neeraj Gill over 5 years ago

TI__Mastermind 20541 points

Hi Saeed,

We are looking at the issue and will get back to you soon.

Regards,

Neeraj

0 Saeed ds over 5 years ago in reply to Neeraj Gill

Prodigy 60 points

Thanks a lot

For more explanation

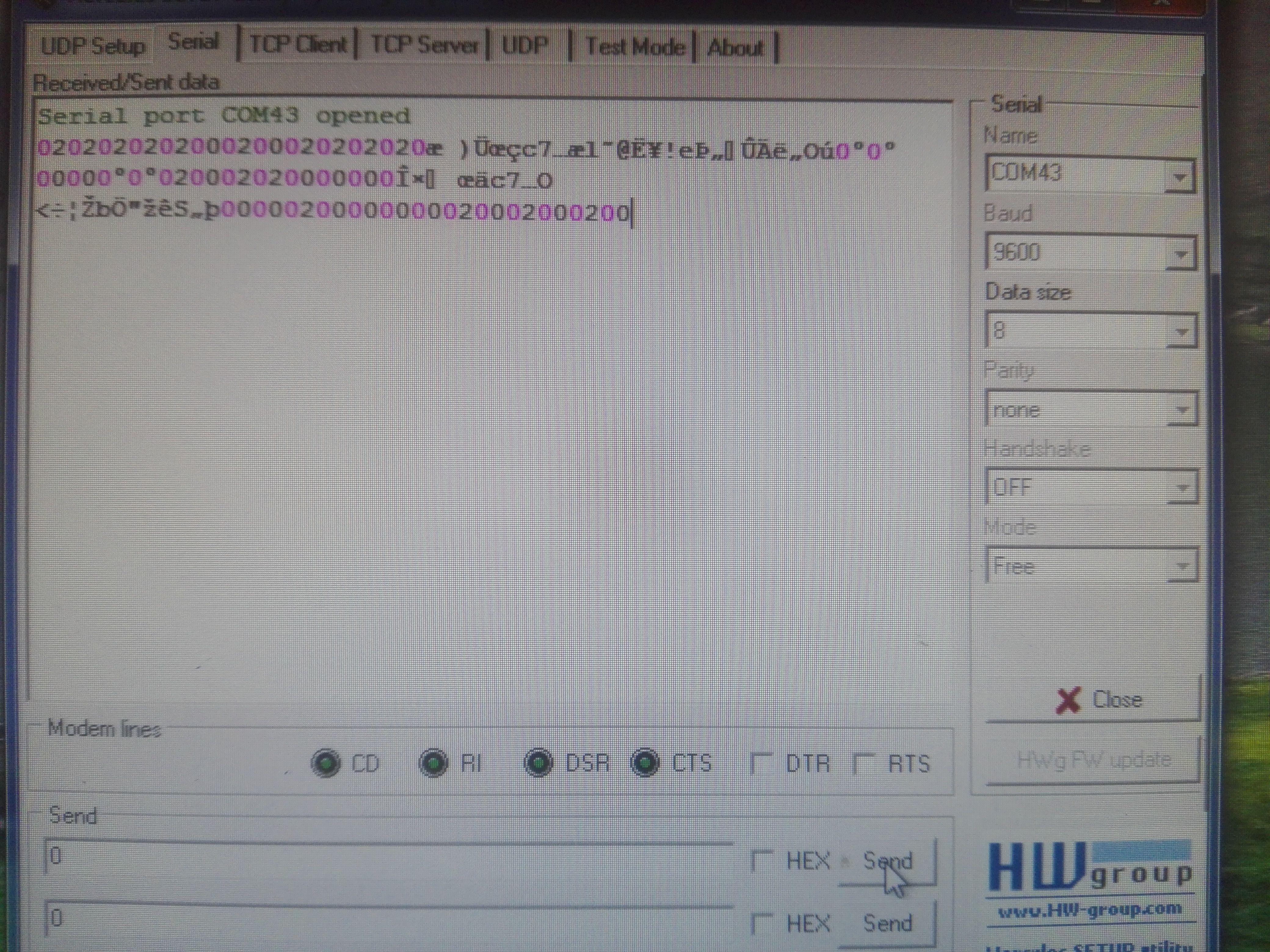

when sended several time '0' appear unintelligible message.

I run Hdl project by vivado 18.2

This result after send several time '0'

0 Saeed ds over 5 years ago in reply to Saeed ds

Prodigy 60 points

there is not any solution?

0 Neeraj Gill over 5 years ago in reply to Saeed ds

TI__Mastermind 20541 points

Hi Saeed,

I am trying to locate the hardware to do the testing. I will get back to you by end of next week.

Regards,

Neeraj

0 Saeed ds over 5 years ago in reply to Neeraj Gill

Prodigy 60 points

Thank you

0 Neeraj Gill over 5 years ago in reply to Saeed ds

TI__Mastermind 20541 points

Hi Saeed,

Did you make sure UART driver are installed properly on your pc. You will need to make sure the Jumper J27 is installed.

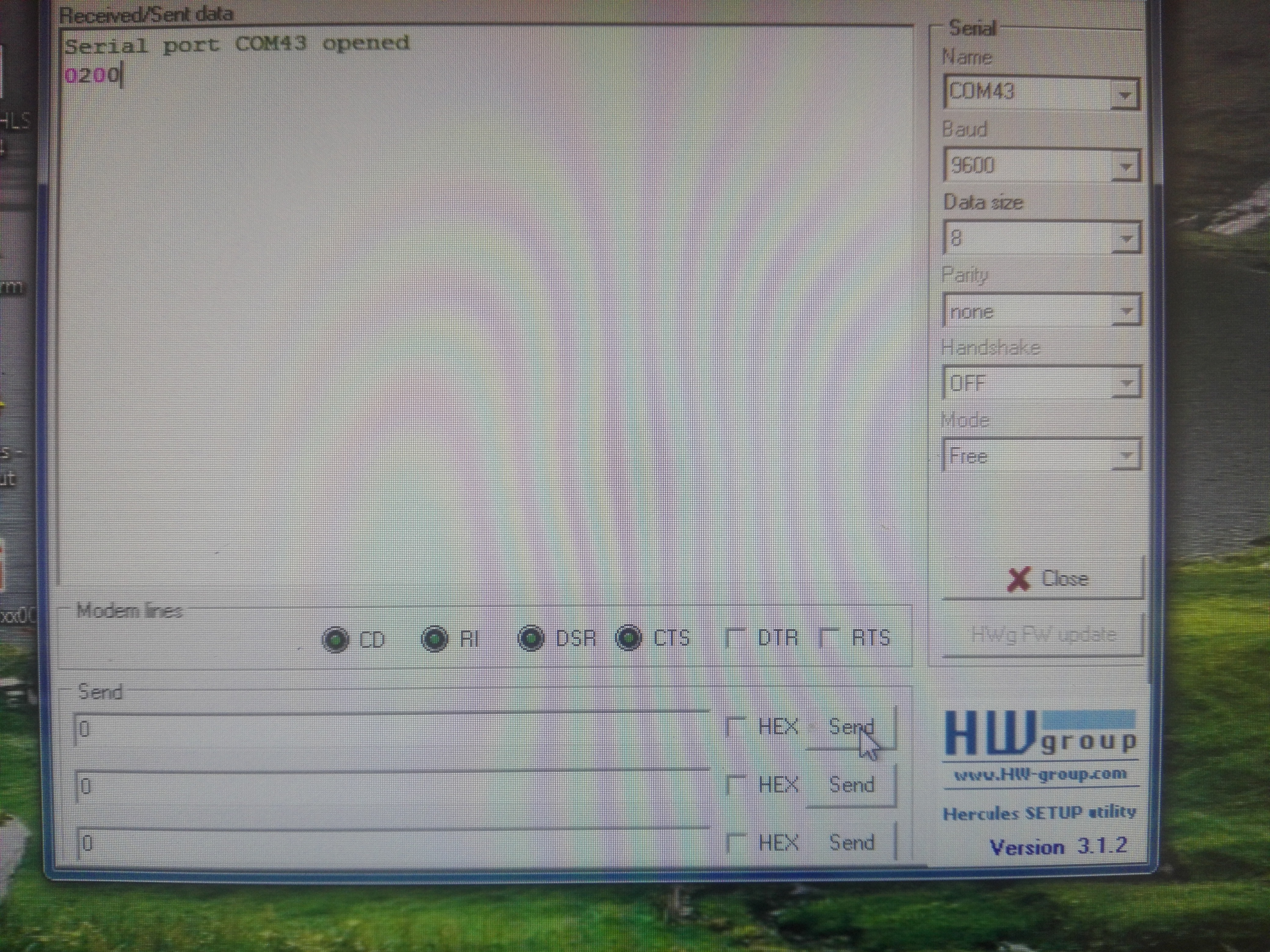

Also you will need to open the enhanced com-port. and make sure the setting are as shown in the attached fig below.

Typing "0" display the setting shown on the figure above. you will need to go the "Adjust FPGA Mezzanine Card (FMC) Settings". by typing 4. and typing 4 again set the voltage to 1.8V.

0 Saeed ds over 5 years ago in reply to Neeraj Gill

Prodigy 60 points

hi Neeraj

in the document said baud rate setting to 9600!!!!!

0 Saeed ds over 5 years ago in reply to Neeraj Gill

Prodigy 60 points

I will try to adjust and test again

thank you
