DLPNIRNANOEVM: Chassis Assembly - Fiber Input Module

Christopher Swab

Part Number: DLPNIRNANOEVM

Hello,

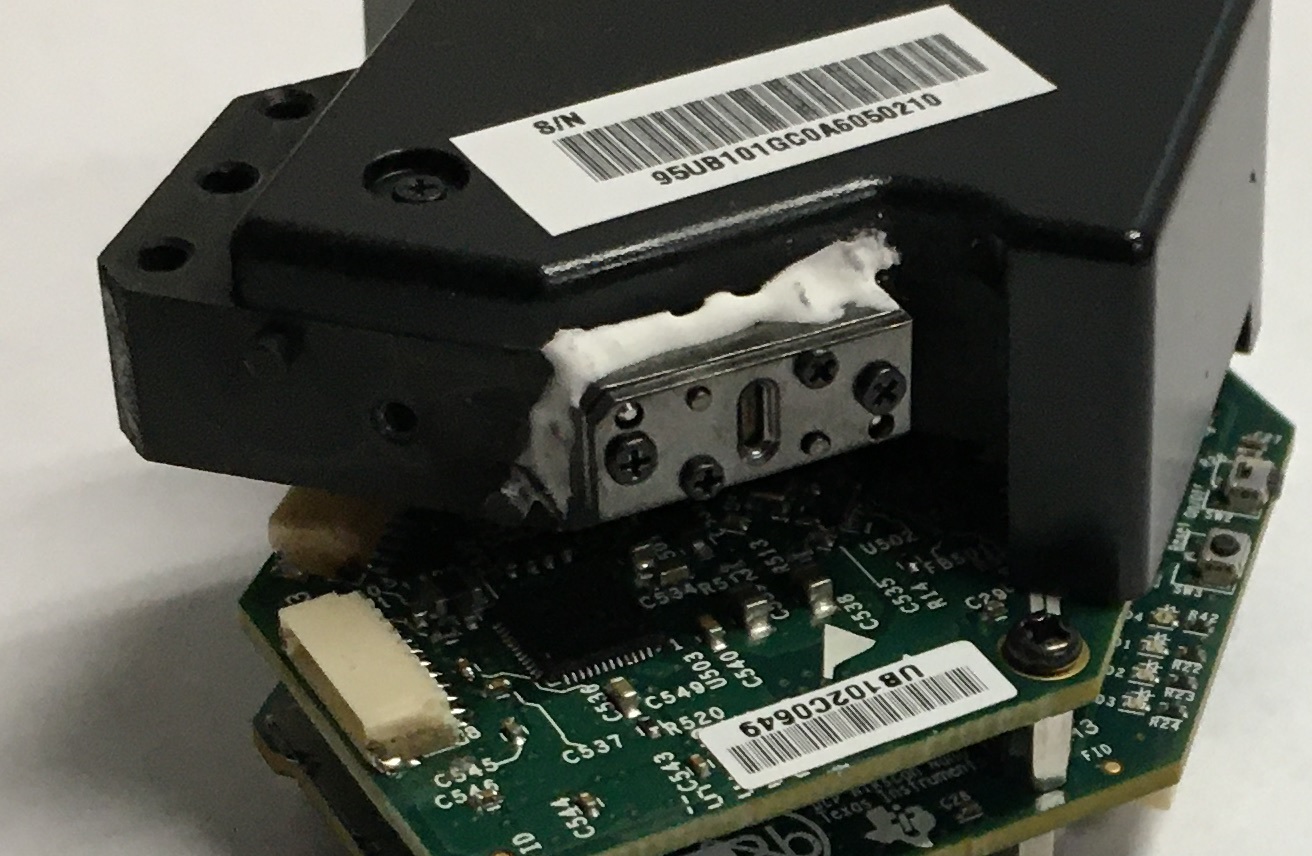

I'm trying to attach a fiber input module chassis assembly (part #2513928) to a NIRscan Nano evaluation module (DLPNIRNANOEVM), and an excessive amount of white cement anchoring the slit plate on the module (see the attached photo) is interfering with alignment, causing the assembly to rock and not fit precisely. The chassis was machined by MillTech (a supplier recommended by TI) from TI design drawings, so it is not an issue with machining. I'm assuming that misalignment will be a major issue, and am writing to ask if scraping away excess cement is an option, or would this void warranty, cause damage from static electric charge, or some other problem? If scraping away cement is not a viable option, would I be able to return the module for one with less excess cement?

Thank you, Chris

over 4 years ago

0 Philippe Dollo over 4 years ago

TI__Mastermind 28005 points

Chris,

Has MillTech provided a recommendation on how to fit the chassis with their machined part?

Regards,

Philippe Dollo

0 Christopher Swab over 4 years ago in reply to Philippe Dollo

Intellectual 270 points

Hi Philippe,

Thanks for getting back to me. There is no recommendation from MillTech, as attaching the chassis to the spectrometer is straightforward. As an F.Y.I, the chassis that MillTech sent me is an over-run from a TI order. Please see the attached files, which show:

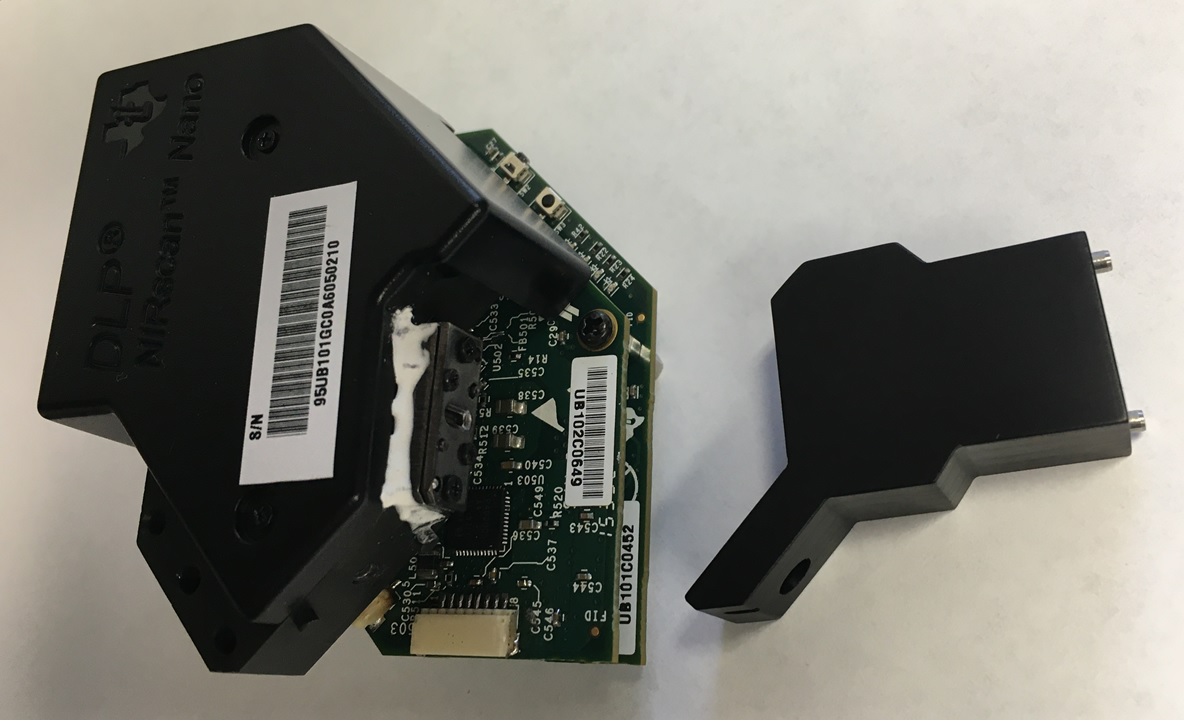

A. spectrometer and chassis side-by-side

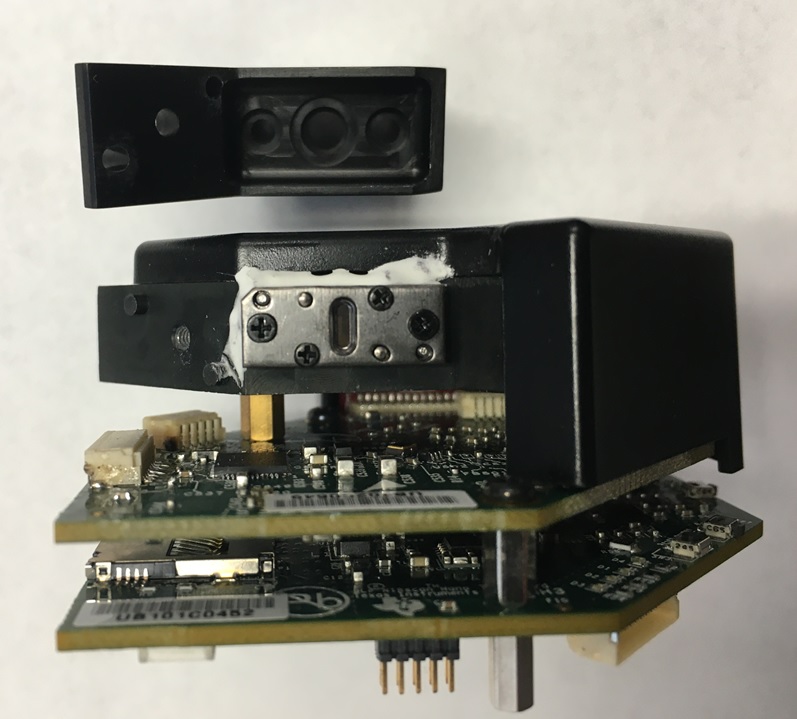

B. "Head-on" view of spectrometer alongside chassis, showing the side of the chassis that connects to the spectrometer.

C. Side-by-side comparison of the lamp assembly and the chassis. The lamp assembly may have a slightly larger opening than the chassis, which allowed for a snug fit. However, I am 100% sure that the chassis would fit perfectly if there wasn't excess cement.

2513886-A.PDF: Chassis assembly design drawing

2513928.PDF: Chassis design drawing.

Any help you can provide is appreciated,

Chris

2870.2513886-A.PDF 2513928.PDF

0 Mayank Khandelwal over 4 years ago in reply to Christopher Swab

TI__Genius 9971 points

Hi Chris,

Our team has agreed for the replacement of the module as removing the excess white cement can be risky. I have sent you friend request, kindly accept it and I will let you know the procedure for the replacement.

Regards,

Mayank

0 Christopher Swab over 4 years ago in reply to Mayank Khandelwal

Intellectual 270 points

Hello Mayank,

Thank you for your kind offer of accepting a return. However, one small issue has come up, I accidentally broke plastic pins off inside two of the three standoffs at the bottom of the unit. I am attaching a photo in which you can see the white plastic inside the standoffs (denoted by red arrows). No damage occurred to the module since the pins broke off while the standoffs were removed. I was attempting to create "feet" for the module in order to anchor it inside a black box - for our analysis, neither the module nor any cables can move while samples are being scanned. Otherwise I've done nothing to the module except remove the lamp housing and lightly screw the fiber-optic chassis to the module (in order to protect the opening to the collimating lenses). Is this a deal-breaker on the return?

Sincerely,

Chris

0 Mayank Khandelwal over 4 years ago in reply to Christopher Swab

TI__Genius 9971 points

Hi Chris,

I am still not sure which pins are you talking about. There are no plastic pins attached to the 3 standoffs in EVMs which I have with me and hence the confusion.

Can you also verify the functionality of the EVM to make sure that there is no damage in the working of the EVM.

Regards,

Mayank

0 Christopher Swab over 4 years ago in reply to Mayank Khandelwal

Intellectual 270 points

Mayank,

The EVM is functional - there is no damage to it. I bought the plastic pins separately. Apologies for the confusion, but I wanted to alert you that the two standoffs will have to be replaced on the returned unit.

Chris

0 Vivek Thakur over 4 years ago in reply to Christopher Swab

TI__Mastermind 22830 points

Thanks.

regards,

Vivek

0 Christopher Swab over 4 years ago in reply to Mayank Khandelwal

Intellectual 270 points

Hello -

For several weeks I've been navigating TI forums and forms, and have been in contact with technical staff and customer service people, and have not been able to complete the process for the agreed-upon return of the DLPNIRNANOEVM.

Support forum thread here: https://e2e.ti.com/user/conversations#ConversationID=e99353a2-ba00-4200-8831-63cb9e3a3efd

Customer support thread here: https://ticsc.service-now.com/csm?id=csm_ticket&table=sn_customerservice_case&sys_id=8fcf86f61beec090d355ca217e4bcba2&view=csp

I would like to know of any outstanding issues holding up the return process, and what the timeline is on the return process.

Thank you

0 Mayank Khandelwal over 4 years ago in reply to Christopher Swab

TI__Genius 9971 points

Hi Christopher,

Apologies for the undue delay in the process. I will discuss about this with the my team and get back to you soon.

Regards,

Mayank

0 Mayank Khandelwal over 4 years ago in reply to Mayank Khandelwal

TI__Genius 9971 points

Christopher,

Did you get an email confirmation after the return request was submitted?

Regards,

Mayank

0 Christopher Swab over 4 years ago in reply to Mayank Khandelwal

Intellectual 270 points

Hello Miyank,

Good to hear from you again. I did indeed receive an email that the return request was submitted. The email arrived on 2/17/2020. Attached please find the summary.

Chris

summary-CPR201036833.pdf
