DS90UB948-Q1: internal Oscillator parameter of 948

Betty Guo

Part Number: DS90UB948-Q1
Other Parts Discussed in Thread: ALP

Hi team,

customer use 948 pattern with internal clock to do test, the panel is 1920*720. they found with the same panel, one 948 will have black issue, but others can display normal.

below is ALP configure:

we want to know what's the internal clock parameters of 948? the Appnote only show it is 140M osc, why these two difference 948 have different result?

can you share more information about this? thank you

over 4 years ago

0 Ben Dattilo over 4 years ago

TI__Mastermind 25765 points

Hi,

Can you link the data sheet for the panel being used? I'll get back to you as soon as possible.

Regards,

Ben

0 Betty Guo over 4 years ago in reply to Ben Dattilo

TI__Expert 7300 points

Hi Ben,

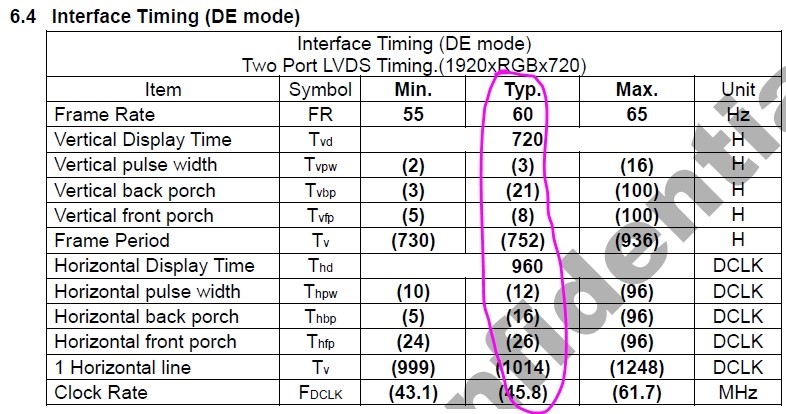

See the below picture. we use typical value and the same panel.

I know the 948 internal OSC only 140MHz, but customer test this with the same panel, some can display normal, some are not. so we want to know what's the 948 internal OSC parameters and spec.

0 Ben Dattilo over 4 years ago in reply to Betty Guo

TI__Mastermind 25765 points

Hi Betty,

When using the pattern generator in the 948, the internal oscillator is typically around 140MHz, however there is variation of that value. The two different devices are likely not actually operating at that 140MHz value.

Here is the pattern generator App Note: https://www.ti.com/lit/an/snla132g/snla132g.pdf?ts=1625156923449&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FDS90UB948-Q1

Regards,

Ben
