TCAN1145EVM: USB2ANY GUI connection failed

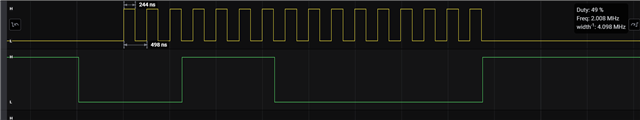

By the way, I tried to write to the Scratch Pad register [0xF] through SPI through J1, but there is no signal out in SDO[always low]. Can you tell what the reason could be? The SPI is set as 2MHZ and the chip select pin is set to low, the INH pin is 12V. Based on my understanding, no matter what the SPI content is, there should be some data out on SDO, is that correct?

Thank you,

Hao

Hao,

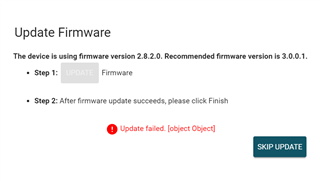

For the GUI update, is there any attempt to update the firmware being made, or does it immediately fail? Also, have you tried skipping the update? Either way, it is troubling that the hardware says disconnected, but I have a feeling once you get past this step it will establish a connection. I believe the 2.8.2.o version of the firmware is valid for this GUI. So first try skipping the update and see if that works.

For the SDO, if there is no interrupts set in the global interrupt register, and no data to be sent back from the TCAN1145, then there is the case where SDO is low the whole time. I would verify the SPI configuration based on the datasheet (specifically the clock polarity), and then try again.

Regards,

Eric Hackett

Hi Eric,

I skipped the update as you say, there is a new error comes out, I tried several times and also use the little icon to reconnect, but it is still the same error.

I measure the pin of TCAN1145, The VSUP is 12V, the VCC is 5V. All the Switch on S7 are set to ON.  After I press the WAKE SWITCH button, the RXD changes from High to Low, the INH changes from low to High. So in this perspective, the TCAN chip is waked up successfully by the WAKE pin, but just does not accept the SPI cmd. What the reason could be? I mean beside set the VBAT, VCC, VIO voltage, is there any other thing like pin/jumper need to be set in order to use the SPI communication?

Thank you,

Hao

Hao,

Since the GUI interacts only with the MSP430 when initializing, the state of the TCAN1145-Q1 shouldn't have any impact. Can you try starting up the GUI without any supplies connected? And what is the state of the J2 connector?

Regards,

Eric Hackett

Eric,

It is the same error with only the mini-USB connected. For J2 I can see the 5V and 3.3V are there.

From the error message, it says "Connected to USB2ANY controller", my understanding is the MSP430 has been recognized successfully by the GUI, but MSP430 report no SPI response from TCAN1145. Am I right?

Thanks,

Hao
