when I used the SN65LVDS93A in my PCB，the product can display image normally.
The test signal image is as follows：

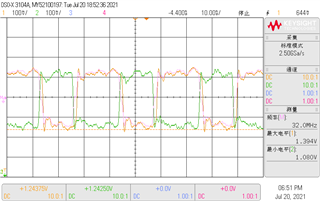

1.A pair of data signals

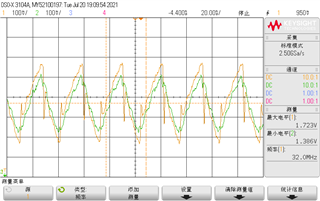

2.clk
The clk starts with a sine wave and then changes into a triangular wave.
what"s the problem?
Test equipment: 1g oscilloscope, passive single ended probe
the display connected, An oscilloscope with a bandwidth of 20g and a differential probe with a bandwidth of 12g.
I measured two sets of data signals and a set of clock signals yesterday.

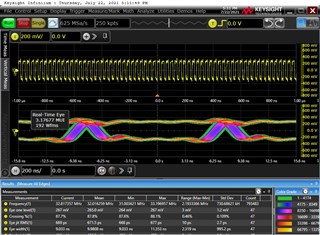

We can see that the first pair of signals is a relatively complete eye diagram, and the last two pairs are not complete.
The picture is as follows:
data1：
data2：
clk：
