SN65DP141: About support Max. trace length for DP141...

Hi,

Can you move the DP141 closer to the board output connector? I would put it 1 or 2 inch from the connector.

Thanks

David

Hi David,

Got it!

But from board input connector to DP141 will be around 4000mil trace, is it OK for DP141 to handle the signal after such a long trace?

Thanks.

Hi,

I am not sure if I understand your question, my recommendation in my previous response is to place the DP141 1or 2in from the eDP connector.

Thanks

David

Hi David,

As my understanding in your reply, place DP141 far from the output connector around 1~2 inches.

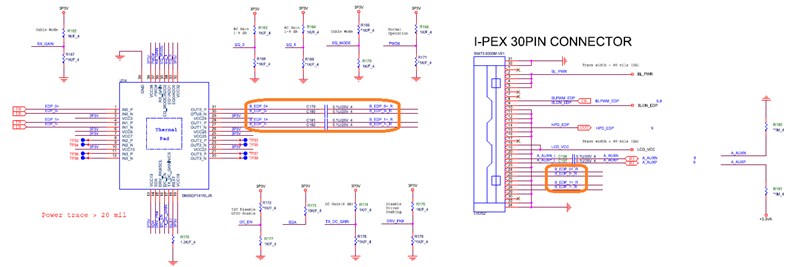

Below is a simple chart about it.

However, how about the Max. trace length from the input connector to DP141?

Is it OK for DP141 since the trace is long!

Thanks.

Hi,

The insertion loss of the trace length between the input connector and the DP141 should not exceed the DP141 RX equalizer 15dB compensation range.

But with this design, do you have control over the cable length on the input and output connector? While the DP141 can compensate the loss between the input connector and the GPU, the GPU and the sink need to compensate for the loss of both the input cable, the output cable, the 1-2 in trace between the DP141 and the output connector, and the loss of the output connector.

Thanks

David

Hi David,

Do you have any idea for most normal cases, how long of the trace will not exceed 15dB?

Thanks.

Hi David,

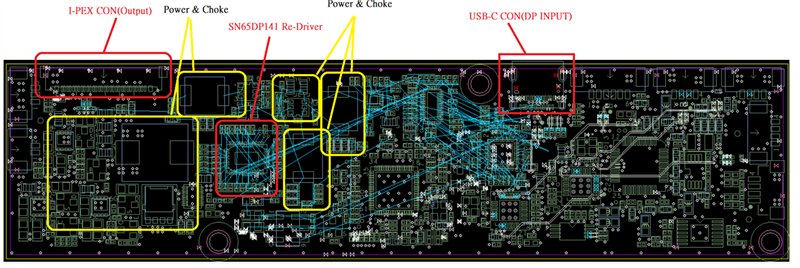

Here is the customer layout placement.

Please help to comment if there is anything that needs to pay attention to.

Thanks.

Hi,

I notice this has a USB-C connector at its input, why not using the TUSB544 or TUS1044 for this design?

Can you please share the actual layout file for review?

Thanks

David

Hi David,

Customer just uses DP141 to handle HDMI signals, not USB data.

I will try to ask for the layout file to customer.

Thanks.

HI,

For USB-C, you need to use the TUSB544 or TUSB1044.

Thanks

David

Hi David,

Since customer had the concern to post their file in public, may we discuss offline?

Please send a mail to me then I can provide the file to you.

peter.tseng@arrowasia.com

Thanks.
